Stainless Steel Tunnel Oven Bakery Cooling Conveyor Spiral Wire Belts for biscuit harvest food machine wash fruit wood drying
- Category: Conveyors >>>
- Supplier: Anping,County,Comesh,Filter,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

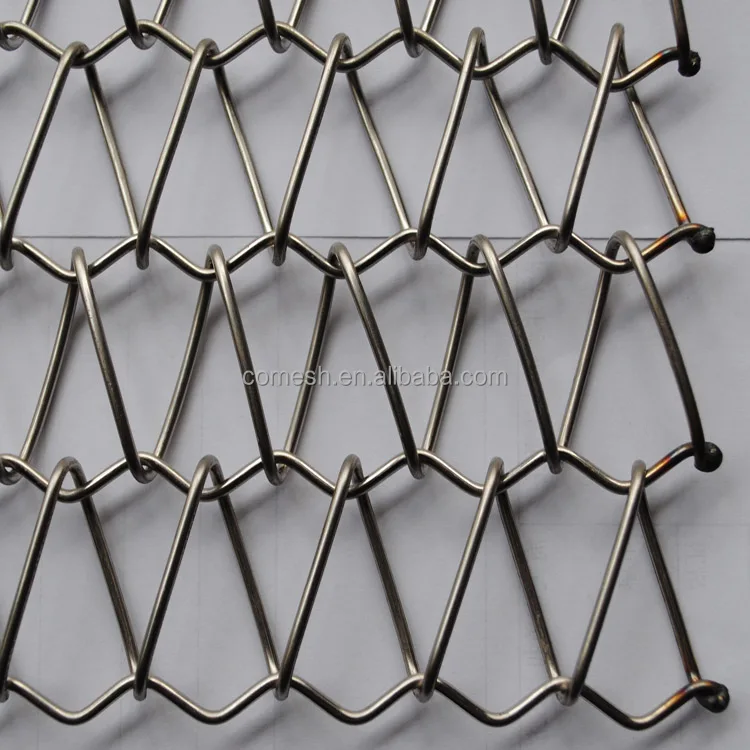

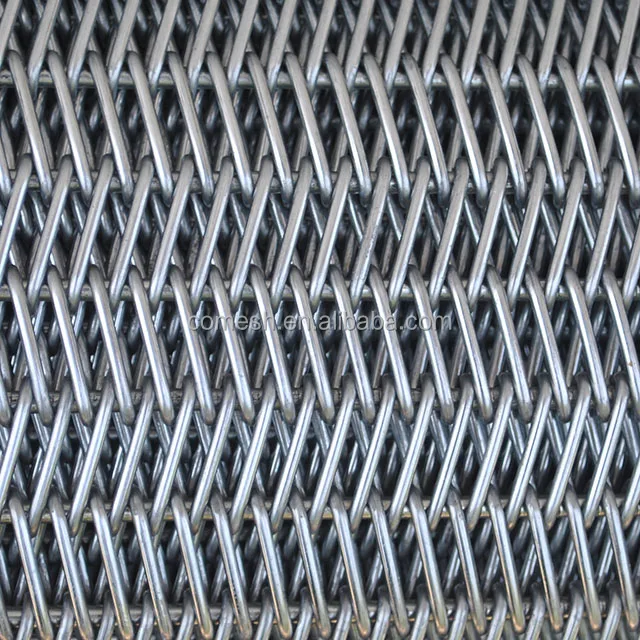

Metal Stainless Steel Chain Link Balance Spiral Wire Conveyor Mesh Belt for containuous quenching furnace oven tunnel dryer
Spiral wire link mesh belts, also referred to as balanced weave belts,Balance weave is an economical, general use belt for medium load applications from 40 - 1500 degrees F. It is the most commonly used wire mesh conveyor belt worldwide including many food processing.Ranging from super strong for conveying heavy loads over large widths or conveying very hot products to very dense weaves for small products, unsorted goods or products requiring stable support applications (from draining to cooling) as well as industries ranging from ceramic, glass and metalworking.
For medium temperature and load conditions, Spiral wire link mesh belts are very economical and will fit well into any company's budgets .
For medium temperature and load conditions, Spiral wire link mesh belts are very economical and will fit well into any company's budgets .
material | stainless steel 304 316 316 L galvanized, steel, chrome steel, mild steel, nickel steel | ||||||
wire diameter | 1.0 mm,1.2 mm, 1.4 mm, 1.6 mm,1.8 mm, 2.0 mm,..... 3.0mm | ||||||
pitch | 3.0 to 30 mm | ||||||
mesh width and length | as per order | ||||||
the following are four types of stainless steel spiral wire mesh belt
1.spiral wire mesh belt without chain

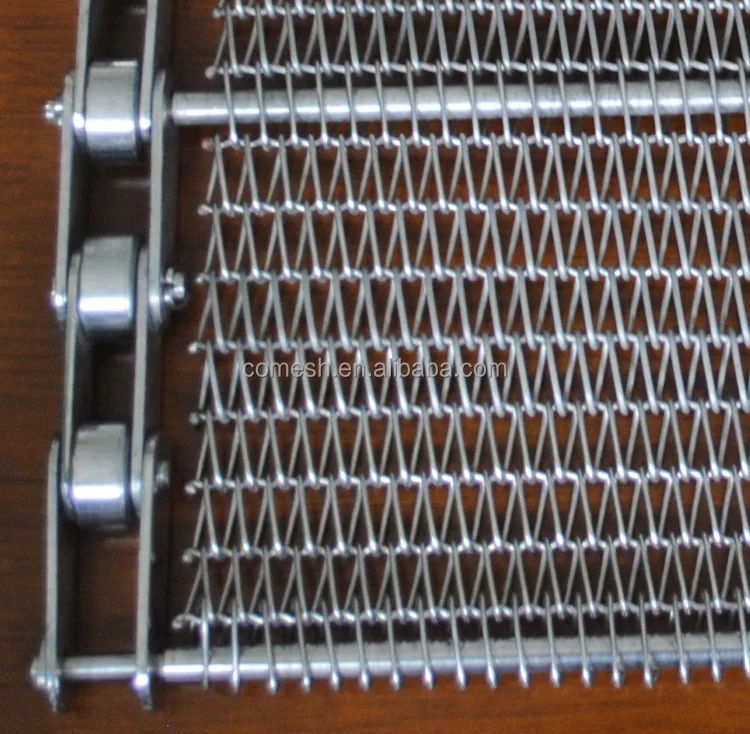

2.spiral wire balance weave wire mesh with chain

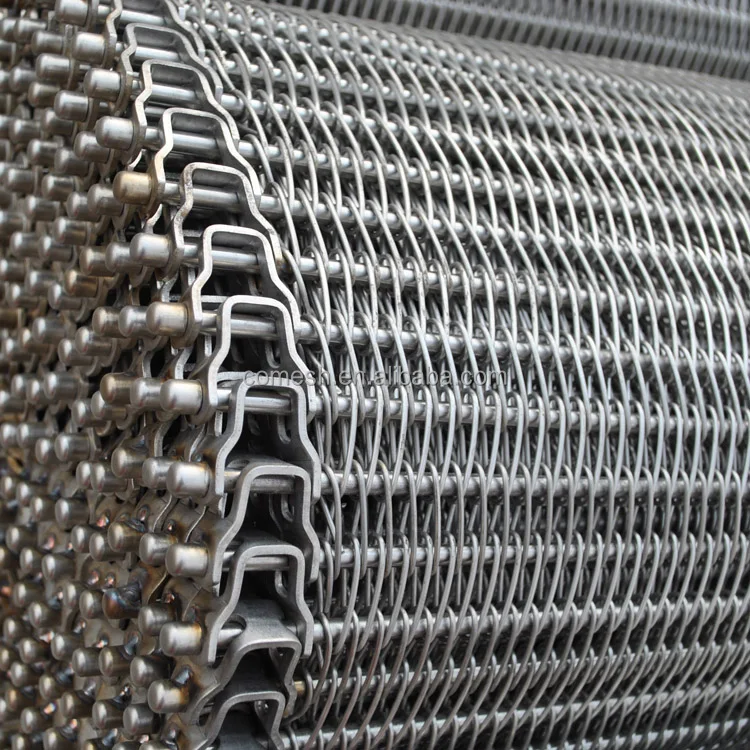

3.spiral wire mesh with U shape chain for freezing or cooling
4.double spiral wire mesh belt
edge type of stainless steel spiral conveyor mesh belt

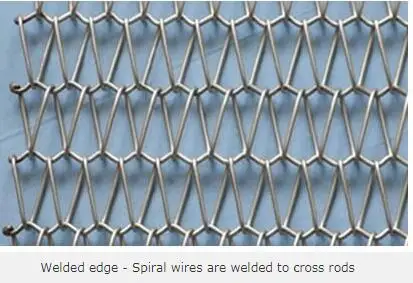

1.welded edge.

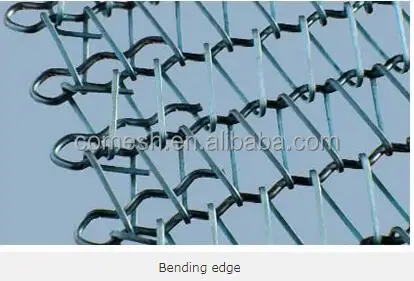

2. bending edge
2. bending edge

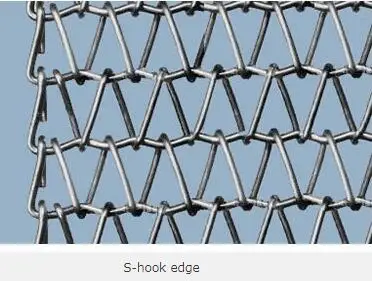

3.hook edge
round wire belt
flat wire belt

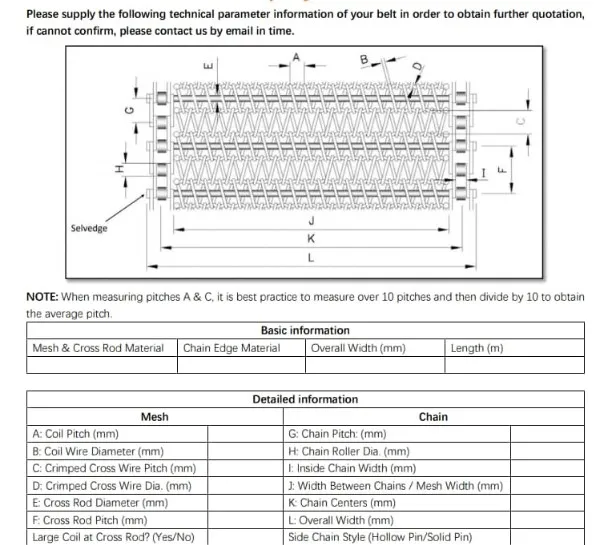

following is drawing of spiral wire mesh belt with chain
once datas of the following are confirmed ,best offer will be supplied
If you don`t know datas on it, please tell us its loading weight per meter,material size on the belt, advice will be give to you. welcome send us inquiry!
Product Feature
Alternating left and right hand spiral coils that do not interconnect with each other.
Excellent tracking properties.
positive drive and chain edge drive.
Chain edge for heavy load applications.
Straight-running and true.even when configured with a small radius — have a perfectly round end allowing a good product transfer to the following stage of the process.
Wide variety of mesh specifications for individual application.
Cross-flights and side plates available,the pins can be bent upwards in some belt types of the spiral wirelink belts which will create a standing edge.
Excellent tracking properties.
positive drive and chain edge drive.
Chain edge for heavy load applications.
Straight-running and true.even when configured with a small radius — have a perfectly round end allowing a good product transfer to the following stage of the process.
Wide variety of mesh specifications for individual application.
Cross-flights and side plates available,the pins can be bent upwards in some belt types of the spiral wirelink belts which will create a standing edge.
install easily with simple maintenance
material name | Maximum Operating Temperature °C | ||||||
stainless steel 304 | 750 | ||||||
stainless steel 316 | 800 | ||||||
stainless steel 316L | 800 | ||||||
stainless steel 314 | 1120 | ||||||
80/20 Nickel Chrome | 1120 | ||||||
Inconel 601 | 1150 | ||||||
carbon steel | 550 | ||||||

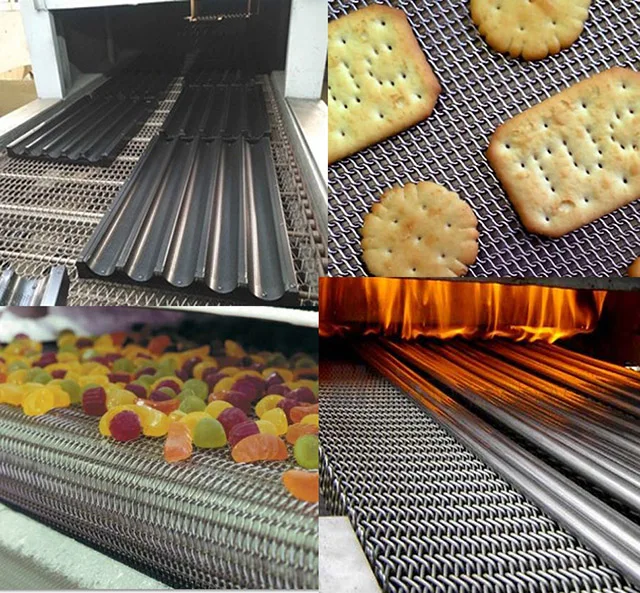

Product Application
Cooker
Fryer
Drying
Cooling
Washing
Baking
Biscuit ovens
Glass
Decoration
Hardening
quenching annealing furnace
tunnel dryer
quick freezing
Fryer
Drying
Cooling
Washing
Baking
Biscuit ovens
Glass
Decoration
Hardening
quenching annealing furnace
tunnel dryer
quick freezing
Packing And Shipping

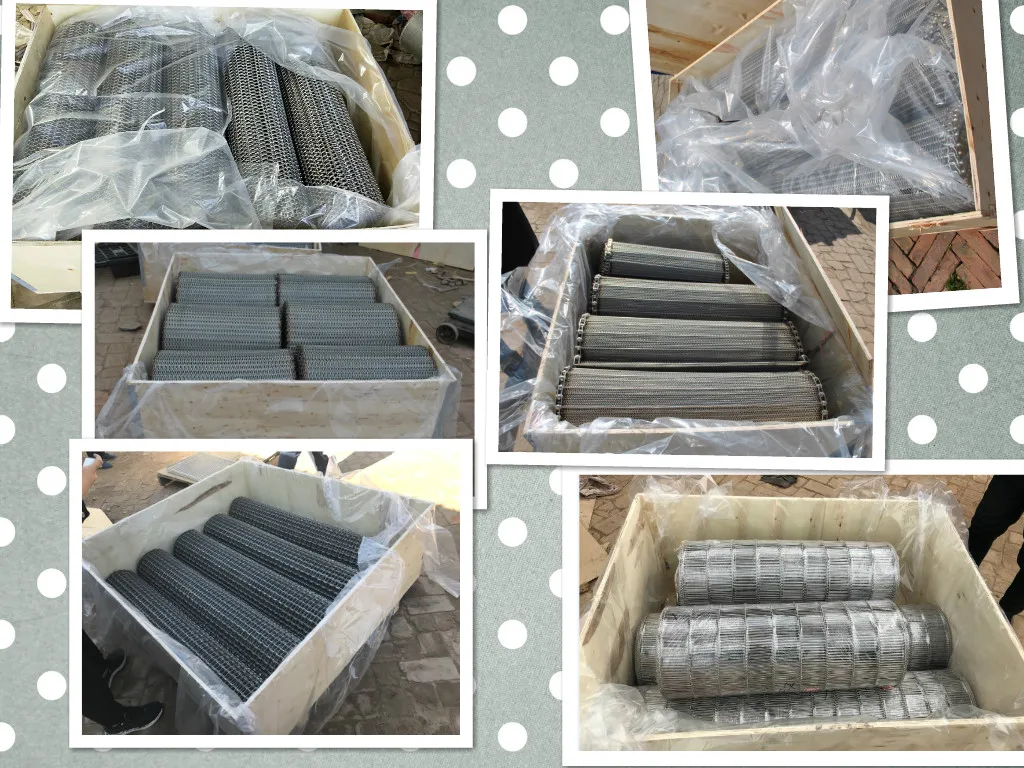

metal wire mesh conveyor belts packing and shipping
pack with plywood case or pallet to make sure shipping safety
for shipment, for sample or small order, Express is the best offer.
for urgent order, belts can be shipped by air.
for big quantity order, shipping by sea.
Honeycomb Metal Screen
Compound Balanced Biscuit Mesh Conveyor Belt
Chain Plate Mesh Belt with baffle
Eye Link Mesh Belt
Heat Resistant Mesh Belt for furnace
Rod Conveyor Belt
Balance Wire Mesh Conveyor Belt
Stainless Steel Wire Mesh Conveyor Belt with chain
Flat Flex Mesh Belt

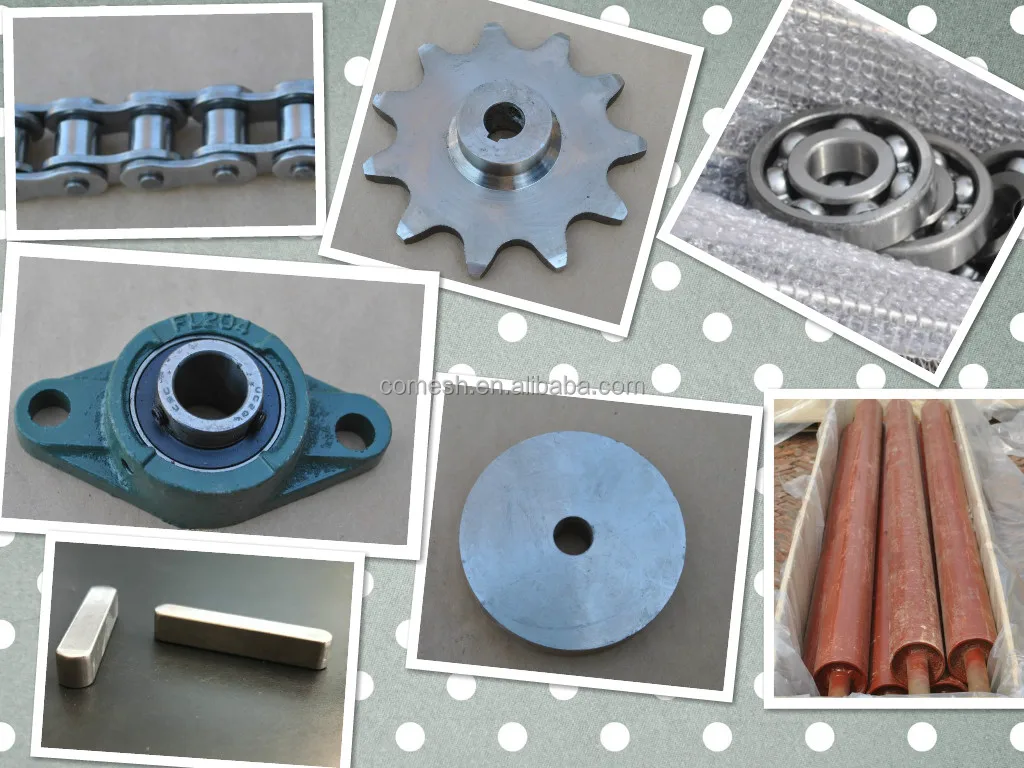

parts for wire mesh conveyor belts are also vailable
once belts are ordered,above parts can be supplied to match your belt,just tell us the material ,so that the best offer can be supplied.
About Us
Anping County Comesh Filter Co.,Ltd

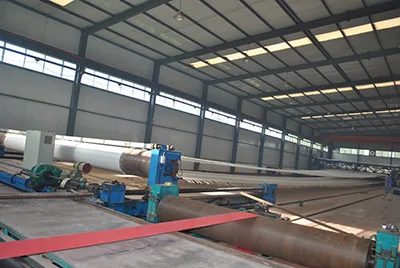

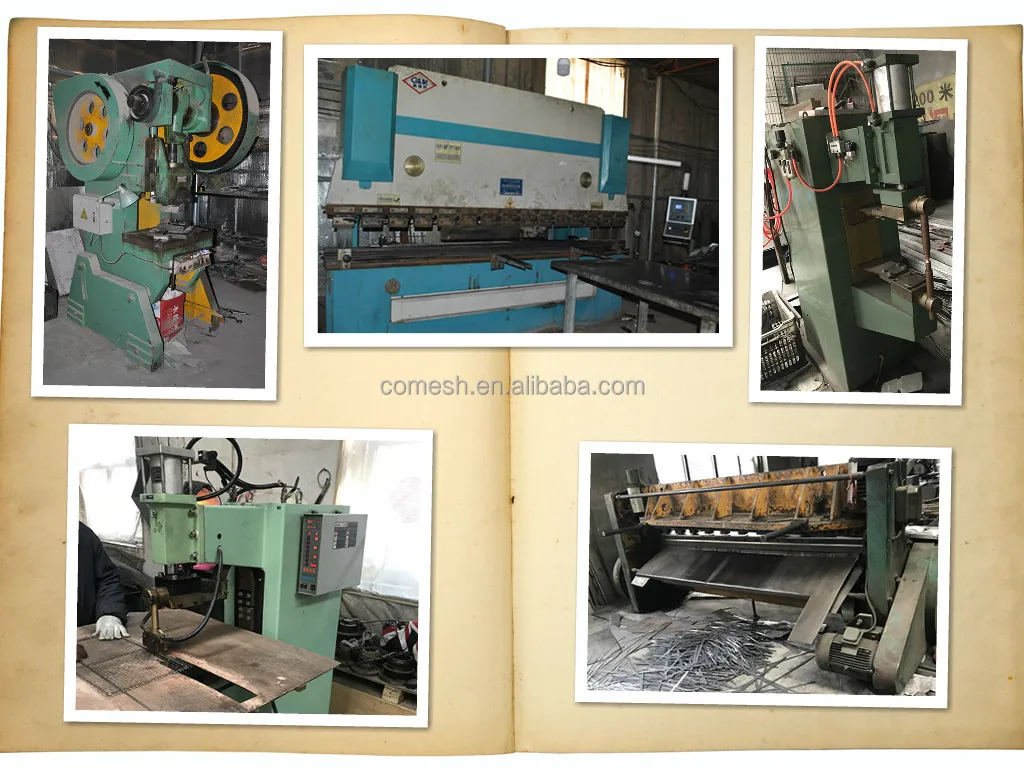

Our factory is located in Anping County-the famous Wire Mesh Land of China,with a land area of 40,000 square meters,a construction area of 13,000 square meters.COMESH factory has 83 sets P7100&P7150 Sulzer polyester printing mesh weaving looms,23 sets Sweden Texo polyester dryer fabric looms,50 sets
Japanese GRS1300 wire mesh looms,and 46 sets of other machine and devices including automatic warp arranging machine,heat setting machine,Austria Automatic seaming machine and other test facilities.
Japanese GRS1300 wire mesh looms,and 46 sets of other machine and devices including automatic warp arranging machine,heat setting machine,Austria Automatic seaming machine and other test facilities.
With more than 30 years development,COMESH is not only professional in field of wire mesh and wire mesh belt,but also is a leading
trader of food grade materials,such as wire mesh tray and basket for drying,baking,freezing ,cooling,dehydrator and Sterilization
for food and medical industries.
trader of food grade materials,such as wire mesh tray and basket for drying,baking,freezing ,cooling,dehydrator and Sterilization
for food and medical industries.
Our strong R&D capability (56 engineers and technicians) enables us to innovate almost everyday.
Customized orders are available.our products have been exported into more than 50 countries all over the world,such as USA,Canada,Australia ,Korea,Russia, England,Thailand,Brazil,Indonesia,Singapore,Malaysia,Thailand and so on
We welcome customer visit our factory and supply you the best offer and service!
Customized orders are available.our products have been exported into more than 50 countries all over the world,such as USA,Canada,Australia ,Korea,Russia, England,Thailand,Brazil,Indonesia,Singapore,Malaysia,Thailand and so on
We welcome customer visit our factory and supply you the best offer and service!
Certifications
Our Customers
FAQ
Q:Is there any inspection before production and after finished before shipment?
A:Yes, material inspection report can be supplied if needed, photos and videos with measurement of the finished products will be shown before shipment
A: We are manufacturer and trading company.
Q: Which countries do you export to?
A: Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.
Q: Which countries do you export to?
A: Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.
Q. What is the Warranty
A: Quality warranty for 30 days after shipment
A: Quality warranty for 30 days after shipment
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your minimum order quantity?
A: Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
Q: How about the delivery time?
A: It is based on the order,normally within 15-30 days after receiving your advance payment.
