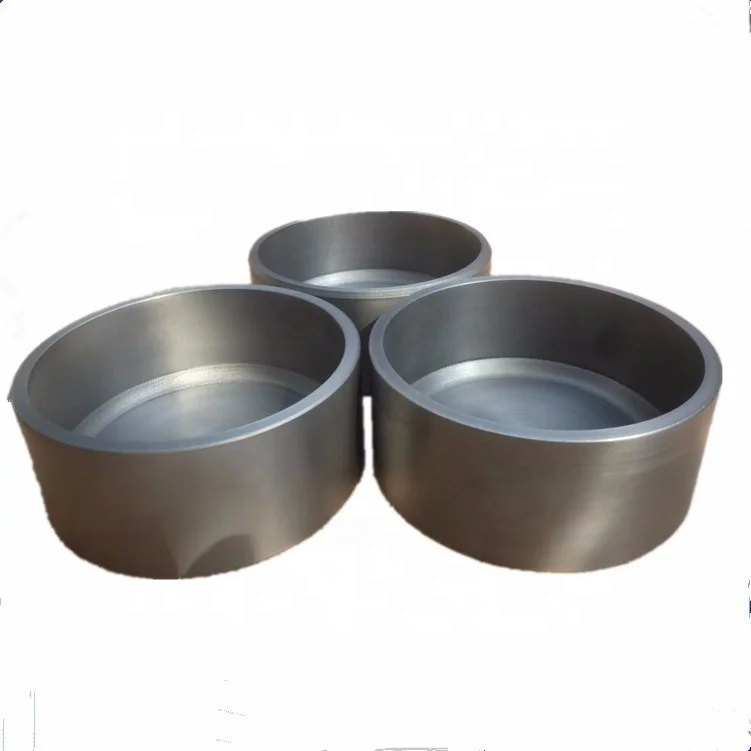

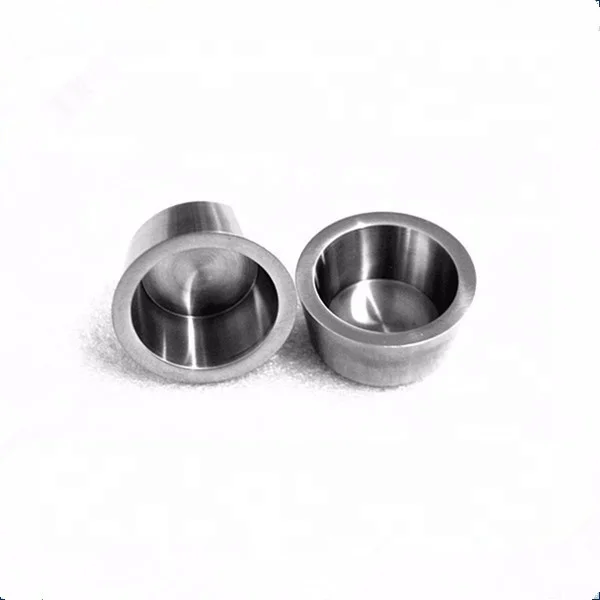

2600 high temperature tungsten crucible from china

Product Overview

Description

2600 high temperature tungsten crucible from china

Grade: W1,

Purity: W≥99.95%

Melting Point: 3410 DC

Boiling Point:5927 DC

Density: 18.5 - 19.3 g/cm3

Size:OD:50-150mm;
Height:50-200mm ;

Certificate: ISO9001:2017

Technicial: Sintering, forging, stamping, spinning. machining.

Dimensions and tolerance(According to clients’ requirements

Delivery  condition	Specification		Tolerance		Thickness	Roughness (um)
	Diameter	Height	Diameter	Height
Sintering	10~500	10~750	+/-5.0	+/-5.0	8~20	<3.5
Sintering finishing	10~450	10~550	+/-0.5	+/-0.5	7~18	<2.5

We can offer both sintered products and spinning products according to the growing single crystal method. We can also manufacture very large products (drawing product: D600 x H600 mm)
Feature a long life even after repeated use, because of high density and uniform metal structure; these are widely used as crucibles for pulling single crystal sapphire, in particular.

	Material	Size
		Outsize diameter (mm) * Height (mm)	Thickness (mm)
Sintered products	Molybdenum	(max)D400*H400	/
	Tungsten/molybdenum alloy	(max)D300*H300	/
	Tungsten	(max)D200*H200	/
Spinning product	Molybdenum	(max)D600*H600	1.0~15
