VMC850 Automatic Long Service Life 5 Axis Vertical Cnc Milling Machine Maching Center
- Category: Machine Centre & Parts >>>
- Supplier: Zaozhuang No.1 CNC Machine Tool Co. Ltd.
Share on (1600339501348):
Product Overview
Description
Product Description
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Specification
Item | VMC850 |
Condition | New |
Spindle Taper | BT40 |
No. of Spindles | Single |
Type | VERTICAL |
Dimension(L*W*H) | 2600*2300*2800 |
Weight (T) | 5.6T |
Table Size (mm) | 1000*500 |
CNC Control System | GSK, FANUC, MITSUBISHI, KND, Siemens, DELEM |
Number of Axes | 3 |
Table Travel (X) (mm) | 800 |
Table Travel (Y) (mm) | 500 |
Table Travel (Z) (mm) | 500 |
Positioning Accuracy (mm) | ±0.002 |
Repeatability (X/Y/Z) (mm) | ±0.001 |
Range of Spindle Speed(r.p.m) | 50r.p.m - 8000r.p.m |
Spindle Motor Power(kW) | 7.5 |
Max. Table Load(kg) | 500kg |
Feed Speed(mm/min) | 1mm/min - 8000mm/min |
Rapid Feed Speed(m/min) | 8 |
Min. Time of Tool Change(s) | 6 |
Tool Magazine Capacity | 16, 24 |
Key Selling Points | Competitive Price |
Warranty | 1 Year |
Online support, Video technical support | |
Place of Origin | China |
Shandong | |
Brand Name | No.1 machine |
Certification | CE;ISO9001 |
Voltage | 220V/380V/440V |
Applicable Industries | Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Home Use, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company |
After Warranty Service | Video technical support, Online support |
Local Service Location | China |
Showroom Location | China |
Marketing Type | Ordinary Product |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor |
Product name | CNC Machining Center |
X/Y/Z travel | 800*500*500 |
Table size | 1000*500 |
T-slot | 5*18*100 |
Spindle taper | BT40 |
Spindle nose to table | 130-630 |
Max.tool diameter | 78 |
Max.tool weight | 8 |
Machine weight | 5600 |
Dimensions | 2600*2300*2800 |

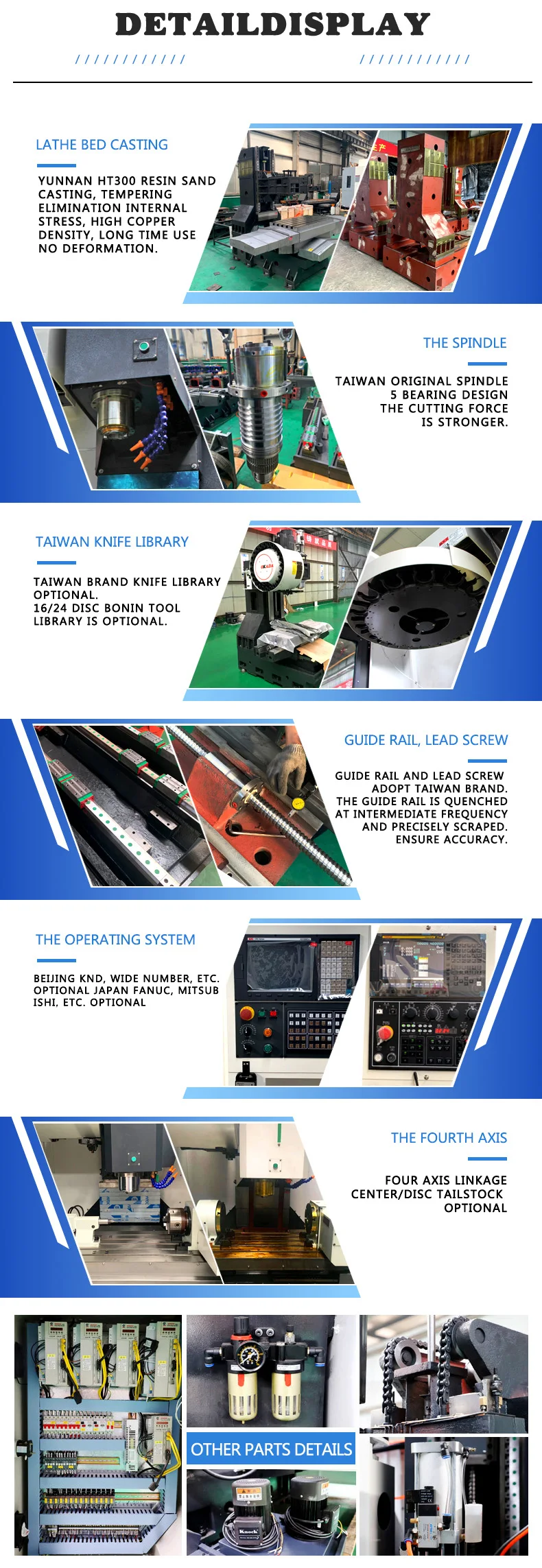

Details Display
Recommend Products
Company Profile
FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to South Asia(30.00%),Africa(30.00%),Mid East(20.00%),Eastern Asia(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
milling machine,CNC milling machine,CNC lathe,lathe machine,drilling machine
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2016,sell to South Asia(30.00%),Africa(30.00%),Mid East(20.00%),Eastern Asia(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
milling machine,CNC milling machine,CNC lathe,lathe machine,drilling machine
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
