Good price Motor grader factory whole sale shantui SG14 SG16 3 SG18 3 SG21 3 SG21A 3
- Category: >>>
- Supplier: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.
Share on:
Product Overview
Description
SHANTUI Motor Grader SG21A-3
with Good Performance and Spare Parts
CONTACT WAY
Send Message or Chat Now for Best price
Lillian Li
Mobile/WhatsApp /Wechat: +86 18561736872
Maxizm Construction Machinery(Qingdao) Co.,Ltd.
Please let us know the main use, brand, power and other requirements of the purchased products.
We will recommend the related products to you.
FEATURES
The hydraulic pin puller cylinder can complete the operations of swing frame by merely one operator to eliminate all potential safety hazards and ease user’s operations.
The structural parts inherit the excellent quality of Shantui mature products.
The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
The maintenance-free battery installed on the rear of the machine features high power capacity.
The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.
PARAMETERS
| Product name | SG21A-3 |
| Performance parameters | |
| Operating weight of machine (kg) | 16900 |
| Wheelbase (mm) | 6560 |
| Wheel tread (mm) | 2155 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 95 |
| Turning radius (mm) | 8200 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660/3965/4270 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 44-91 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 9430 |
| Width (mm) | 2600 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | 6CTAA8.3-C215 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 160kW/2200rpm |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
| Speed for forward gear I (km/h) | 5.4 |
| Speed for forward gear II (km/h) | 9.4 |
| Speed for forward gear III (km/h) | 12.2 |
| Speed for forward gear IV (km/h) | 20.5 |
| Speed for forward gear V (km/h) | 25.4 |
| Speed for forward gear VI (km/h) | 39.7 |
| Speed for reverse gear I (km/h) | 5.4 |
| Speed for reverse gear II (km/h) | 12.2 |
| Speed for reverse gear III (km/h) | 25.4 |
| Brake system | |
| Service brake type | Hydraulic brake |
| Parking brake type | Mechanical brake |
| Brake oil pressure (MPa) | 10 |
| Hydraulic system | |
| Working pump | Constant displacement gear pump, with flow at 28ml/r |
| Operating valve | Integral multi-way valve |
| Pressure setting of safety valve (MPa) | 16 |
| Pressure setting of safety valve (MPa) | 12.5 |
| Filling of fuel/oils/fluids | |
| Fuel tank (L) | 340 |
| Working hydraulic fuel tank (L) | 110 |
| Transmission (L) | 28 |
| Drive axle (L) | 25 |
| Balance box (L) | 2X23 |

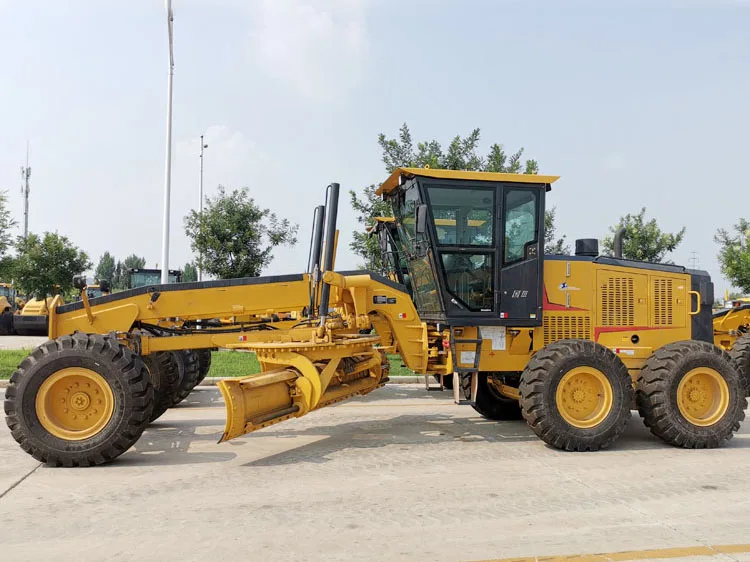

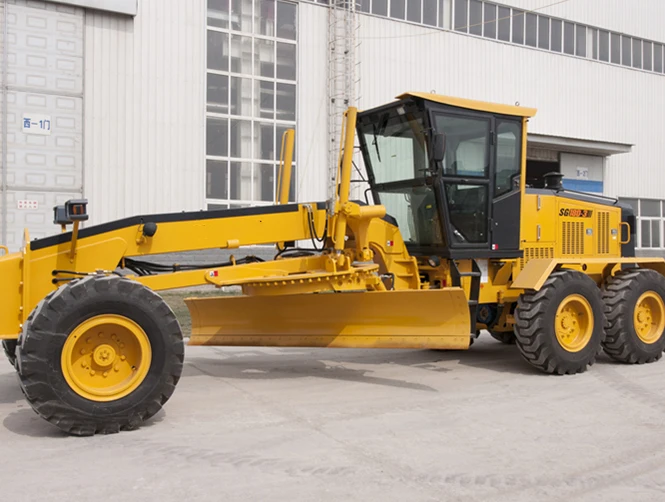

PICTURES
