Pressure Limiting Valve
$3.82-4.82
4021 end port ro membrane cartridge filter housing
- Category: >>>
- Supplier: Zhenjiang Hid Membrane Co. Ltd.
Share on (1600339632089):
Product Overview
Description
Product Description

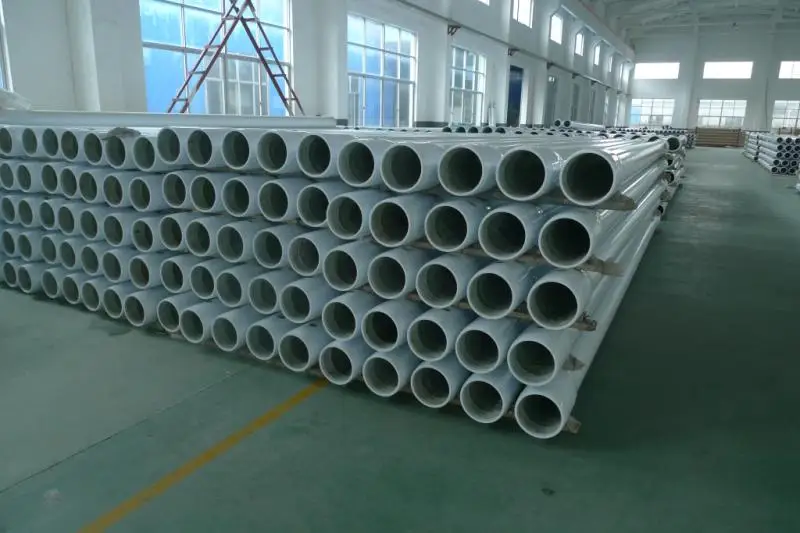

frp pressure vessel for RO 4040 membrane housing
FRP filament winding pressure vessel is for reverse osmosis application and adopts the world advanced technology and technique to manufacture high quality membrane pressure vessel products. Pressure vessels are increasingly favored in Water Treatment Industry applying in Drinking Water, Food & Beverage industry, Petro‐Chemical industries, Power industry and Sea water desalination etc. Our products have been distributed worldwide such as Middle East, S.E Asia, Iran, Australia and India.
The product is available in both end entry and side entry configuration; pressure rating from 150 psi to 1200 psi and length from 1 through 7 membrane elements.
The product is available in both end entry and side entry configuration; pressure rating from 150 psi to 1200 psi and length from 1 through 7 membrane elements.
Product Presentation
Specifications | End Port | Side Port | |
Available pressure rating (psi) | 250/300/450/1000 | ||
Length (No. of elements) | 1 to 4 | ||
Main Material | FRP | ||
Color | White (other colors are available on request) | ||
Head assembly | Included | ||
Adaptor | N/A | included | |
Straps and saddles | included | ||
Packaging | PVC plastic wrapping with carton outer pack | ||
Max. operating Temp | 49℃ (120℉) | ||
Note：
*Head assembly consists of half moon lock plates, ABS seal plate and lock nut, Head seal, permeate port o‐ring. (cast Aluminum bearing plate only used in 1000 psi vessel)

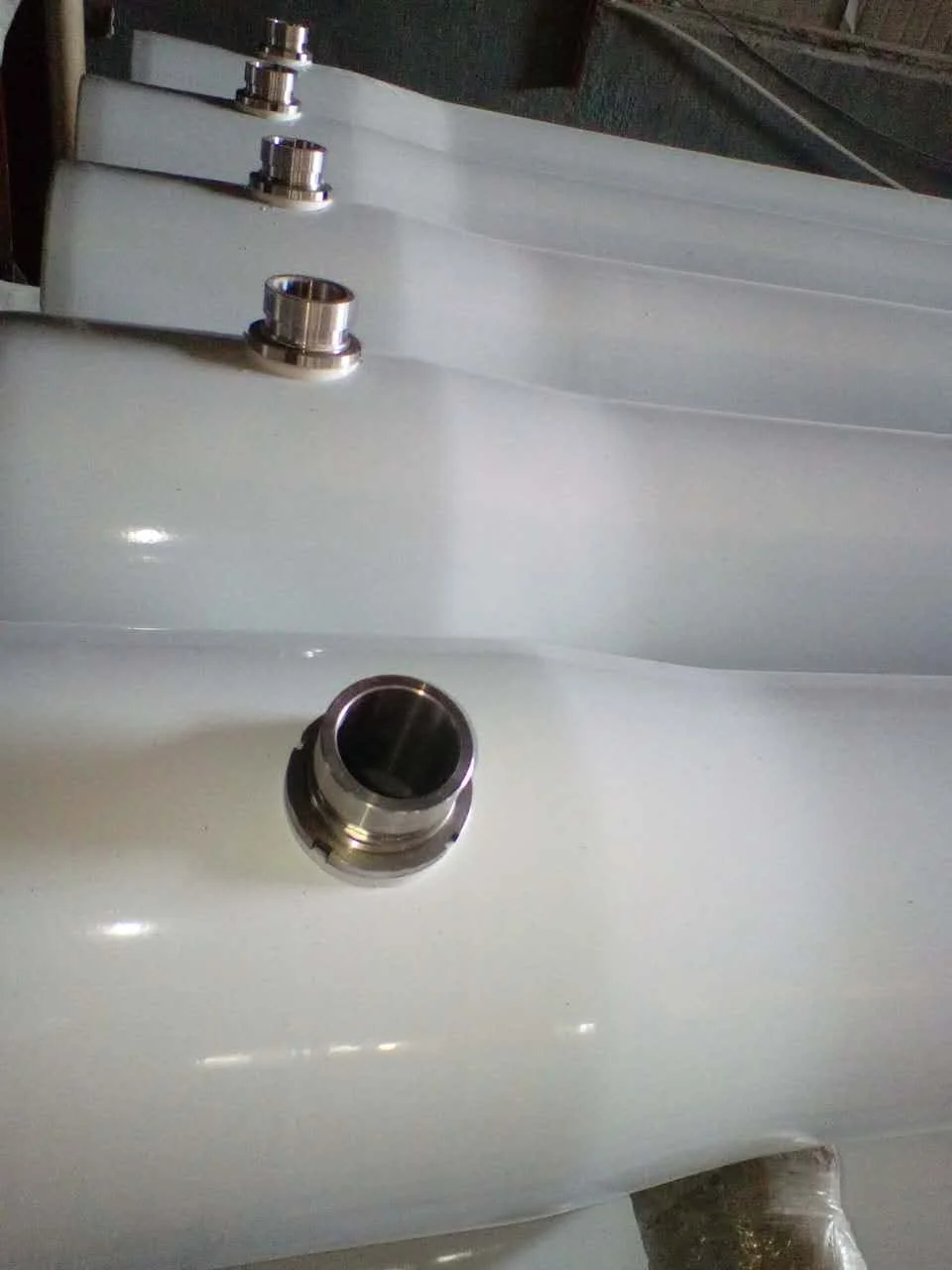

*0.75” OD standard adaptor is provided for side entry vessel. Adaptors of different dimension are available on request.
Product Specification
Model | PSI | Connection | Membrane size | Number of elements |
40S250/40E250 | 250 | Side Port/End Port | 4040 | 1-4 |
40S300/40E300 | 300 | Side Port/End Port | 4040 | 1-4 |
40S450/40E4500 | 450 | Side Port/End Port | 4040 | 1-4 |
40S1000/40E1000 | 1000 | Side Port/End Port | 4040 | 1-4 |
80S150/80E150 | 150 | Side Port/End Port | 8040 | 1-7 |
80S250/80E250 | 250 | Side Port/End Port | 8040 | 1-7 |
80S300/80E300 | 300 | Side Port/End Port | 8040 | 1-7 |
80S450/80E450 | 450 | Side Port/End Port | 8040 | 1-7 |
80S600/80E600 | 600 | Side Port/End Port | 8040 | 1-7 |
80S800/80E800 | 800 | Side Port/End Port | 8040 | 1-7 |
80S1000/80E1000 | 1000 | Side Port/End Port | 8040 | 1-7 |
80S1200/80E1200 | 1200 | Side Port/End Port | 8040 | 1-7 |
Products Details
About Us
HID Membrane Co., Ltd.
HID, one of China leading ro membrane MANUFACTURERS, has been making ro membrane for over 11 years, and producing flat sheet for 5 years; so far our ro membranes have well be supplied to worldwide markets with good acceptance!
HID has developed full auto rolling lines for residential / commercial / industrial RO membrane making, with annual output to 5.5 millions pieces, and models from 50GPD/75GPD/100GPD/200GPD, to 300GPD/400GPD/600GPD, and up to 4040/8040!
With our latest auto production line of flat sheets (film) and testing facility, HID offer you the most reliable quality control and cost efficiency!
Our products and services have spread all over the world, and also have been
recognized by customers.
More than 11 years manufacturing
experience producing Reverse Osmosis Membrane
We have 2 FACTORIES
Producing
20000 membranes per day
CERTIFICATIONS
HID RO membranes have for years passed inspection & testing of China sanitary authorities with issued certification.
