OEI Low Noise 15dB Gain SOIC 8 Package CATV MMIC Amplifier for Telecommunication System
- Category: >>>
- Supplier: Shenzhen Sanland Technology Co. Ltd.
Share on (1600339693380):
Product Overview
Description
Products Description

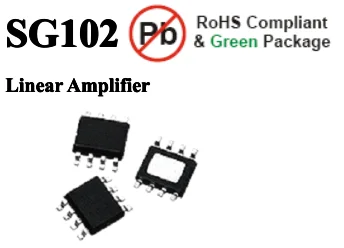

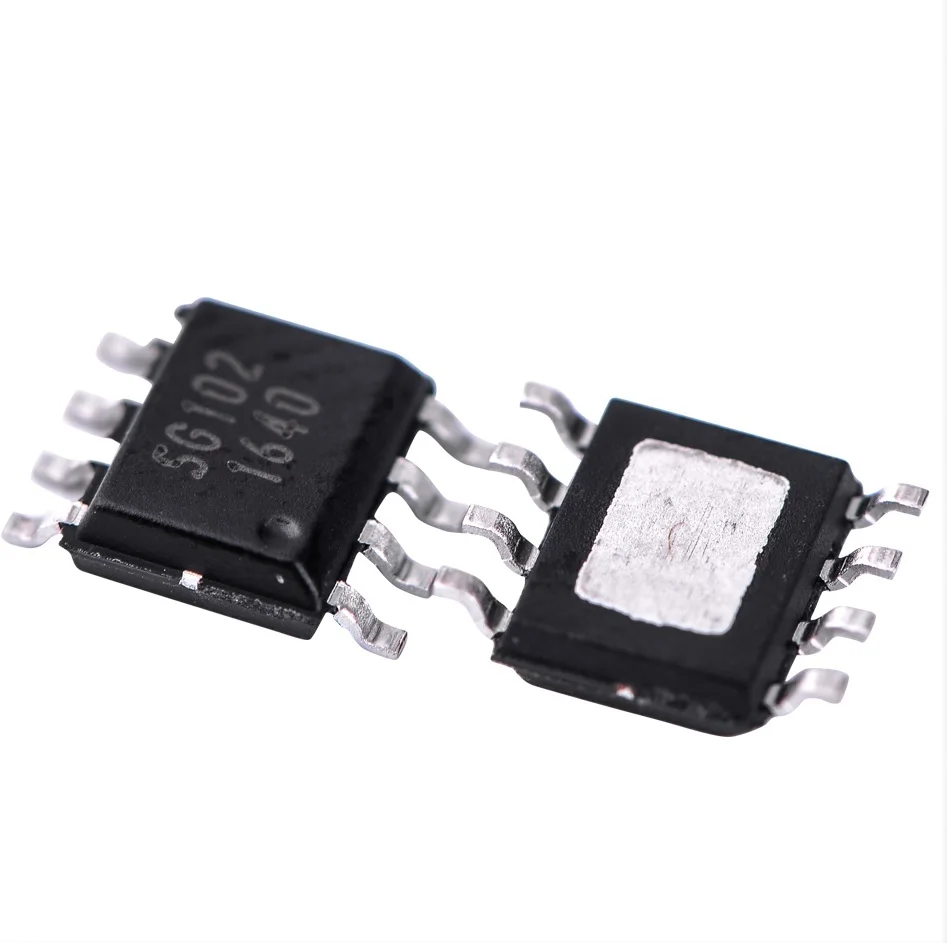

The power amplifier (SG102) is designed for base stations and repeater systems. GaAs MMIC is used and attached on a copper carrier of 8 pin air cavity package with dual supply voltage.
SG102 is RoHS compliant and manufactured with green molding compounds that contain no antimony trioxide nor halogenated fire retardants.
Features
>Higher Linearity
>Low Noise Figure:3.0dB
>15dB Gain
>Wide Bandwidth: 50MHz to 1GHz
>Single Power Supply: +8V
Applications
>Base Station
>CATV
>FTTH (G-PON,GE-PON)
>Converter
>Repeater
>RF Sub-systems
Product Paramenters
Parameter | Units | Typical | ||||
Frequency | MHz | 40 | 650 | 1000 | ||
Noise Figure | dB | 2.5 | ||||
Gain | dB | 16.5 | 16 | 15 | ||
S11 | dB | -24.8 | -14.8 | -17 | ||
S12 | dB | -23 | -21 | -15.5 | ||
Output P1dB | dBm | 27 | 27 | 27 | ||
Output IP3 | dBm | 44 | 46 | 46 | ||
Output IP2 | dBm | 58 | 62 | 60 | ||
CSO | dBc | - | 60 | - | ||
CTB | dBc | - | 69 | - | ||
Supply Current | mA | - | 240 | - | ||
Supply Voltage | V | - | 8 | - | ||
Series Products
Company Profile
OEi Semiconductor is a world leader in providing RF and CATV products, which was located in England and was merged by Shenzhen Sanland in 2019, OEi now serves many of the world's top operators, along with over one million users worldwide.
Products portfolio covers wideband RF MMIC, CATV optical receiver modules, CATV amplifier modules, FTTH solutions, RF switch, cascade MMIC amplifiers, LNA, attenuators etc.
OEi has achieved certification of ISO 9001/14000. Designs are implemented and controlled, following strict procedures laid down
by ISO certification. This confirms reliability throughout each phase of the design cycle, from development through to
manufacturing, inspection and service.
OEi has achieved certification of ISO 9001/14000. Designs are implemented and controlled, following strict procedures laid down
by ISO certification. This confirms reliability throughout each phase of the design cycle, from development through to
manufacturing, inspection and service.
About Sanland
Specialized in the CATV & FTTH 18+years already!
>Founded in 2002 with own ability in design/production/sales
>Certified with ISO9000 & ISO14001 in 2005
>Was listed in the NEEQ in 2016, with the stock code: 837305
>ODM/OEM service support
>Lead Time can be as short as customer request
>Price advantages is promised
>Strict QC process is executed from the raw materials to end product
>After-sales service is promised
FAQ
Q1: Are you a manufacturer or trader?
A: We have our own factory to make sure the product quality/lead time/price advantage
Q2: What's your MOQ?
A: The MOQ based on different product series is different actually(100~1000pcs), send your inquiry to the sales for the exact
feedback
Q3: Can you offer free samples?
A: Yes the free samples are available for the product verify, don't hesitate to ask for it!
Q4: How about the lead time?
A: We prepared the stock for those products which was needed a lot, and the raw materials are arranged in advance for the left.
Q2: What's your MOQ?
A: The MOQ based on different product series is different actually(100~1000pcs), send your inquiry to the sales for the exact
feedback
Q3: Can you offer free samples?
A: Yes the free samples are available for the product verify, don't hesitate to ask for it!
Q4: How about the lead time?
A: We prepared the stock for those products which was needed a lot, and the raw materials are arranged in advance for the left.
