Новый 5 дюймовый 7 дюймовый TFT ЖК дисплей емкостный сенсорный экран DSI разъем 800x480 для Raspberry Pi 4 Pi 3 B
- Category: Development Systems, and IoT Products >>>
- Supplier: Shenzhen Lingyue Longteng Technology Co. Ltd.
Share on (1600339889600):
Product Overview
Description
Products Description

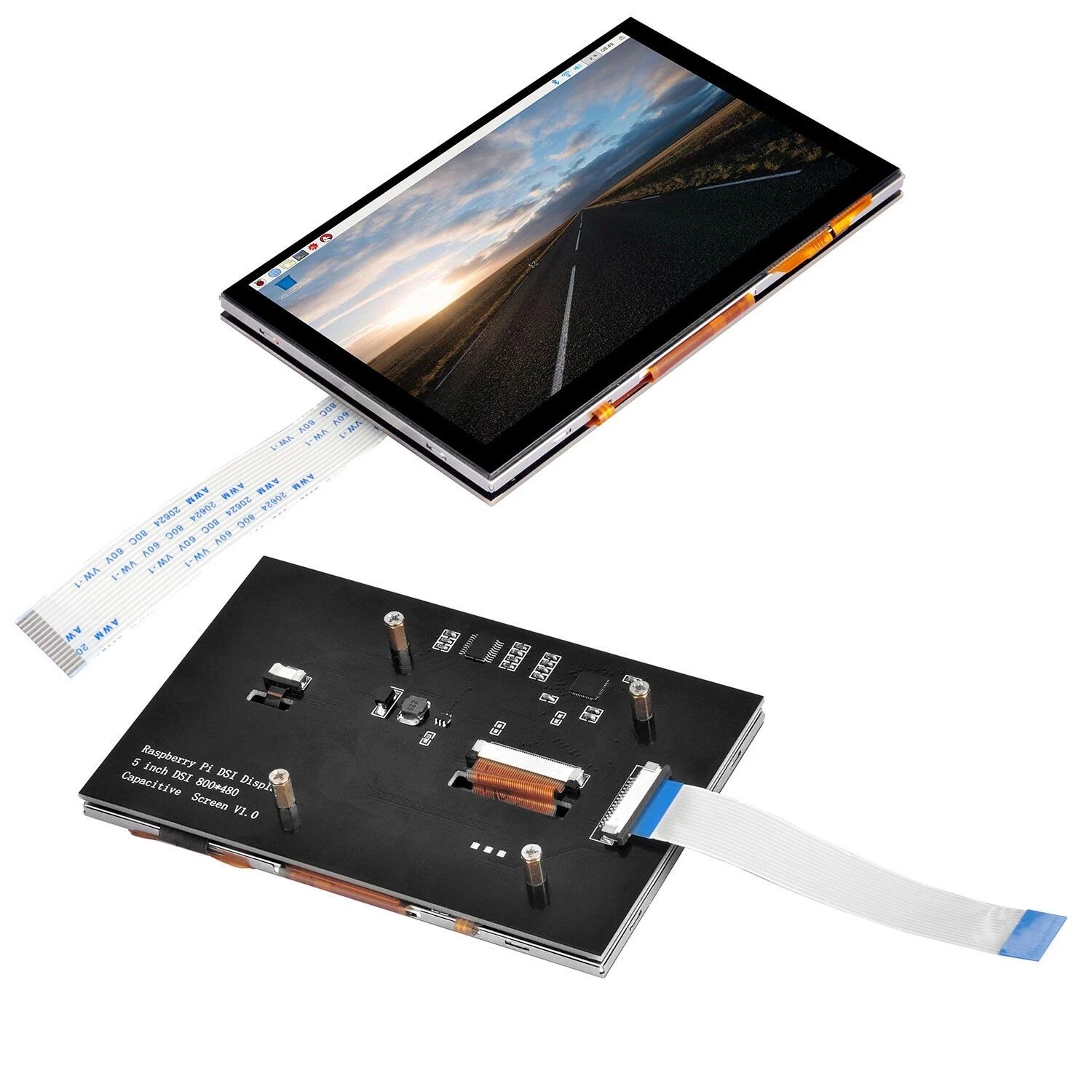

DSI Connector，Plug and Play,No Driver Needed.
Capacitive Touch Screen ,Finger Touch,800x480 high resolution,better touch response,faster response time

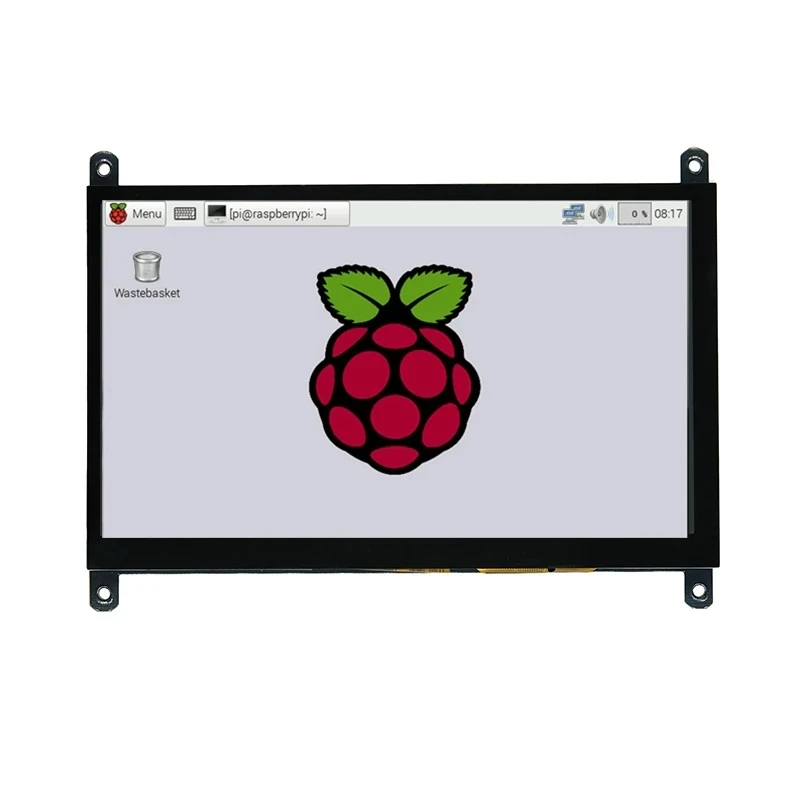

5 inch/7 inch display monitor with high resolution picture and large viewing screen.
Free drive support Raspberry ,Ubuntu MATE,Kali,RetroPie,OpenElec,OSMC,Arch system and so on.
Support all raspberry board include the latest Raspberry Pi 4,,but except PI zero(PI A,PI B need use I2C on gpio).

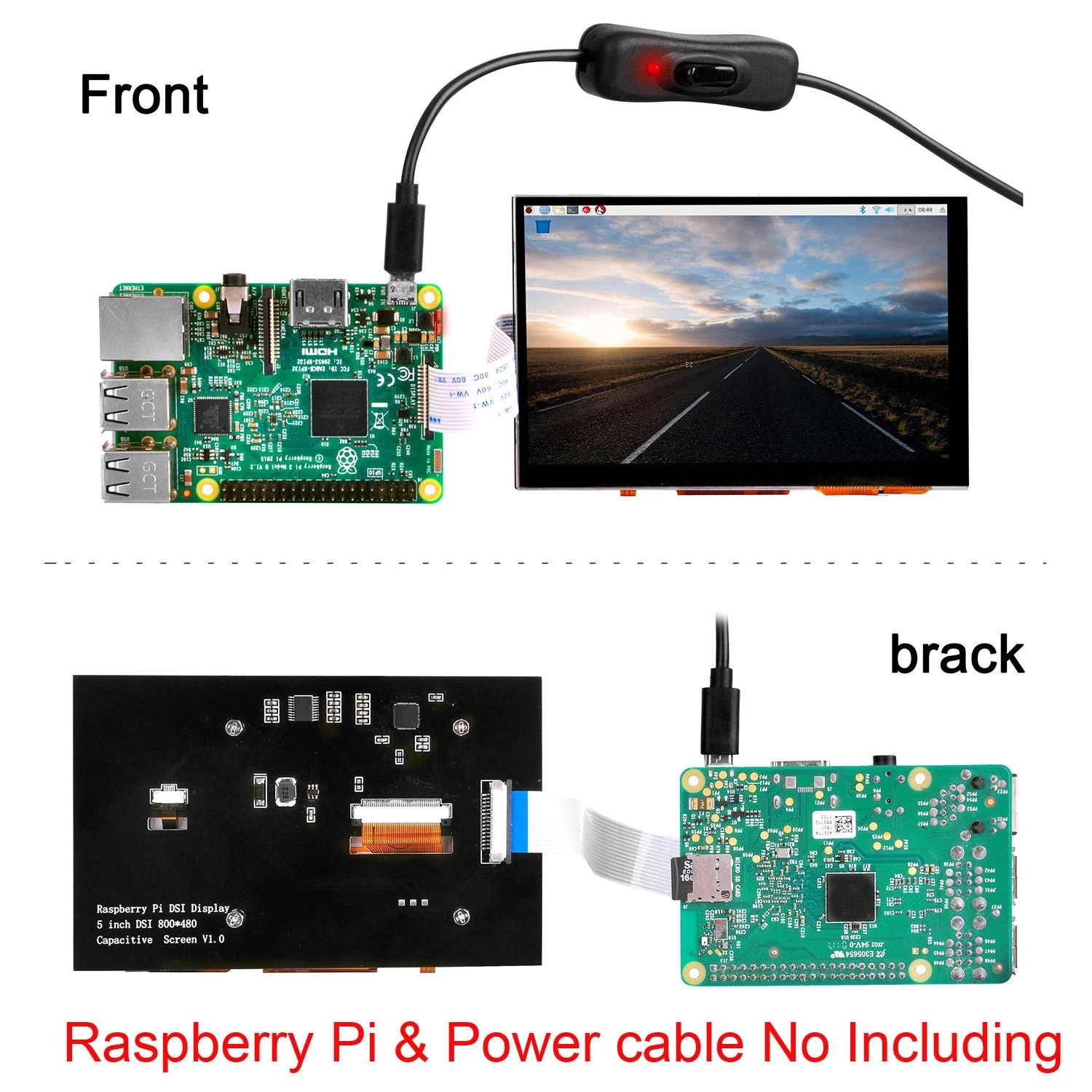

Only Use DSI interface Connects to the Raspberry Pi board include power.
The refresh frequency about 60HZ.
Physical resolution 800*480 ,24-bit colour，better display.
Strong anti-interference.

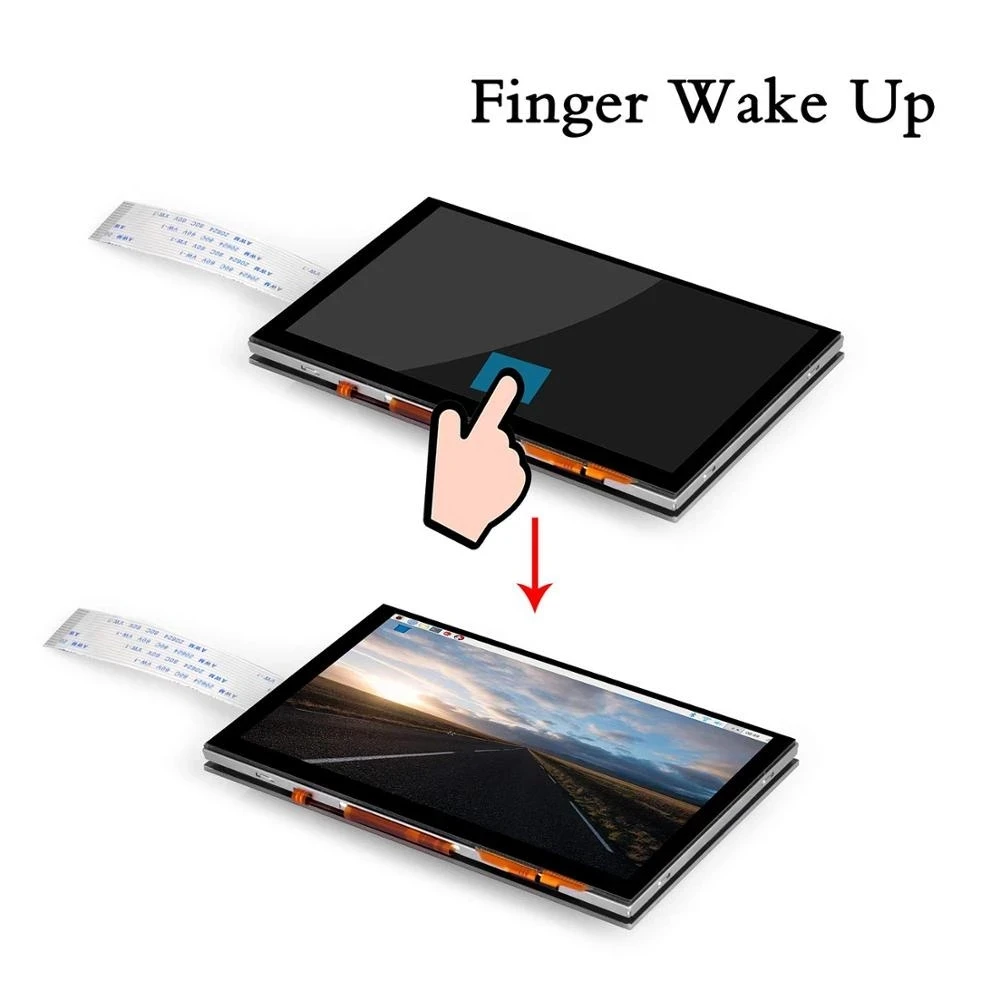

Ultra low power ,ultra long distance lossless transmission,The screen will automatically sleep when it is not in use
The display size have changed from 800×480 to 1920×1080
Product Dimensions : 5 inch 122*77*8mm, 7 inch 165x100x8mm( not include the hole for screws)
As due to raspberry pi system that lead to inaccuracy of touching point, it may caused the border screen icon to be no function
while touching it .
Package include:
1 x New 5 inch / 7 inch TFT LCD Display Touch Screen DSI Connector
1 x 10cm Cable
4 x Screws
1 x Screw driver
Capacitive Touch Screen ,Finger Touch,800x480 high resolution,better touch response,faster response time
5 inch/7 inch display monitor with high resolution picture and large viewing screen.
Free drive support Raspberry ,Ubuntu MATE,Kali,RetroPie,OpenElec,OSMC,Arch system and so on.
Support all raspberry board include the latest Raspberry Pi 4,,but except PI zero(PI A,PI B need use I2C on gpio).
Only Use DSI interface Connects to the Raspberry Pi board include power.
The refresh frequency about 60HZ.
Physical resolution 800*480 ,24-bit colour，better display.
Strong anti-interference.
Ultra low power ,ultra long distance lossless transmission,The screen will automatically sleep when it is not in use
The display size have changed from 800×480 to 1920×1080
Product Dimensions : 5 inch 122*77*8mm, 7 inch 165x100x8mm( not include the hole for screws)
As due to raspberry pi system that lead to inaccuracy of touching point, it may caused the border screen icon to be no function
while touching it .
Package include:
1 x New 5 inch / 7 inch TFT LCD Display Touch Screen DSI Connector
1 x 10cm Cable
4 x Screws
1 x Screw driver
