Calcium Oxide Powder Vertical Processing Mill for quartz graphite calcite feldspar fluorite powder production line (1600339897530)

Share on:


Price:$125,000.00 - $130,000.00
Price in USD:Details

Quantity:


Product Overview

Description






Product Overview

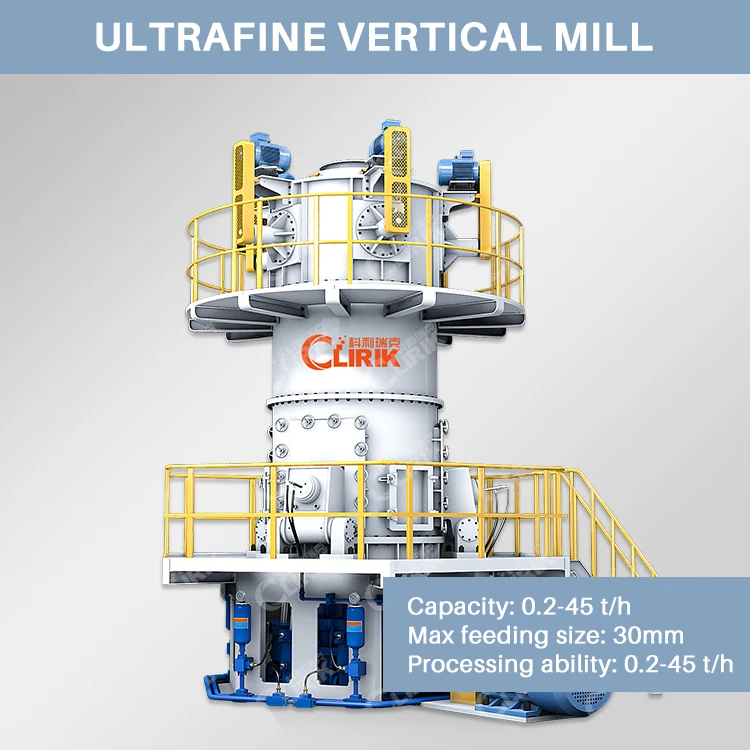

CLUM series vertical roller mill :

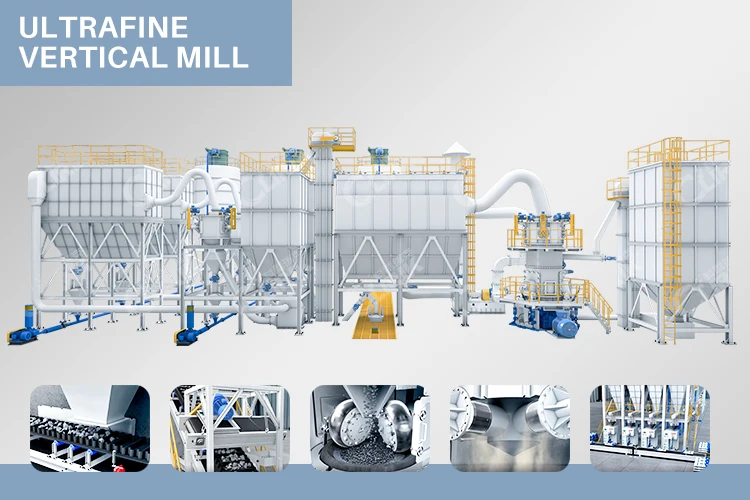

With the rapid development of the society economy,the traditional ultrafine powder processing equipment can no longer meet the market demand and requirements in the ultrafine powder process field due to the low capacity. In this background, having accumulated multiple years'experience in manufacturing mills,Clirik has designed and launched a new-type CLUM series vertical roller mill on the basis of introducing the vertical roller mill technology from Taiwan and Germany,which integrates the functions of grinding,classifying,conveying, secondary classifying,and packing progress into one machine .Its powder fineness can reach 400-3000mesh.The CLUM mill breaks through the bottleneck of low capacity mentioned herein.Over 5 years' development, more than 30 ultrafine powder production lines have been


installed worldwide.

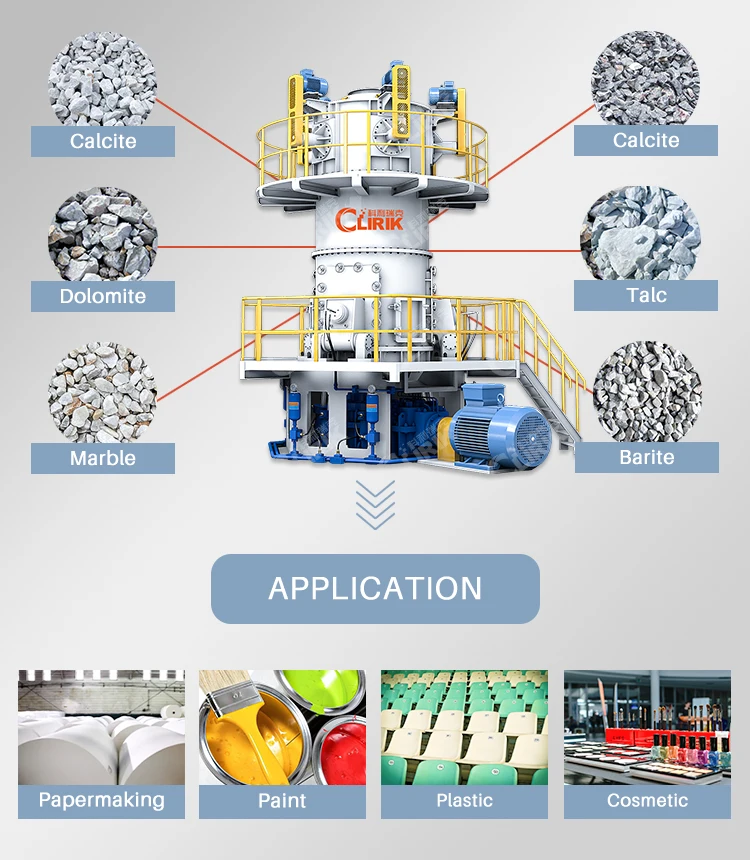

Product Application


















Application of Ultrafine Vertical Mill:



 Ultrafine Vertical Mill are suitable for huge capacity producing, widely used in grinding non- flammable and non-explosive materials under 7(the Moh's hardness), such as quartz, feldspar, calcite, talcum, barite, fluorite, iron ore, copper ore quartz, especially for slag, cement clinker,    zircon sand, fly ash and carborundum, coal, etc








Product  Advantage








Product Specifications





















































































Main configuration and production

                                           Model





                    Item


CLUM1425 CLUM1632CLUM1736
Working Diameters(mm)140016001700
Number of rollers(pieces)333
Number of classifier(pieces)666
Power of classifier(Kw) 6X158X228X22
 Main unit power (Kw)220- 250 315-355 355-410
 Blower power(Kw)180-200 250-280 325-355
 Feed size (mm) <10mm <10mm <10mm
Moisture of feeding material<3% <3% <3%

Less than 2μm=30%


output(t/h)


 9-12 12-16 14-18

Less than 2μm=45%


output(t/h)


 5.5-7.5 7-9 10-12

Less than 2μm=60%


output(t/h)


3-4 / /

Material: Based on CalCite Particle size distribution:measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments












Working Principle























Working principle of Ultrafine Vertical Mill:

The grinding disc is driving by motor through reducer. The material falls to grinding disc from the feed opening. The materials are driven to the edge of disc by the centrifugal force and crushed into fine powders by rollers. Then, the hot air from the nozzle take the fine powder to high effiency classsifer.The qualified powder are taken by the air to the powder collector to be collected, while the unqualified powder are sent back for regrinding.

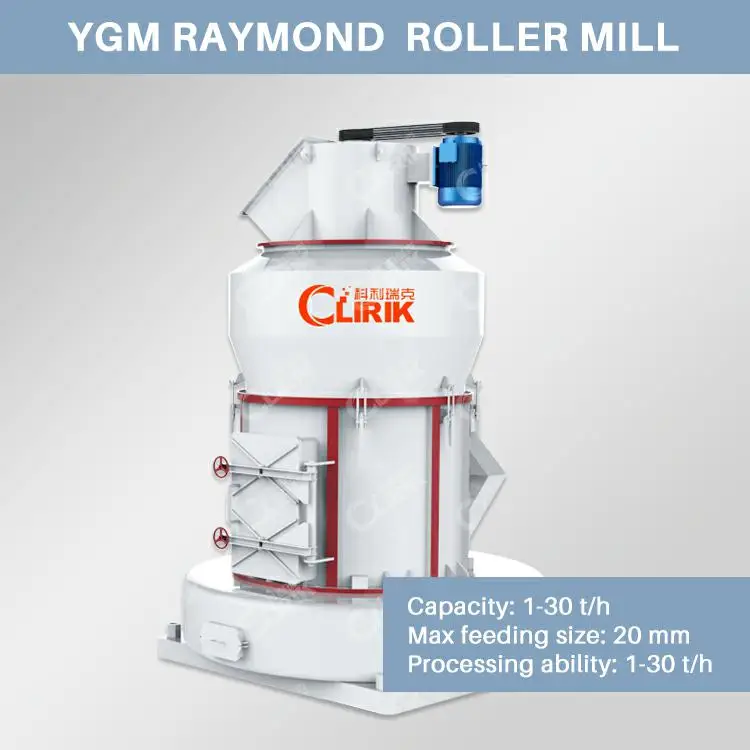

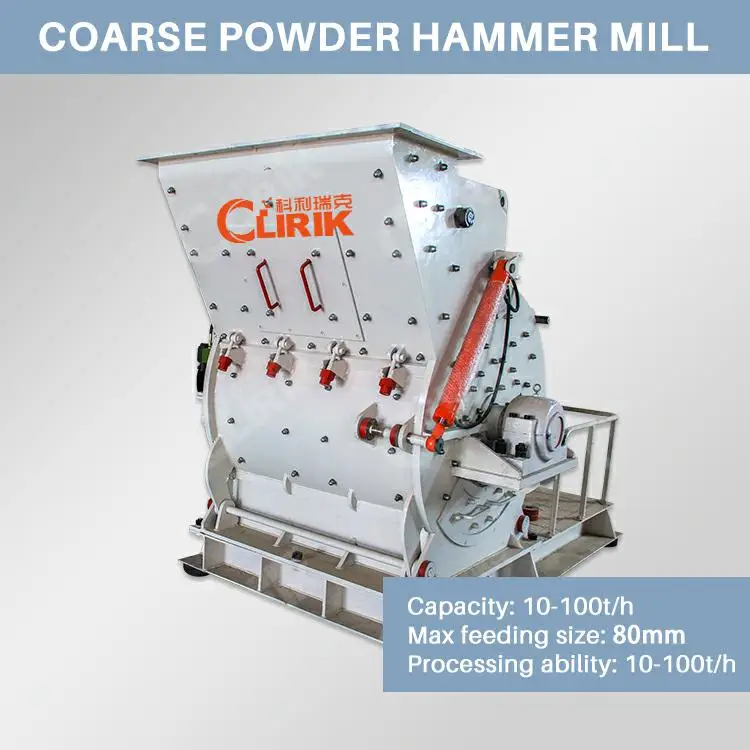

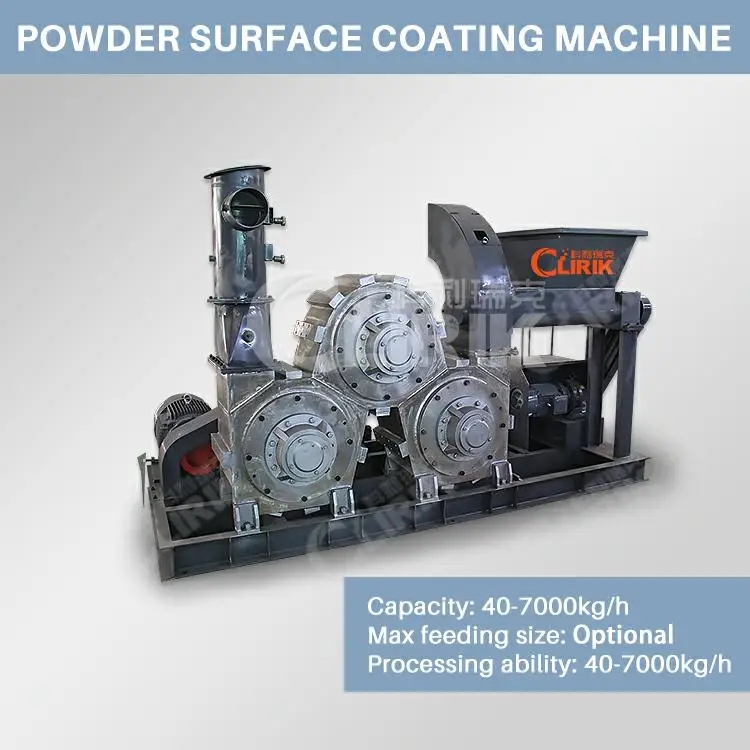

Other Products offered


















_20210823161836_




 _






 _






 _












Company Profile





.







FAQ









Because there 3 different kinds of ultrafine grinding mills, so our CLUM series grinding mill unit has different prices, I need to ask you some details for sending you the more suitable quotation:



1.Which kind of material you are going to grinding?

(Dolomite; Calcite; Quartz; Basalt; Barite; Feldspar ; Gravel; Bentonite; Gypsum; Granite; Coal; Slag; Pebble; Others )



2. What's the production capacity you want? How many tons or cubic meters per hour?

( > 100 TPH > 50 TPH > 30 TPH > 10 TPH > 1 TPH < 1 TPH)



3.What's the granularity of the final products you need?

(in milimeter, micron or mesh)



4. What's the max input size of the material?

(In inch,centimeter or milimeter)





                                                                      Contact us now and we will give you a factory price



                                                                                    Leave your demand  !  !  !
