Customized filter cage 304SS 12 wires 4mm thickness for factory cement plant and power plant to match dust bag filter bag
- Category: Other Filter Supplies >>>
- Supplier: Shanghai,Aasf,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

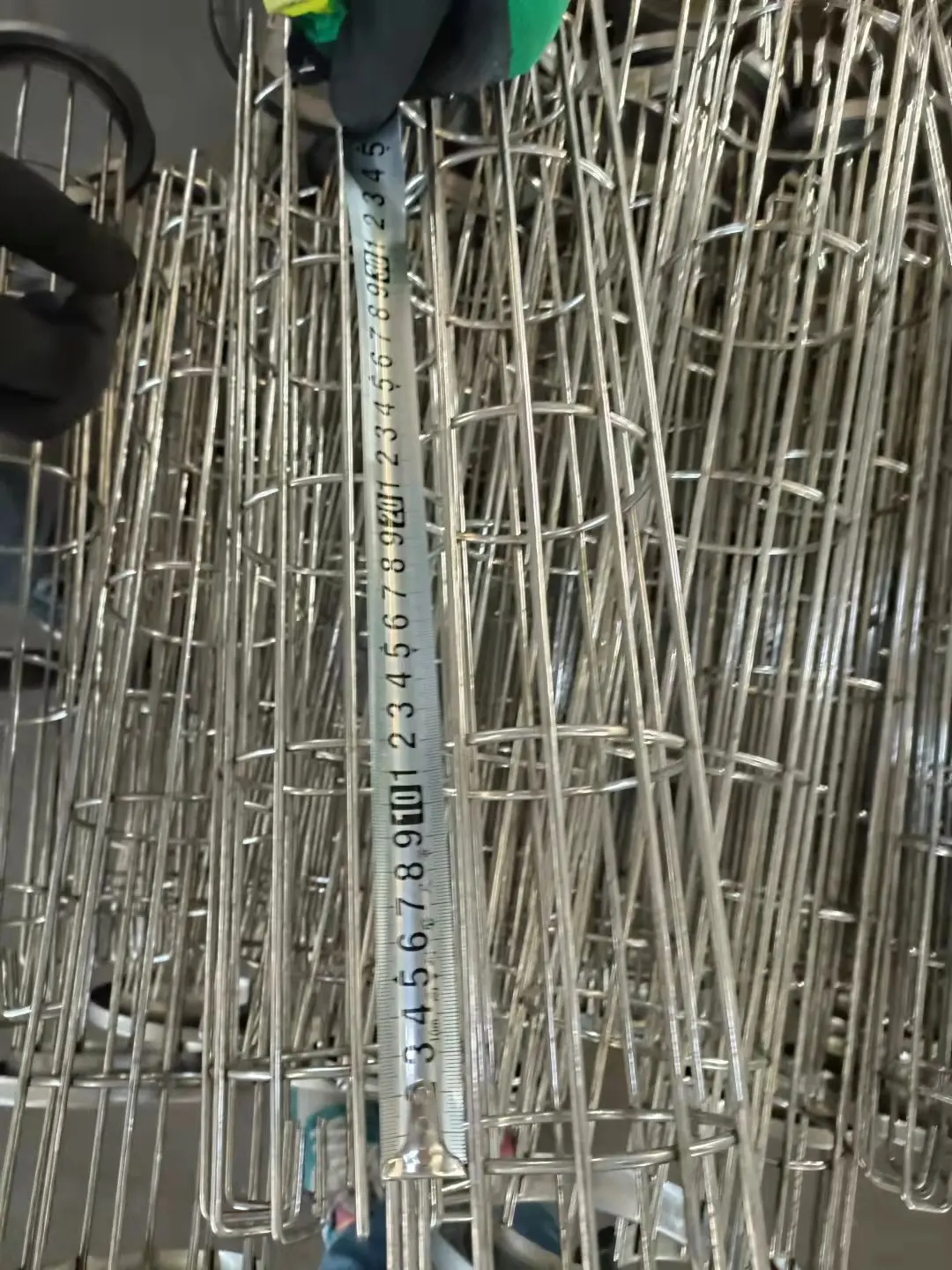

Filter Cage constructions typically consist of 10, 12 or 20 vertical wires. The horizontal ring spacing on the cage can be 4″, 6″ or 8″. If plenum height restrictions are a problem, two piece cages are available in popular “twist-lock” or “fingers” styles. For areas where moisture or acid corrosion present we can provide a range of materials, often galvanized steel or stainless steel. Top load baghouse cages are available with a T-flange, ring top or several styles of rolled flange tops. Cage diameters range from 4″ to 6 1/8″. Wire thickness ranges are; 9 gauge, 10 gauge and 11 gauge. Cages for bottom load baghouses are constructed with a split collar or split ring top. Cage diameters range from 4″ to 6 1/8″. Wire thickness ranges are 9 gauge, 10 gauge and 11 gauge.
For more efficient cleaning, Venturi are available for all diameter cages. Venturi come in 3″ to 6″ lengths. Venturi are made in a variety of materials including; aluminum, carbon steel, galvanized and stainless steel.
Our dust collector cages can be made to fit existing collectors from any baghouse manufactures such as , Mikropul, Wheelabrator, Masterjaya, Filtercorp, etc. We can also manufacture uncommon and specialized cage designs as required.

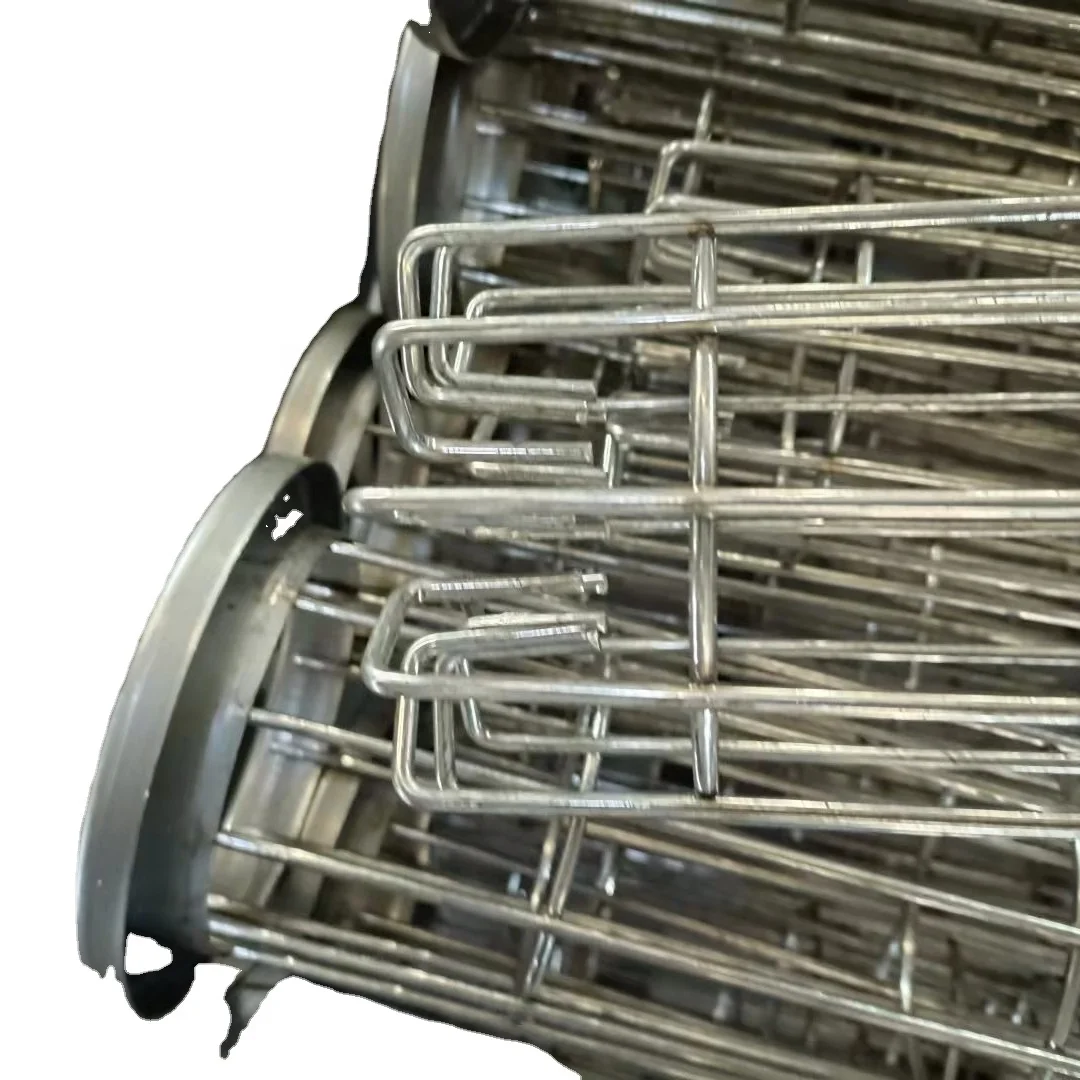

Rolled flange (or Turned Down Flange) and venturi for top load units (Back Row)
Split collar ( or Rolled Band) for bottom load unit (Front Row)
Split collar ( or Rolled Band) for bottom load unit (Front Row)
Materials/Finishes
Carbon Steel/Mild Steel
Galvanized Steel
304 Stainless Steel
316 Stainless Steel
Epoxy Coated (High Temp <325°)
Inconnel 600 or 601
Carbon Steel/Mild Steel
Galvanized Steel
304 Stainless Steel
316 Stainless Steel
Epoxy Coated (High Temp <325°)
Inconnel 600 or 601
Vertical Wires and Wire Gauges
10, 12, and 20 vertical wires most common
5, 6, 8, 16 and 24 also available
10, 11, and 12 gauge wire most common
7, 9, and 13 also available
10, 12, and 20 vertical wires most common
5, 6, 8, 16 and 24 also available
10, 11, and 12 gauge wire most common
7, 9, and 13 also available
Sizes
Common diameters: 4″ – 6-1/8″ (fits most baghouse OEMs)
Common lengths: 6′ – 12′ (shorter/longer lengths also available)
Common diameters: 4″ – 6-1/8″ (fits most baghouse OEMs)
Common lengths: 6′ – 12′ (shorter/longer lengths also available)
Cage Shape
Round (most common)
Oval
Envelope
Round (most common)
Oval
Envelope
Cage Top Styles

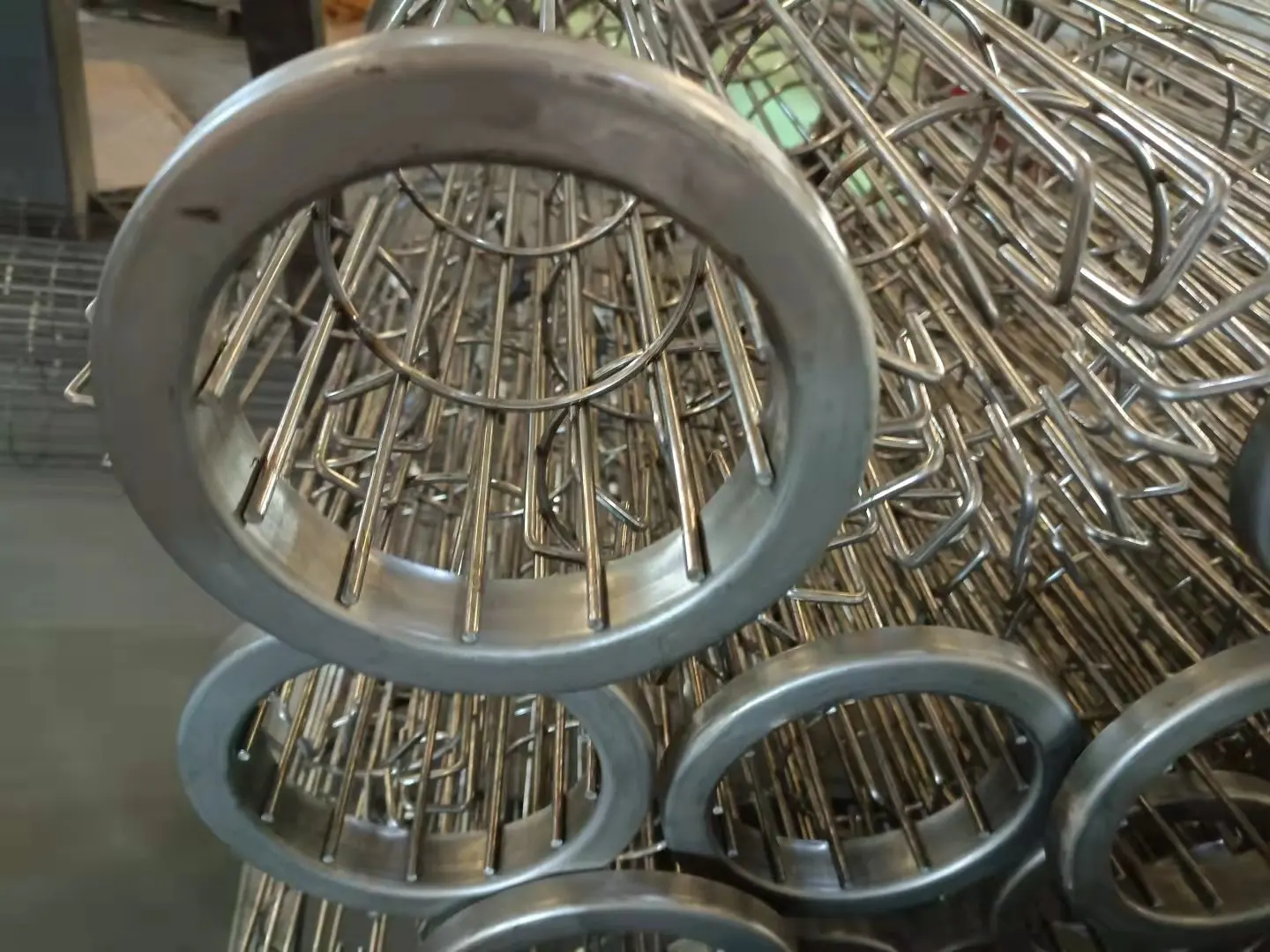

Rolled Flange (Turned Down Flange) – Most Common Top Load Style
Split Collar (Rolled Band) – Most Common Bottom Load Style
Slotted
All Wire
Split Ring
Rolled Flange (Turned Down Flange) – Most Common Top Load Style
Split Collar (Rolled Band) – Most Common Bottom Load Style
Slotted
All Wire
Split Ring

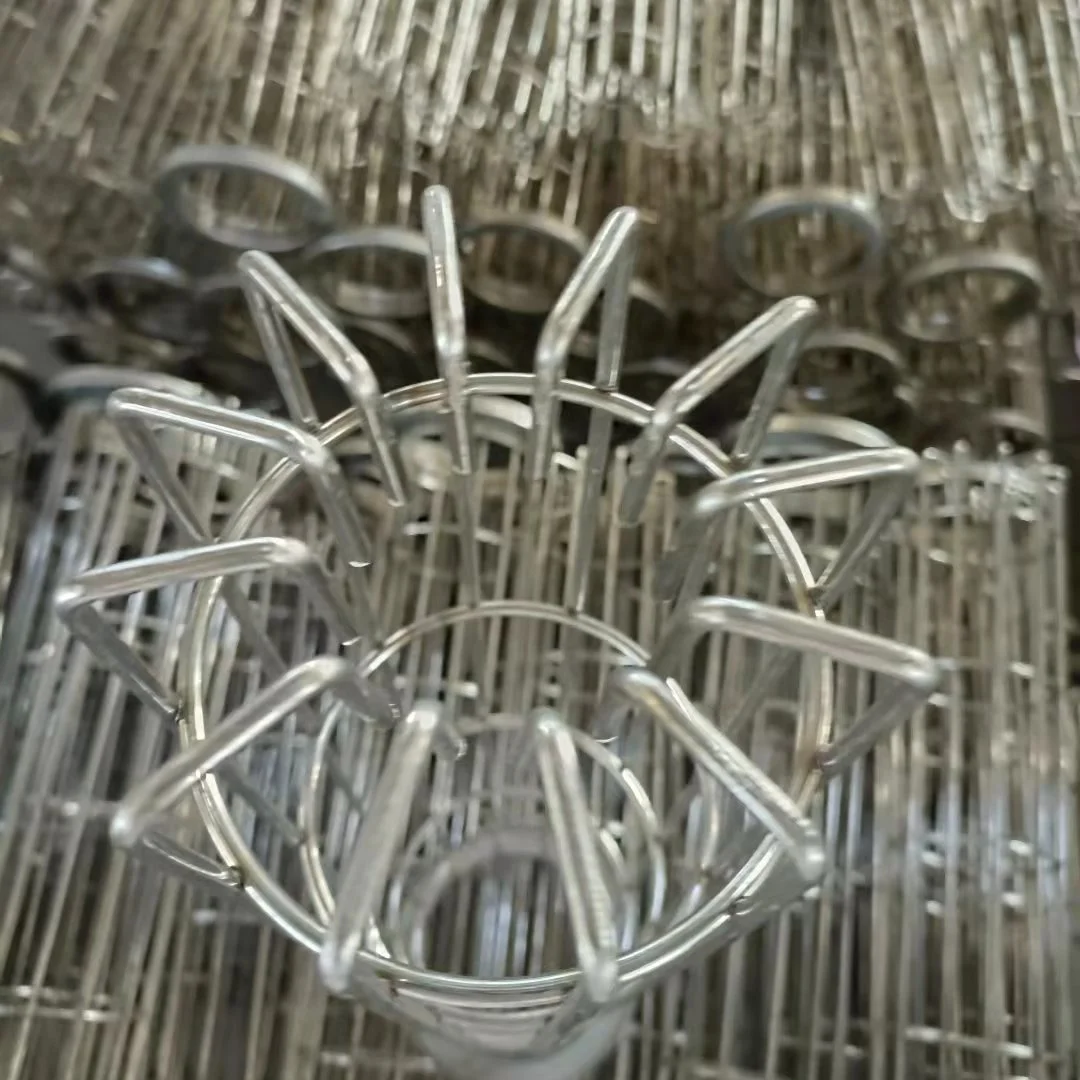

Cage Bottom Styles
Welded – Most Common
Crimped
Snap
Wire Formed
Welded – Most Common
Crimped
Snap
Wire Formed
Additional Options
Venturi
Aluminum, carbon steel, galvanized or stainless steel
Attached (riveted) or drop-in/removable designs
3″ – 6″ lengths
Two-piece option
“Twist-lok” style (good for baghouses with low clearance)
“Fingers” style
Slide Lock
Venturi
Aluminum, carbon steel, galvanized or stainless steel
Attached (riveted) or drop-in/removable designs
3″ – 6″ lengths
Two-piece option
“Twist-lok” style (good for baghouses with low clearance)
“Fingers” style
Slide Lock
