Darda divisor hydraulic pneumatic rock splitter price portable wedges with manual stone hand held splitting machine
- Category: Rock Splitter >>>
- Supplier: Jiujiang Kaiao Machinery Co. Ltd.
Share on (1600340313428):
Product Overview
Description
PRODUCT SPECIFICATIONS
Main performance
no vibration, no impact, no noise, no dust, splitting can be completed in a few seconds, high work efficiency, controllable splitting, precise split size, moderate weight, simple operation, convenient maintenance, and can be carried out indoors and in narrow places Demolition work.

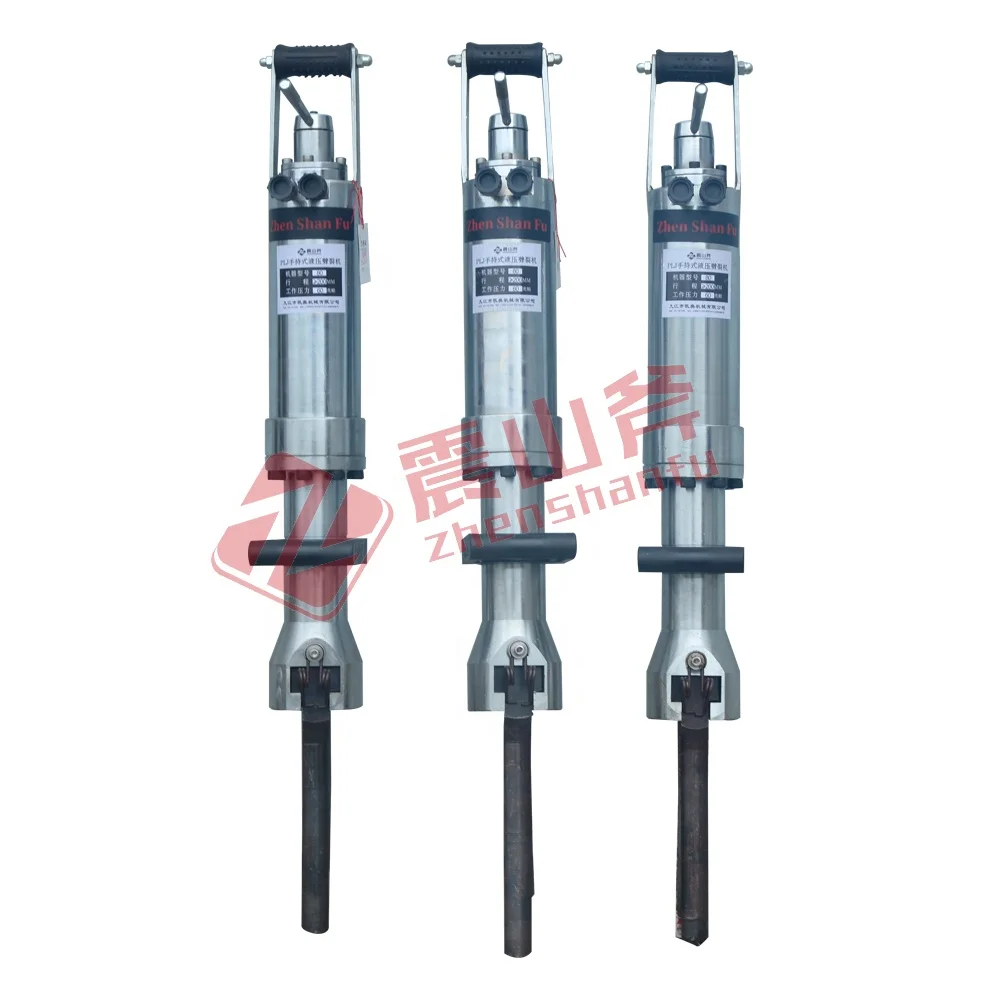

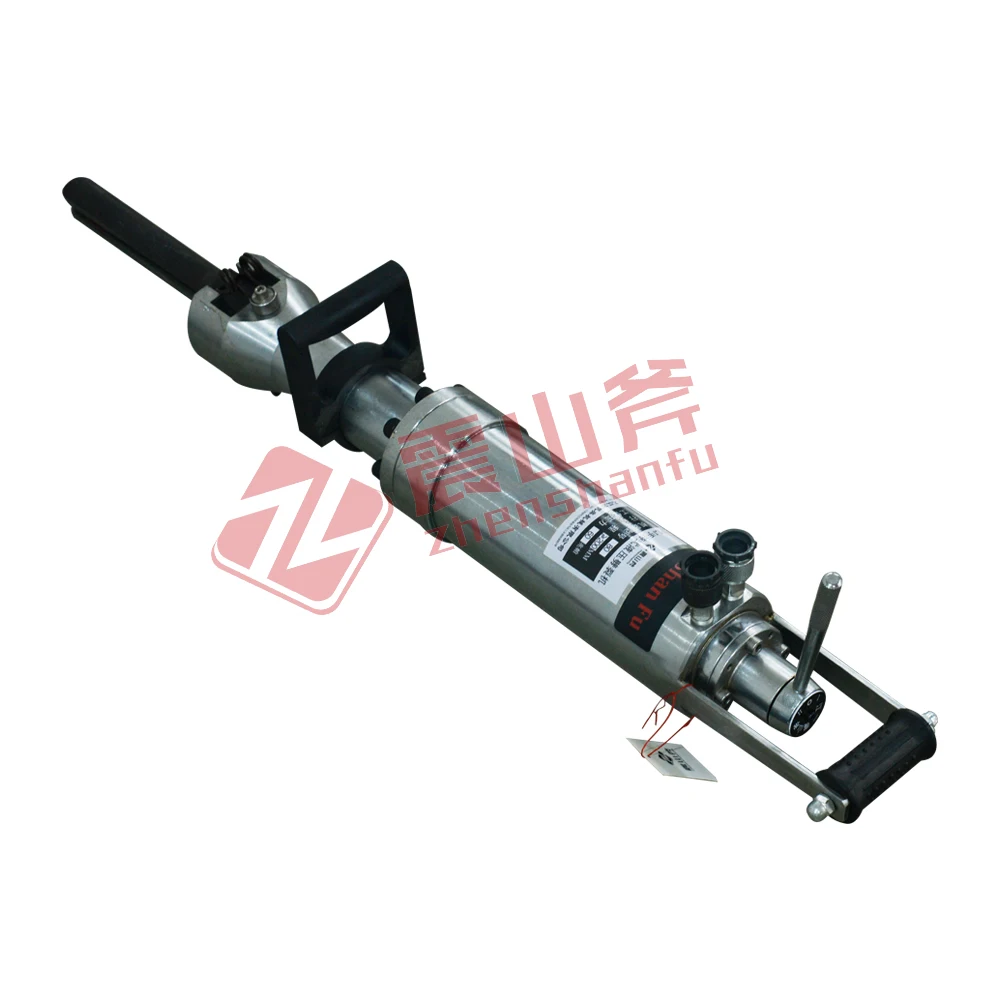

Technical parameters of handheld hydraulic splitting machine | ||||||||||||
Model | Piston Cylinder Inner Diameter/Stroke (mm) | Drilling Diameter (mm) | Drilling Depth (mm) | Splitting Machine Length (mm) | Wedge Group Length (mm) | Weight/pc (kg) | ||||||
ZSF/PLJ-80A | 80/250 | φ38 | 360 | 900 | 130 | 31 | ||||||
ZSF/PLJ-80B | 80/250 | φ42 | 500 | 1030 | 250 | 33 | ||||||
ZSF/PLJ-80C | 80/250 | φ50 | 650 | 1200 | 400 | 35 | ||||||
ZSF/PLJ-80D | 80/250 | φ55 | 810 | 1380 | 600 | 38 | ||||||
ZSF/PLJ-90A | 90/250 | φ38 | 360 | 900 | 130 | 38 | ||||||
ZSF/PLJ-90B | 90/250 | φ42 | 500 | 1030 | 250 | 40 | ||||||
ZSF/PLJ-90C | 90/250 | φ50 | 650 | 1200 | 400 | 42 | ||||||
ZSF/PLJ-90D | 90/250 | φ55 | 810 | 1380 | 600 | 45 | ||||||
ZSF/PLJ-100A | 100/250 | φ38 | 360 | 900 | 130 | 41 | ||||||
ZSF/PLJ-100B | 100/250 | φ42 | 500 | 1030 | 250 | 43 | ||||||
ZSF/PLJ-100C | 100/250 | φ50 | 650 | 1200 | 400 | 45 | ||||||
ZSF/PLJ-100D | 100/250 | φ55 | 810 | 1380 | 600 | 48 | ||||||
Products Description

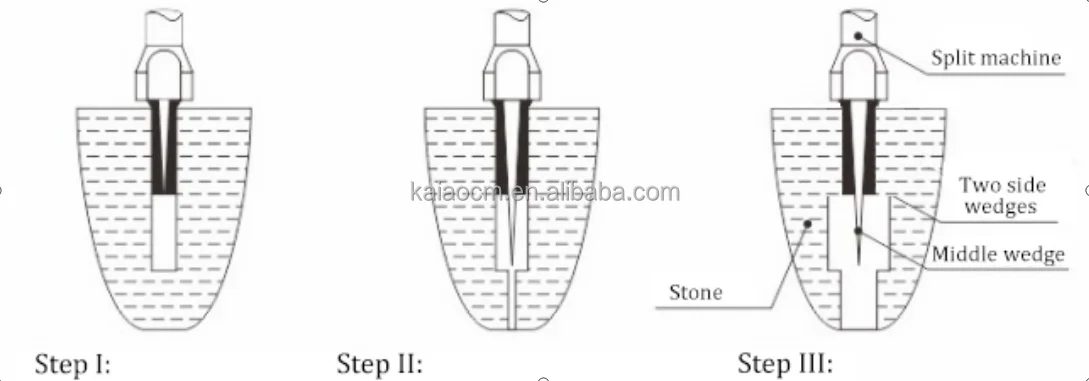

First step:
First, drill a hole of corresponding diameter and depth on the object to be split, and insert the wedge and two reverse wedges into the drilled hole.
Second step:

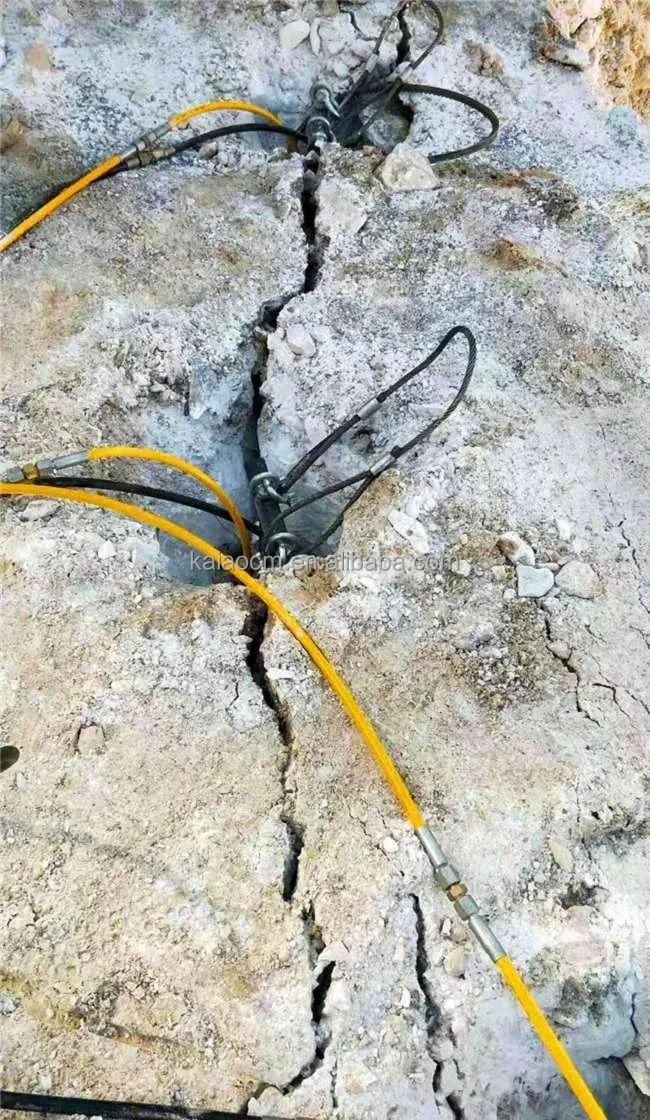

The middle wedge moves forward before the two opposite wedges by hydraulic pressure, and pushes them outward with a large splitting force. The split object can produce cracks within a few seconds.
Third step:
Use the enlarged gasket to split the split body again to widen the split cracks.
First, drill a hole of corresponding diameter and depth on the object to be split, and insert the wedge and two reverse wedges into the drilled hole.
Second step:
The middle wedge moves forward before the two opposite wedges by hydraulic pressure, and pushes them outward with a large splitting force. The split object can produce cracks within a few seconds.
Third step:
Use the enlarged gasket to split the split body again to widen the split cracks.
Our Advantages
1.Safety:
Hydraulic splitter work under the statically hydraulic environment can be controlled, it will not bring any dangerouscompare to explosion, impact demolition.
2.Environmental protection:
When hydraulic splitter is working, it will not give vibration, impact, noise and dust, no any affect to surrounding environment. It works interference-free even indoor, in densely populated area or beside other equipments.
3.Economical:
Hydraulic splitter can be continuous working to complete splitting process in several seconds, the cost of function and maintenance is very low, extremely effective and economical.
4.Operation:
Easy to learn and use, only one people can operation; hydraulic splitter has long working life, convenient maintenance, the
splitters and power station are easy carrying. 5.Accuracy:
It is difference to traditional demolition methods, hydraulic splitter can ensure division direction, shape and size of remove part in advance, thus the division and dismantling are in high precision.
6.Flexibility Hydraulic splitter is compact, light, high split force, can work convenience indoor or narrow ground, also can work under the water
Utility model patent certificate
Utility model patent certificate
Our company has obtained 18 pcs patent certificates
