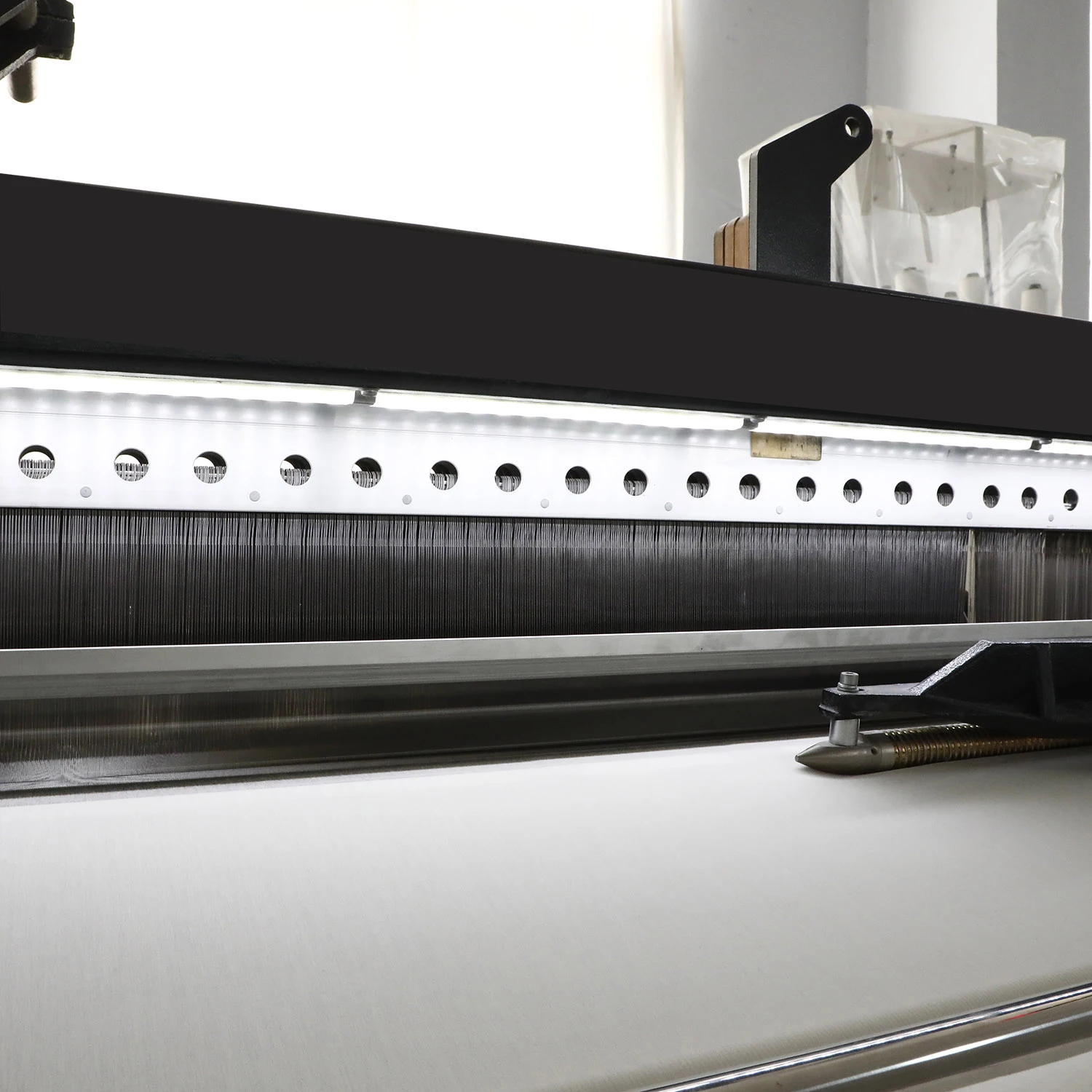

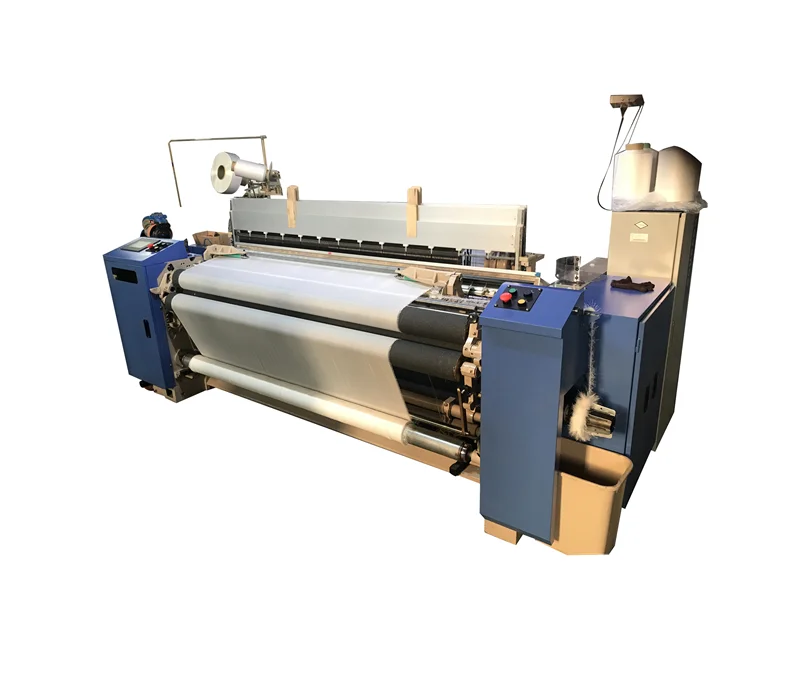

SUNTECH air jet loom high efficiency automatic weaving machine
- Category: >>>
- Supplier: Zhejiang Strength Machinery Co. Ltd.
Share on (1600340334932):
Product Overview
Description
Product description
Detail Images

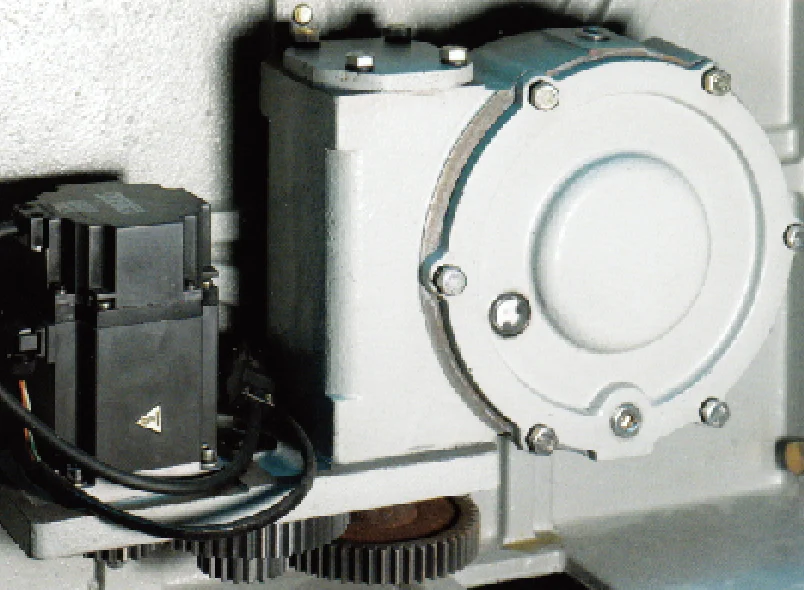

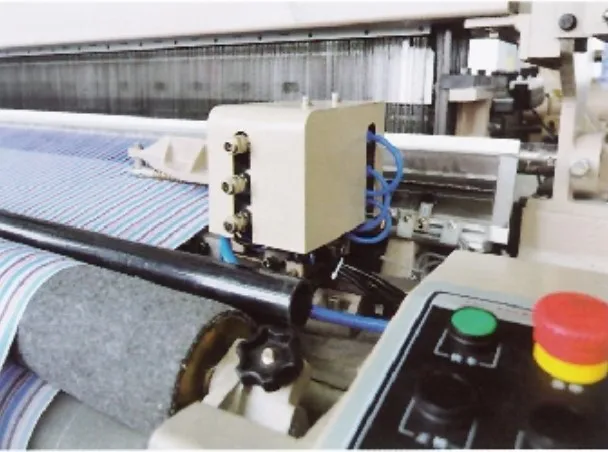

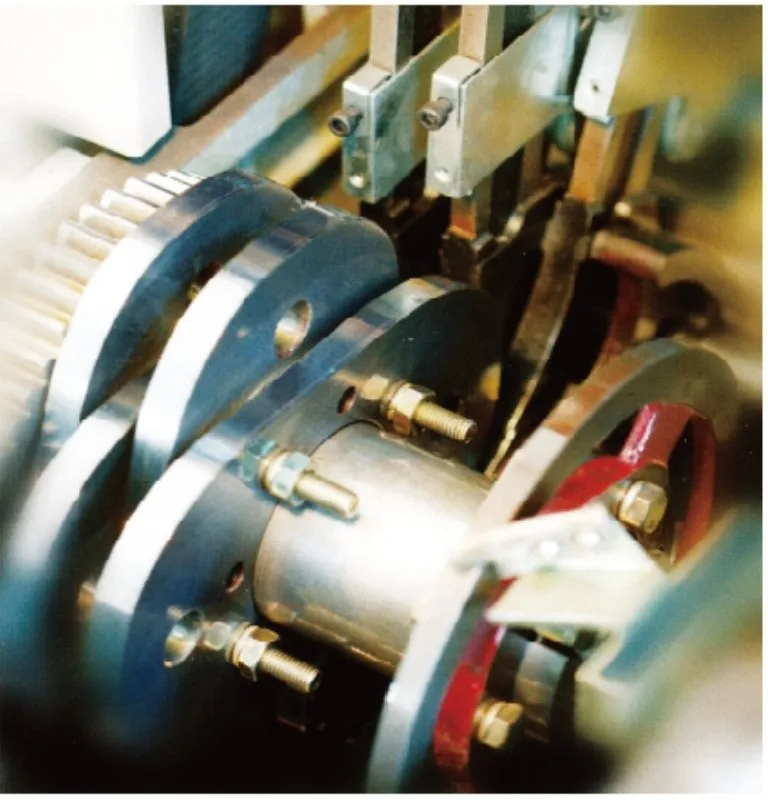

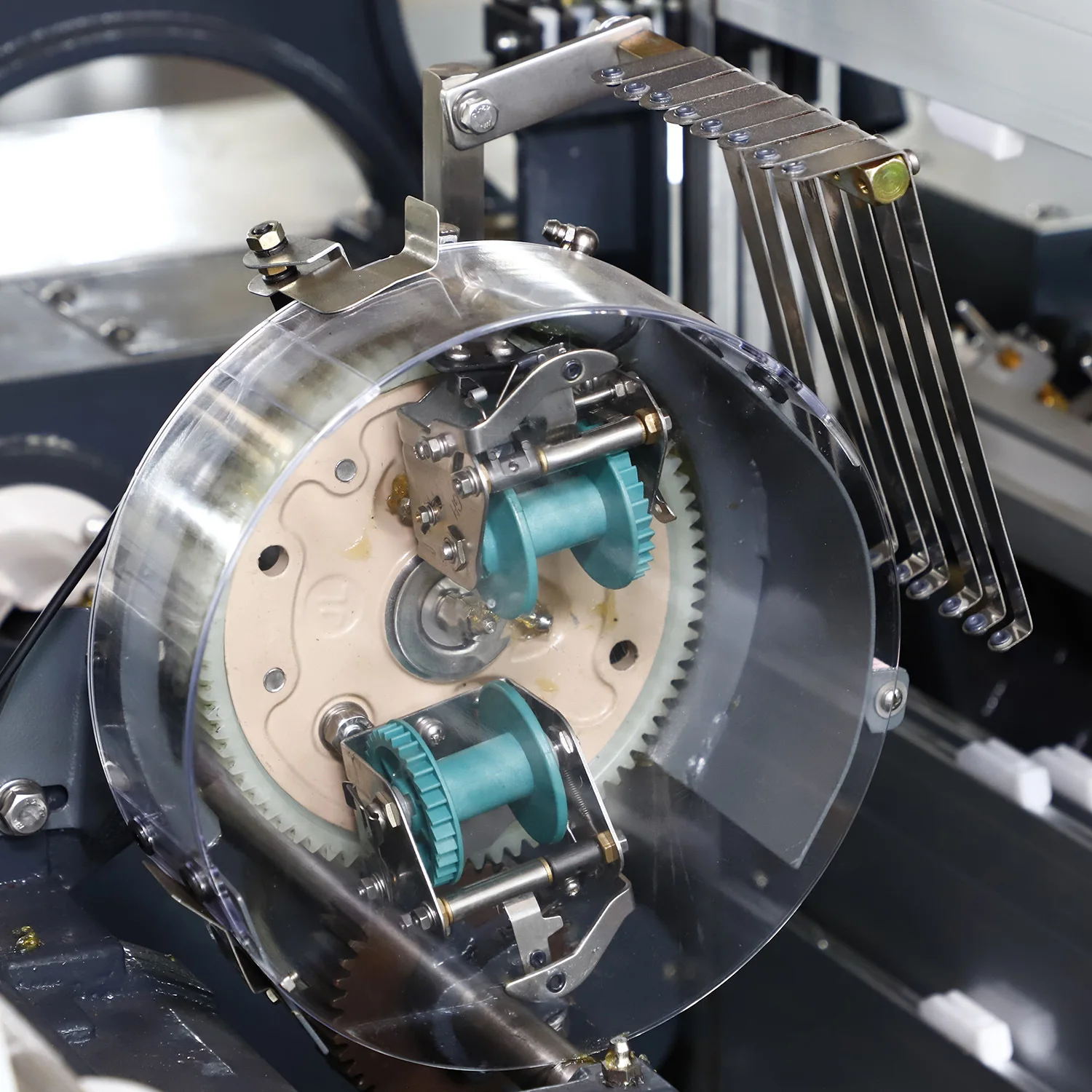

Take-up mechanism display Electronic take-up and left off Clear shedding
Specification
Size | According to customer requirements |
Texture of material | According to customer requirements |
Speed | 500~1000rpm |
Number of nozzles | 1-4nozzle |
Power | 1.5-4.5kw |
Number of heald frames | 2-16piece |
Way of opening | plate/cam/Dobby |
Reed width | 170-360cm |
Let-off | Eletric let off,φ800mm beam pipe |
Take-up | Electric take up,Max rolling φ600mm |
Reed | 1 piece |
Wires | 10000 pieces |
Dropper | 10000 pieces |
Back rest | Double back rest,removable back rest seat on the back of China high speed air jet loom |
Electric control box | Touchable screen;Controlled by computer;parameter setting and controlling,autodiagnosis |
Stopping device | 4 color LED lights a,cracked ends:6 line droppers;b, broken picks:two weft feeler c,Leno edge apparatus:near switch;d,Capture side of weft yarn:sensor |
Lifting | Solid supporting, Thickened pipe,imported bearings |
Crossbeam | Triangular steel, weaving steadily |
Weft selection | 1,2,4 or 6 colors |

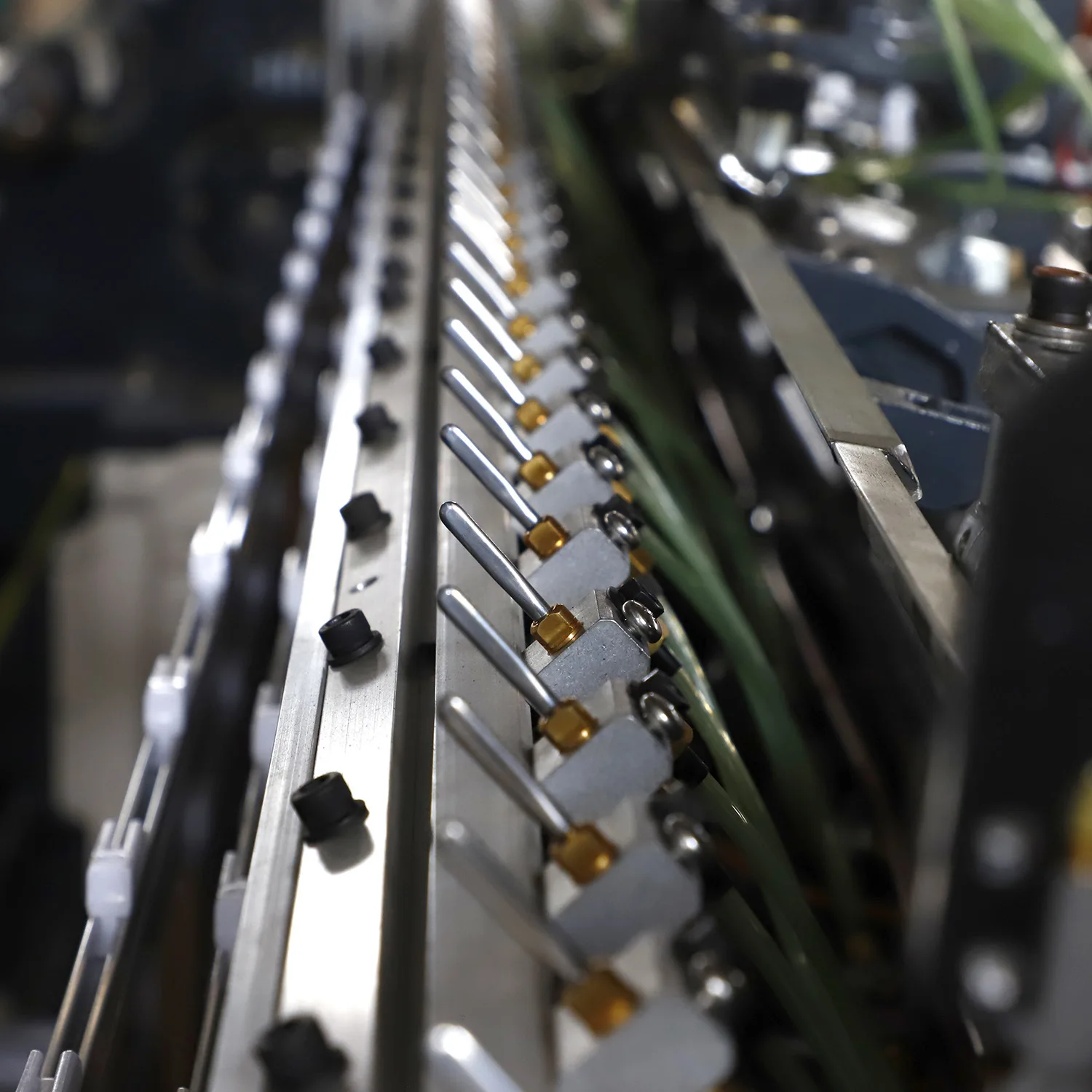

Weft insertion | The main and auxiliary nozzles are electronically controlled |
Drive | New designed motor;Electromagnetic brake;Butt oncontrol |
Air supplying | Centralized air compressor |
Applications
