Electromagnetic Separator for Belt Conveyor for removing the iron tramp from bulk materials RCDF
Electromagnetic Separator for Belt Conveyor for removing the iron tramp from bulk materials RCDF

Electromagnetic Separator for Belt Conveyor for removing the iron tramp from bulk materials RCDF

Share on (1600340360040):


Price:

Quantity:


Product Overview

Description



Products Description

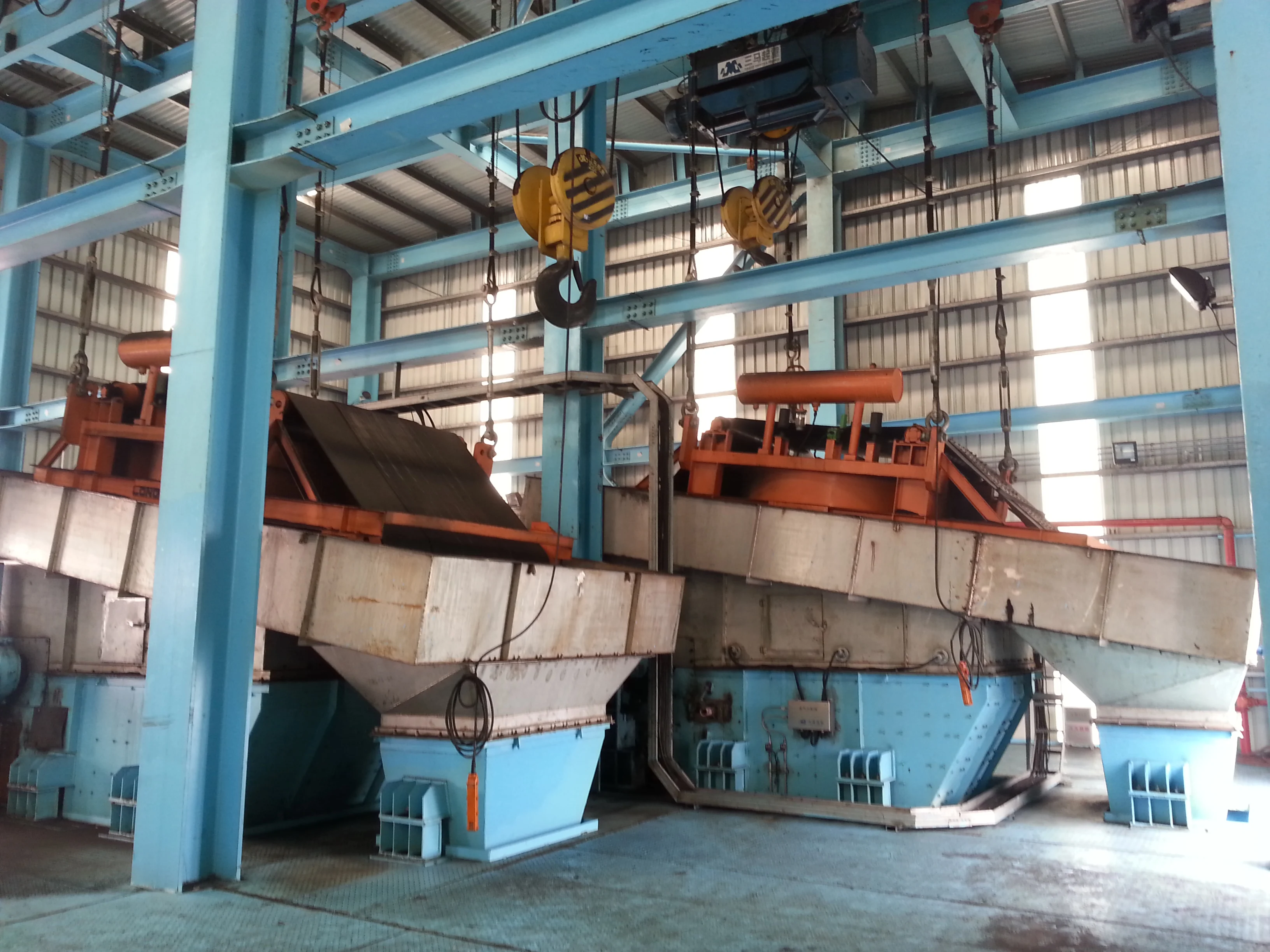

Over Belt Electromagnetic Separator
The over belt electromagnetic separators are mounted in line with the material flow or transverse to remove the ferrous materials over the side of the conveyor or cross the conveyor.
By to the way of coil cooling，LONGi supplies air-cooling, fan cooling and oil-cooling. By the discharging method, we supply the equipment in self-cleaning and manual cleaning as well.


Products features


Product Features
The coil of LONGi’s over belt electromagnetic separator has the following special features:
- Anti-oxidation, well insulated coil with effective heat dissipation.
- anti- corrosion
- Larger heat dissipation area
- Stable temperature rise design, controls the temperature rise well
- Good cooling effect
- High gradient magnetic field design devote to remove the tramp iron more efficiently.

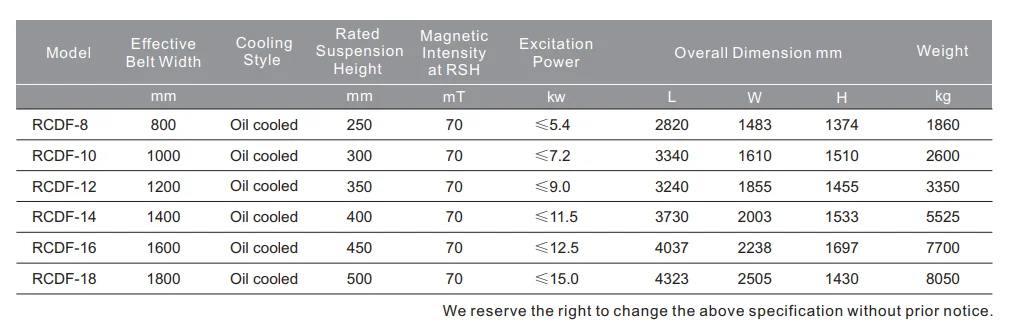

Product Paramenters


Model
Effective Belt Width mm
Cooling Style
Rated Suspension Height mm
Magnetic Intensity at RSH mT
RCDF-12
1200
Oil cooled
350
70




Applications

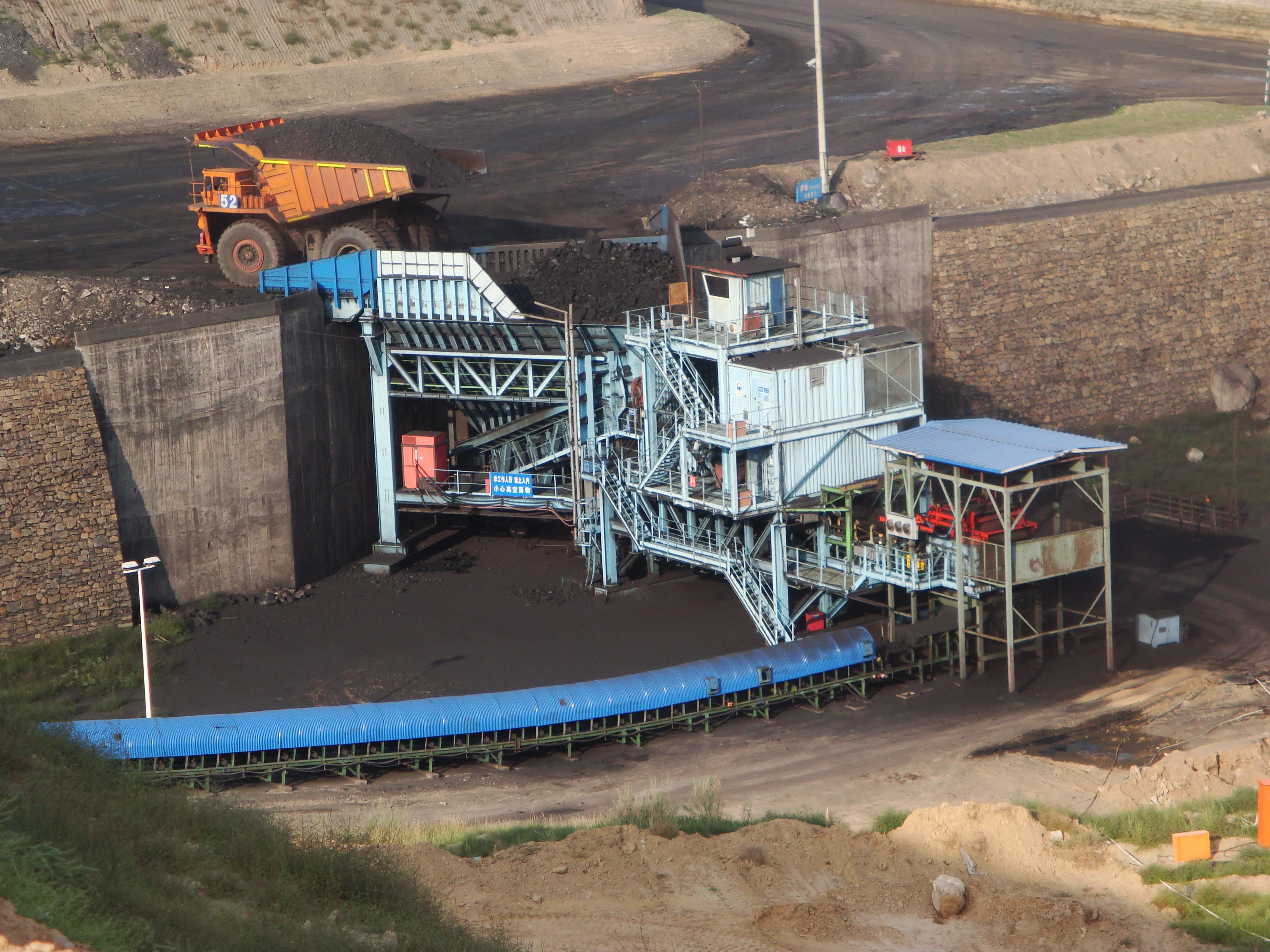

Over belt electromagnetic separator is designed to remove large and small tramp metal from conveyors to purify the materials,improve the quality and protect the equipment in the down streams. It is widely used in power plants, coal plants, metallurgical plants, cement plants, glass plants, grain plants, chemical engineering and port industry etc.
