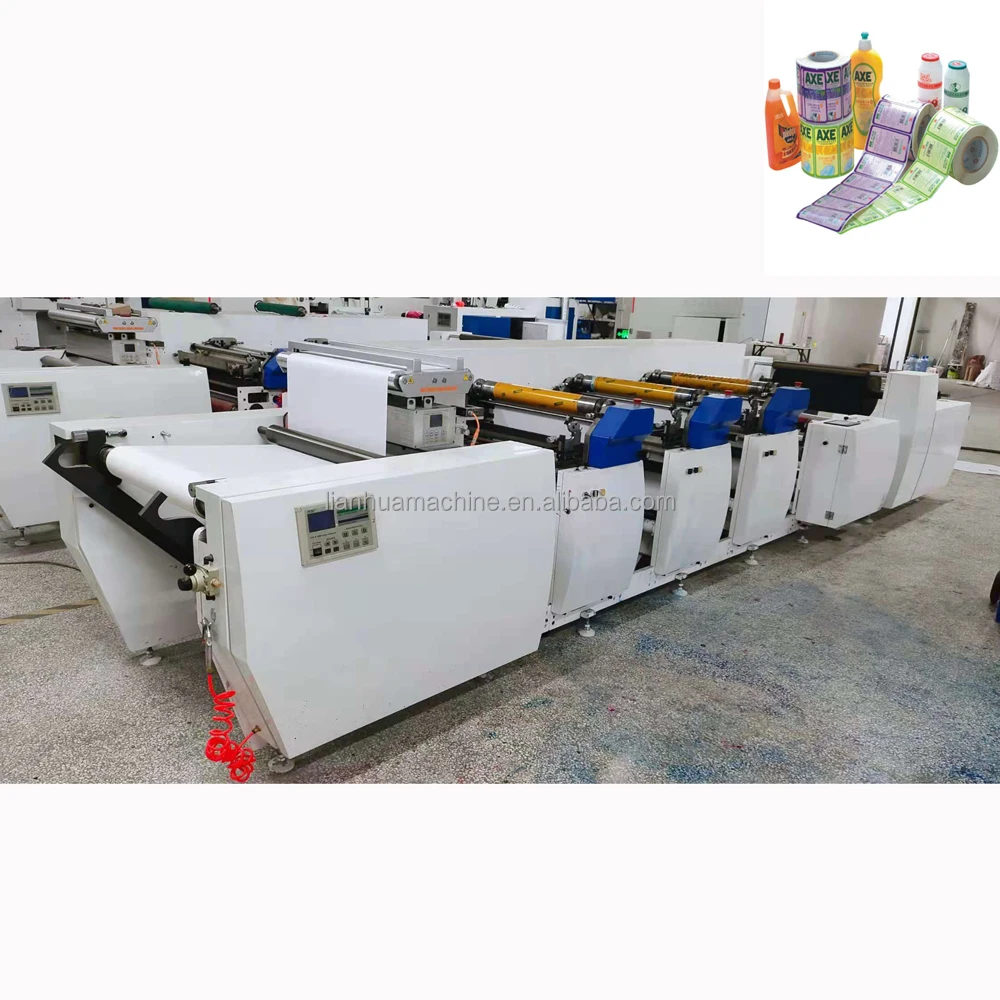

HJRY 520 label roll flexo printing four colour machine inline flexographic printing press with UV dryer

Share on (1600340361209):


Price:

Quantity:


Product Overview

Description







product description:

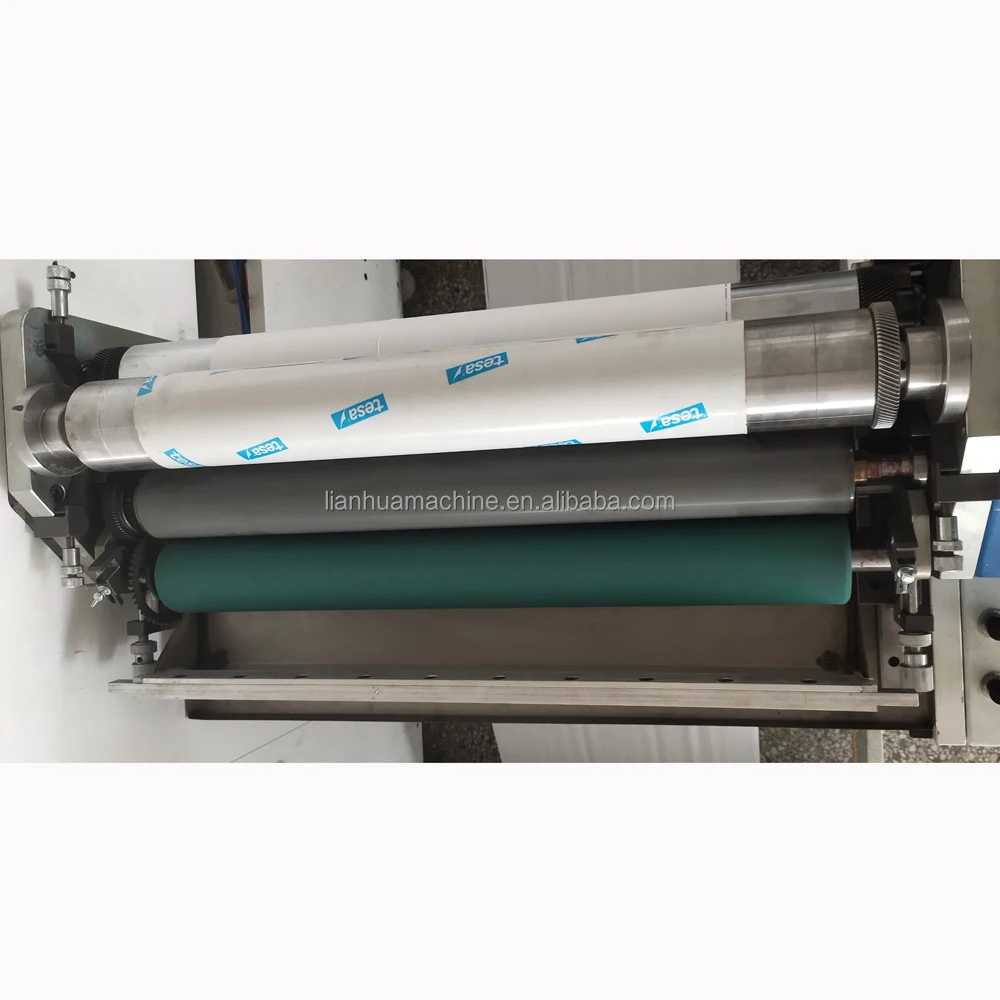

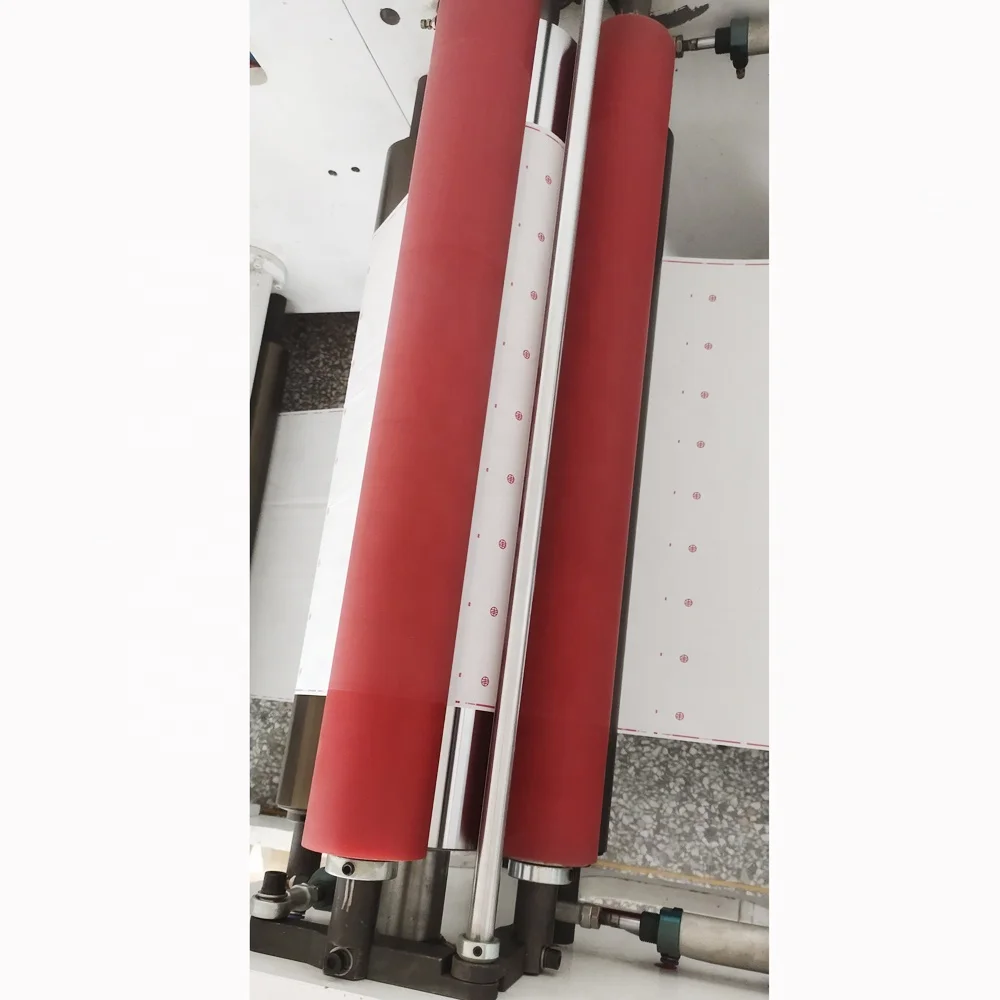

1) Ceramic anilox cylinder to transfer the ink

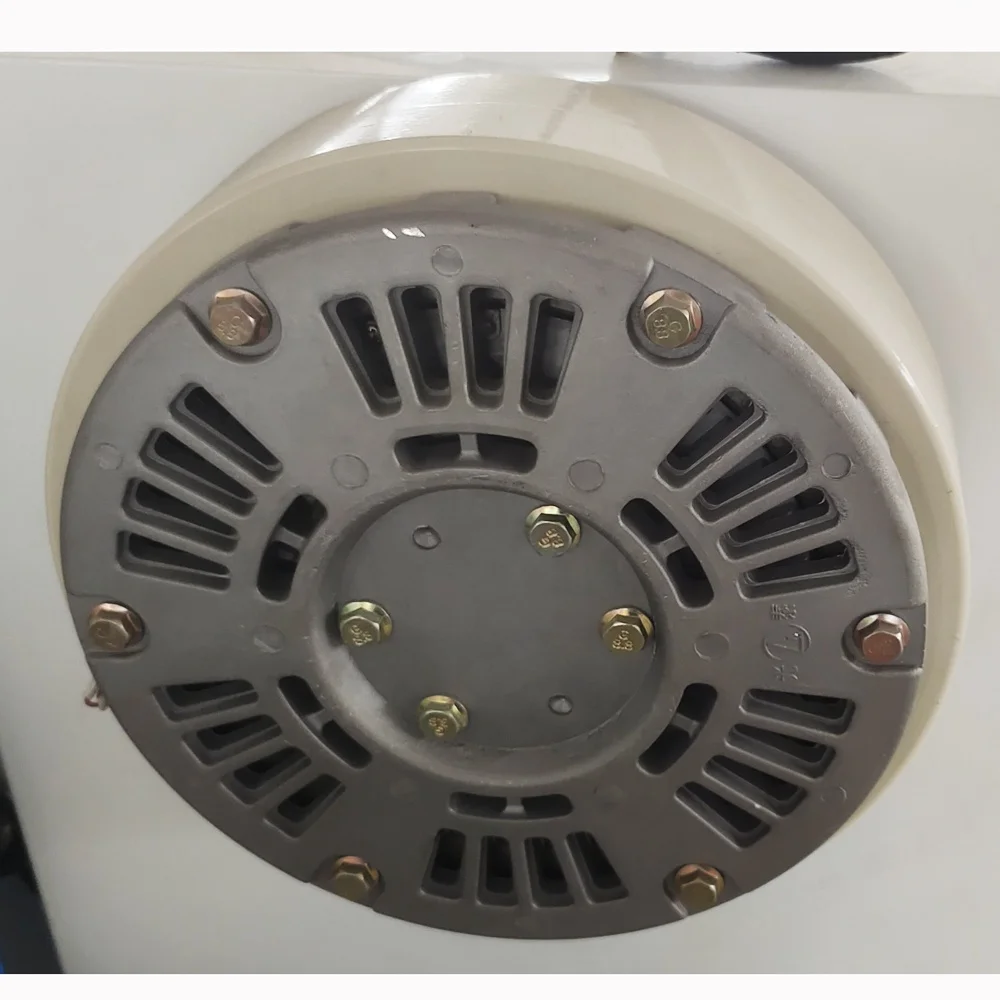

2) Automatic magnetic powder brake controller for unwinding & rewinding
3) Tension controller for unwinding

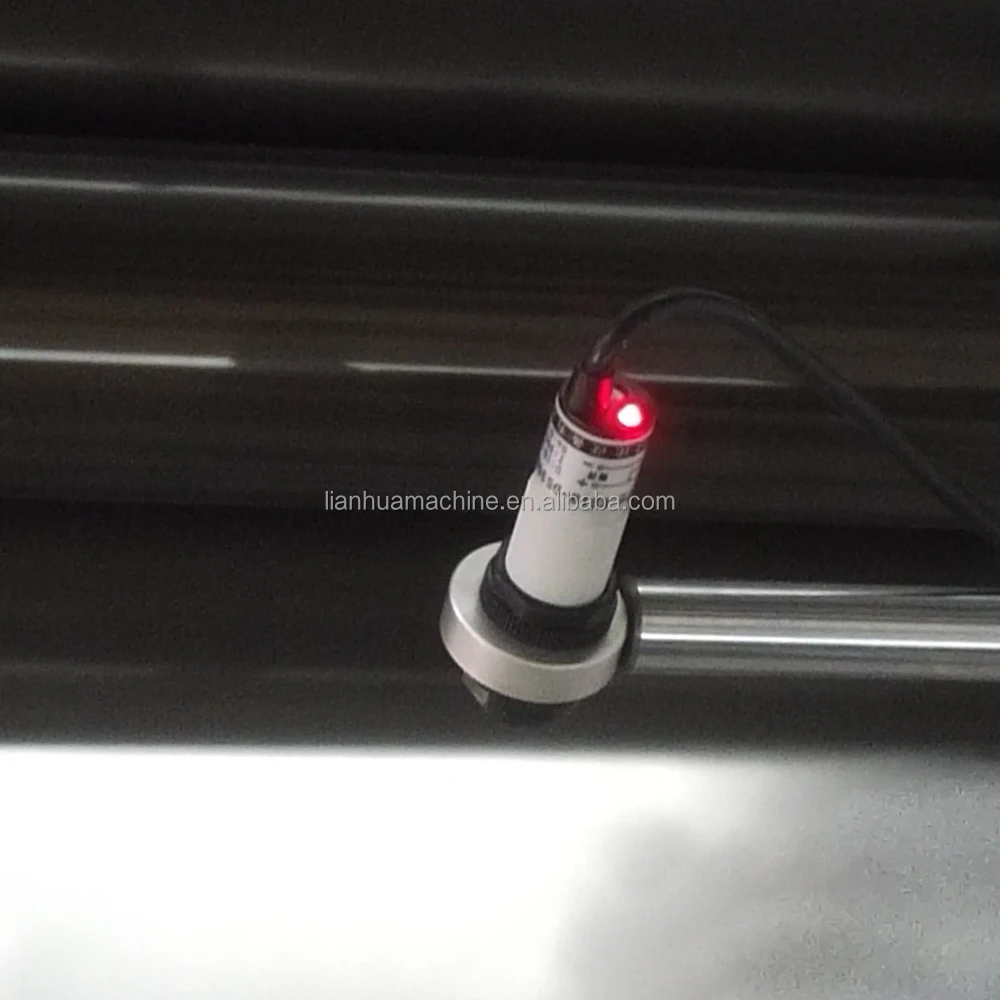

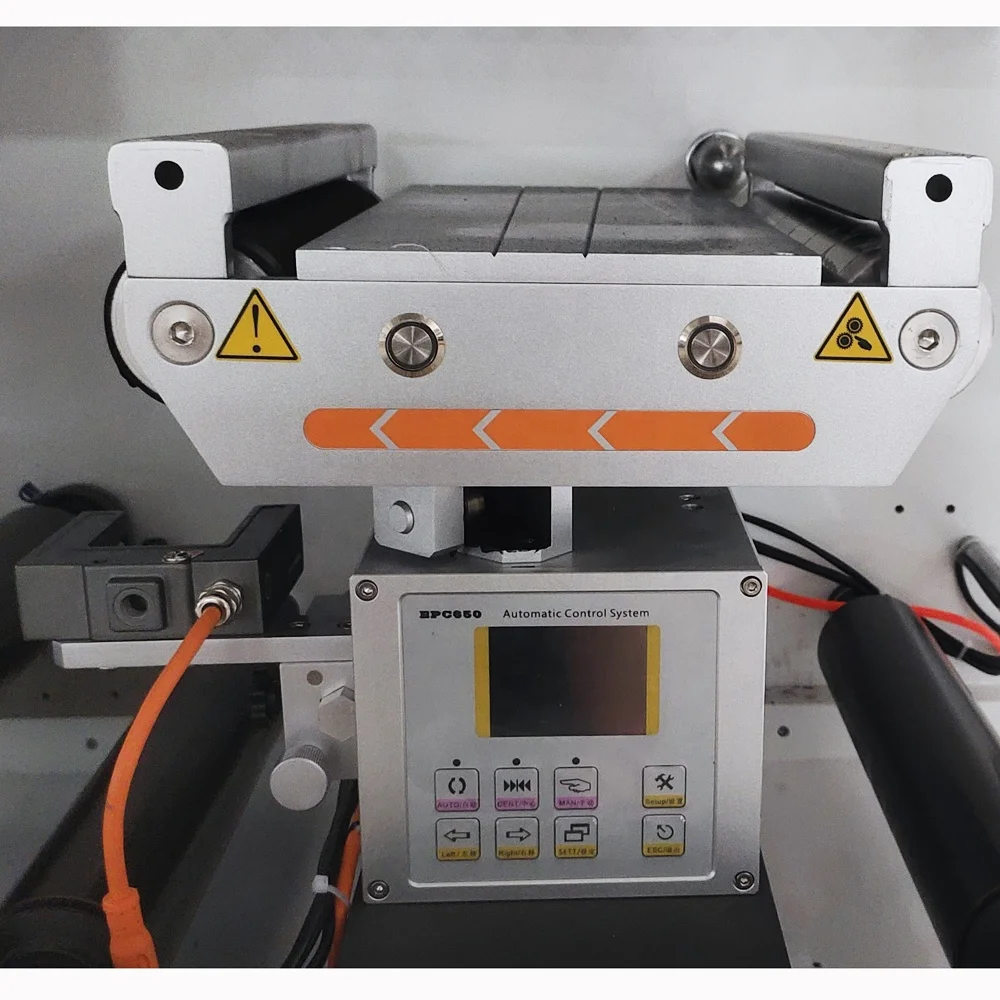

4) Seperate unwind system with web guide
5) Tension controller for rewinding

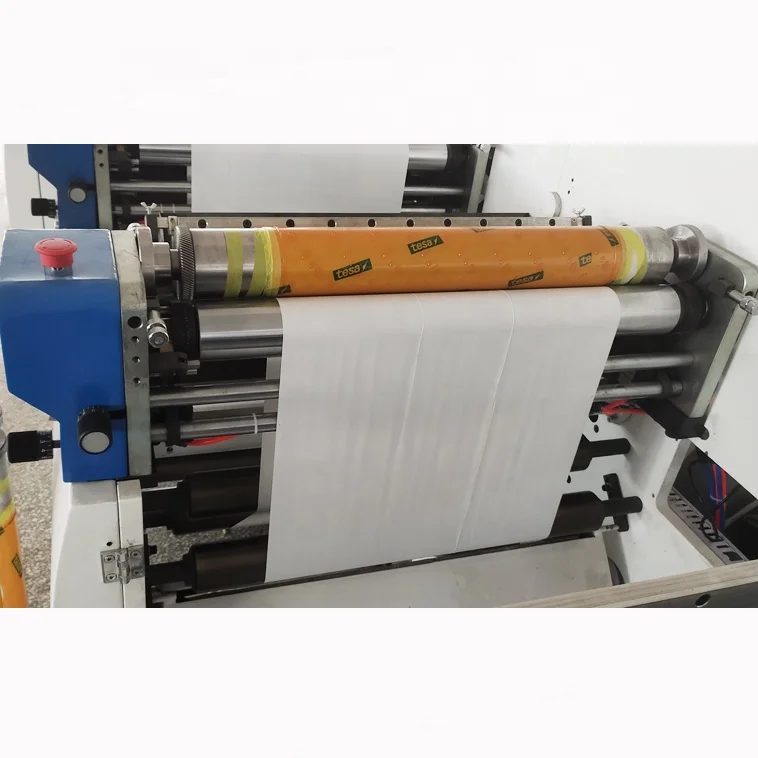

6) Printing unit: 360°Plate-adjustment
7) IR dryer for each printing unit.
8) The ink rollers will be separated from the printing roller, and keep running, when machine stopped.
9) Frequency inverter for speed controlling
10) Feed paper form roll material, print, coating, dry automatically by infrared ray, laminating and rewinding completed in one time.

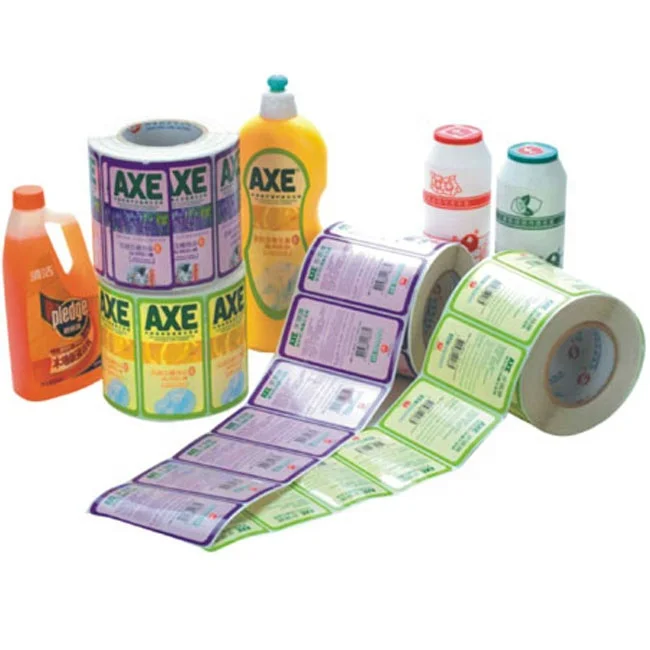

11) It is an ideal machine for printing trade invoice and top-grade adhesive label.






Model
HJRY-520
Printing speed
150m/min
Printing color number
4color
Max width of paper
520mm
Max printing wide
520mm
Max unwinding diameter
1000mm
Max rewinding diameter
1000mm
Printing length
175-400mm
Thickness of flexo plate
1.7mm
Precision of overprint
±0.1mm
Overall dimension
3500*1500*1200mm
Weight
about2500kg
