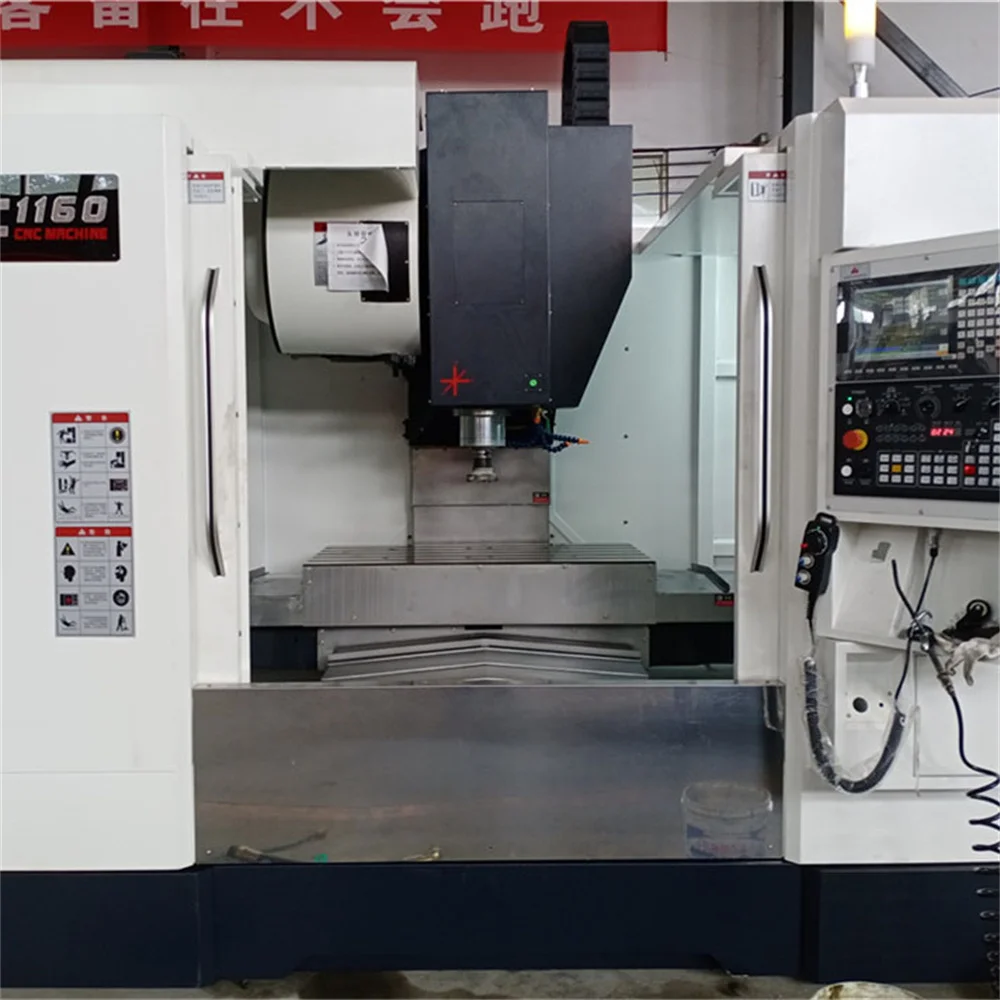

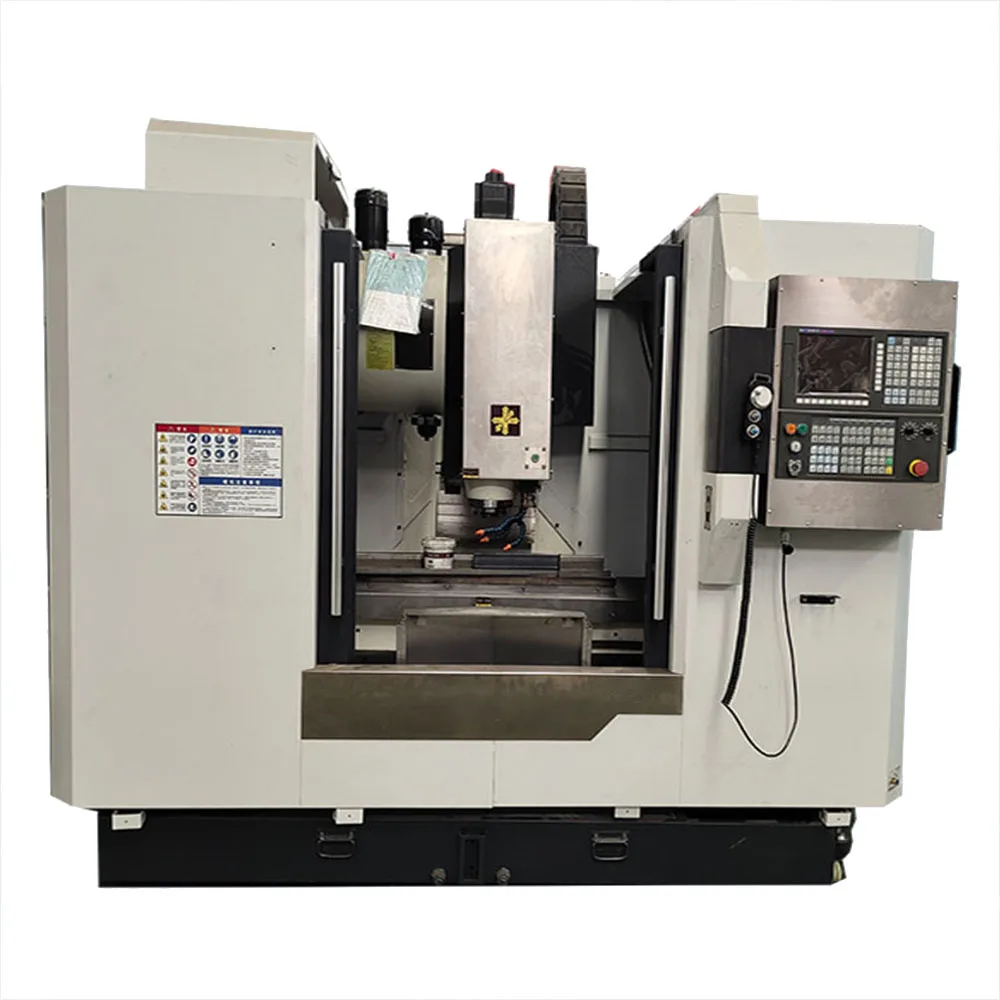

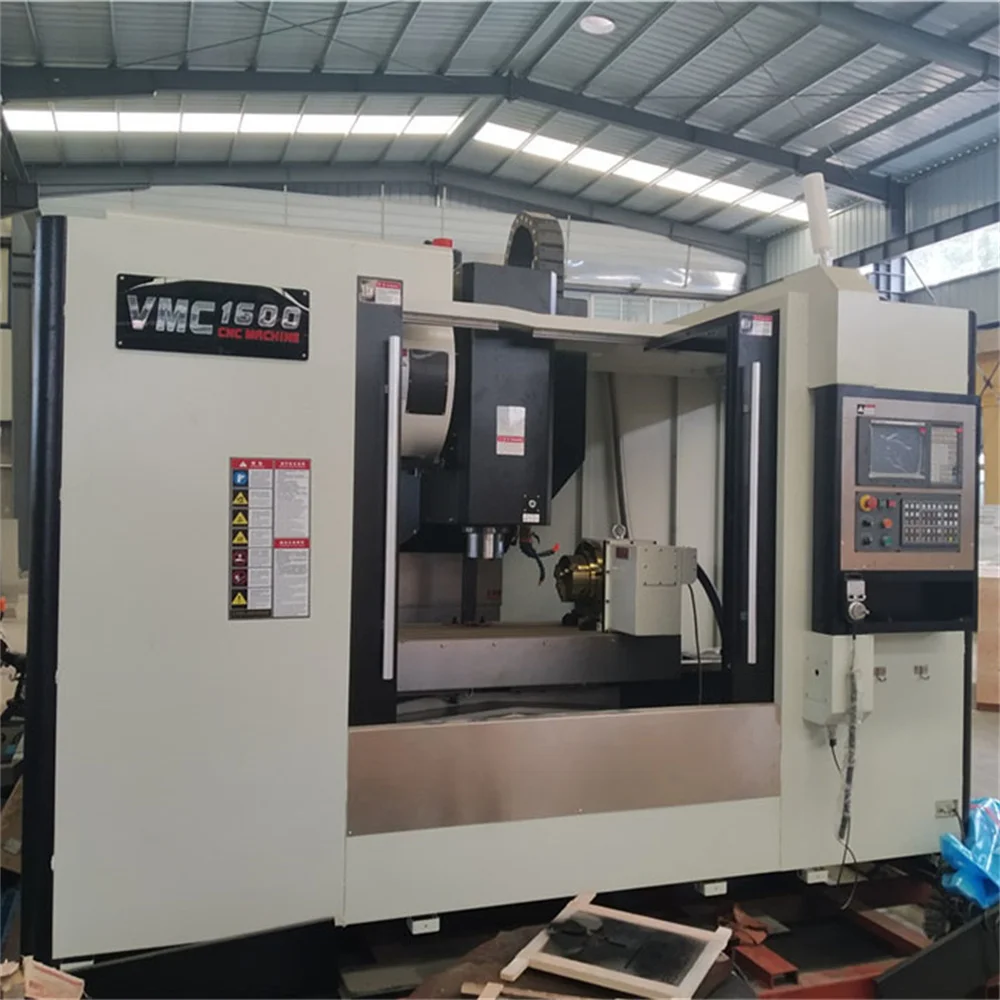

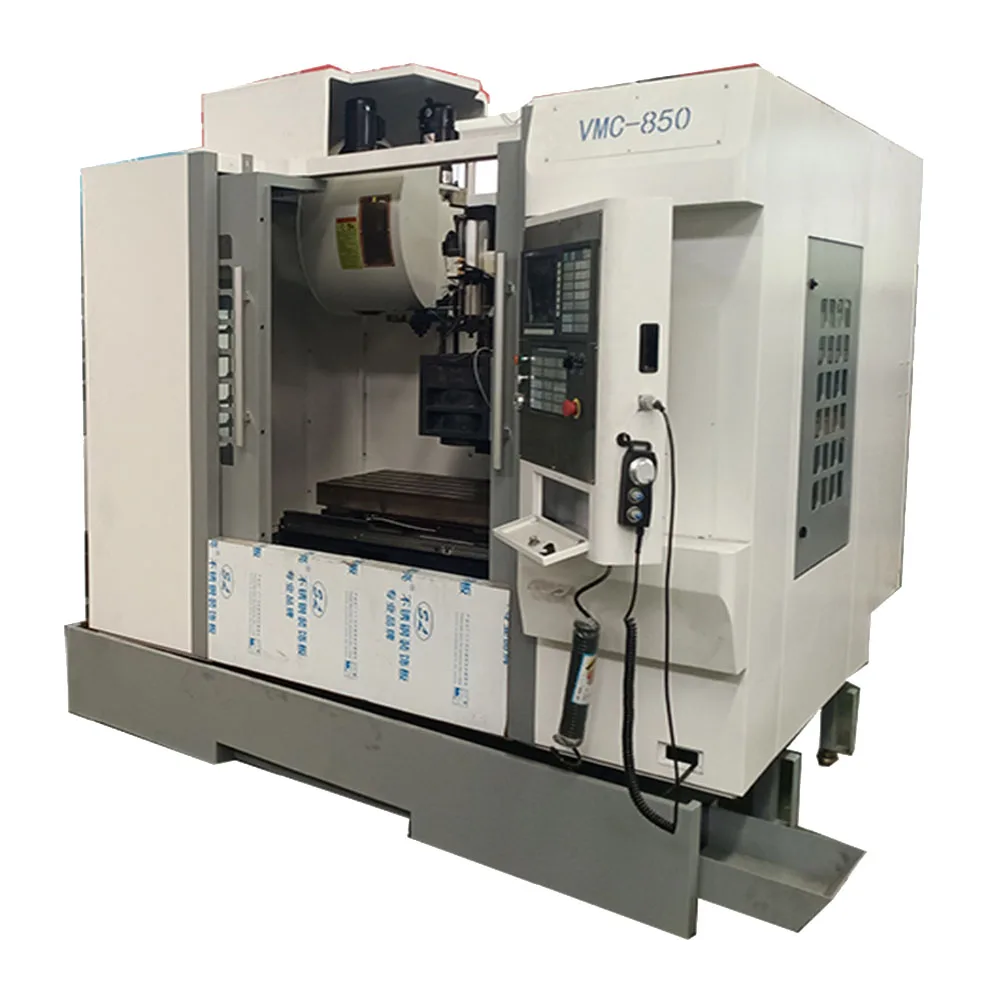

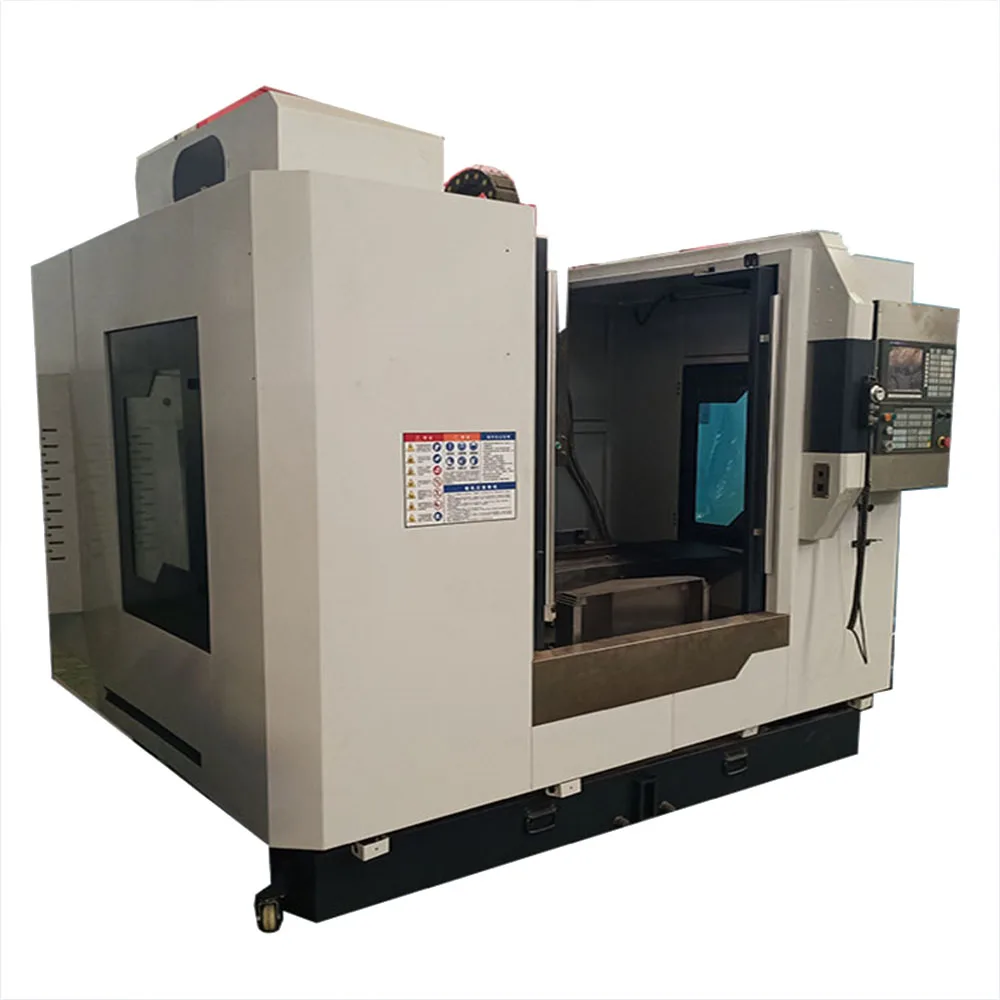

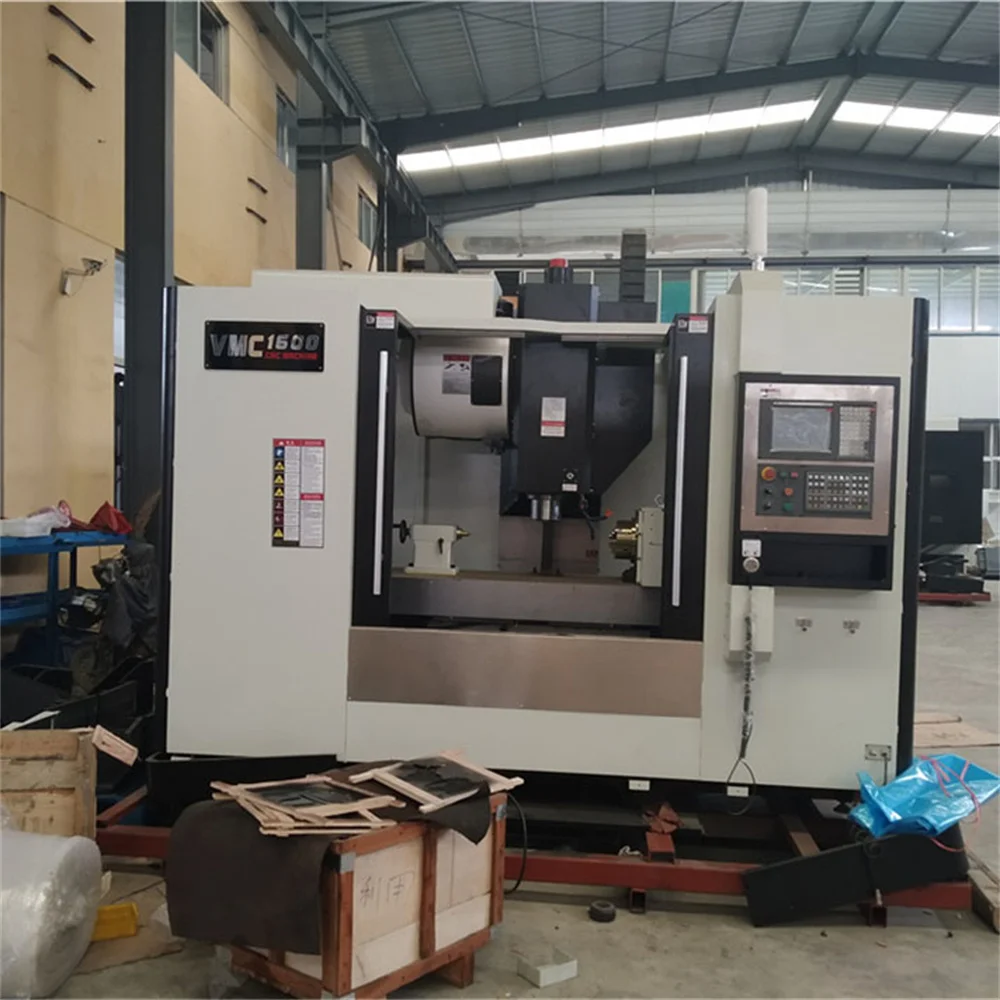

VMC 650 850 1060 1160 machining center 3,4,5 axis china CNC milling machine
VMC 650 850 1060 1160 machining center 3,4,5 axis china CNC milling machine
VMC 650 850 1060 1160 machining center 3,4,5 axis china CNC milling machine
VMC 650 850 1060 1160 machining center 3,4,5 axis china CNC milling machine
VMC 650 850 1060 1160 machining center 3,4,5 axis china CNC milling machine
VMC 650 850 1060 1160 machining center 3,4,5 axis china CNC milling machine
VMC 650 850 1060 1160 machining center 3,4,5 axis china CNC milling machine

VMC 650 850 1060 1160 machining center 3,4,5 axis china CNC milling machine

Share on (1600340361834):


Price:$19,500.00 - $22,500.00

Quantity:


Product Overview

Description



Product Description




This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.


Features At A Glance


Application.
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional


Automatic Toll Changer.
The advantage is fast tool change speed and large tool loading.
Taiwan Spindle.
Adopt Japan, Taiwan advanced technology, product quality is stable, high precision.
The chuck is precise and reliable, has good elasticity, and has a long service life.


CNC System.
KND,GSK,HNC,SIEMENS,SYNTEC,FANUC,MITSUBISHI ETC.
Subject to client requirements.
Taiwan Screw and Linear Rail.
High positioning accuracy, low wear.
Easy to assemble and exchange, simple lubrication structure.


Product Parameter


Model
VMC850
VMC1060
VMC1270
Spindle taper
BT40/150
BT40/150
BT50/155
Spindle power kw
5.5
7.5
11
spindle speed rpm
8000
8000
8000
X axis travel mm
800
1000
1200
Y axis travel mm
500
600
700
Z axis travel mm
500
600
800
Distance from spindle surface to worktable mm
105-655
180-780
150-750
Worktable size mm
500*1000
600*1100
700*1300
Max load on worktable kg
600
800
1000
Positioning accuracy mm
±0.0075
±0.0075
±0.0075
Repeat positioning accuracy mm
±0.0005
±0.0005
±0.0005
Automatic tool changer
16/18/24
16/18/24
16/18/24
Max tool weight kg
10
10
10
Max tool diameter mm
90
90
90

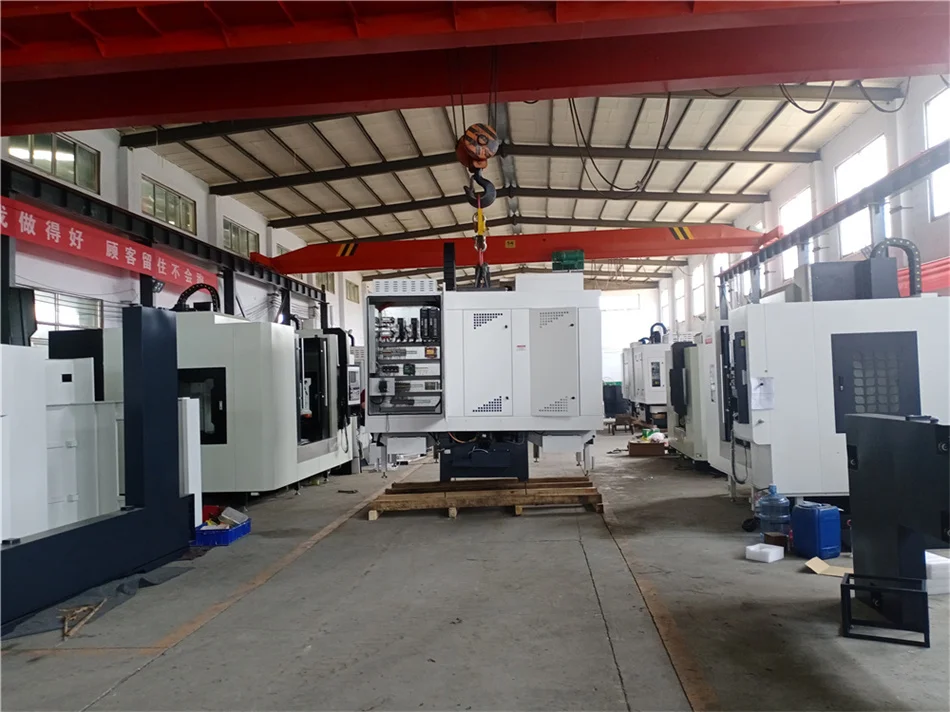

Presentation Window








Company Profile

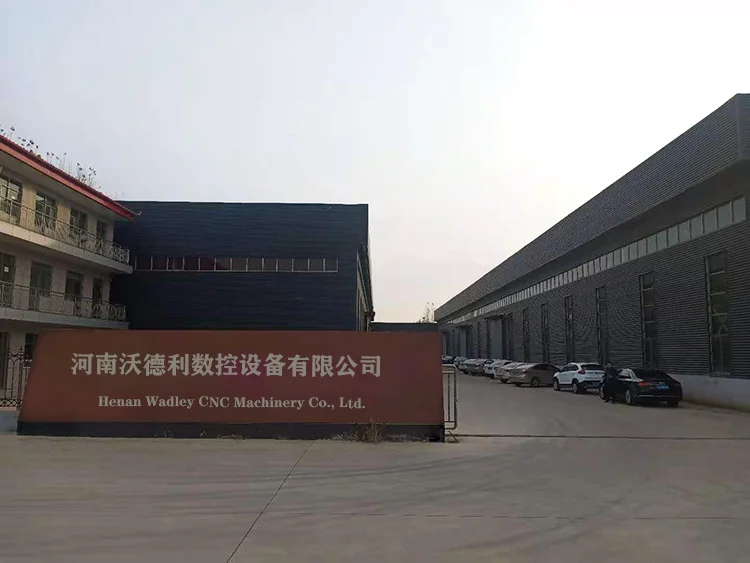

Henan Wadley CNC Machinery Co.,Ltd.located in Zhengzhou, the capital city of Henan Province, China,covers an area of 200,000㎡, it is a R&D and manufacturing enterprise specializing in VMC, lathe,CNC lathe, drilling machine, milling machine, planer, grinder, cold bending forming equipment, pipe processing equipment and automation equipment.

The products are exported to more than 100 countries and regions such as Russia, Australia, Mexico.Asia.Africa. Europe and America.




FAQ


Q1. What are the main key points for selecting right machines?
A1: Whole structure, Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for CNC machine tools?
A2: Yes, most of machine tools need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
