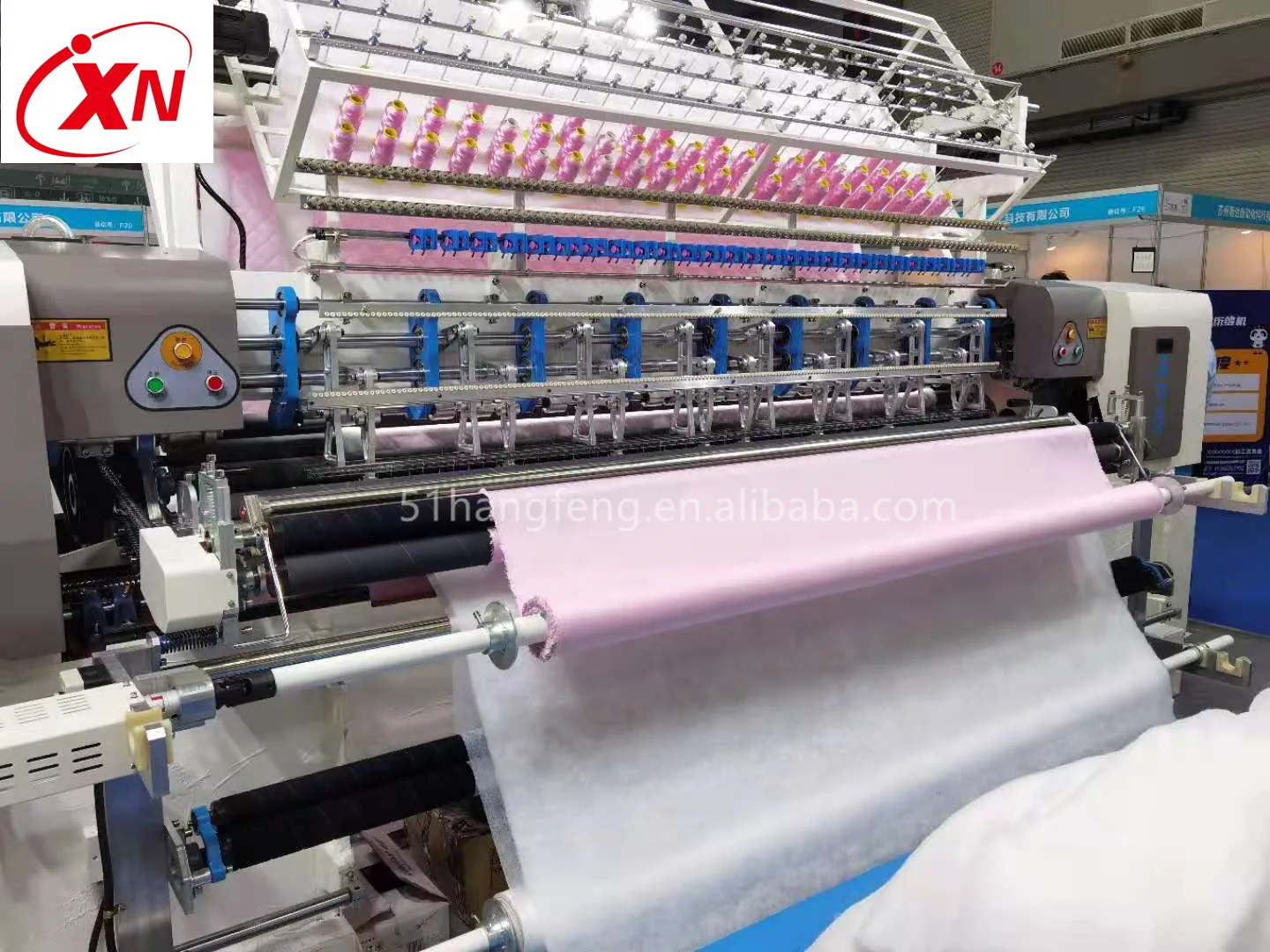

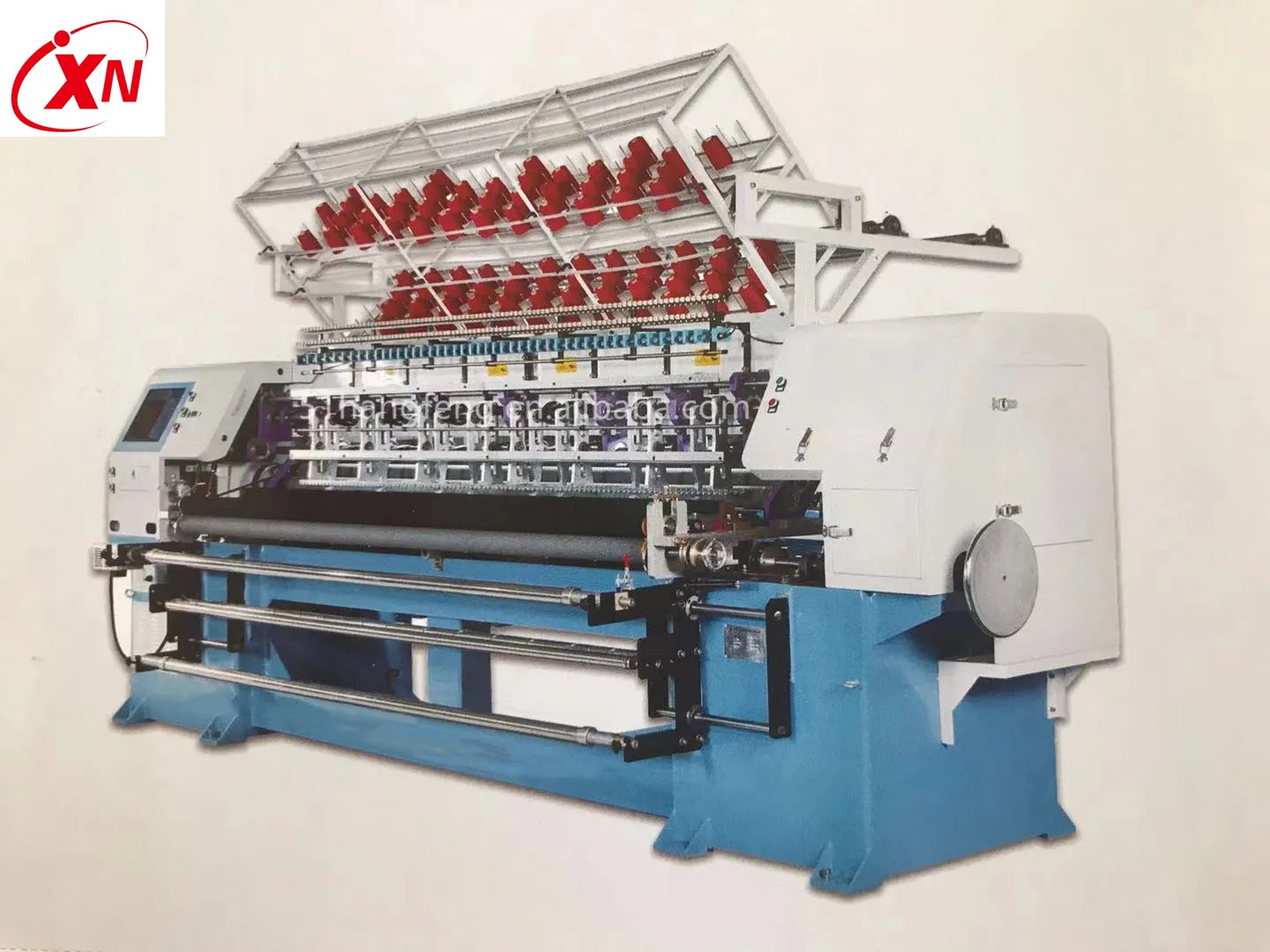

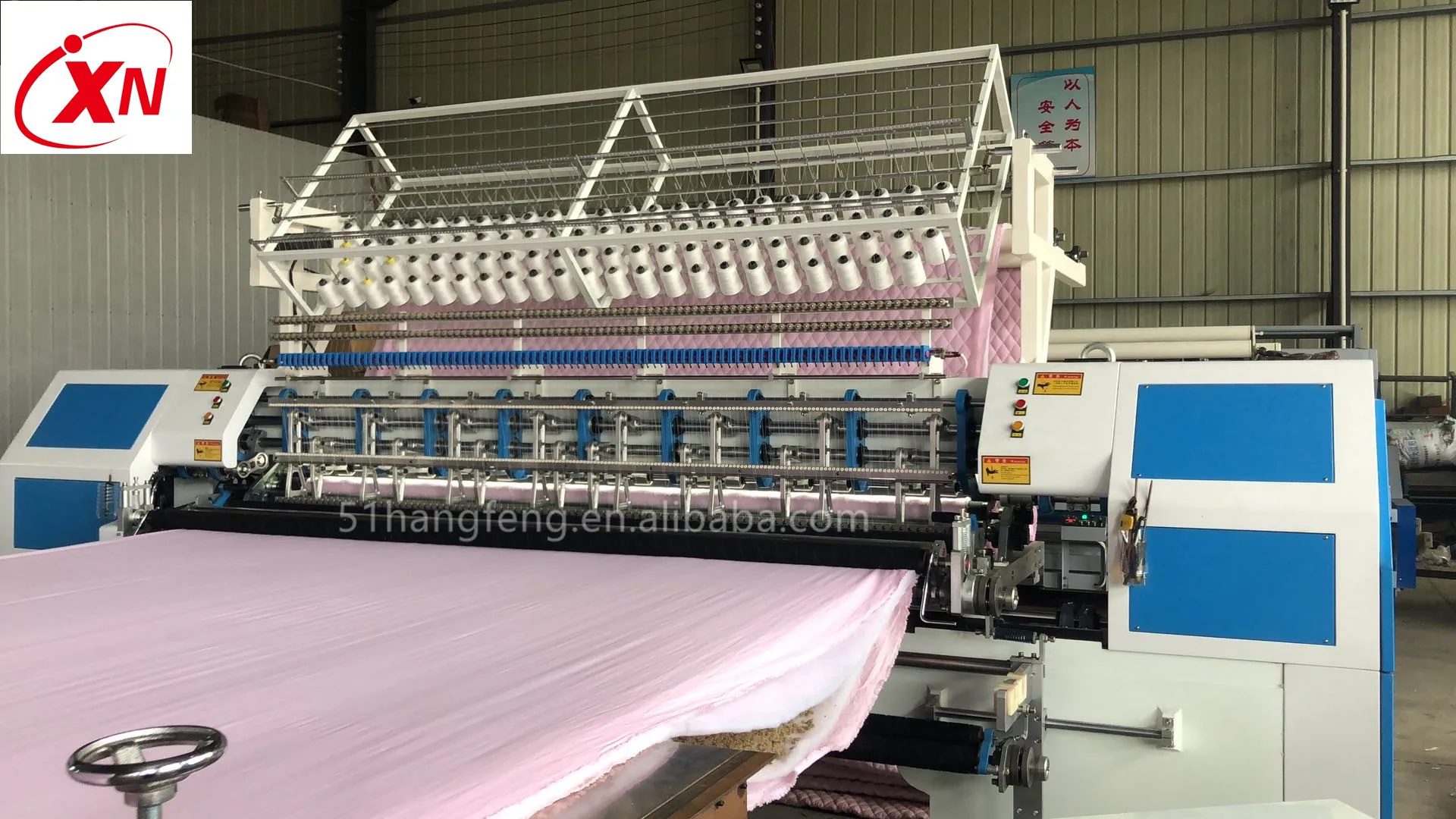

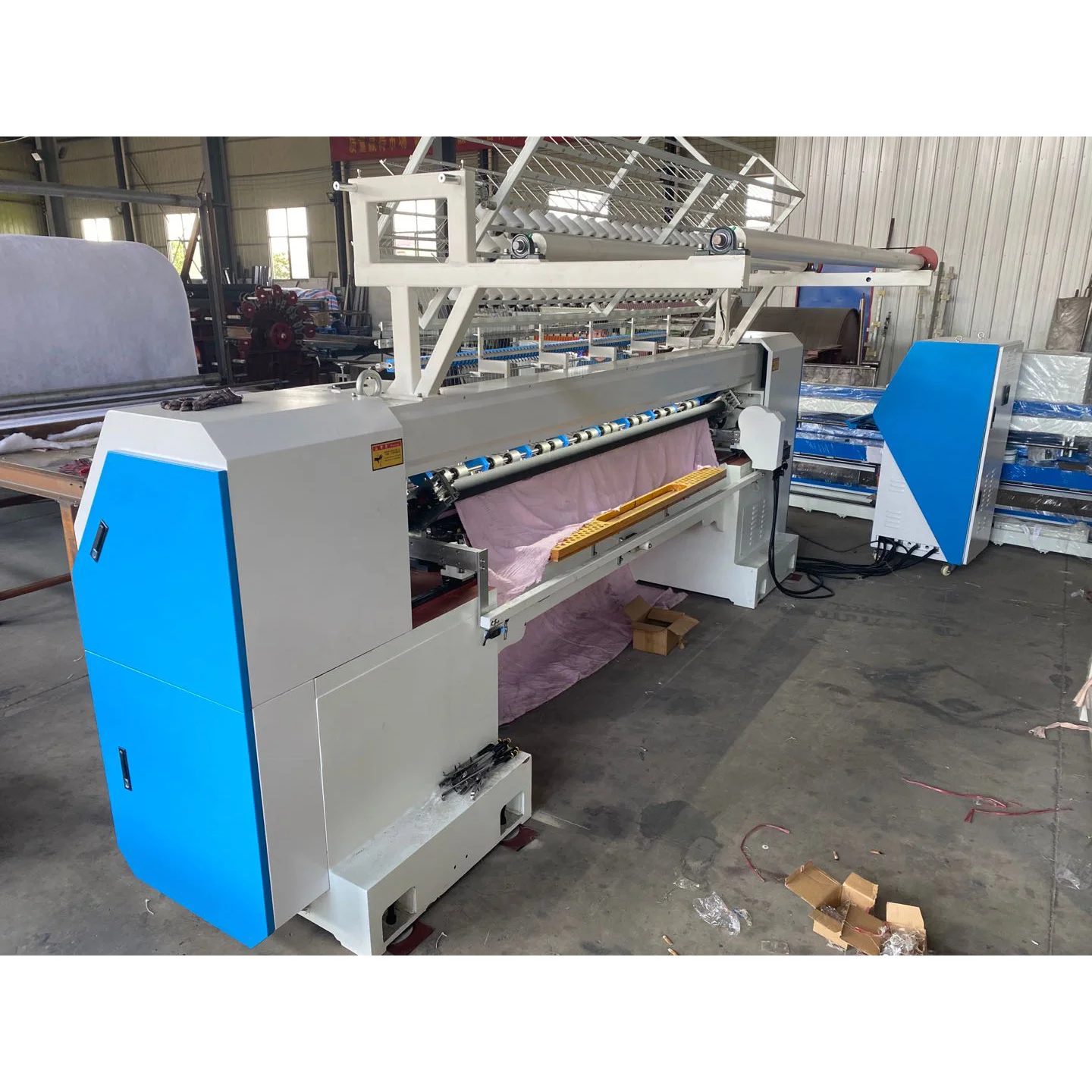

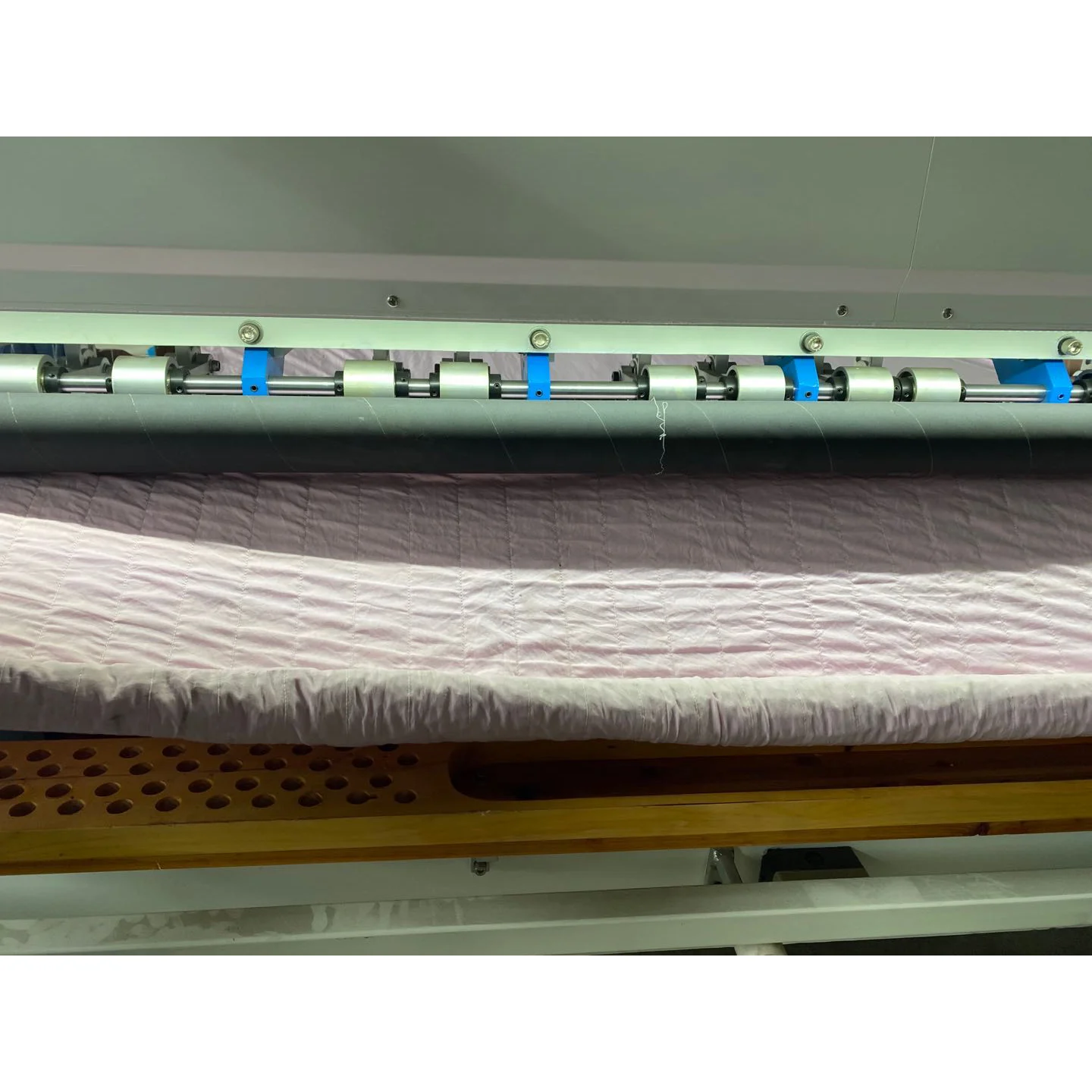

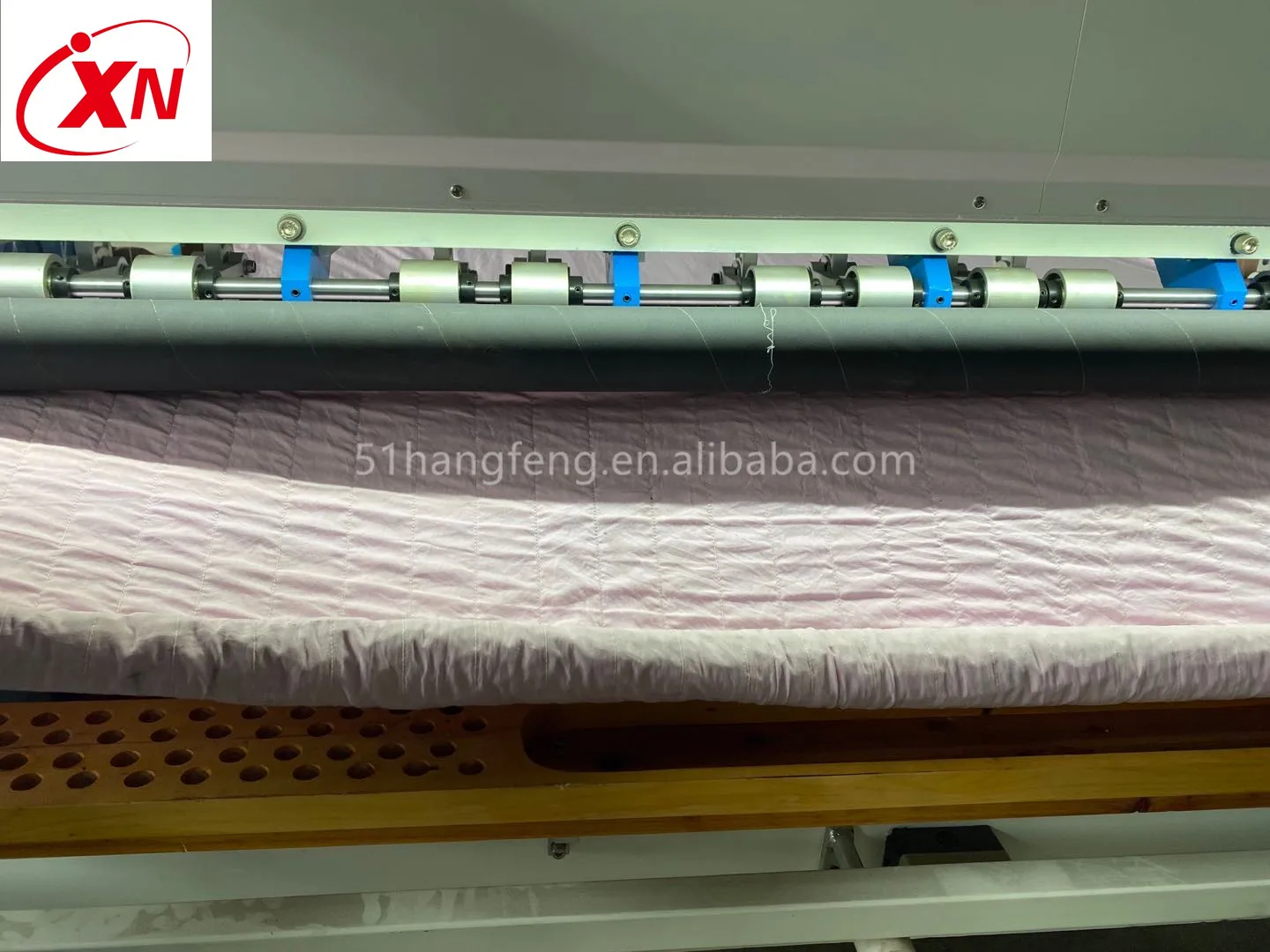

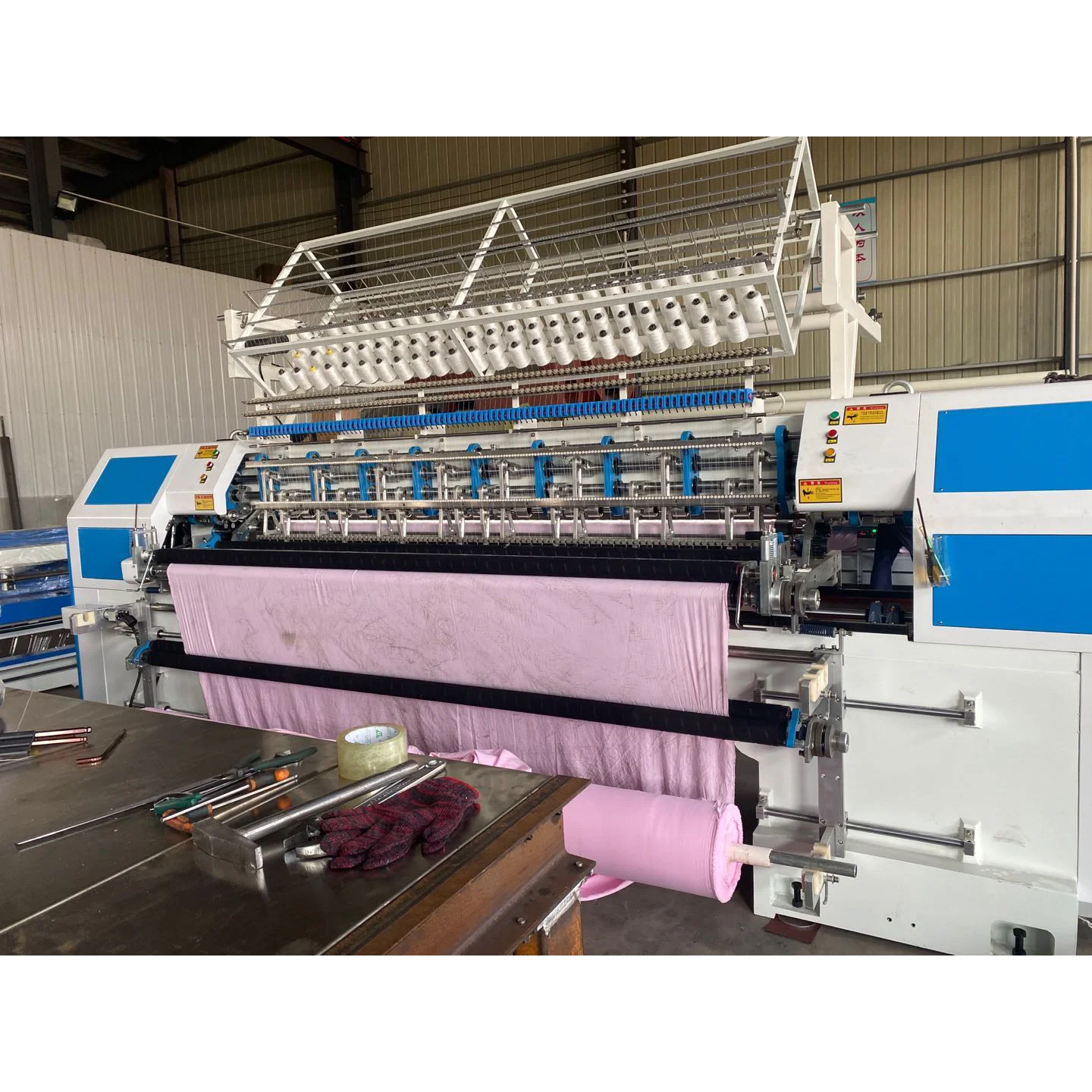

Высокоскоростная автоматическая машина для автоматического наполнения двойных тамбурный шов: Доступное многоигольные стегальные машины для матраса и комплект стеганых одеял
- Category: >>>
- Supplier: Shanghai Xunuan International Trade Co. Ltd.
Share on (1600340366781):
Product Overview
Description
Products Description
* Outstanding computer control system and mechanical technology maintain low noise of operation;
* No lubrication on needle bar frame so as to avoid oil dirt on fabrics, relatively low-cost maintenance and firm structure;
* The main axis equipped with frequency conversion control, saddle and roller driven by high precision servo engine;

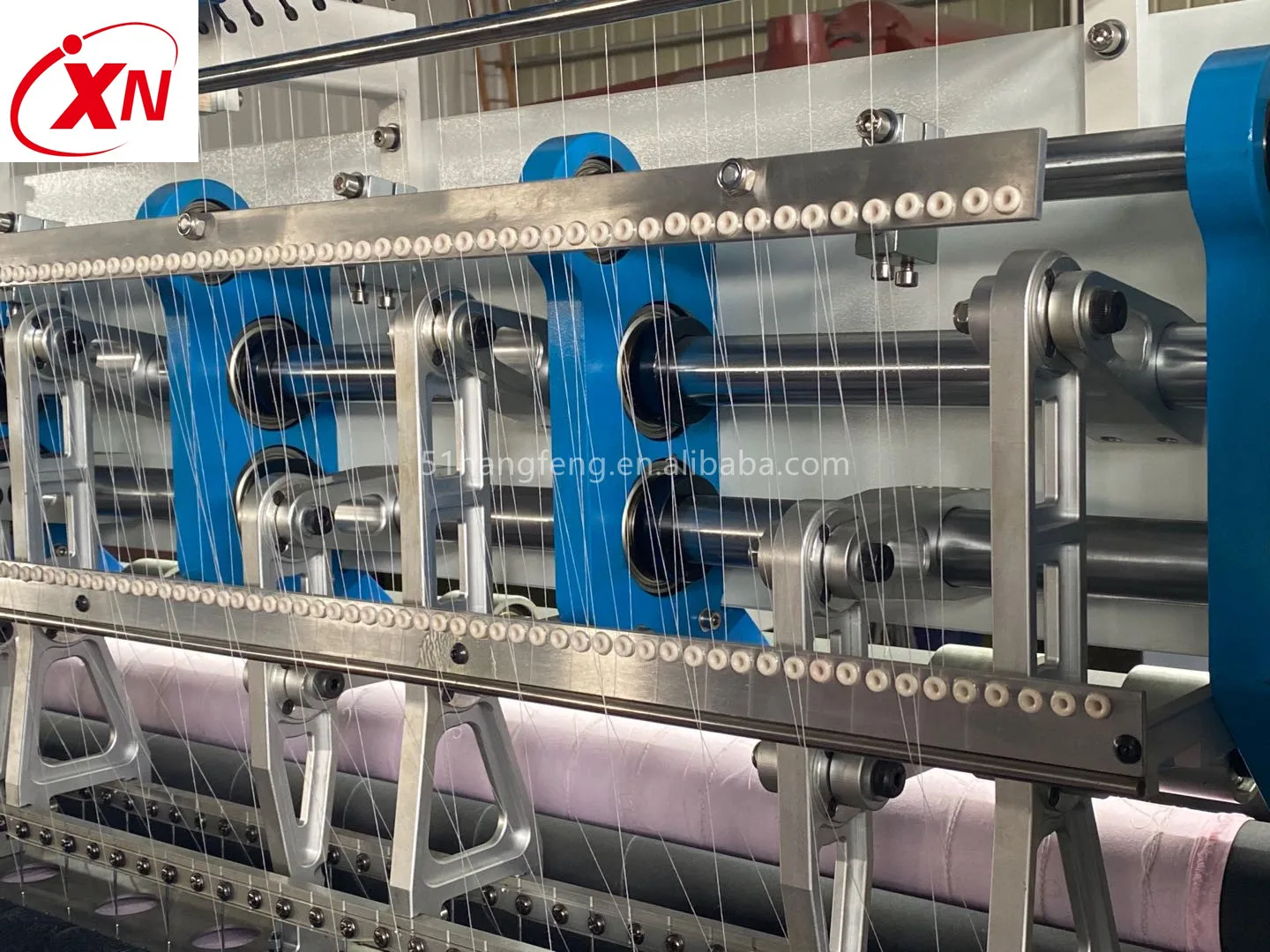

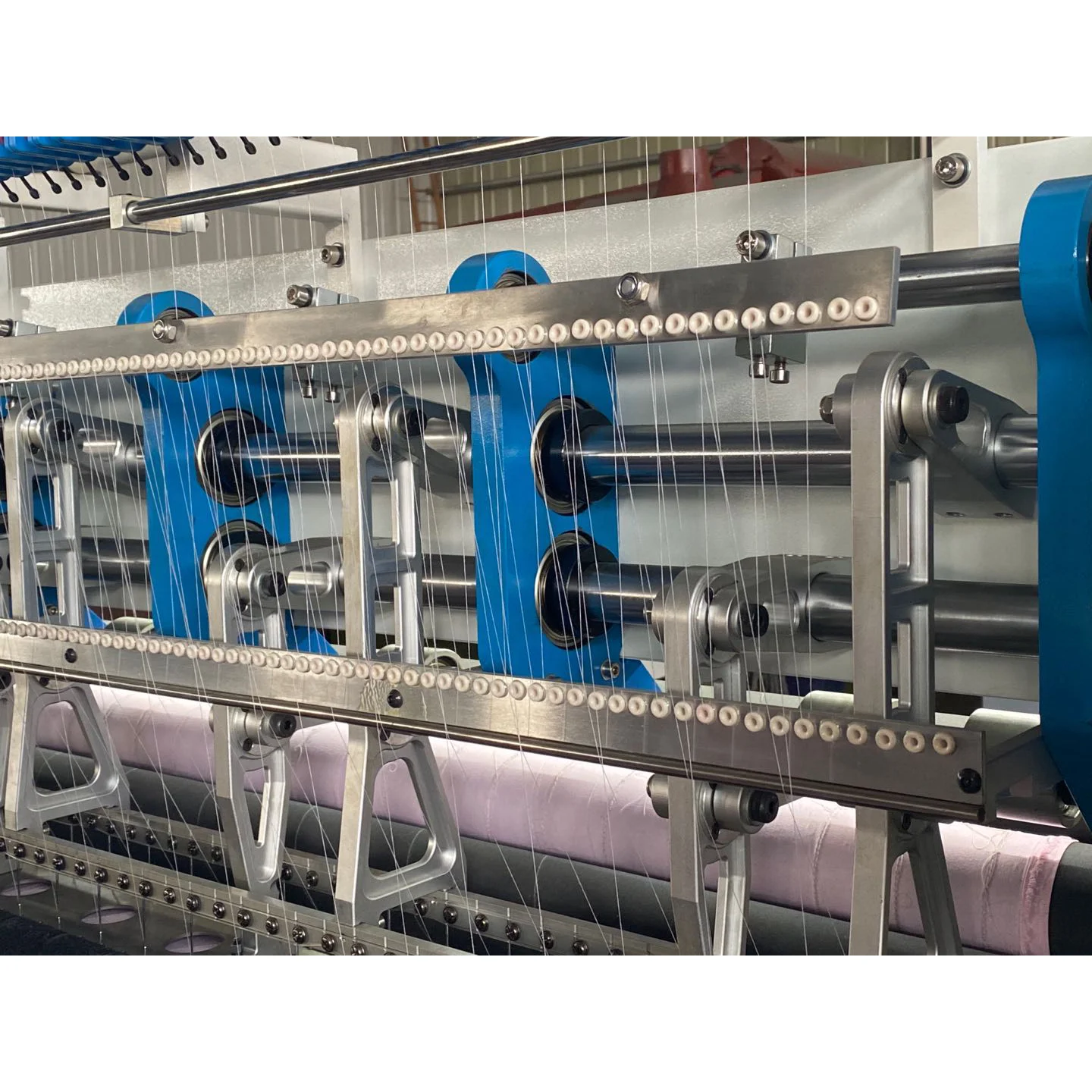

* Transmission swing amm of pin and platen is to be made of special aluminum in order to maintain its stability and reduce vibration,
* Computer control system in monitoring stitch rotation 1100RPM stitch distance 2-7mm, multi-span independent pattern covering360°operation;
* Pattem compensation function efficiently solve the deformation caused by materal thickening;
* Both automatic break detection and shutdown system and infrared sensor system make operation smoothly and safely.
* Transmission swing amm of pin and platen is to be made of special aluminum in order to maintain its stability and reduce vibration,
* Computer control system in monitoring stitch rotation 1100RPM stitch distance 2-7mm, multi-span independent pattern covering360°operation;
* Pattem compensation function efficiently solve the deformation caused by materal thickening;
* Both automatic break detection and shutdown system and infrared sensor system make operation smoothly and safely.
Technical Parameters
Model | KH-94-2-3 | KH-94-2-6 |
Overall Dimension | 4.9*1.1*1.8m | 4.9*1.1*1.8m |
Quilting Width | 2450m | 2450m |
Stitch line | 2 | 3 |
Needle bar space | 3inch | 3inch |
Stitch Width | 2000mm | 2000mm |
Stitch distance | 25.4mm | 25.4mm |
Thickness | ≤25mm | ≤25mm |
Steep length | 2-6mm | 2-6mm |
Output speed | 20-120per/h | 20-120per/h |
Needle type | 16#,19# | 16#,19# |
Main engine rotation | 300-800rpm | 300-500rpm |
Power supply | 220V/380V | 220V/380V |
Rate | 4kw | 4kw |
Total weight | 4000kg | 4000kg |
