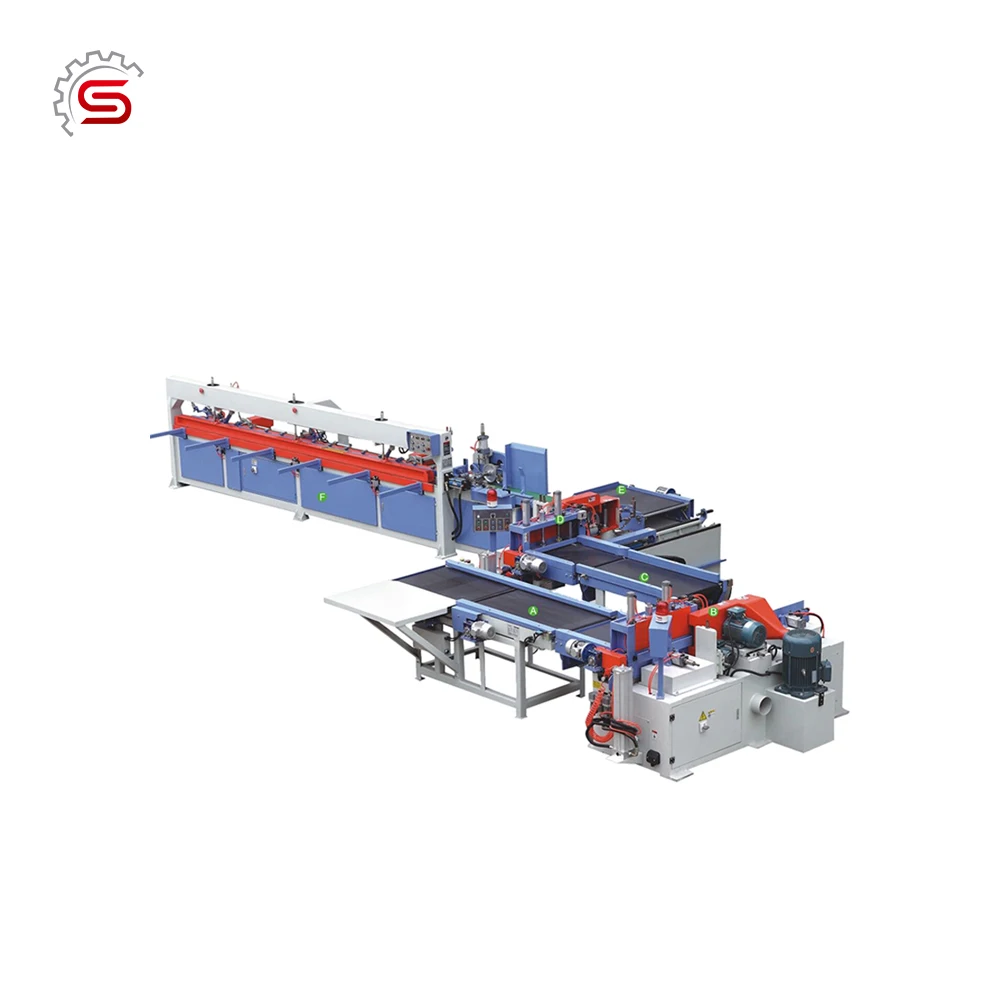

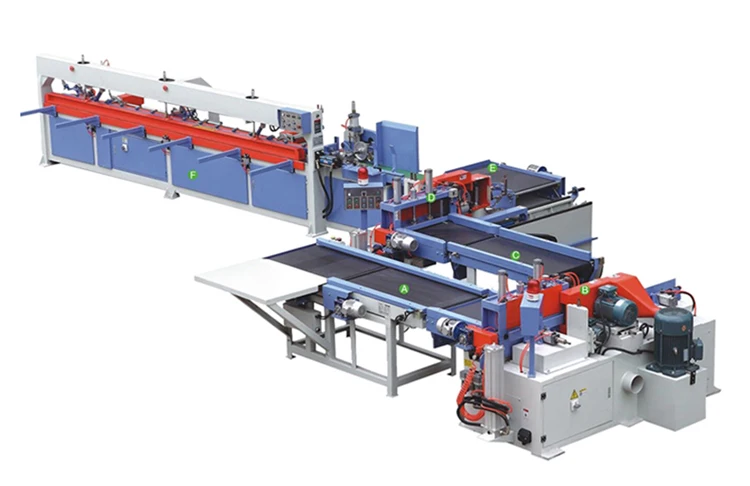

Semi automatic Finger Joint Production Line
Semi-automatic Finger Joint Production Line
Semi-automatic Finger Joint Production Line
Semi-automatic Finger Joint Production Line

Semi automatic Finger Joint Production Line

Share on (1600340378178):


Price:$36,690.00 - $37,690.00

Quantity:


Product Overview

Description



Product Description




Model
MXZ3515 Finger joint shaper
MXZ3515T Finger joint shaper
with automatic gluing device
Table Size(LxW)
850x600mm
850x600mm
Max working size(LxWxH)
850x80x150mm
850x80x150mm
Min working thickness
150x20x30mm
150x20x30mm
Cutter speed
6000r/min
6000r/min
Draw saw speed
5600r/min
5600r/min
Trimming saw speed
5000r/min
5000r/min
Shaper blade diameter
160mm
160mm
Shaper spindle diameter
70mm
70mm
Main saw blade size
255mm
255mm
Cutter motor power
11kw
11kw
Saw motor power
5.5kw
5.5kw
Feeder motor power
0.375kw
0.375kw
Total power
16.12kw
16.87kw
Working air pressure
0.5-0.8Mpa
0.5-0.8Mpa
Net weight
2000kg
2200kg
Overall diamensions
2380×1700×1400mm
2580×1700×1400mm


Model
MHB1560 Finger joint assembler
Max.assembled size
6200x150x80mm
Max.working length one time
6200mm
Max.working width
150mm
Max.working thickness
80mm
Min.working length
2000 mm
Min.working width
30mm
Min.working thickness
20mm
Blade speed
3700r/min
Saw blade dia
355 mm
Saw blade power
3kw
Oil pump motor power
5.5kw
Working air pressure
0.5-0.8Mpa
Max.thrust for oil pressure
7800Kg




Application:
This machine used for waste wood recycling, will have an ear on construction sites and other regions, waste wood to open after the tooth comb, the glue wood machine pressure, can be achieved using length, this process of regeneration, wood can be used as a new wood, for the world to save energy and cost savings for the enterprise.

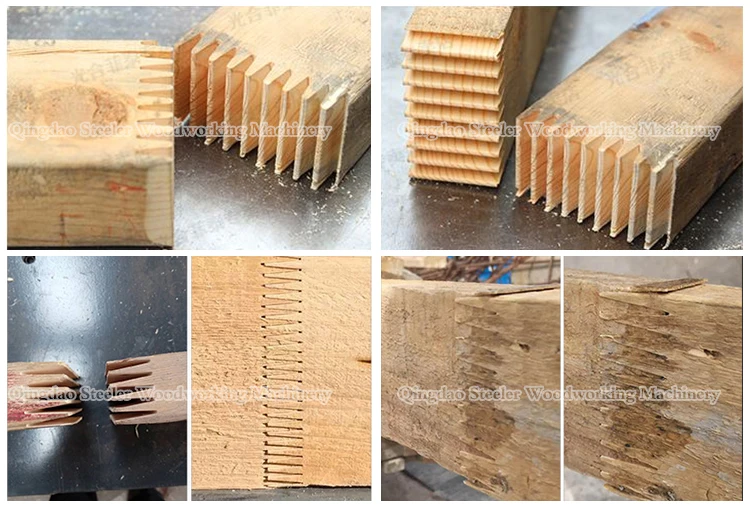

FINISHED PRODUCTS




Features:

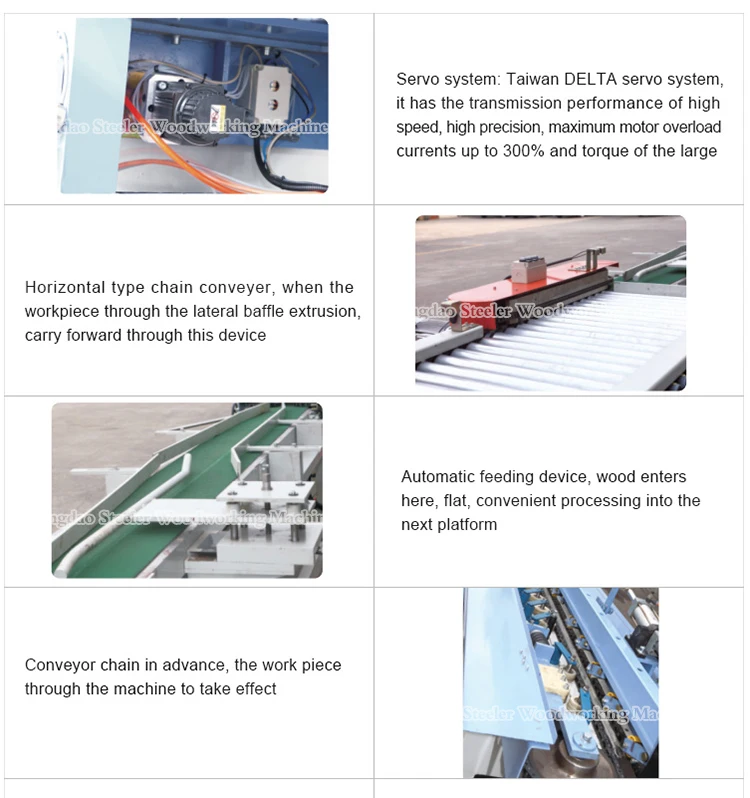

1.Guide rail of finger joint shaper’s conveyor is japan precision linear guide rail to gurantee the shaping accuracy .
2.The design for finger joint shaper is double blades+tooth-tenon knife assembly to provide high precision.
3.The conveyor table of finger joint shaper adopts German pneumatic hydraulic conveyor system to control bakc and forth ,smoothly,low maintenance,high quality .
Advantage:
1.Save wood and material cost
2. Semi-automatic production line greatly improves the working efficiency of workers and saves labor costs
3.Two people of the complete set of machinery can complete the operation, with low safety risk and low accident rate of work-related injury. In addition, the safety protection measures of the wood receiving machine are in place, making the whole operation safe and reliable.




WHY CHOOSE US




PACKING&SERVICE



1.Delivery: We can sign on-time delivery contracts and guarantee delivery on time.
2.Package: We will use stretchy film or wooden box case to pack and test the machine before package.
3.Guarantee:The machine is guaranteed for 12 months.You can also enjoy technical support and service all the time.
4.Technical support:Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
5.After sales services:We can offer English manual and operational video to help you learn how to use.Any problem you can contact us.
