PRY ZH900D Automatic Carton Prefolding Box Bottom Lock High Speed Folder Gluer
- Category: >>>
- Supplier: Shanghai Printyoung International Industry Co. Ltd.
Share on (1600340405972):
Product Overview
Description
Products Description

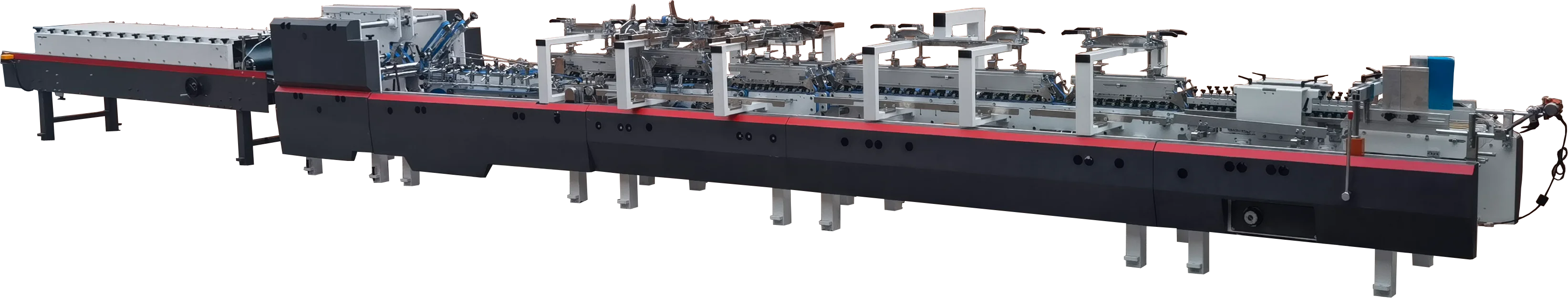

ZH-900D Automatic Folder Gluer
Features
1.This machine is a fully automatic box gluer 2.Press table with waiting function 3.Wireless remote control 4.Take into account
both cardboard and E corrugated 5.Independent electrical box 6.There is a pre-pressure output part 7.Three gun cold glue spray
system 8.Plasma surface treatment
both cardboard and E corrugated 5.Independent electrical box 6.There is a pre-pressure output part 7.Three gun cold glue spray
system 8.Plasma surface treatment
Technical Parameters
ZH-900D automatic folder gluer | ||
Model No. | ZH-900D | |
Paper Material | 210-600g/m² paperboard;E corrugated board | |
Max. Liner speed | 0-300m/min continuous adjustment | |
Feeding way | Automatic feeding | |
Way of folding | single side gluing,pre-fold, Crash lock bottom | |
Glue Material | Cold glue | |
Electric power | AC 3PH 380V | |
Weight | 3.5T | |
Over dimension | 14*1.6*1.4（M） | |
Configuration

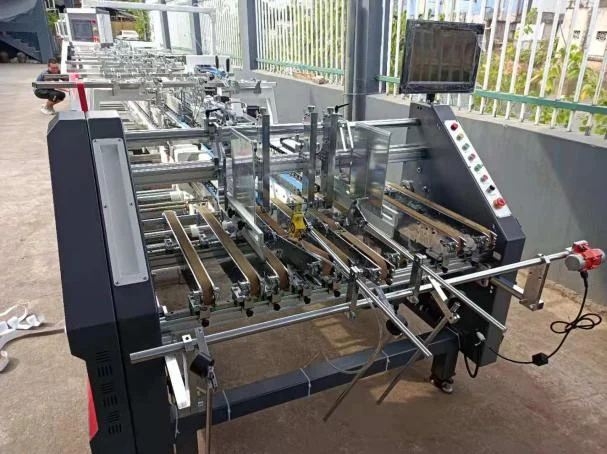

Paper Feeding Section
Equipped with three output knives, adjust the asymmetric length according to the actual sample The embossing power guide wheel
guides the paper output belt, and there are baffles on the left and right sides, which can be moved left and right according to
the product style. The vibrating device cooperates with the motor to feed paper quickly, easily and continuously automatically
guides the paper output belt, and there are baffles on the left and right sides, which can be moved left and right according to
the product style. The vibrating device cooperates with the motor to feed paper quickly, easily and continuously automatically
Aligner section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately. Pressing drive
pressure can be adjusted up and down to accommodate different paper board thickness.
pressure can be adjusted up and down to accommodate different paper board thickness.
Pre-folding section
The first line can be pre-folded at 180°, and the third line at 135°, which is perfectly combined with automated packaging.

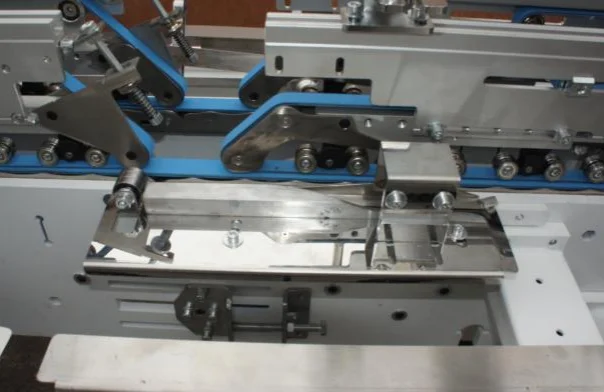

Crash lock bottom section
A complete set of front flap bottom locking device and servo anti-hook device to ensure accurate bottom locking action. The
segmented upper belt board, combined with a special design, can be adjusted by expansion and contraction according to the needs of
the product.
segmented upper belt board, combined with a special design, can be adjusted by expansion and contraction according to the needs of
the product.
Lower gluing tank
lower gluing tank is large volume. Easy to remove and clean Electronic upper gluing system by guns.
Folding and closing
The Second and fourth folding line 180° Folding and closing section transmit from right and left side ,the belt speed can be
adjusted separately and correct the way of box running to ensure straightly delivery.
adjusted separately and correct the way of box running to ensure straightly delivery.
Trombone section
Up and down belt can be adjusted separately. Equipped with photo electronic counting device and kicking paper device, which can
press the paper after accounting and make it easy to pack . Also equipped with feeding paper inspection device.
press the paper after accounting and make it easy to pack . Also equipped with feeding paper inspection device.
Transmission
Equipped with special additional sponge belt for the press of boxes valley part. Upper section moves back and forward, allowing
for different box length.
for different box length.
Box Squaring Device
Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,
guaranteeing a well aligned flow.
guaranteeing a well aligned flow.
Ribbed-V-belt drives
The most efficient mechanical power transmission method currently on the market. Reduce noise, reduce wear, and efficient power
transmission system.
transmission system.
Aviation connector
Easy to install and transport
Conveyor monitoring
The situation in front of the conveying section can be observed on the screen of the paper feed section
Spraying System
Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and
accurately sizing
accurately sizing
Independent electrical box
The independent structure reduces the interference of the mechanical structure to the electrical system, and it is beautiful and
atmospheric
atmospheric
Box type | A (mm) | B (mm) | C (mm) | D (mm) |
Side-glue box | 110-900 | 70-400 | 50 | 10 |
Pre-fold box | 110-800 | 70-400 | 80 | 10 |
Pre-fold box | 110-800 | 70-400 | 80 | 40 |

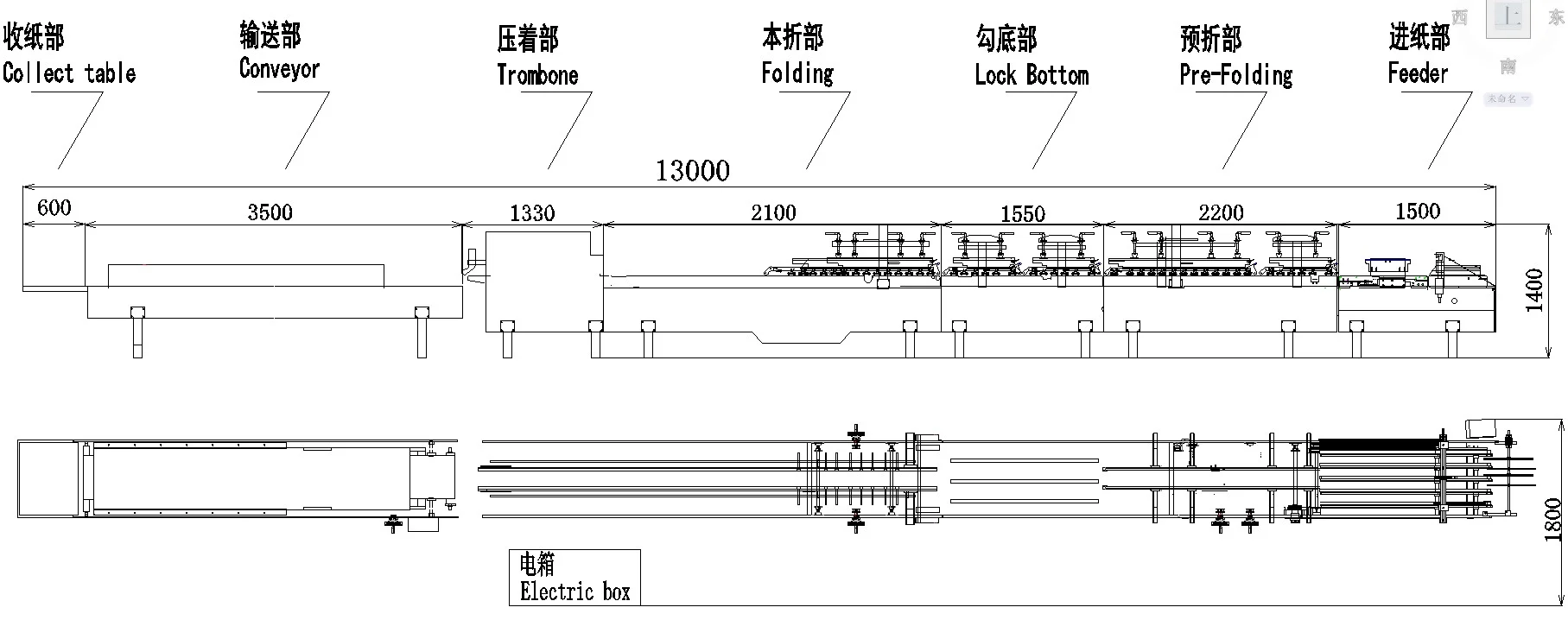

Layout
Company Profile
Why Choose Us
Product packaging
FAQ
Q1: Are you a manufacturer or a trading company?
A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 10-20 days.
Q4. What is the delivery time?
A: 15-30days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..
Q7. How about the machine installation and training ?
A: 1)We provide training in our factory for free
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
Q9. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will
give spare parts for free if machine has any problem.
give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material.
Q11. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: Shanghai company is 12 years old, the factory is more than 20years.
Q14. How many clients do you have?
A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
