Fish feed vertical dryer for extruder processing line
- Category: >>>
- Supplier: Jiangsu Liangyou Zhengda Co. Ltd.
Share on (1600340415712):
Product Overview
Description
Product Overview

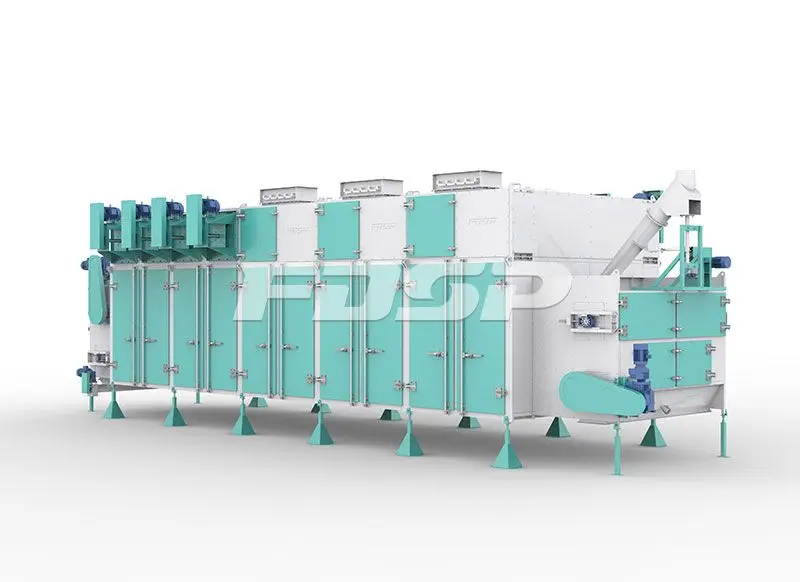

Fish feed vertical dryer for extruder processing line
It is suitable for the drying treatment of puffed feed in the feed industry. It is also suitable for the drying treatment of powder, flake, and strip materials in feed, food and chemical industries.
Feature
1. Imported PET woven mesh belt, high conveying efficiency, high drying efficiency, more than 25% drying efficiency, acid and alkali resistance, no connection gap, so the material does not get stuck on the woven mesh or fall between the bottom plate. The feed pellets are absolutely not destroyed or deformed.
2. Drying hot air in the drying section adopts different directions of left and right and convection circulation. Therefore, the drying process of the material particles is uniform and uniform, and the water error rate is within 2%.
3. Dry and hot air circulation leads to greatly improve heat exchange efficiency , and save a large amount of steam energy. The drying time is adjusted by the frequency conversion without segment adjustment, which is easy to control the moisture content of the product and reach the standard range.
4. With swinging cloth, uniform cloth and good moisture uniformity
5. Steam trap with high efficiency,called dryer heat exchanger, effectively removes air and condensate from the steam line. After the steam line (air, condensate) is removed, the heat exchange function can be increased by 10%.
6. Customize optional automatic temperature control device, drying temperature control using microcomputer PID automatic temperature control system according to the user's needs, with proportional pneumatic control valve, and accomplish the temperature control accuracy positive and negative error within 3 °C. After the temperature is set, the steam quantity is automatically adjusted to effectively control the stability of the moisture content of the finished product and reduce unnecessary steam waste in the production process.
2. Drying hot air in the drying section adopts different directions of left and right and convection circulation. Therefore, the drying process of the material particles is uniform and uniform, and the water error rate is within 2%.
3. Dry and hot air circulation leads to greatly improve heat exchange efficiency , and save a large amount of steam energy. The drying time is adjusted by the frequency conversion without segment adjustment, which is easy to control the moisture content of the product and reach the standard range.
4. With swinging cloth, uniform cloth and good moisture uniformity
5. Steam trap with high efficiency,called dryer heat exchanger, effectively removes air and condensate from the steam line. After the steam line (air, condensate) is removed, the heat exchange function can be increased by 10%.
6. Customize optional automatic temperature control device, drying temperature control using microcomputer PID automatic temperature control system according to the user's needs, with proportional pneumatic control valve, and accomplish the temperature control accuracy positive and negative error within 3 °C. After the temperature is set, the steam quantity is automatically adjusted to effectively control the stability of the moisture content of the finished product and reduce unnecessary steam waste in the production process.
PRODUCT SPECIFICATIONS
Models | SHGW24X2-6 | SHGW24X2-7 | SHGW24X2-8 | SHGW24X2-10 | SHGW24X2-12 |
Circulating Fan Power (Kw) | 5.5×8 | 5.5×10 | 5.5×12 | 5.5×16 | 5.5×20 |
No. Of Middle Sections | 4 | 5 | 7 | 8 | 10 |
Drying Area(㎡) | 40 | 50 | 60 | 80 | 100 |
Capacity(t/h) | 4-5 | 5-6 | 6-8 | 8-10 | 10-12 |
Water Inhomogeneity | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
Characteristic
Box frame material: 100×50 rectangular tube and 50×50 square tube
Inner door material: stainless steel
Mesh belt material: imported nylon mesh
Bearing: Wafangdian
Spreader sprocket row number: double row
Main conveyor sprocket row: single row
Level switch: Shanghai Sipai
Proximity switch: Omron
Geared motor: Zhejiang Dongli or Liangyou custom brand
Inner door material: stainless steel
Mesh belt material: imported nylon mesh
Bearing: Wafangdian
Spreader sprocket row number: double row
Main conveyor sprocket row: single row
Level switch: Shanghai Sipai
Proximity switch: Omron
Geared motor: Zhejiang Dongli or Liangyou custom brand

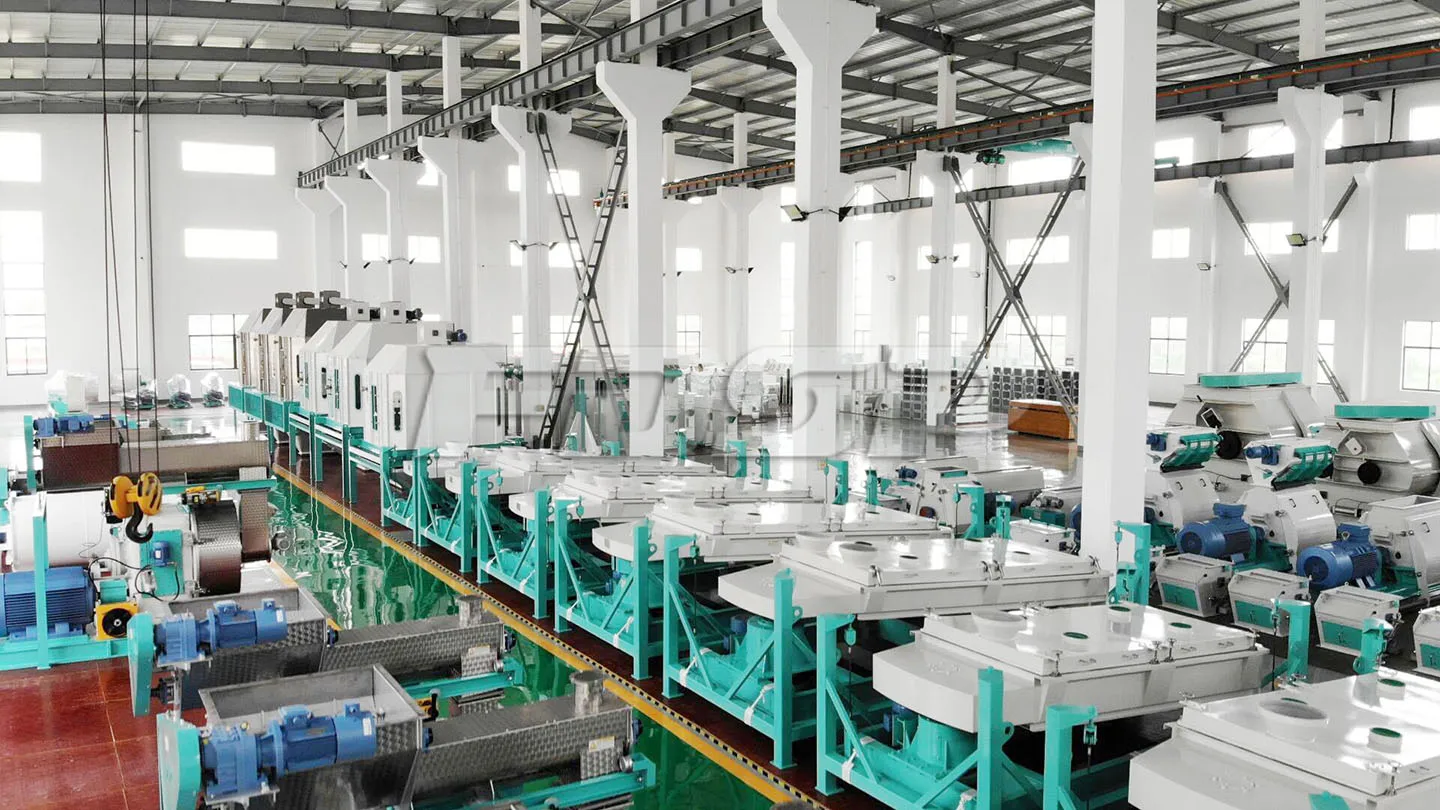

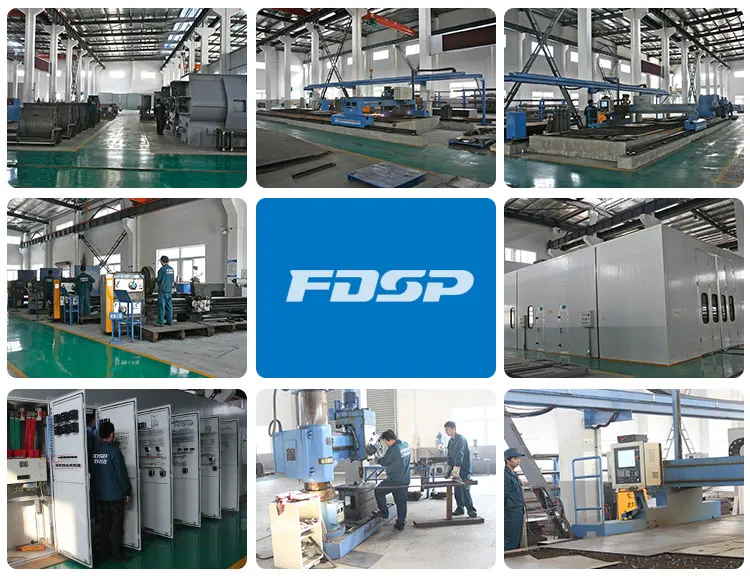

ABOUT US
As a Chinese listed company and a national high-tech enterprise, (FDSP) is a large-scale manufacturing system solution provider for feed machinery, biomass machinery, fertilizer machinery, storage machinery and complete sets of projects. Has served in Europe, Africa, Australia, South America, Southeast Asia, the Middle East and more than 30 countries and regions.

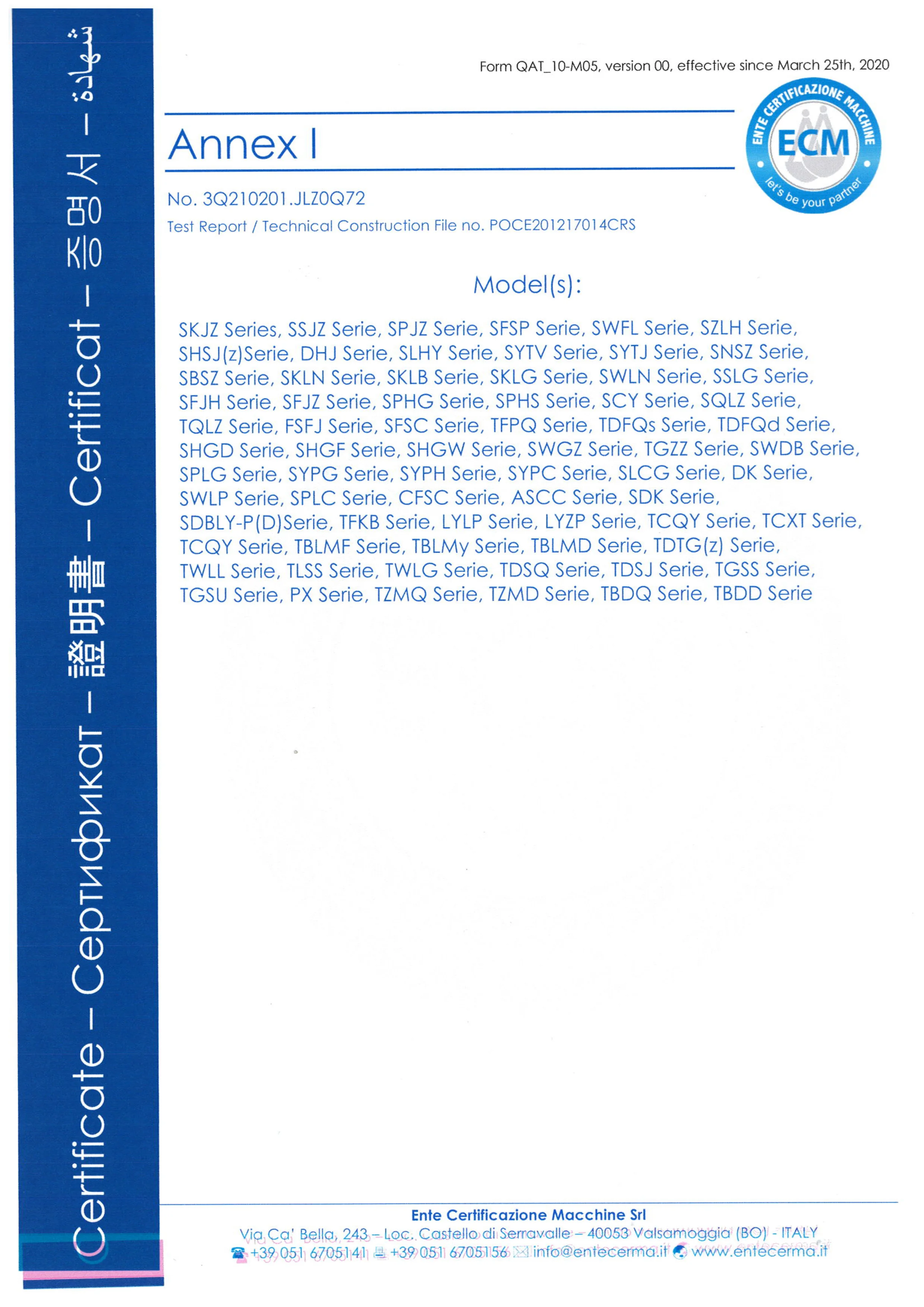

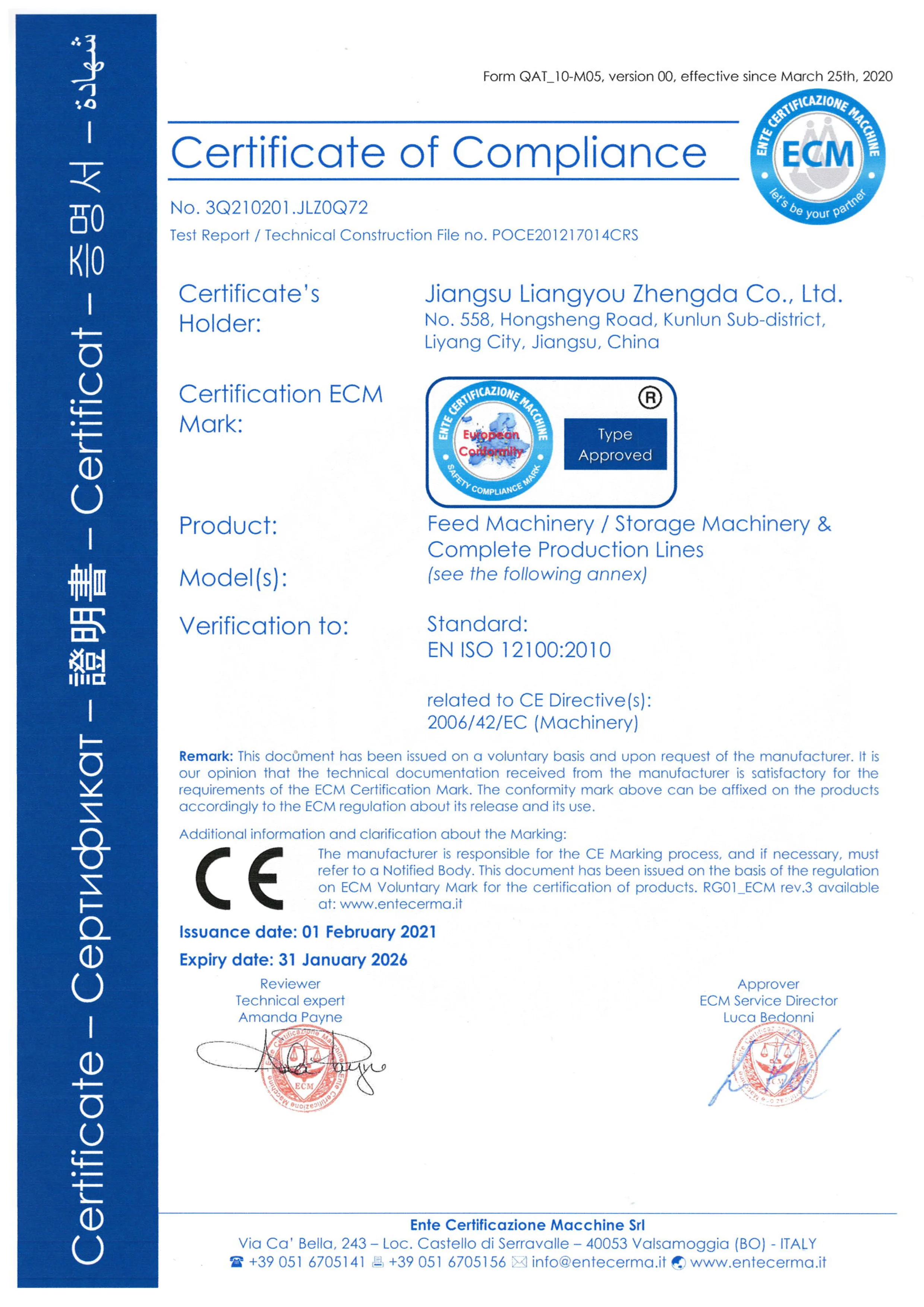

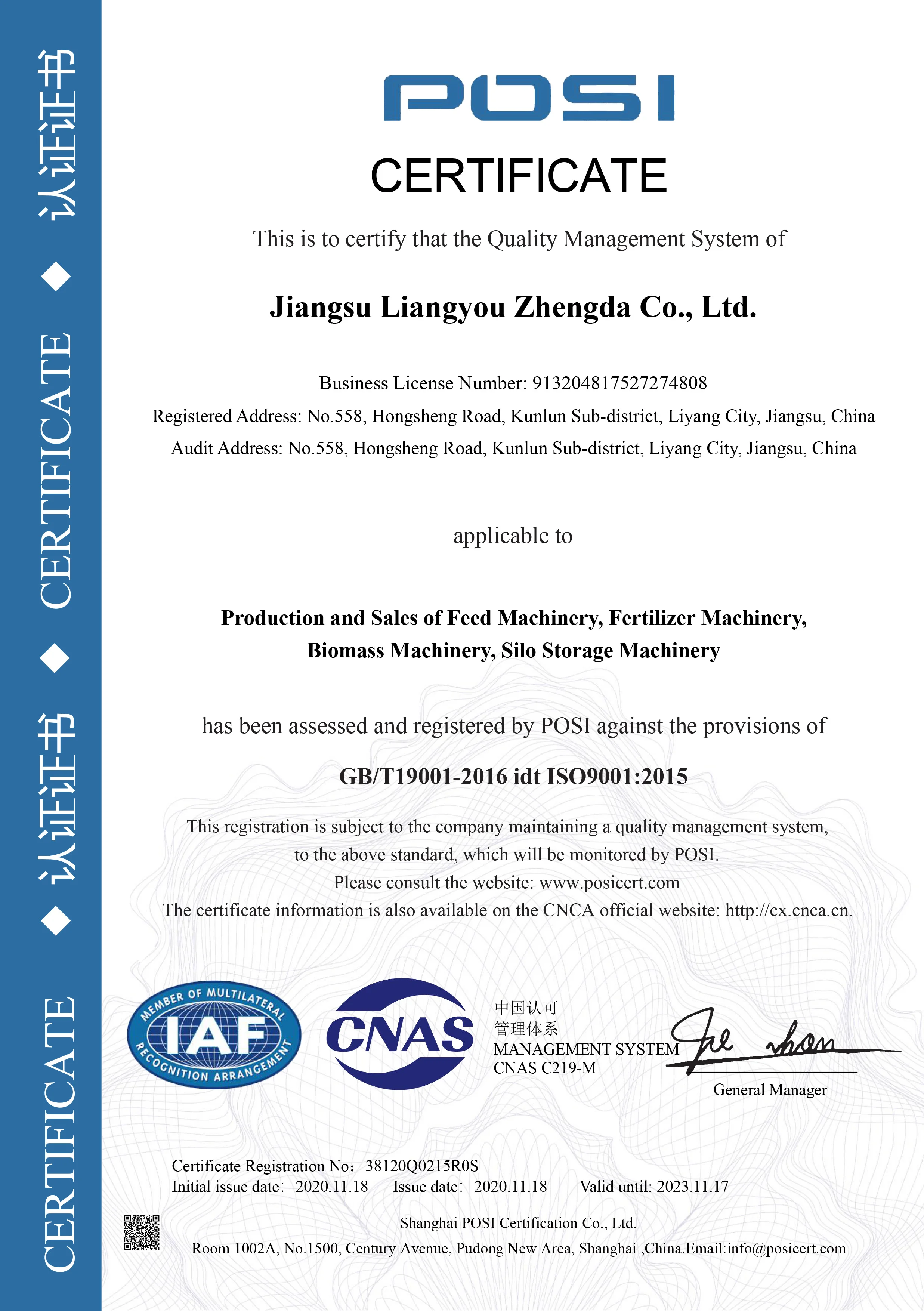

The products have obtained ISO9001:2015 international quality system certification, EU national CE certification for biomass energy equipment and its complete production line, Russian GOST-R certification, and 6 years of SGS field certification. Reliable and reliable.
We have a professional technical team to customize your own system solutions, providing one-stop services from pre-design, manufacturing to post-construction, maintenance and so on. Committed to providing "safe, reliable, energy-saving" stand-alone products to customers around the world, we are committed to creating high-quality, low-energy, strong and stable quality projects, and continuously create more and greater value for our customers.
The products have obtained ISO9001:2015 international quality system certification, EU national CE certification for biomass energy equipment and its complete production line, Russian GOST-R certification, and 6 years of SGS field certification. Reliable and reliable.
We have a professional technical team to customize your own system solutions, providing one-stop services from pre-design, manufacturing to post-construction, maintenance and so on. Committed to providing "safe, reliable, energy-saving" stand-alone products to customers around the world, we are committed to creating high-quality, low-energy, strong and stable quality projects, and continuously create more and greater value for our customers.
SALES AND SERVICE NETWORK

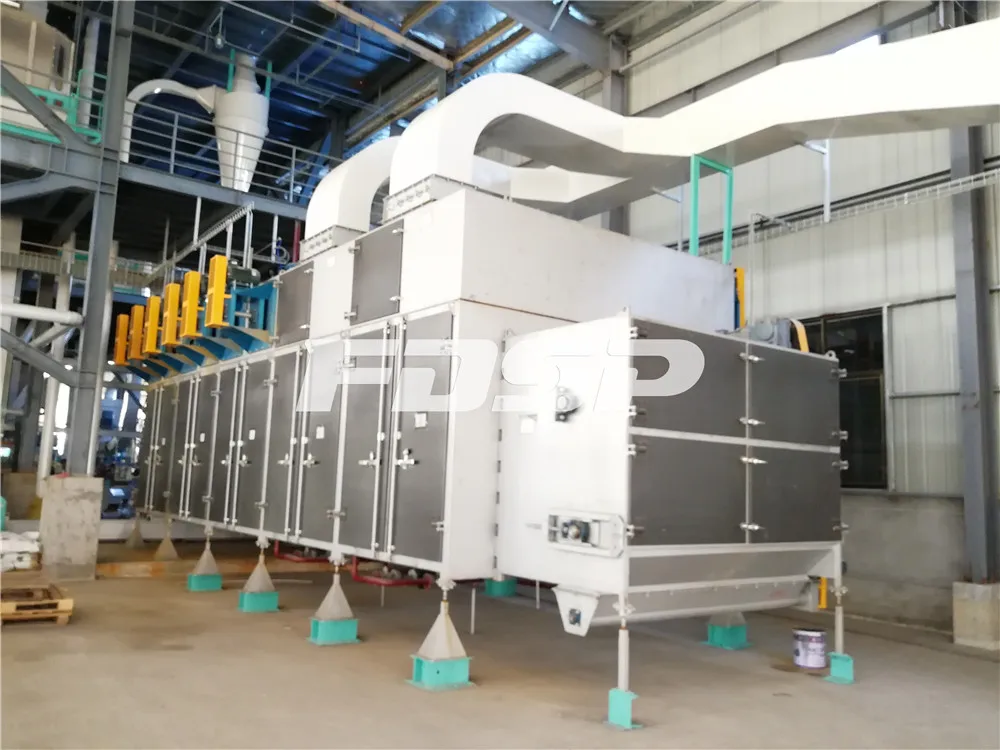

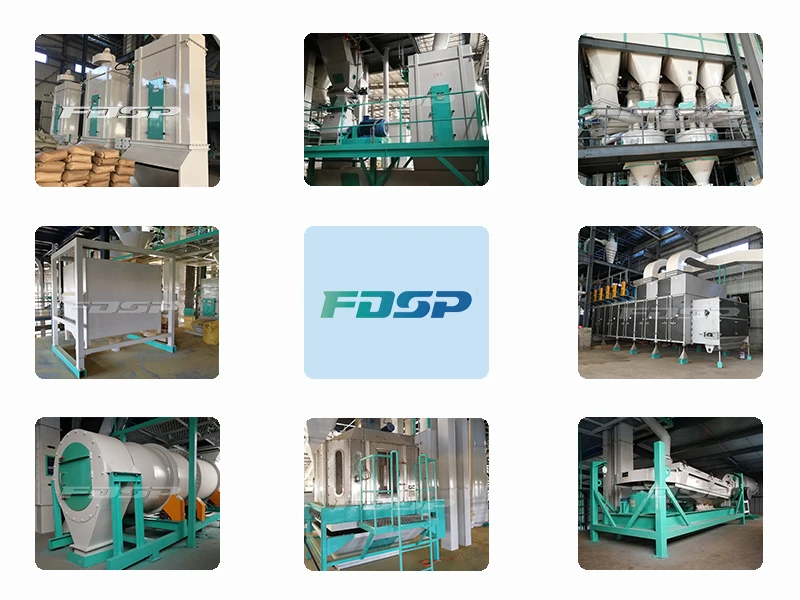

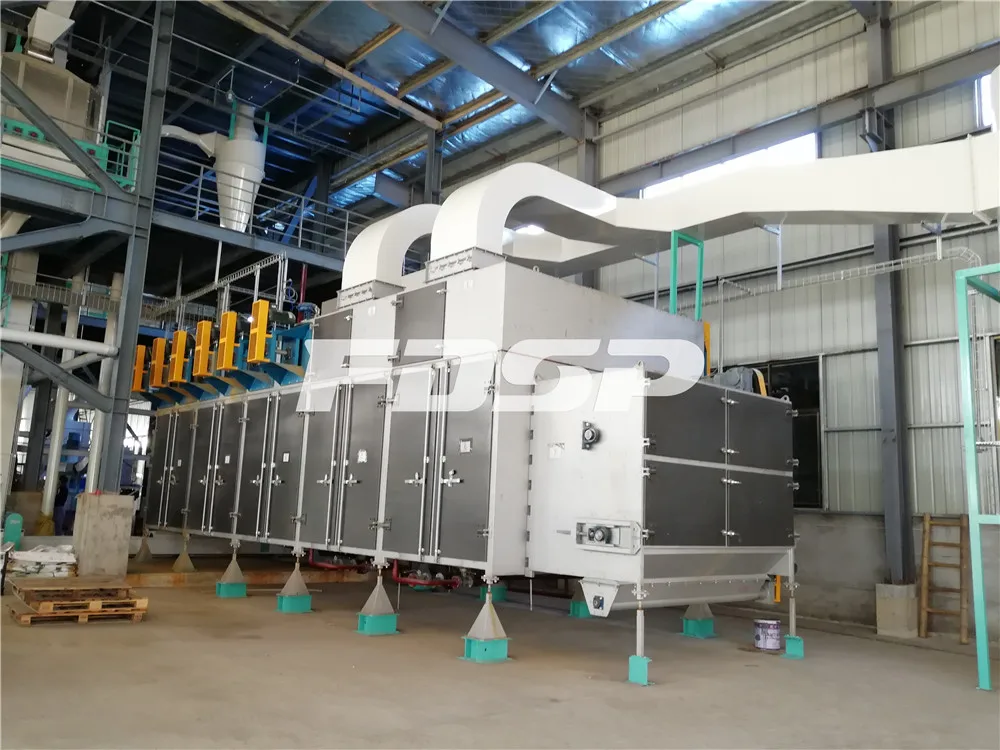

Successful Project
SIMILAR PRODUCTS
FAQ
1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Liangyou workshop before shipment.
2). The working lifespan of Liangyou machines is at least 20 working years.
2. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.
3. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
4. Q:What shipment terms you offer?
Answer: We can offer FOB, CIF, CFR etc based on your request.
5. Q:What payment terms you take?
Answer: T/T, LC ,D/A,D/P etc.
Answer:
1). All of the machine be tested successfully in Liangyou workshop before shipment.
2). The working lifespan of Liangyou machines is at least 20 working years.
2. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.
3. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
4. Q:What shipment terms you offer?
Answer: We can offer FOB, CIF, CFR etc based on your request.
5. Q:What payment terms you take?
Answer: T/T, LC ,D/A,D/P etc.
