Hot Selling Sauce Powder Pouch Automatic Sugar Salt Sachet Packing Machine

Share on (1600340418535):


Price:$15,000.00 - $20,000.00

Quantity:


Product Overview

Description







Model
ZD480F
ZD720F
ZD960F
Filling type
Powder
Powder
Powder
Capacity
Max 40 cycle/min
Lane number
2-4 Lane
3-6 Lane
4-8 Lane
Measuring method
Long/short auger or short auger with cup
Bags size
Length: 45--120mm
Width:50--120mm
Length: 45--120mm
Width:50--120mm
Length: 45--120mm
Width:50--120mm
Film width
Max.480 mm
Max.720 mm
Max.960 mm
Film thickness
0.07--0.10mm
Sealing type
4 sides sealing
Cutting type
Straight/Zig zag/Round/ Continuous cutting
Air consumption
0.8 MPA 0.8m3/min
Power source
4.1KW
5.5KW
5.5KW
Dimension
L1153 x W1654x H1750mm
L1415 x W1686x H2130mm
L2200xW2210x H2600mm
Weight
400kg
500kg
800kg






Brief Introduction:

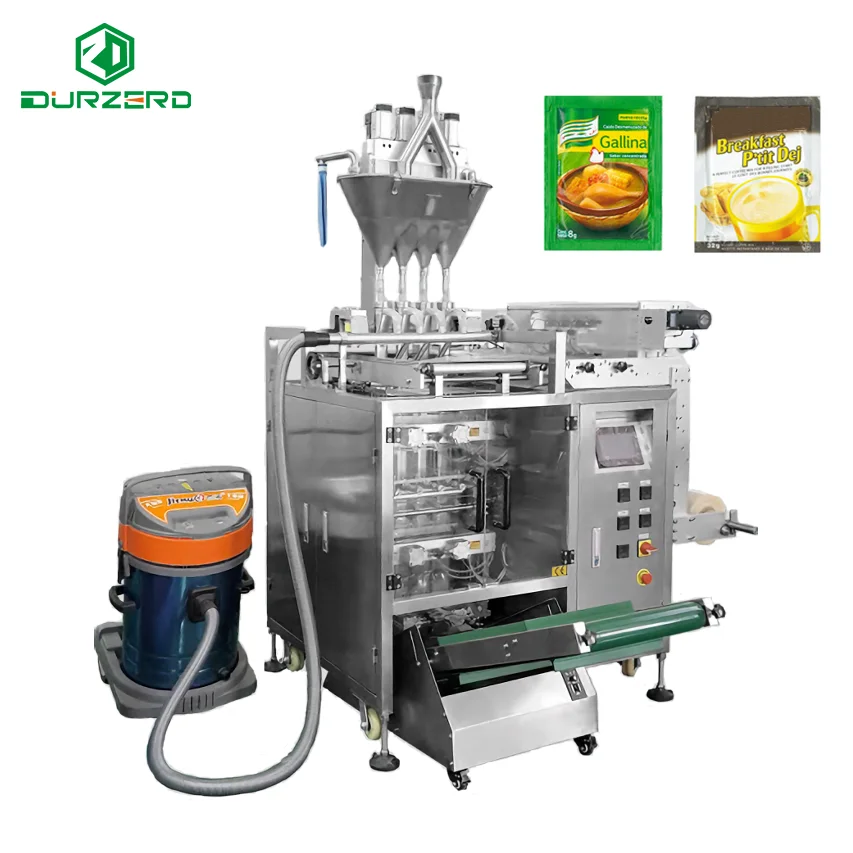

Multi lane packing machine is suitable for the 4 sides sealing packing of powder materials. It can be expanded to 8 lanes at most.
Automatically measuring volume, making bags, filling, sealing, cutting, printing the lot number and cutting easy tearing notches,making continuous sachet ,finished product conveying.




Product level sensor : when no much product in hopper, the valve will open and product will feed into hopper, when the product enough, valve will close

Filling volume adjusting wheel

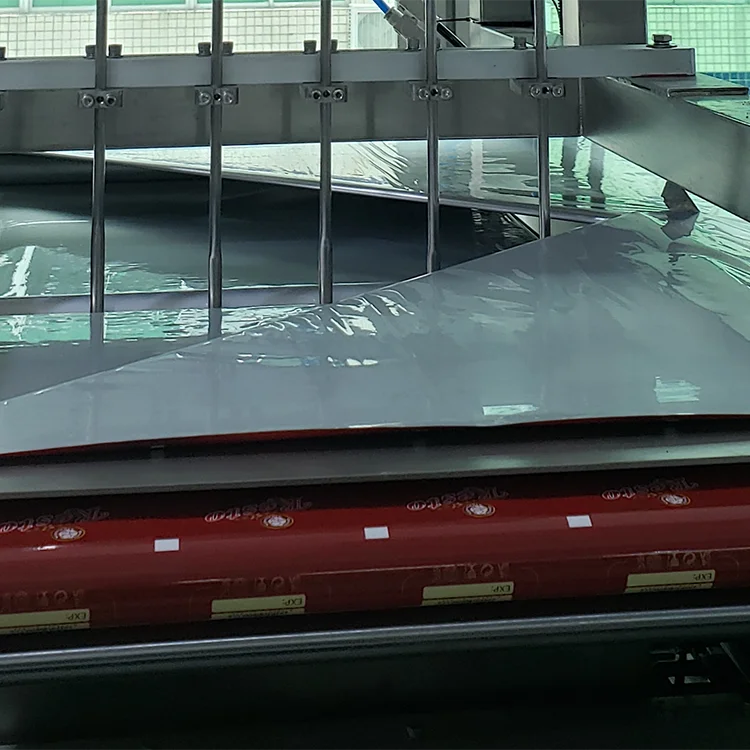

Separated film blade, to cut the whole roll film into 2 side in even
Bag former: to get the two side film to get together



Vertical sealing with easy tear notch
Easy tear position adjusting screw
Vertical cutting
Pulling film wheel

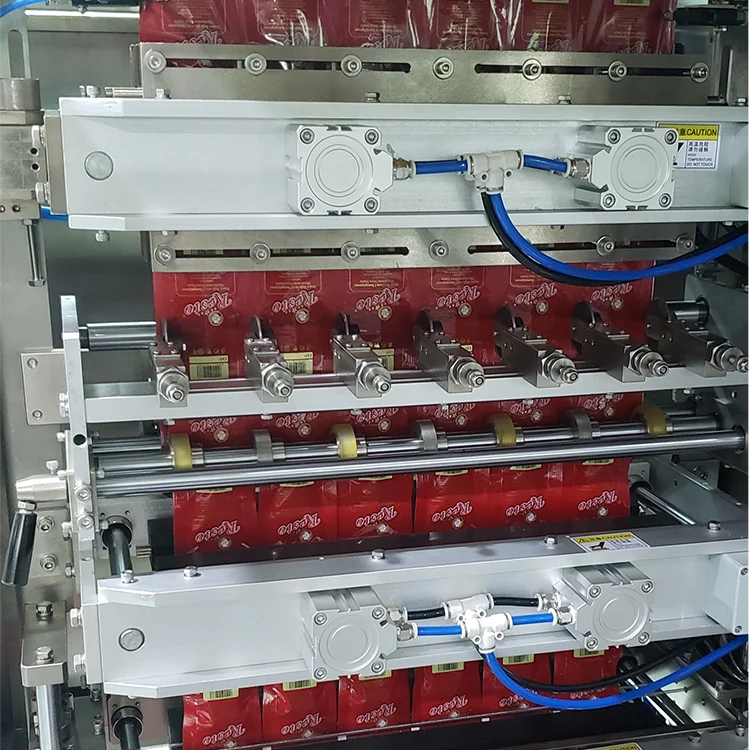

Horizontal sealing
Horizontal cutting
Cutting position adjusting wheel
Photocell sensor position
Photocell sensor adjust wheel ( Right and left)
Photocell position adjust roller (Up and down)
Ribbon printer
Photocell position adjust roller (Up and down)
Printing position adjust roller (Up and down)

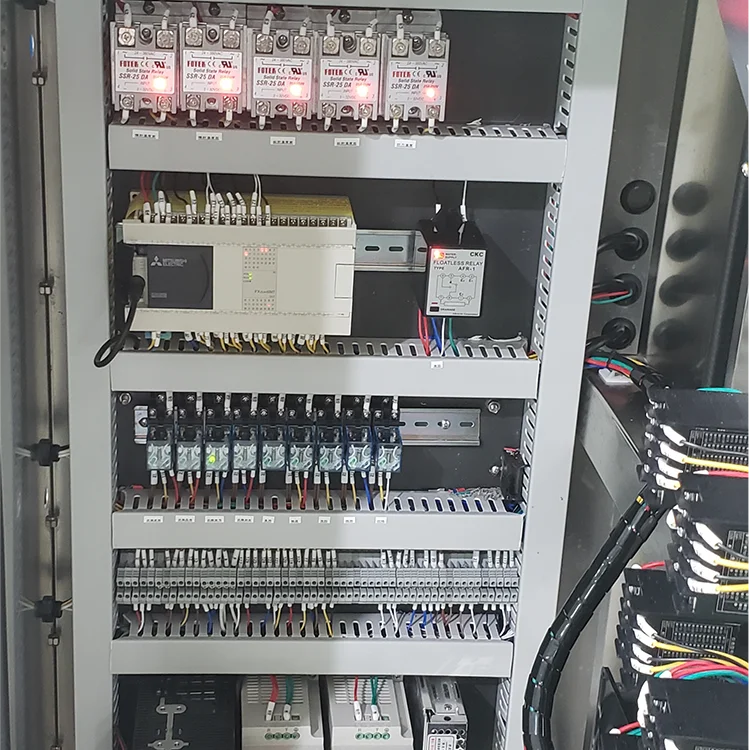

1. PLC control system, wide vision touch screen with English/Chinese interface;
2. State-of-art but simple design, easy to operate and maintain;
3. Automatically measuring, bags making, filling ,sealing, cutting, printing lot number and cutting easy tearing notches;
4. Continuous bag/bag across, easy cutting, hole ponching (if needed);
5. Suitable for film like
Paper/polyethylene,cellophane/polyethylene,plated aluminum/polyethylene,BOPP/polyethylene,nylon/polyethylene




It is suitable for the packaging of non-flowing powder materials, such as: milk powder, soy milk powder, starch, veterinary medicine, pesticide powder, facial mask powder, enzyme preparation, glucose, seasoning, spicy powder, flavor and fragrance, coffee powder, seasoning powder, etc.


























Q1: Are you a factory or a trading company?
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.

Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.

Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.

Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.

Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
