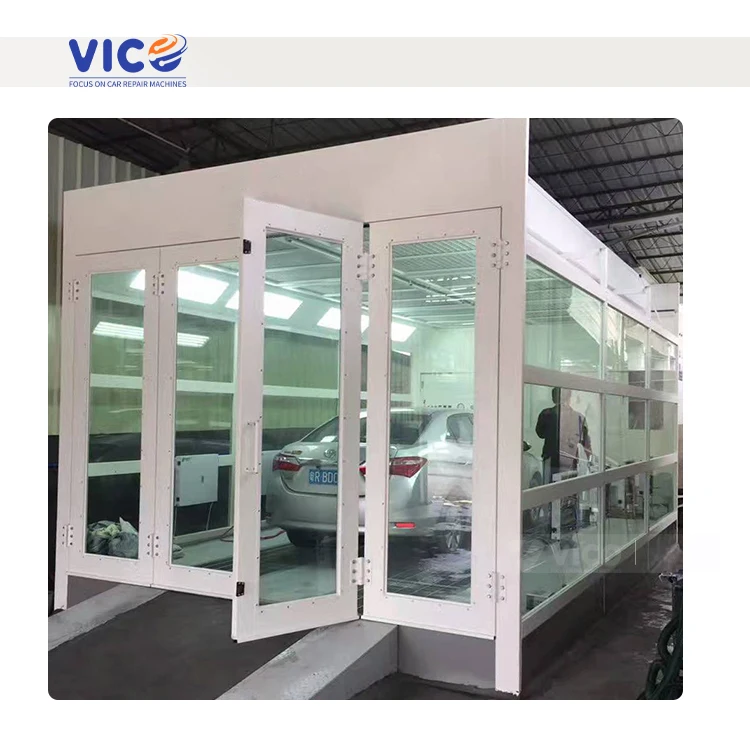

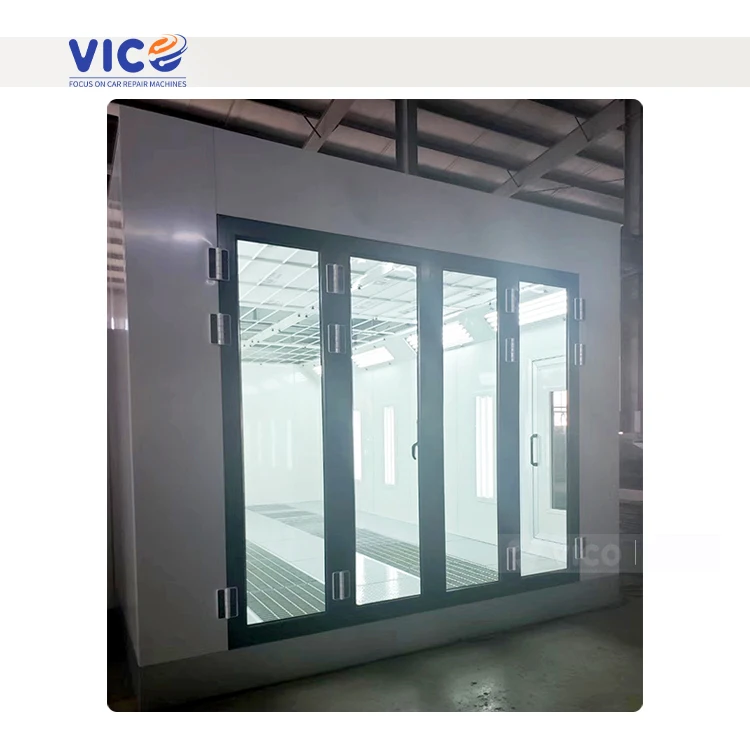

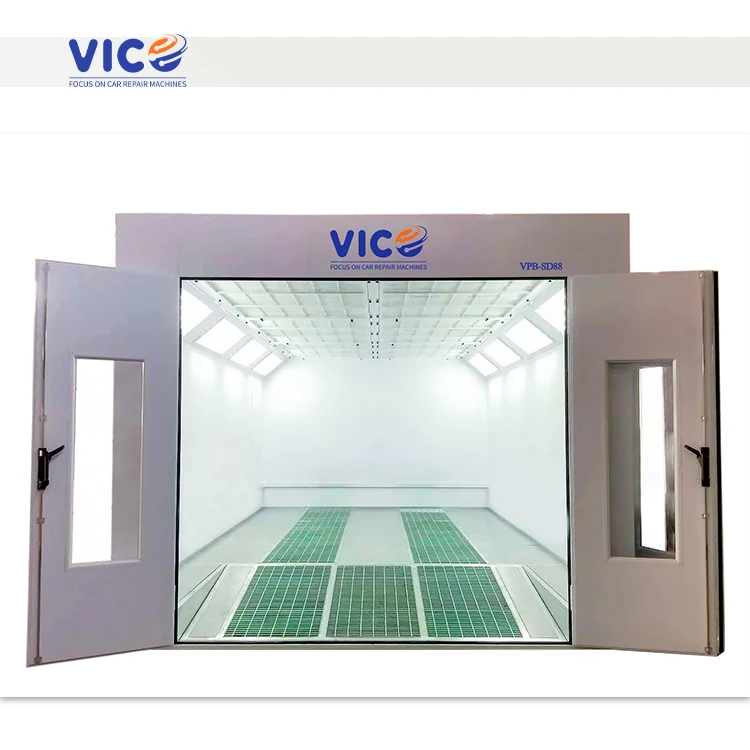

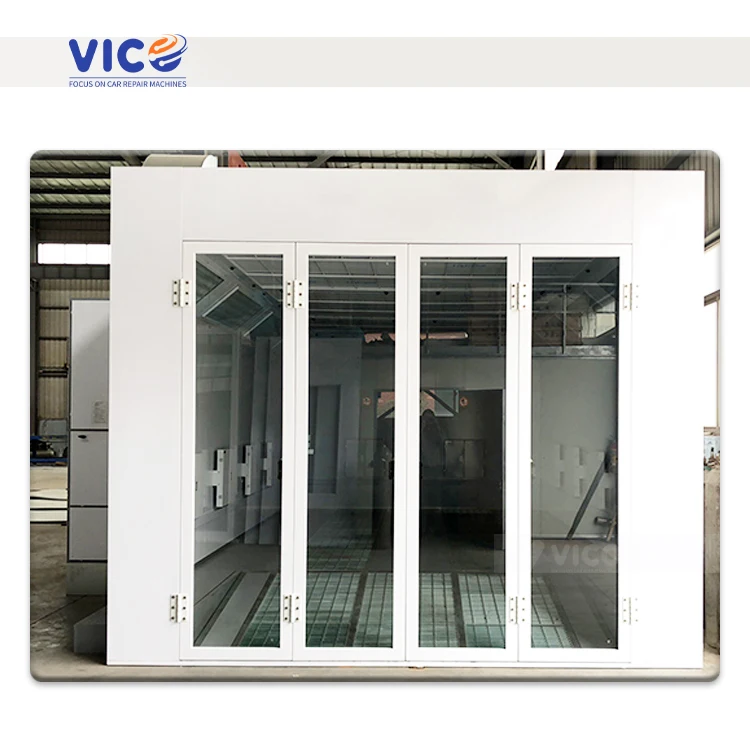

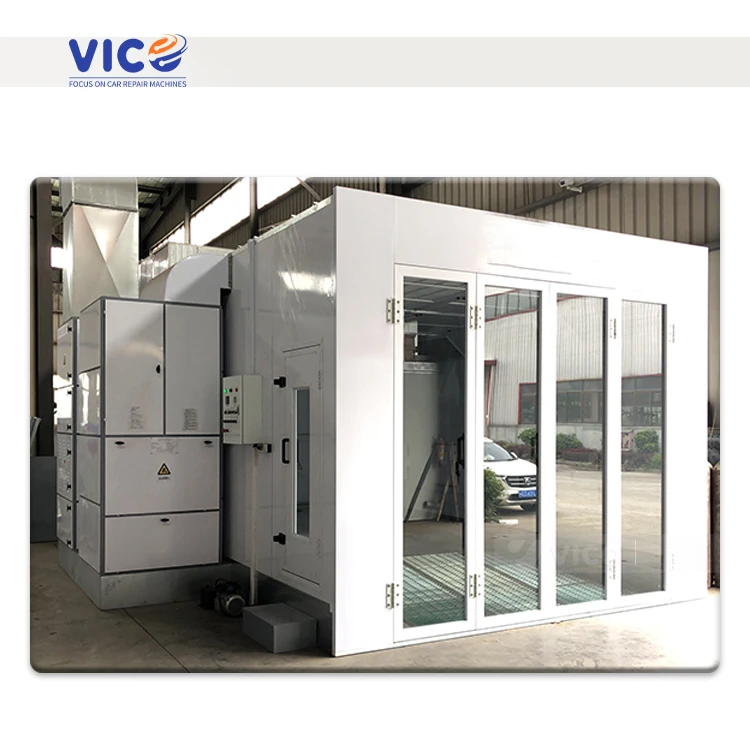

VICO 4 Big glass window Car Painting Booth Auto body shop Painting Booth and Baking Oven #VPB SD88 with factory outlets

Painting booth description

One of the hottest sale booths for export, very nice performance,with embedded ramp.

Outer dimension:(mm)

7000*5350*3400mm

Inner dimension:(mm)

6900*3900*2650mm

Main door size:

3000mm(W)*2600mm(H), side small door 700mm*2000mm

Appearance color

Red/ Blue / White grey/ Orange

Frame system

Frame retardant polystyrene insulation board(optional rock wool inside ):50mm thickness, 0.426mm thick steel,galvanized steel
assembled roof. Aluminum alloy front door frame and galvanized steel fixed room frame. The floor is assembly formed by
corrosion-resistant rectangular tube with 2 rows of grids and 3 rows of checkered plates.(Optional full grilles) Bottom with glass
filters. Ramps embedded inside of the booth,car drive on directly.

Air circulation system

2*4kw double channels centrifugal outer-motor ventilating machines, air flow:25000m3/h, exhaust duct is formed from superior
galvanized steel sheet and flange; On load air speed:0.38m/s; Air exchange rate:320 times/h

Exhaust

1*5.5 KW centrifugal fan, model YDW 5.5KW, blower capacity 15000 m3/h.

Filter system

High-efficiency imported glue-spreading cotton (VF-600) ceiling filter
Basement bottom grills bottom with glass filters system.

Heating system

RIELLO G20 burner, Max. Calorific value:180,000kcal/h.
Exchanger Argon arc welded SUS304 stainless steel
Max. Temperature :80℃；
Diesel consumption 5-8L/h;
Temperature rise rate:5-8min(20-60℃)；

Lighting system

Ceiling with two lines of lighting box, each line 4 units.
total with 24pcs of 36w LED lamps. Illuminance:800Lux
Side lights:8 groups*2 pc=16 pcs 36W LED lights.(Optional)

E-controlling system

Adopt superior electronic components, main circuit has multi-protection.
Function:Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch,
emergency stop, pressure gauge, all motors reduced-voltage starting.

Total power

16KW

Electric power supply

3PH, 220V/380V/415V, 50Hz/60Hz
