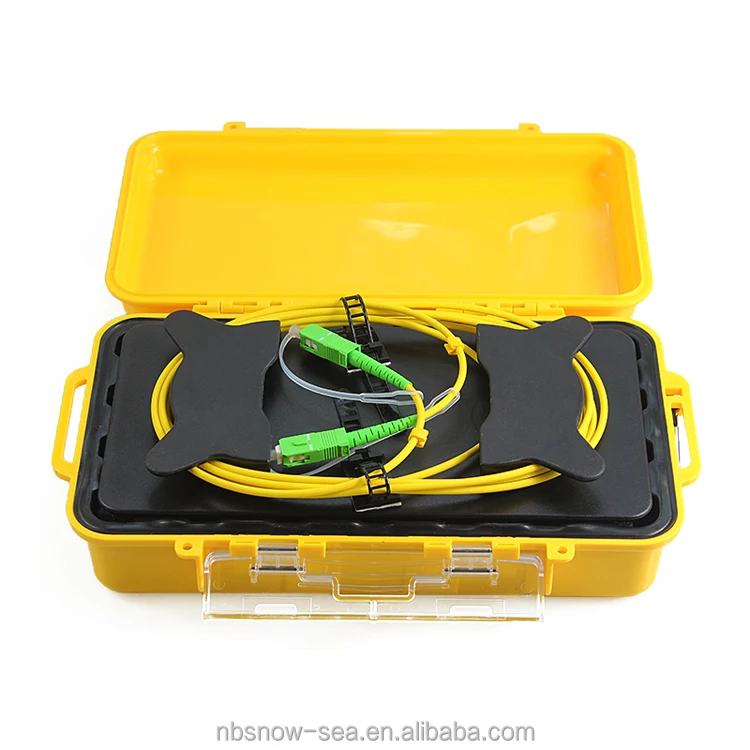

SC/APC SC/APC 500M/1KM/2KM OTDR Launch Cable Box

Product Overview

Description

SC/APC-SC/APC 250M/500M/1000M/2000M OTDR Launch Cable Box for OTDR Dead Zone

Descriptions

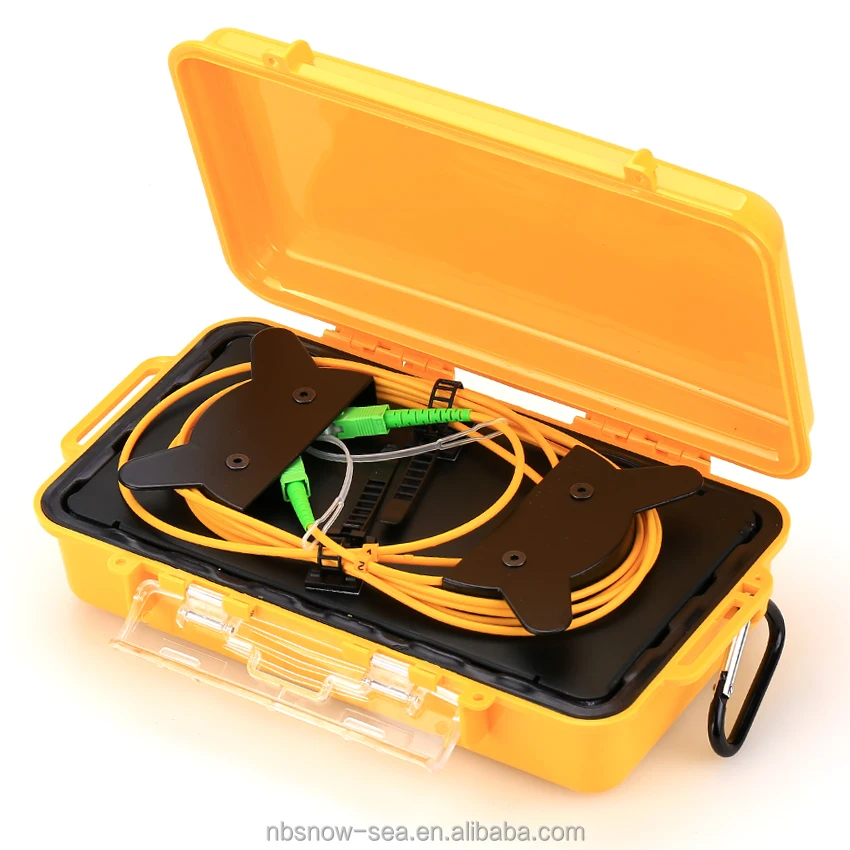

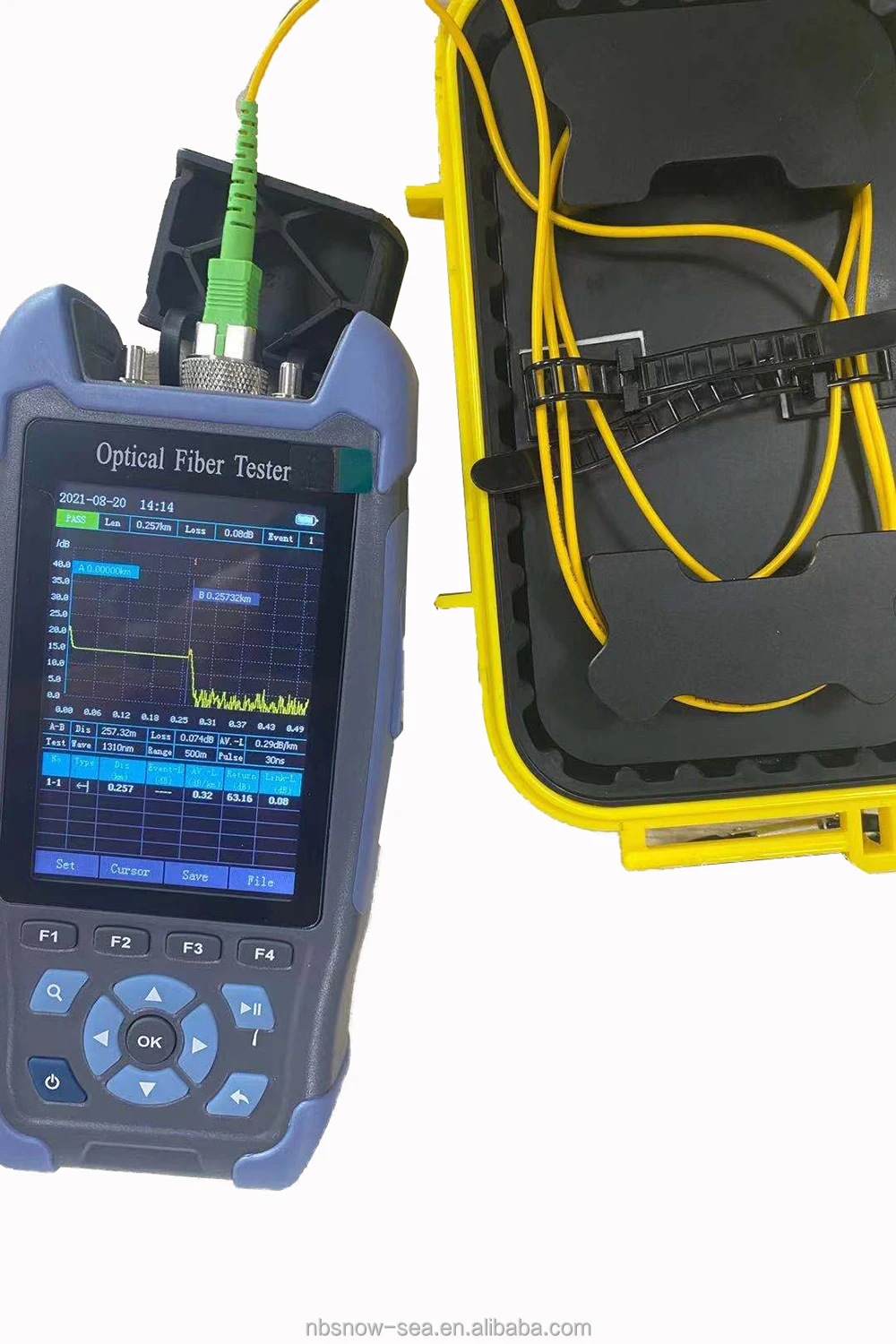

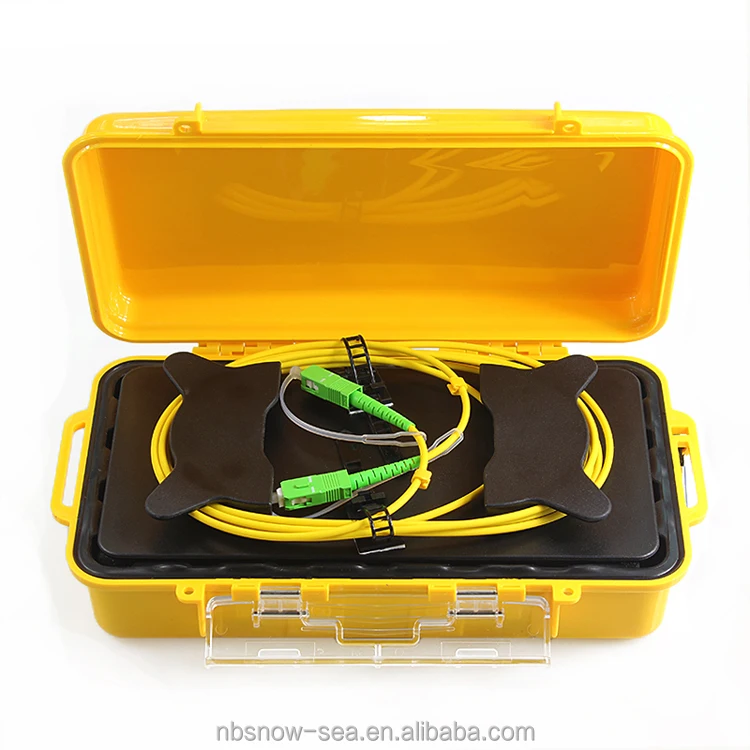

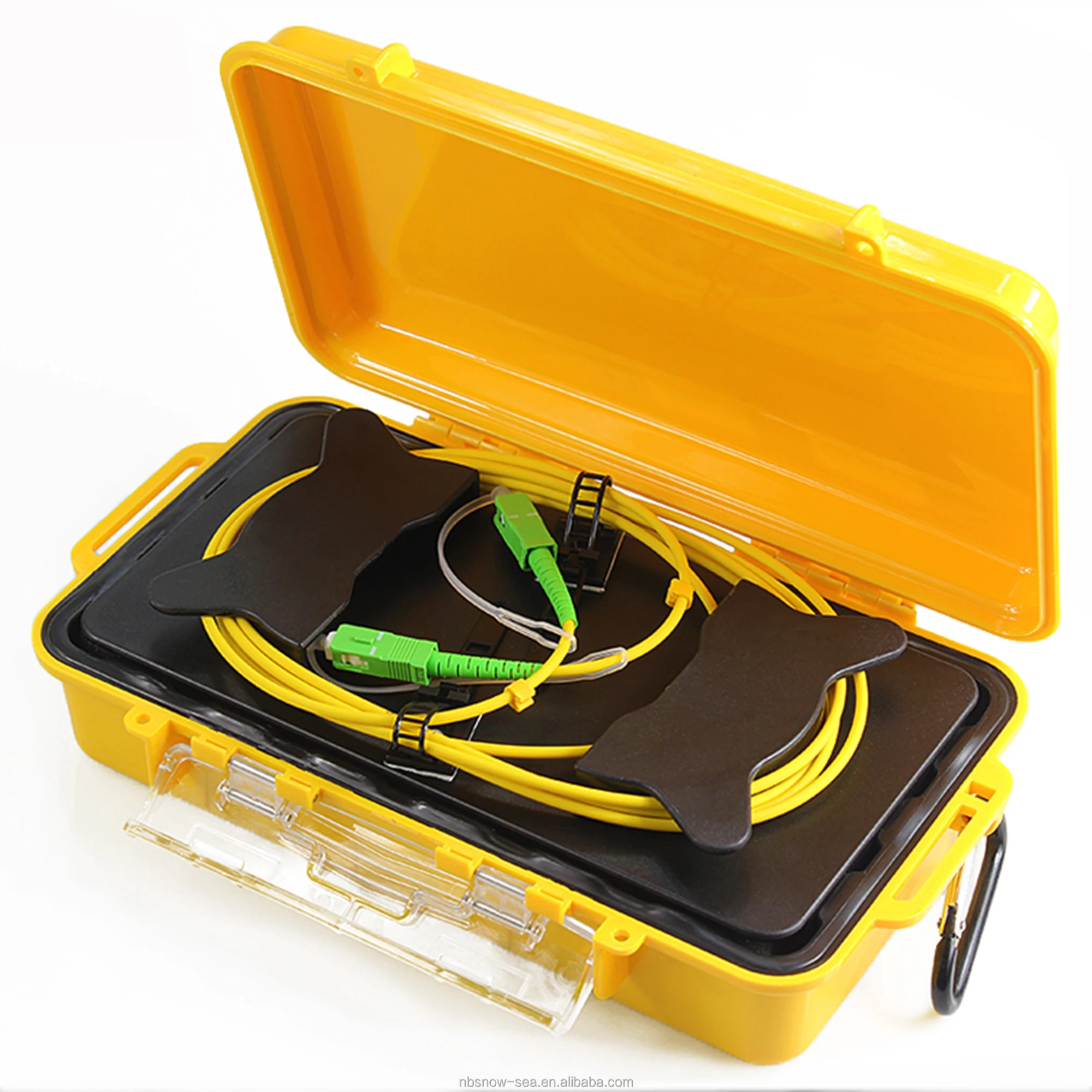

The Multicom MUL-OTDR-LCB OTDR Launch Cable Box, connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection. The Launch Box creates the proper conditions for testing another similar optical fiber for faults. This method avoids undesirable variations in loss and distance measurements. A launch fiber helps to overcome the blind spot or ‘Dead Zone’ of an OTDR brought about by high launch power or faults near the launch end of the fiber.





Features

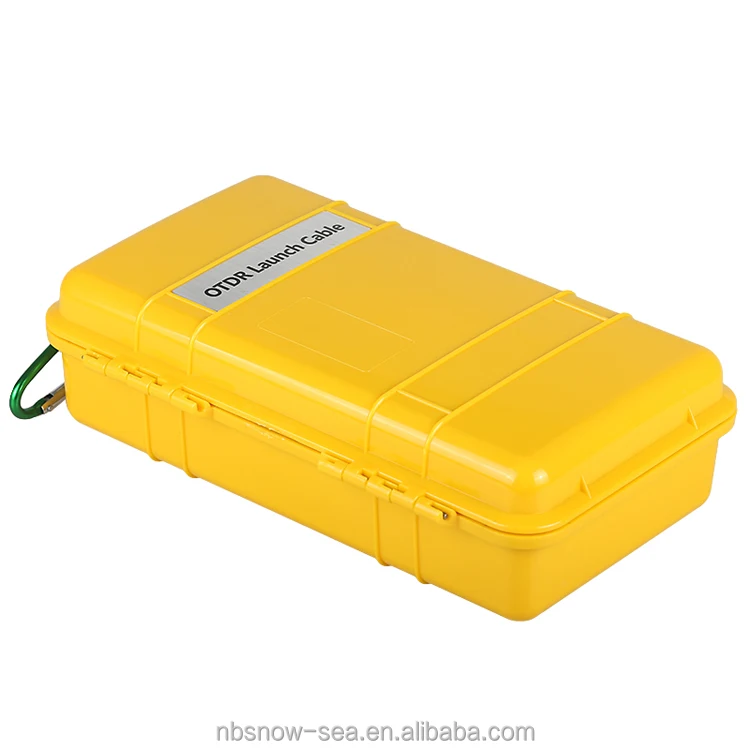

Ruggedized Case

Robust carabiner clip

Singlemode

250/500/1000/2000 meter

Auto-purge valve

SC/APC-SC/APC Connectors

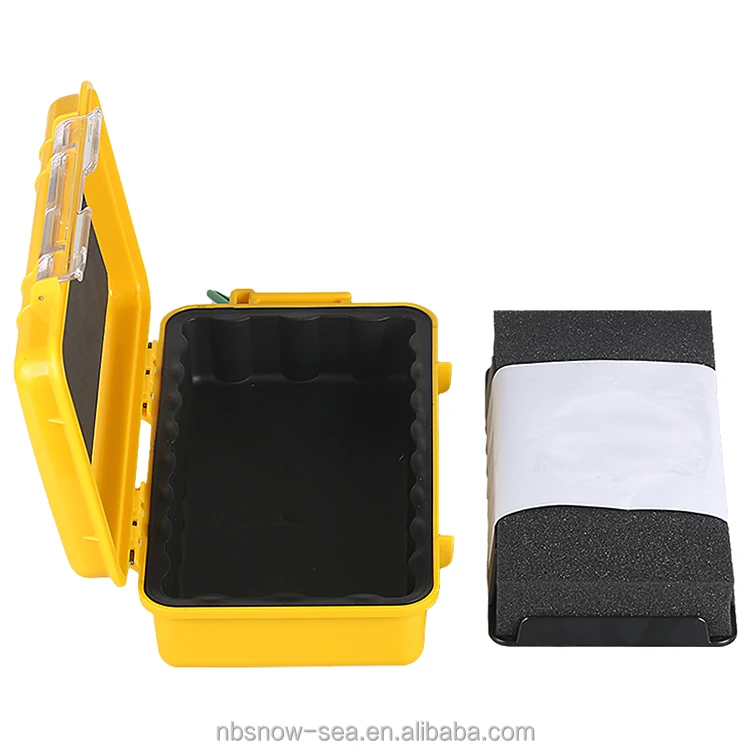

Built-in cable management



Launch Cable Box Family

Specifications

Length x Width x Height	9.37" x 5.56" x 2.62"    (238x141x66mm)
Material	SR Polypropylene
Weight	0.75 kg (without fiber)
Operating temperature	-40° to +55°C
Typical Loss	< 0.5dB @ 1310nM for 1000 meters



Order Information
