Product Overview
Description
Product Description

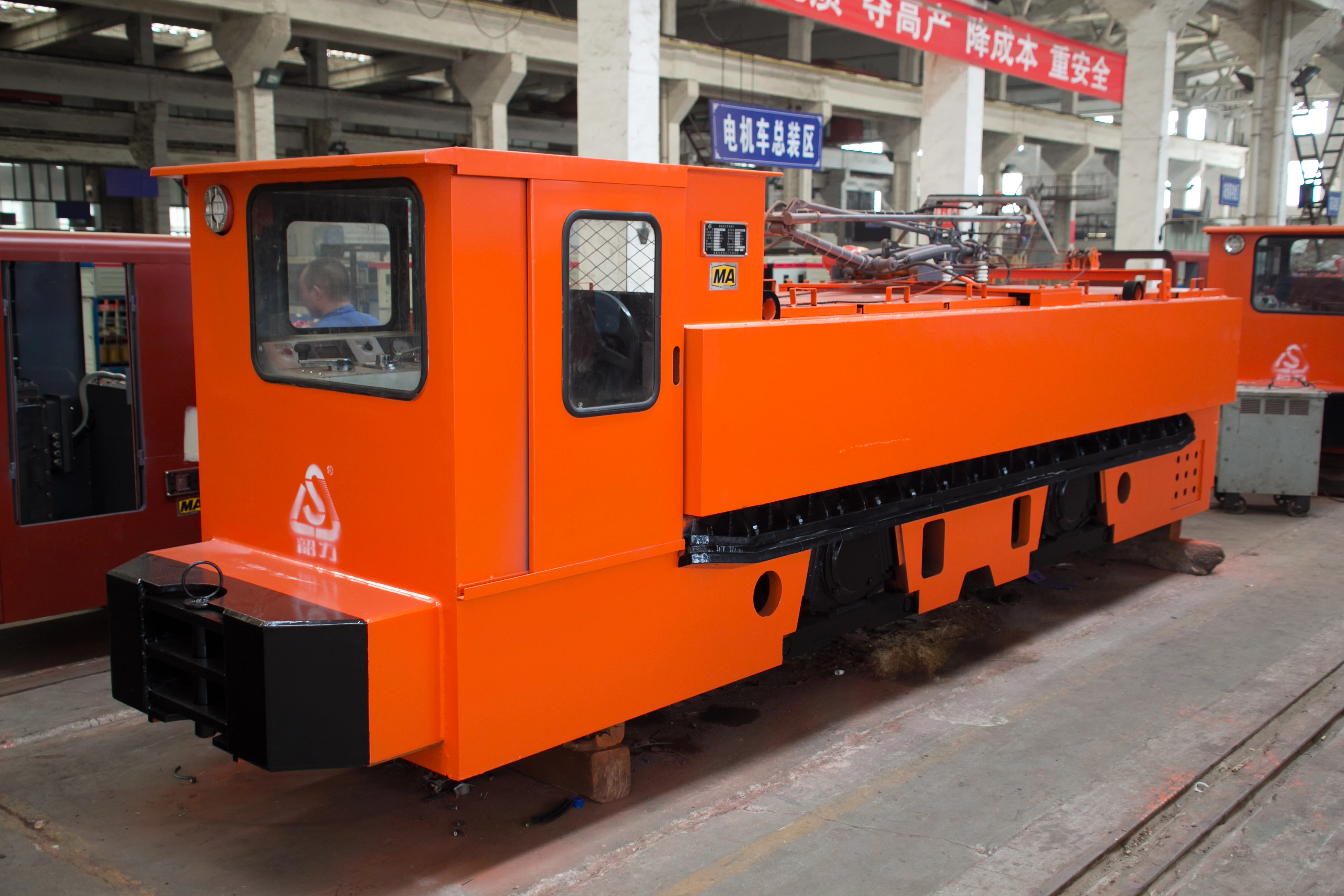

Narrow Gauge 20 Tonne Battery Locomotive for mining and tunnel transportation
Product details
Model Name | CJY20/6,7,9G(B) | CJY20/6,7,9GP | ZL20-7/9/750-3 Middle cab | ||
Adhesive Weight | 20 tons | ||||
Track Gauge | 600, 762 or 900mm | ||||
Traction | 39.23kN | 37.3kN | 40.6kN | 41.04kN | 39.2kN |
Max. Traction | 49kN | 52kN | 52.9kN | ||
Speed | 15km/h | 14.4km/h | 10.5km/h | 12.5km/h | 18.6km/h |
DC Voltage | 550V | 750V | |||
Power | 85kW*2 | 78kW*2 | 65kW*2 | 75kW*2 | 110kW*2 |
Length | 7100 or 7400mm | 7500mm | |||
Width | 1600 or 1750mm | 2300mm | |||
Height | 1900mm | 3340mm | |||
Wheelbase | 2200 or 2500mm | 3000mm | |||
Wheel Diameter | Φ840mm | ||||

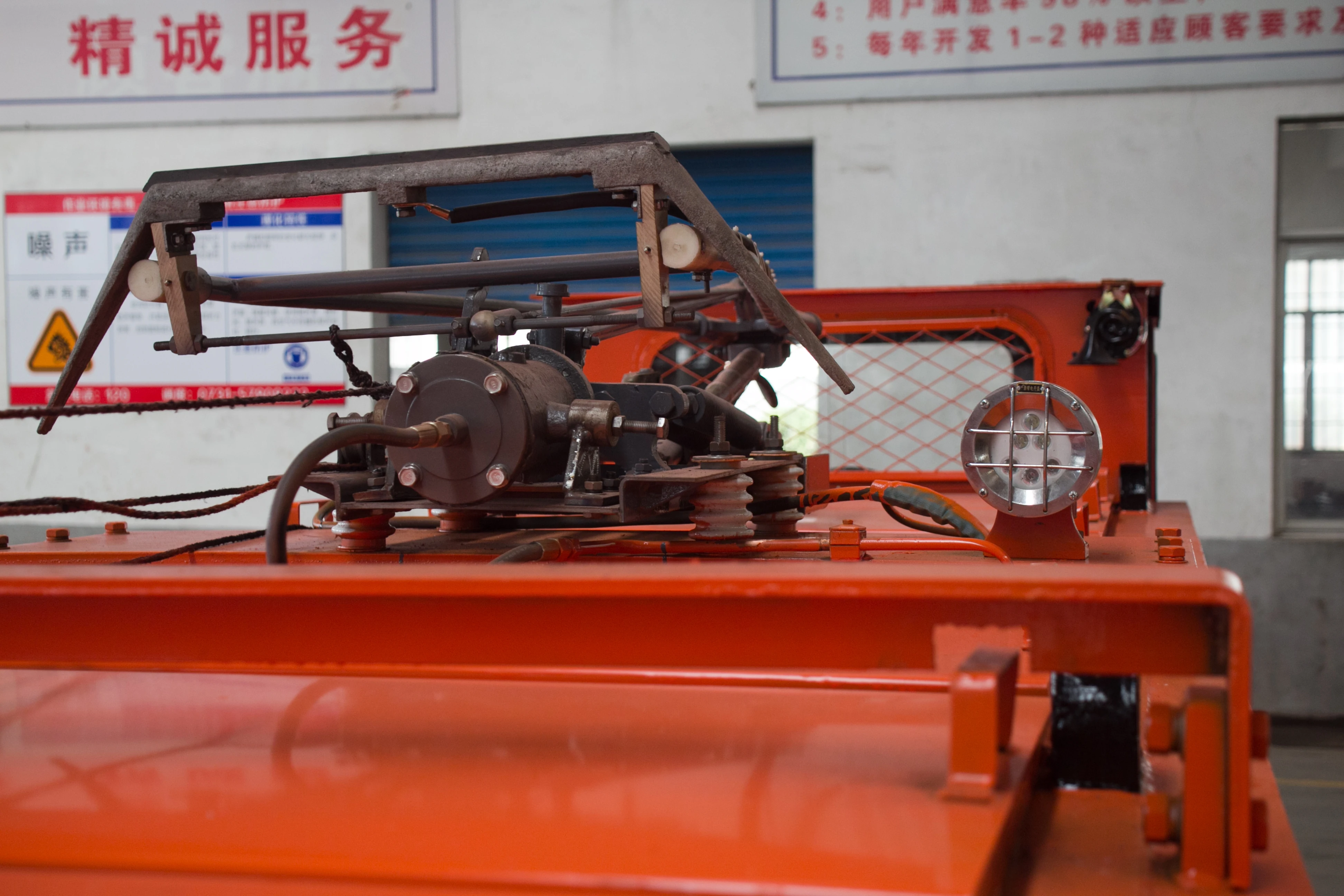

Pantograph | 2000~3200mm | 4050~4500mm | |||
Height of Traction | 320/430mm | 430mm | |||
Min. Turning Radius | 12,25 or 30m | 30m | |||
Speed Regulating Mode | Resistance or IGBT | AC converter | Resistance or IGBT | ||
Braking Mode | Mechanical,Electric and Air Brake | ||||
Frame
Constructed in welded steel and suspended by leaf spring or rubber studs on grease bearing seats with tapered roller bearings.

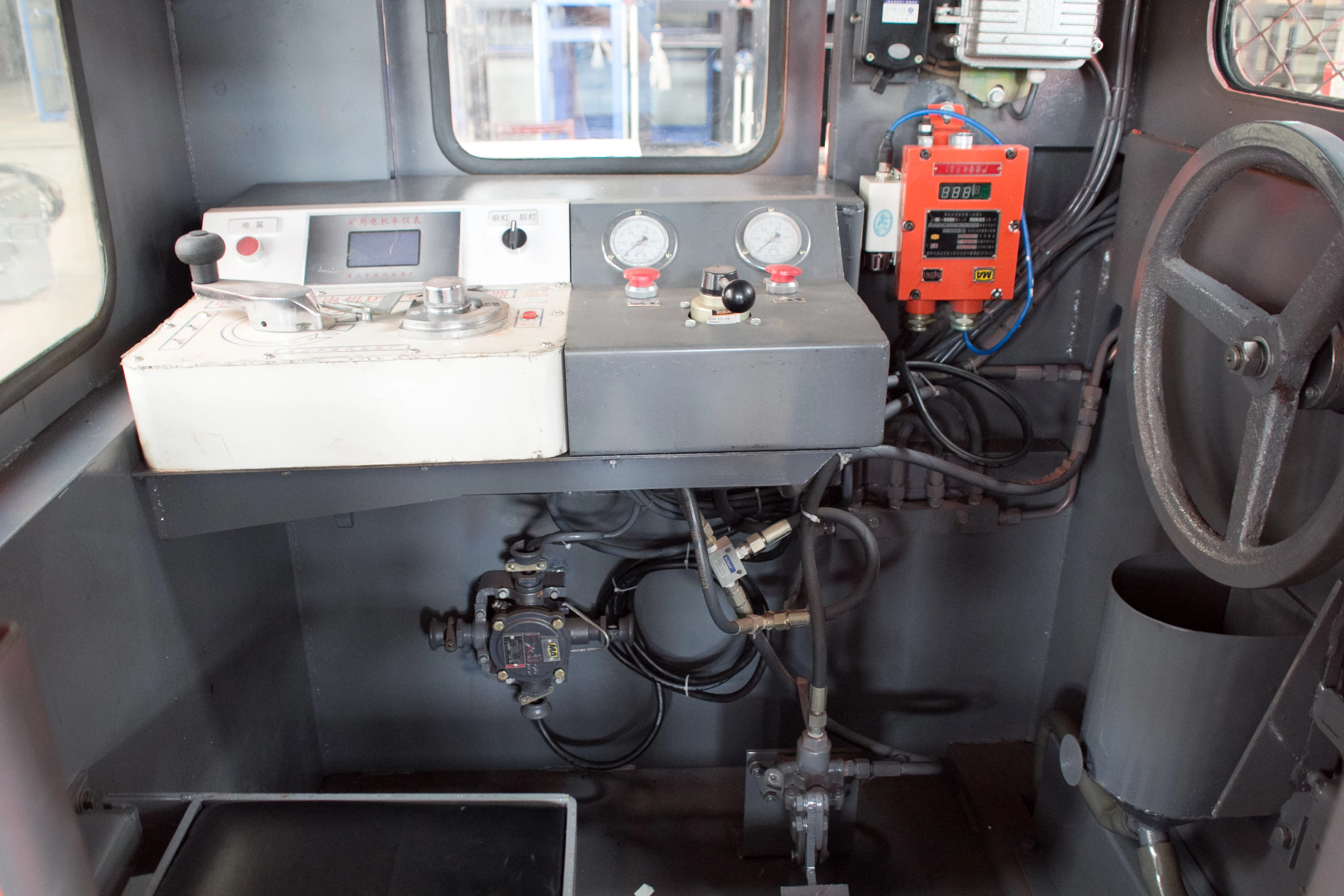

Speed control
In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.
The AC converters convert the DC from trolley line into AC and the controller adjusts the speed of AC motors by the power frequency of the AC converter.
AC motor
Comparing with DC motors, the 3 phases AC motors have no carbon brushes and any other quick-wear parts.

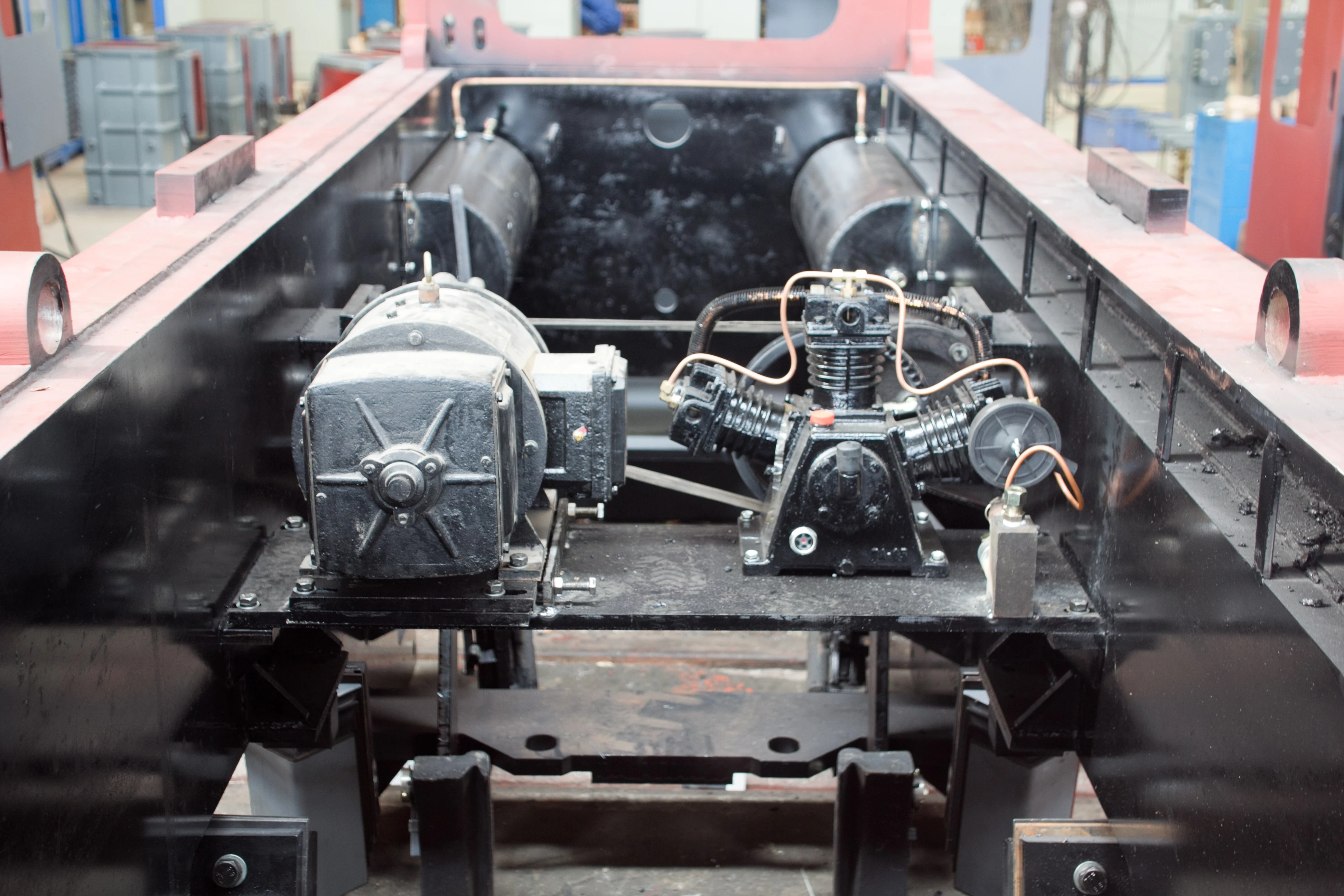

Brakes
Pneumatic brake to the four wheels by brake shoes. Stop brake by manual mechanical brake.
Sanders
Pneumatic (or mechanical) sanding system to the rails.
Buffers and motor suspension
The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions. Equally, the motor is suspended from the chassis by a spring brace.
Product Category
Related Products
Company Information
Company profile >>
Xiangtan Electric Locomotive Factory Cor., Ltd. was established in 2000,covering the area of 66,000 square metres, with capacities of 1.5 tonne to 65 tonne locomotive, rail haulage equipment, mining, tunneling and construction sectors. Always being leading manufacturer of mining electric locomotive industry, we owned own famous trademark "SHAOLI' and was issued by ISO 9001,ISO14001,ISO45001,CE certification,National High -Tech Enterprise, China Famous Brand, and etc.
Company Panorama
Honor
Buildings
Office
Workship
Certifications
Packaging & Shipping
PACKAGE:
Standard export wooden packing.
DELIVERY TIME:
15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.
