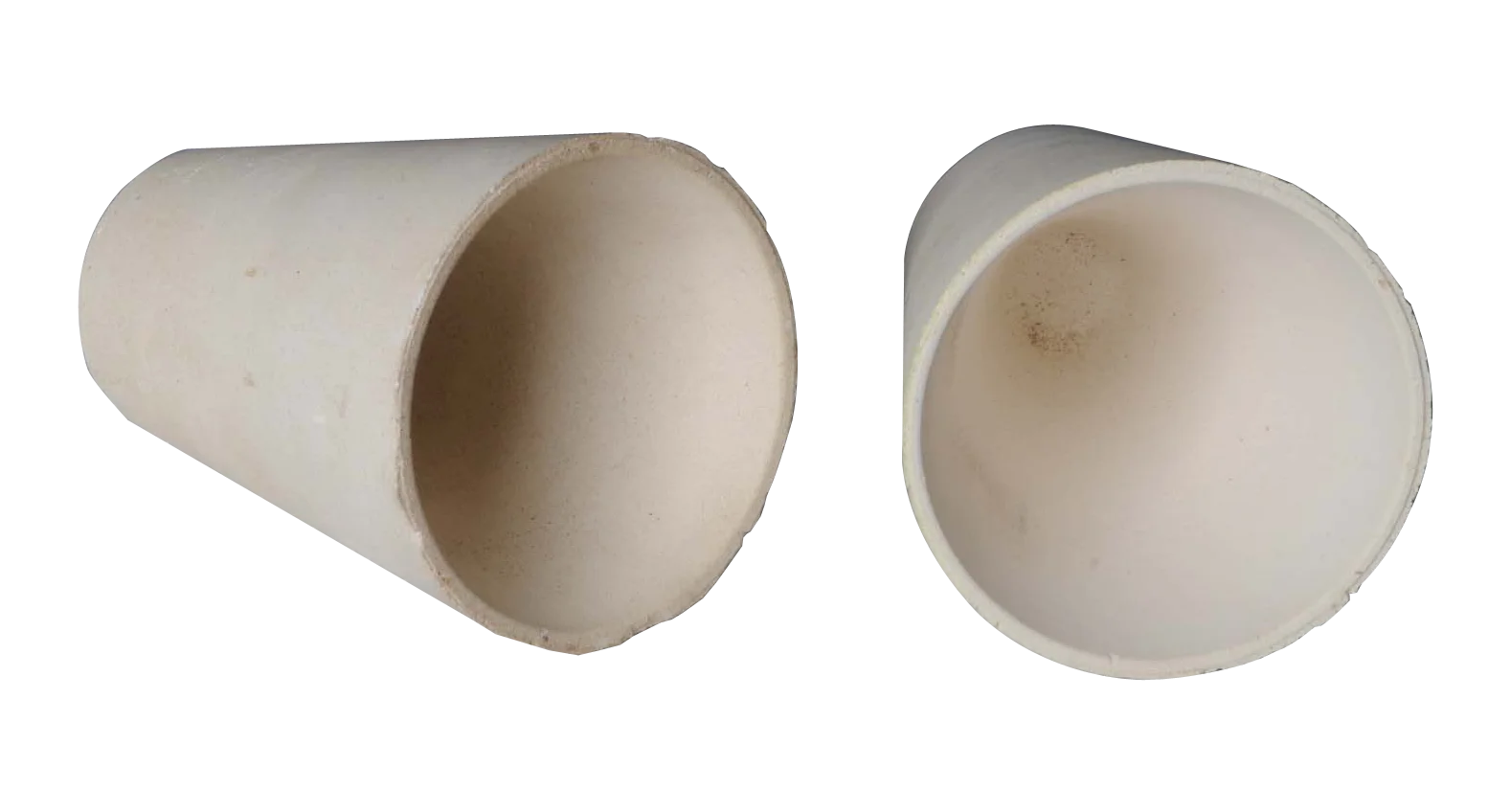

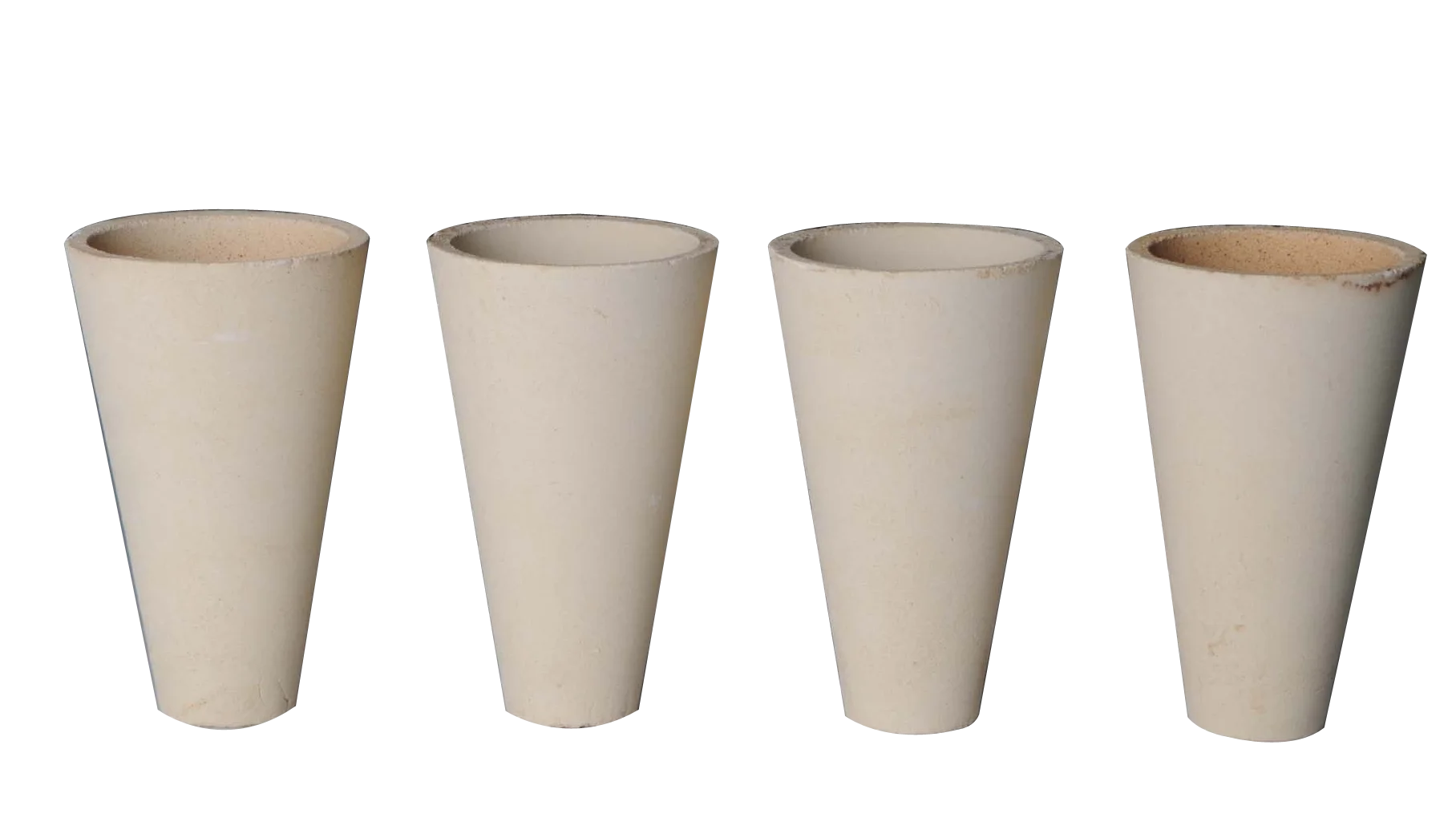

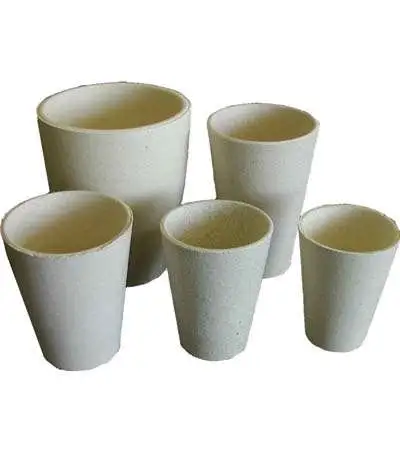

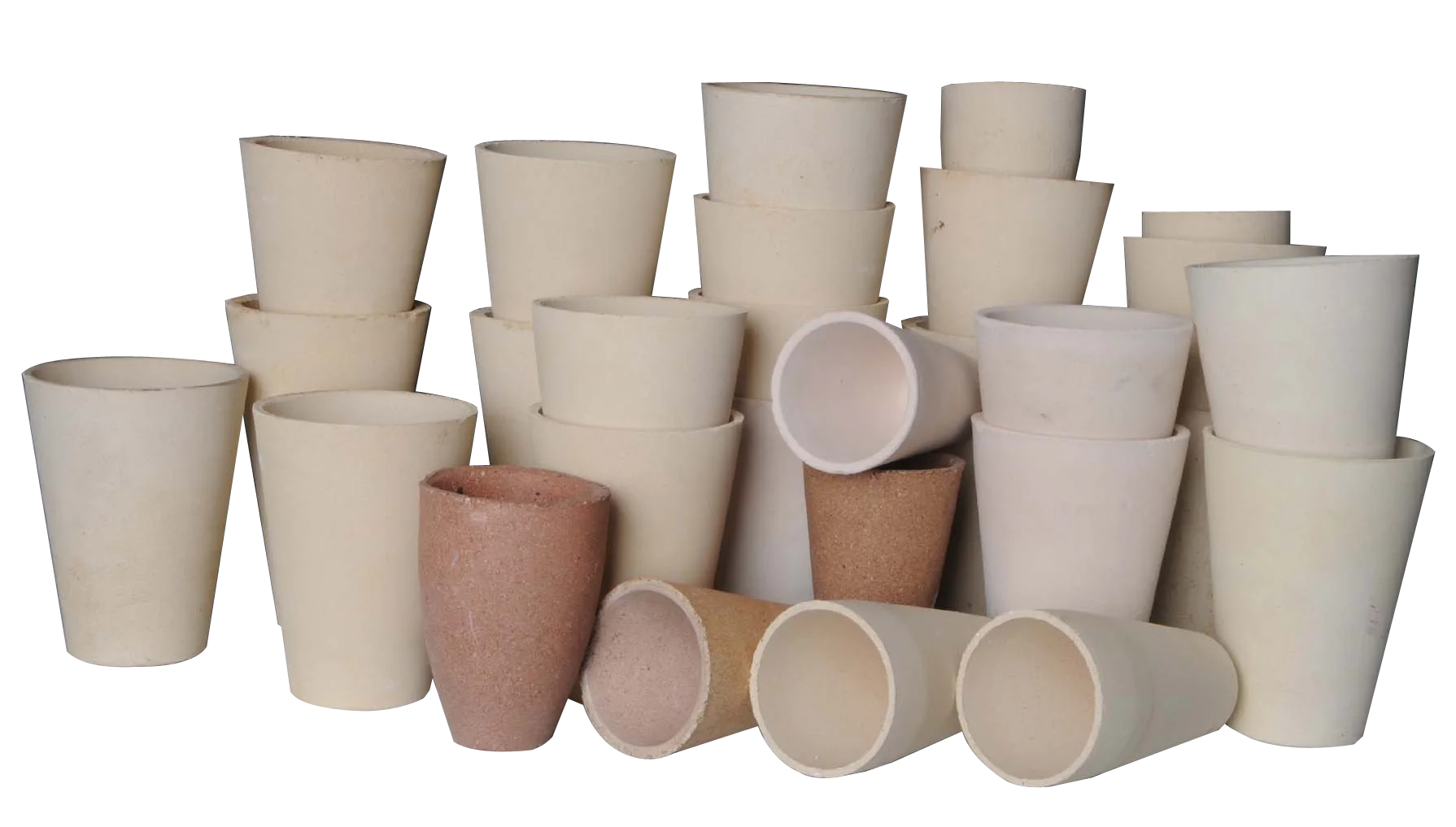

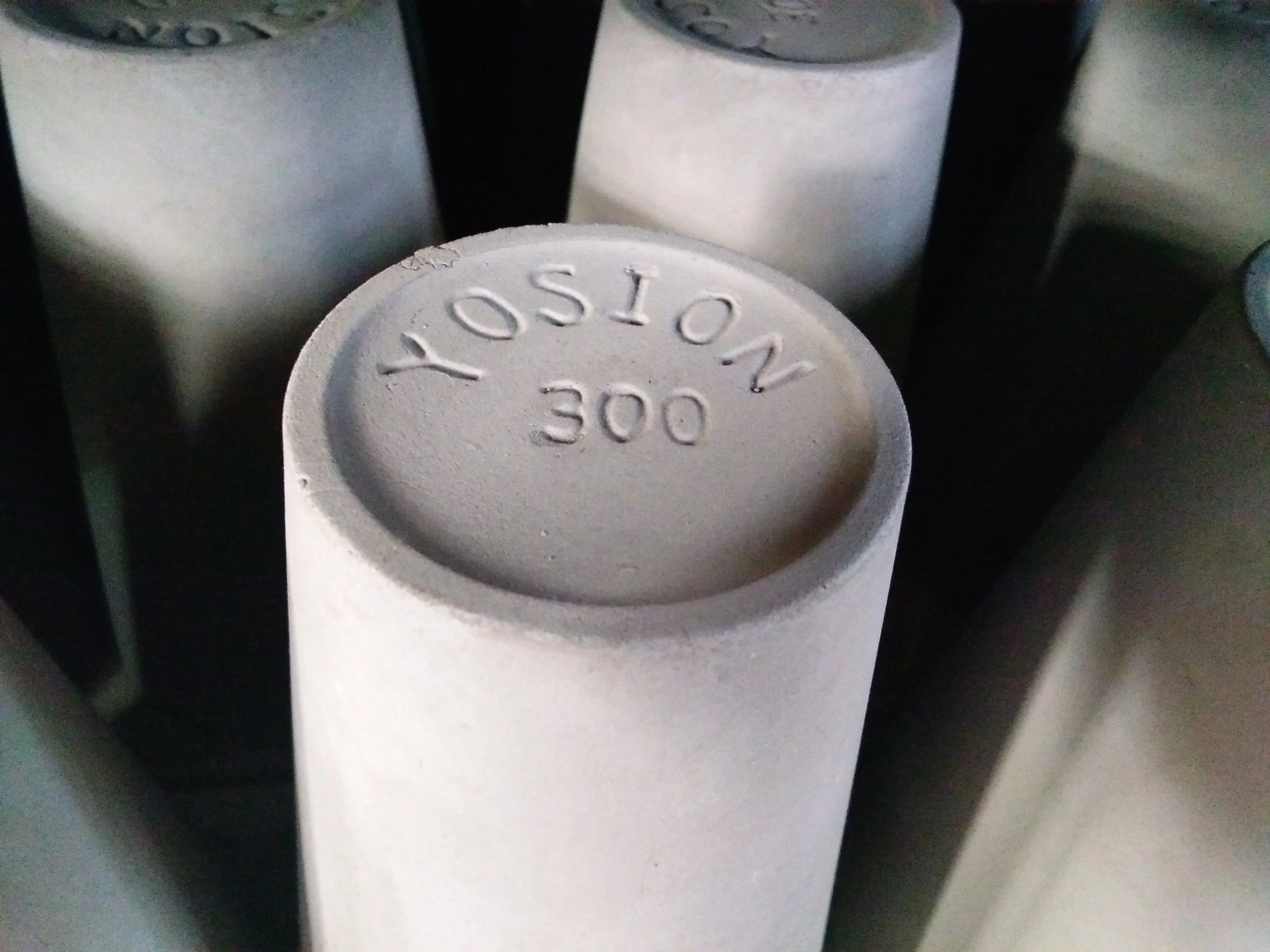

Clay Crucible---Assay Crucible
It is mainly used in the analysis of metal samples and melting samples in laboratories, mineral laboratories and various industrial laboratories. The samples and ingredients are put into the crucible, and the melting experiment is carried out at high temperature. The lead button obtained by liquid precipitation is then subjected to the next experiment;
Features: High refractoriness, no slag, no penetration, no cracking, it is the first-class auxiliary equipment for fire assay.
Customized sizes and services are available.
It is mainly used in the analysis of metal samples and melting samples in laboratories, mineral laboratories and various industrial laboratories. The samples and ingredients are put into the crucible, and the melting experiment is carried out at high temperature. The lead button obtained by liquid precipitation is then subjected to the next experiment;
Features: High refractoriness, no slag, no penetration, no cracking, it is the first-class auxiliary equipment for fire assay.
Customized sizes and services are available.

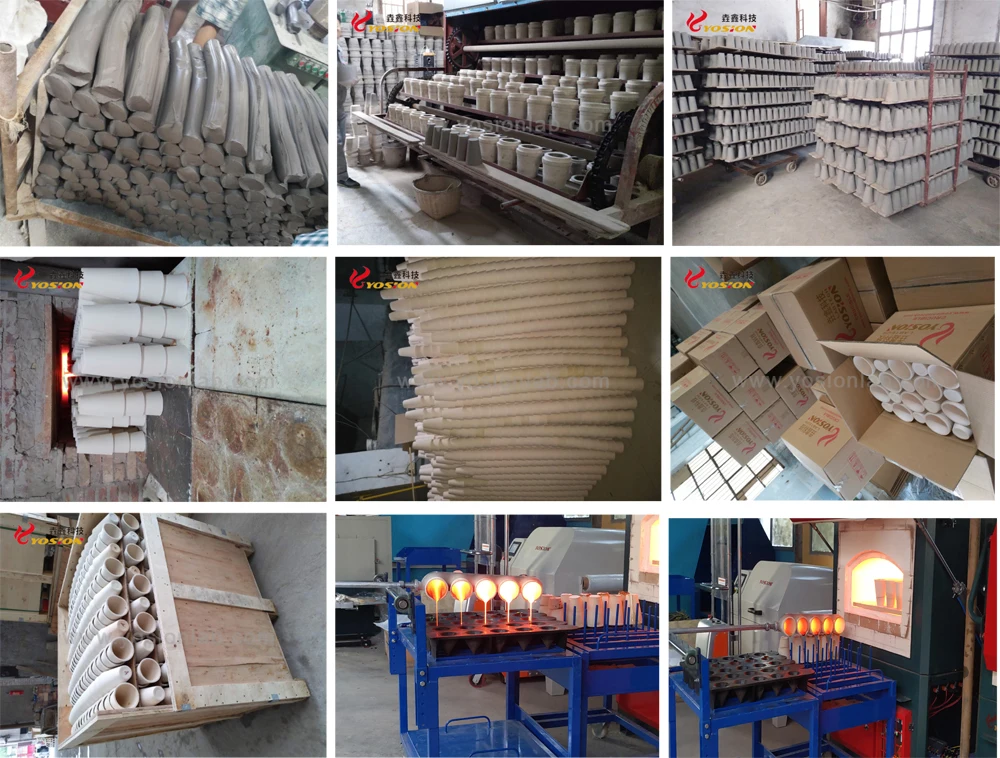

Production Process
1. There are two types of forming methods for clay crucibles: roll forming and stamping forming.
2. Physical and chemical indexes of clay crucible: refractory temperature 1580℃, alumina content: between 40% and 45%
3. Features: High refractoriness, no slagging, no penetration, no cracking, it is the first-class auxiliary consumable for fire Assay.
All raw materials are ball milled, blended, and filtered in proportion.
Put the practiced mud in a mud press, press it into a circle, and cut.
Customize corresponding molds according to different size specifications
Put the cut mud into the mold and rotate it at high speed to form a blank.
Place the formed crucible on a drying cart to dry, and put it in a high-temperature kiln for 11 hours.
4.Wrap up and store.
2. Physical and chemical indexes of clay crucible: refractory temperature 1580℃, alumina content: between 40% and 45%
3. Features: High refractoriness, no slagging, no penetration, no cracking, it is the first-class auxiliary consumable for fire Assay.
All raw materials are ball milled, blended, and filtered in proportion.
Put the practiced mud in a mud press, press it into a circle, and cut.
Customize corresponding molds according to different size specifications
Put the cut mud into the mold and rotate it at high speed to form a blank.
Place the formed crucible on a drying cart to dry, and put it in a high-temperature kiln for 11 hours.
4.Wrap up and store.
Specification
Model | AHK | Volume（ml） | TOD（mm） | TID（mm） | Height（mm） | BOD (mm） | Pcs/ Box | Pcs/ Crate |
YAC0245 | 30 g | 245 | 85 | 73 | 107 | 45 | 60 | 2574 |
YAC0350 | 40 g | 350 | 88 | 78 | 135 | 55 | 40 | 1760 |
YAC0355 | K40 | 360 | 95 | 82 | 140 | 56 | 40 | 1540 |
YAC0370 | K45 | 370 | 95 | 79 | 159 | 55 | 40 | 1400 |
YAC0430 | 50 g | 430 | 105 | 92 | 148 | 58 | 40 | 1500 |
YAC0455 | A pot | 455 | 105 | 90 | 134 | 58 | 40 | 1000 |
YAC0470 | 55 g | 470 | 88 | 76 | 155 | 57 | 40 | 1452 |
YAC0500A | 50 g | 480 | 105 | 92 | 155 | 57 | 40 | 1400 |
YAC0500 | 65 g | 500 | 105 | 92 | 165 | 55 | 24 | 1400 |
YAC0540 | 70 g | 540 | 114 | 96 | 152 | 79 | 24 | 1400 |
YAC0800 | 75 g | 800 | 120 | 102 | 160 | 75 | 24 | 1200 |
