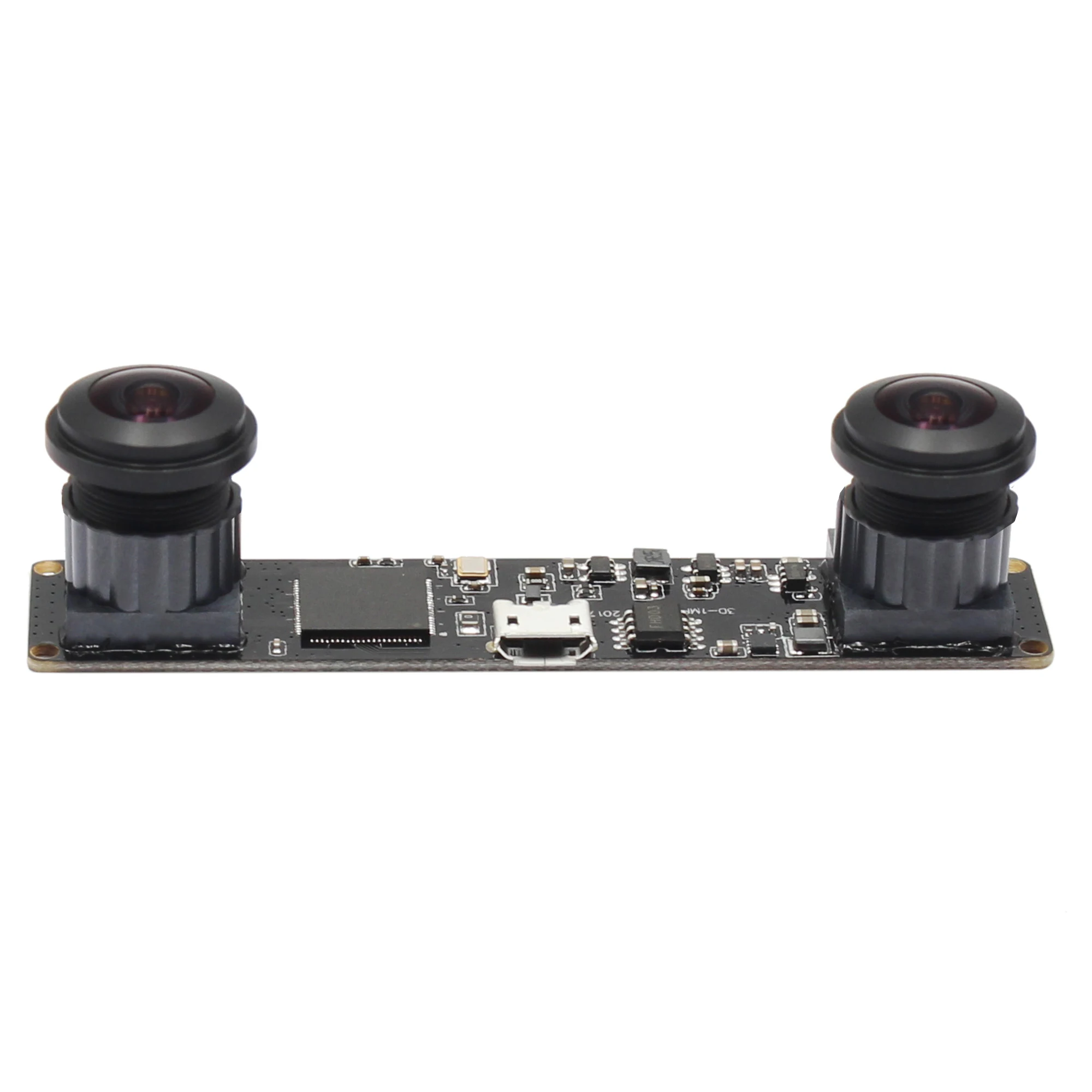

Fisheye Synchronization USB Webcam Module MJPEG 60fps 2560X960 Dual lens CMOS OV9750 3D VR Stereo Camera
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600340456531):
Product Overview
Description
Fisheye Synchronization USB Webcam Module MJPEG 60fps 2560X960 Dual lens CMOS OV9750 3D VR Stereo Camera
Product Description
Features:

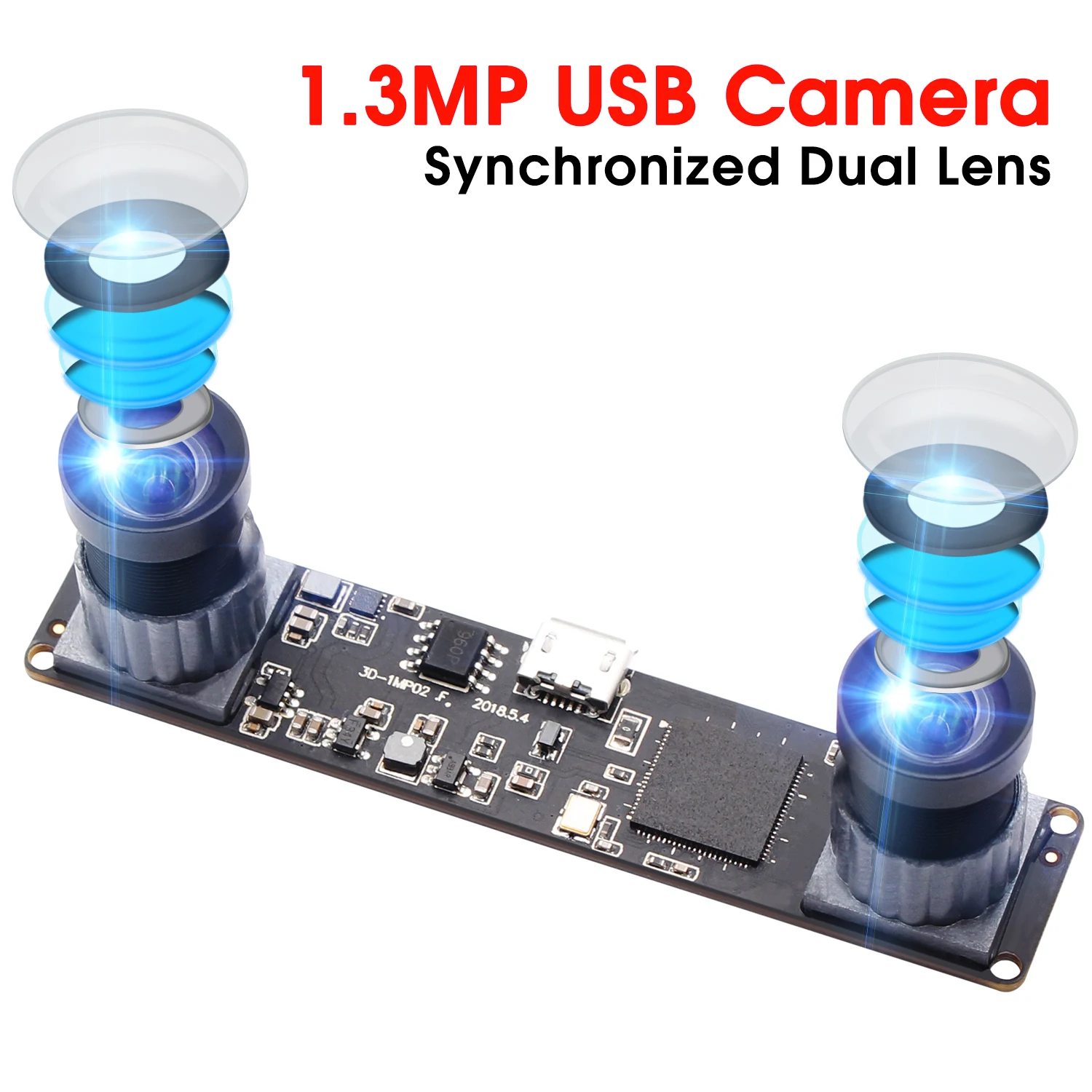

*Synchronized 1.3MP HD 960P Dual Lens USB2.0 Camera Module
*Synchronization technology,suitable for Stereo 3D VR application
*High speed USB 2.0 interface
*High frame rate, can get MJPEG:2560X960@ 60fps/2560X720@60fps /1280X480@60fps /640X240@60fps

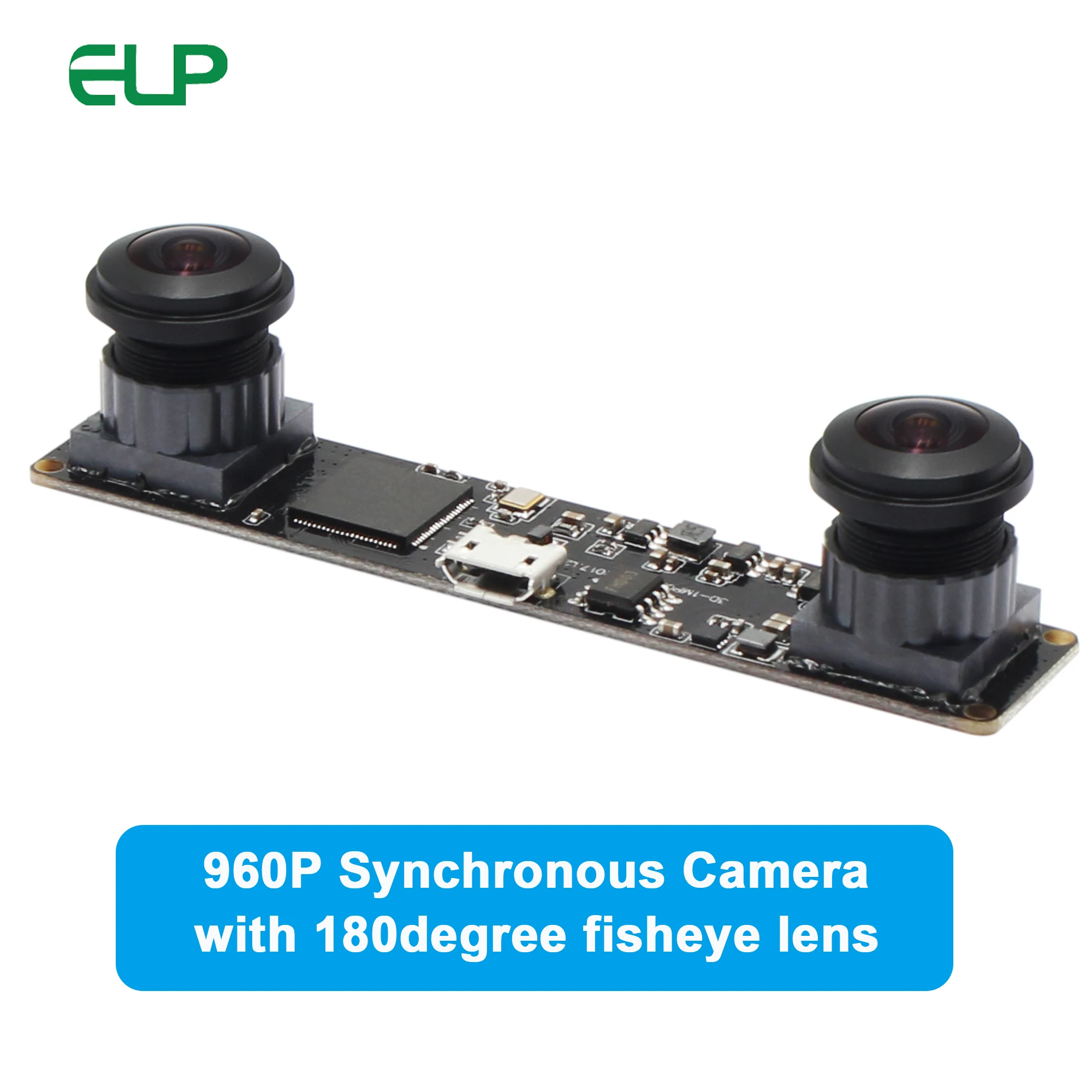

*Wide angle 180 degree fisheye lens
*Small outline for embedded application
*UVC compliance for use in OS Windows, Linux, Android, Mac
*OTG support
*High quality no distortion lens
*Synchronized 1.3MP HD 960P Dual Lens USB2.0 Camera Module
*Synchronization technology,suitable for Stereo 3D VR application
*High speed USB 2.0 interface
*High frame rate, can get MJPEG:2560X960@ 60fps/2560X720@60fps /1280X480@60fps /640X240@60fps
*Wide angle 180 degree fisheye lens
*Small outline for embedded application
*UVC compliance for use in OS Windows, Linux, Android, Mac
*OTG support
*High quality no distortion lens
Specification
Model | ELP-960P2CAM-L180 |
Sensor | OV9750 |
Lens Size | 1/3 inch |
Pixel Size | 4860µm x 3660 µm |
Max. Resolution | 2560(H)X960(V) |
Compression format | MJPEG |
Resolution & frame | MJPEG: 2560X960@ 60fps/2560X720@60fps /1280X480@60fps /640X240@60fps |
Sensitivity | 3.7V/lux-sec@550nm |
Mini illumination | 0. 1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Gain, White balance, Backlight Contrast, Exposure | |
Lens Parameter | M12 180 degree fisheye lens |
Power supply | USB BUS POWER Micro USB |
Power supply | DC5V |
Operating Voltage | 160mA~220mA |
Working current | -10~70℃ |
Working temperature | -20~85℃ |
Board size /Weight | 80X16.5 |

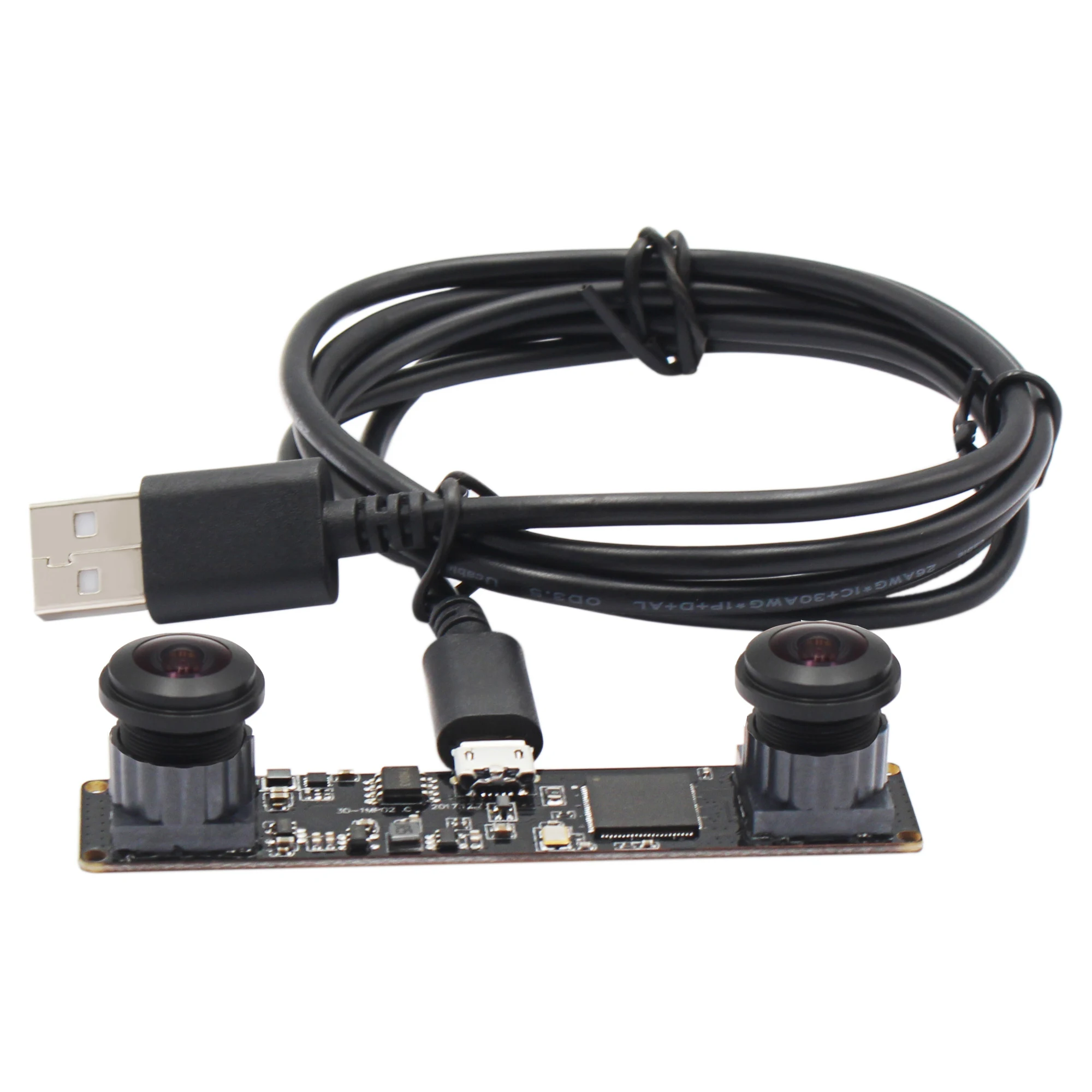

Cable | Standard 1M |
Operating system request | Win XP/Vista/Win7/Win8/Win10 |
Linux with UVC(above linux-2.6.26) | |
MAC-OS X 10.4.8 or later | |
Android 4.0 or above with UVC |
Details Images

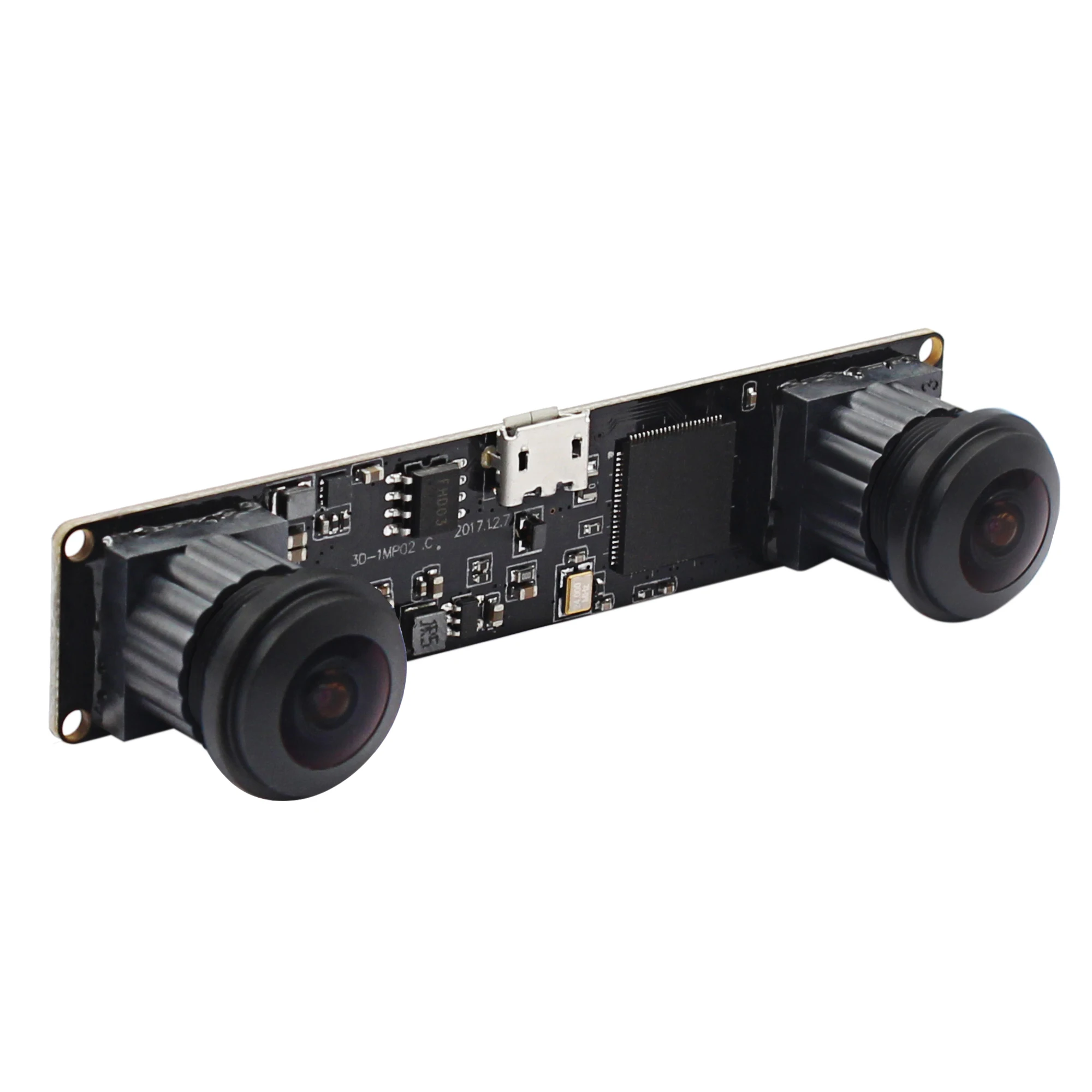

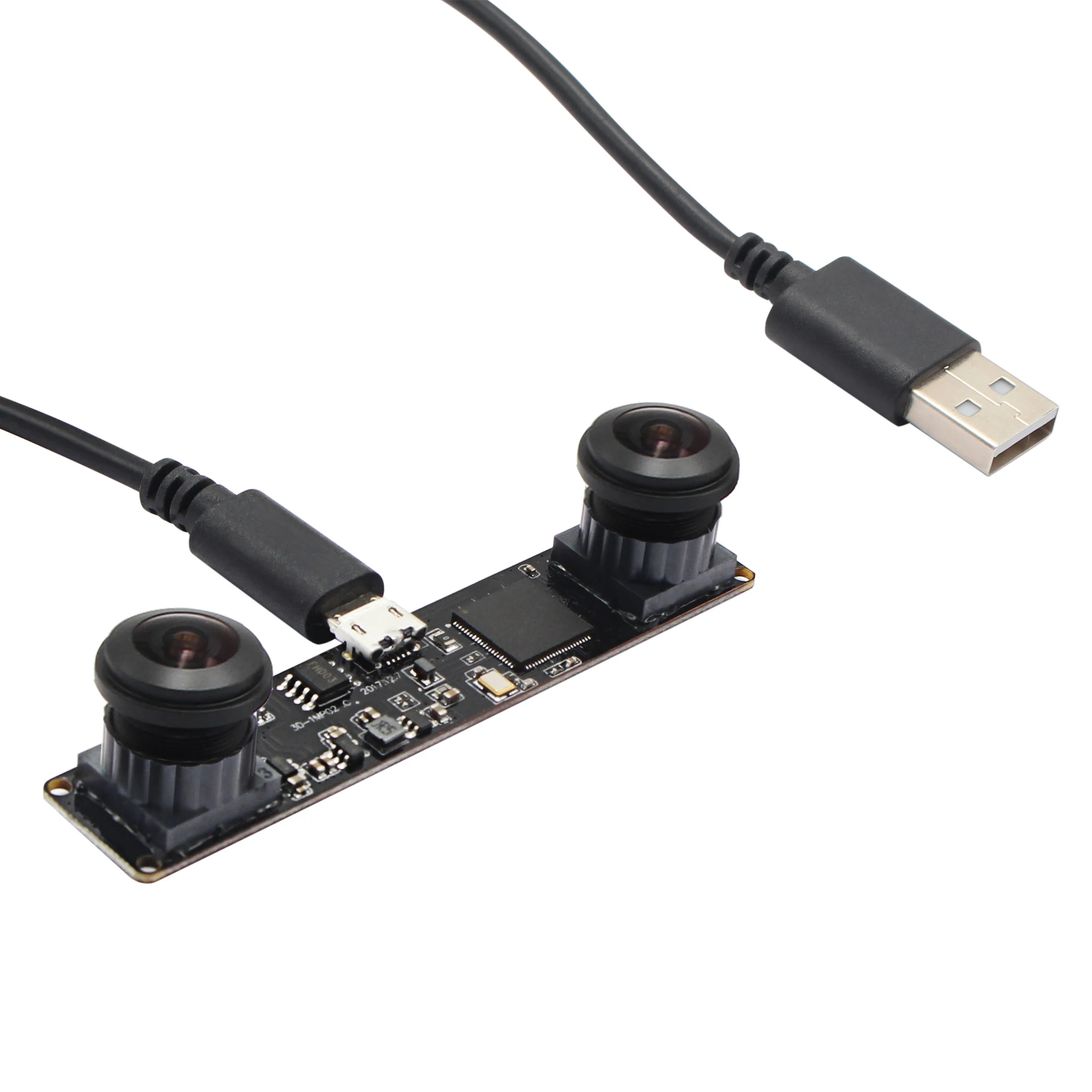

ELP 1080P 1.3MP OV9750 Sensor Stereo Camera with Dual Lens
Image sensor: 1/3 Inch OV9750 Sensor
Max Resolution:2560(H) *960 (V)
MJPEG：
Max Resolution:2560(H) *960 (V)
Resolution & Frame rate :
2560X960@ 60fps
2560X720@60fps
1280X480@60fps
640X240@60fps
*NO YUYV

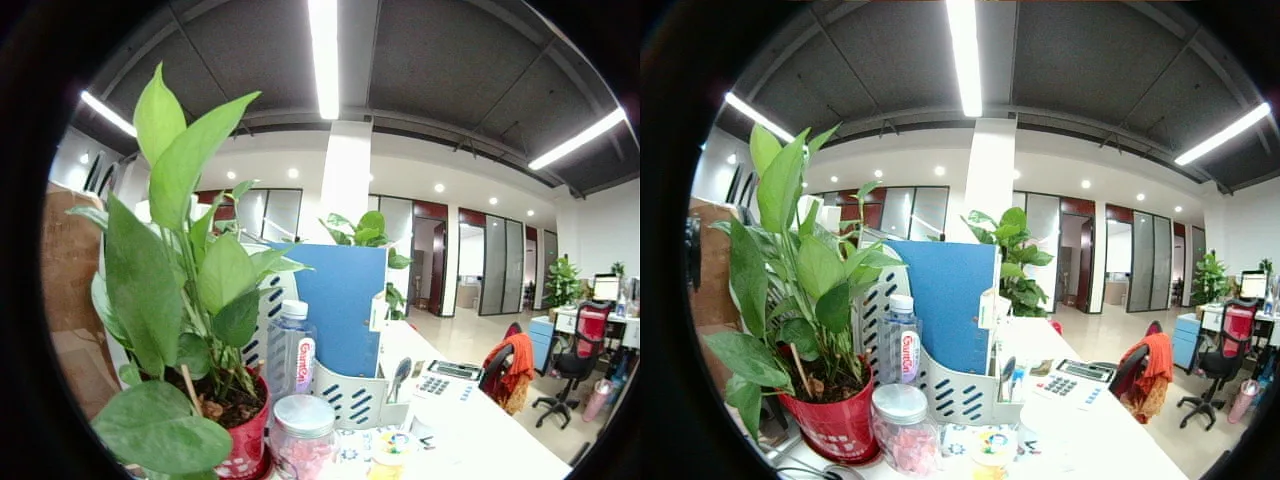

180 degree fisheye lens effect
Packing & Delivery
Box for camera module without case
Camera module without case, 2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm
Box for camera with case
Camera with case, 1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm
Each product will be wrapped by bubble bag and put into a small inner carton, and then loaded into a master carton.
Payment and Delivery terms:
T/T: 100% payment before shipping; Western Union, Paypal, all available.
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
Large order: by air or sea, you could choose it.
If you have your own forwarder, please tell us the detailed information.
Our Company
Shenzhen Ailipu Technology Co.,Ltd start in 2005,already 16 years history, is a professional manufacturer of USB Camera. Ailipu has its own brand ELP, which already well know in video camera system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from Super Sharp 4K camera,13Megapixel camera,8Magapixel camera,and also 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus etc., which already widely used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from Super Sharp 4K camera,13Megapixel camera,8Magapixel camera,and also 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus etc., which already widely used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
Exhibition
Partner
Sample Room & Production Process
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
