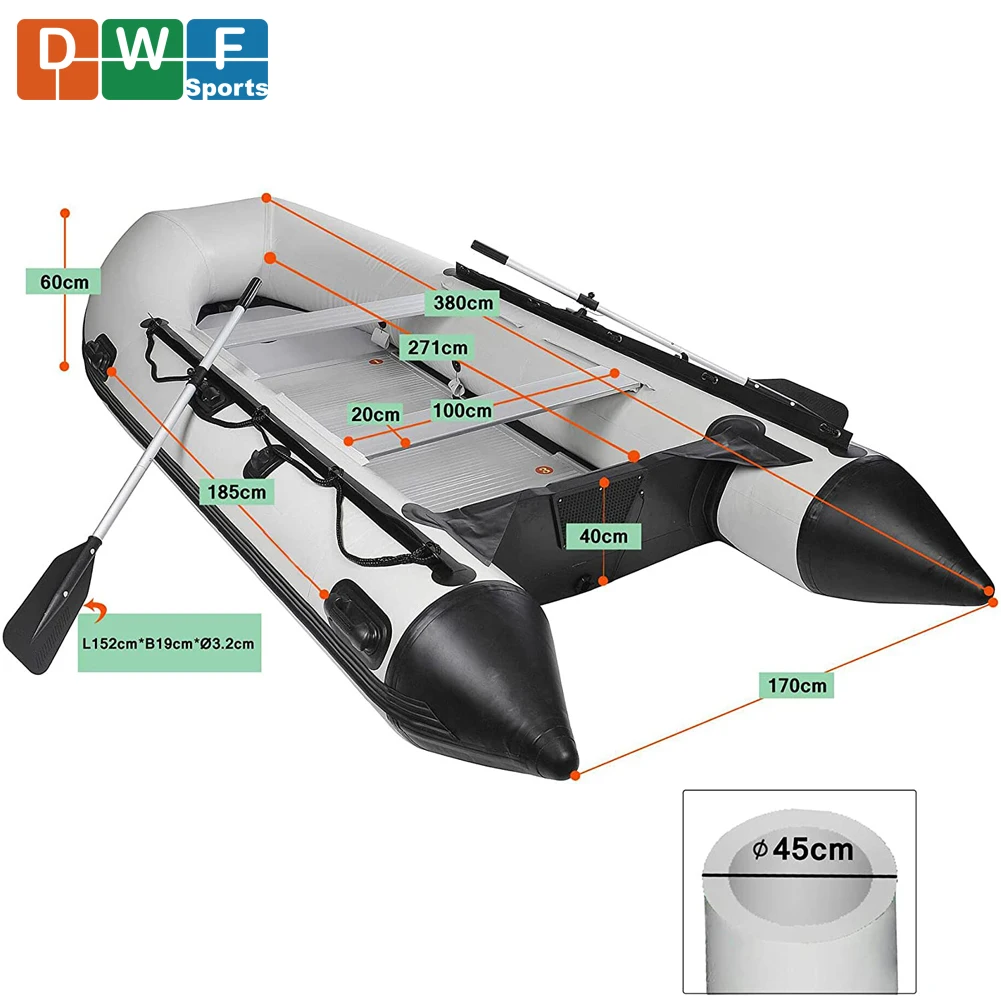

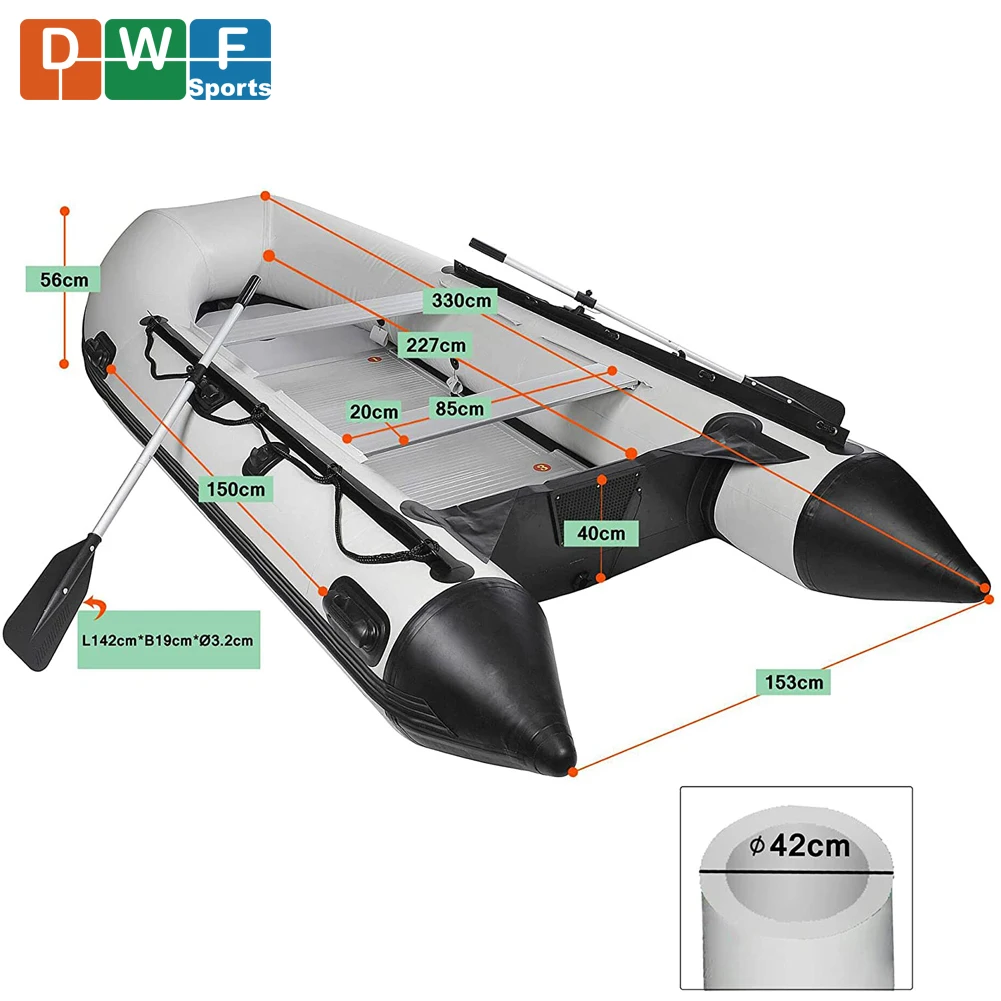

Model | IB230 | IB270 | IB300 | IB330 | IB360 | IB380 | ||||
Over Length(cm) | 230 | 270 | 300 | 330 | 360 | 380 | ||||
Over Width(cm) | 126 | 150 | 150 | 151 | 170 | 170 | ||||
Inside Width(cm) | 61 | 68 | 68 | 68 | 80 | 80 | ||||
Tube Dia(cm) | 36 | 40 | 40 | 40 | 45 | 45 | ||||
Air Chamber | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | ||||
Max Engine(HP) | 4 | 8 | 10 | 15 | 20 | 25 | ||||
Transom Height | 37±1 | 38±1 | 38±1 | 38±1 | 38±1 | 38±1 | ||||
Max Persons | 2 | 3 | 4 | 5 | 5+1 | 6 | ||||
Max Loading(KG) | 200 | 355 | 465 | 525 | 620 | 700 | ||||
N.W(KG) | 26 | 50 | 54 | 65 | 66 | 78 | ||||
G.W(KG) | 29 | 52 | 57 | 68 | 70 | 83 | ||||
Packing Size(cm) | 115x65x45 | 123x75x45 | ||||||||
Model | IB430 | IB470 | IB500 | IB550 | IB600 | IB650 | ||||
Over Length(cm) | 430 | 470 | 500 | 550 | 600 | 650 | ||||
Over Width(cm) | 190 | 190 | 220 | 220 | 230 | 230 | ||||
Inside Width(cm) | 90 | 90 | 110 | 110 | 110 | 110 | ||||
Tube Dia(cm) | 50 | 50 | 55 | 55 | 60 | 60 | ||||
Air Chamber | 4+1 | 4+1 | 5+1 | 5+1 | 7+1 | 7+1 | ||||
Max Engine(HP) | 30 | 40 | 70 | 80 | 90 | 90 | ||||
Transom Height | 40±1 | 40±1 | 51±1 | 51±1 | 51±1 | 51±1 | ||||
Max Persons | 8 | 10 | 12 | 13 | 14 | 16 | ||||
Max Loading(KG) | 900 | 1050 | 1350 | 1450 | 1700 | 1800 | ||||
N.W(KG) | 95 | 124 | 146 | 149 | 190 | 195 | ||||
G.W(KG) | 105 | 130 | 152 | 155 | 200 | 225 | ||||
Packing Size(cm) | Boat:140x75x45 Alu. Floor: 113x75x15 | Boat:160x80x60 Alu. Floor: 113x75x15 | ||||||||





Points | Tranditional | Newest | Remarks |
Raw Materials | PVC | Durable PVC | Lighter and degradable. |
Printing Methods | Silk screen printing & 2 colors | Digital printing & multi-color | Anti-UV. Printing complex color patterns. |
Inside Package | Plastic | Biodegradable Material | Environmental friendly. |
Outside Pacakge | Universal | Customizable | Customized color of the carton, etc. |
