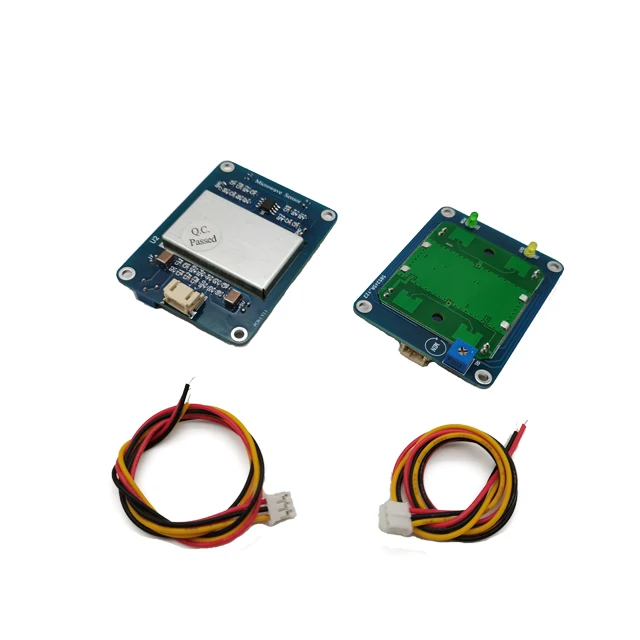

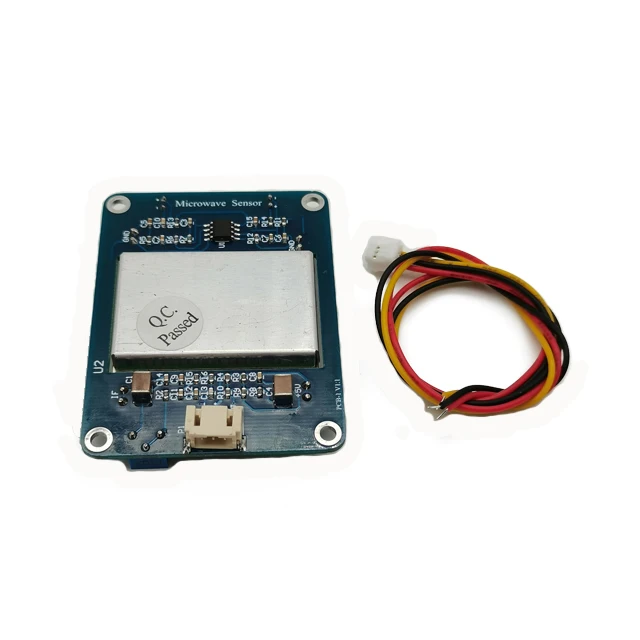

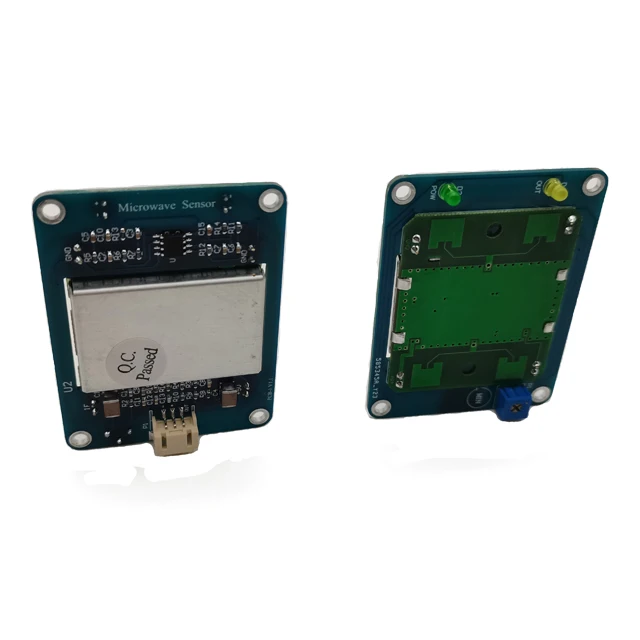

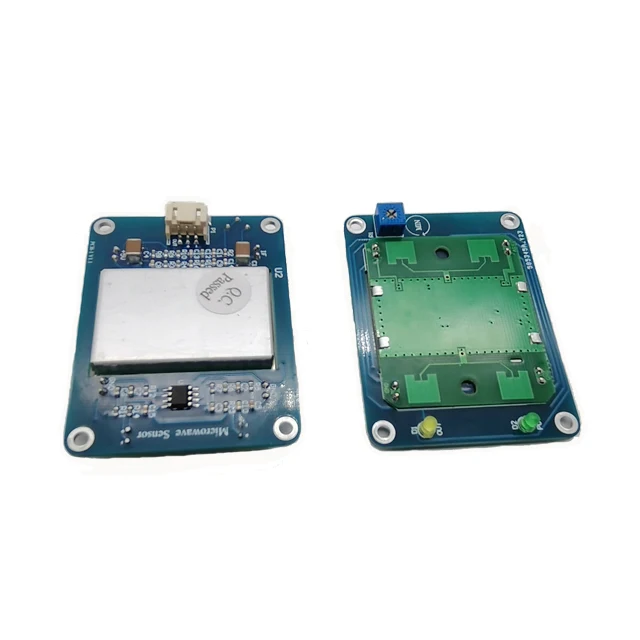

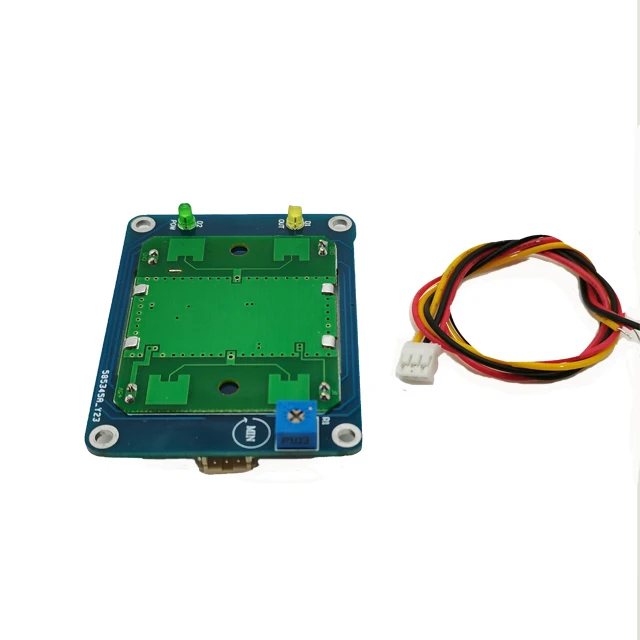

China Traffic And Civil Devices Microwave Motion Detector Microwave Transmitter Receiver
China Traffic And Civil Devices Microwave Motion Detector Microwave Transmitter Receiver
China Traffic And Civil Devices Microwave Motion Detector Microwave Transmitter Receiver
China Traffic And Civil Devices Microwave Motion Detector Microwave Transmitter Receiver
China Traffic And Civil Devices Microwave Motion Detector Microwave Transmitter Receiver
China Traffic And Civil Devices Microwave Motion Detector Microwave Transmitter Receiver
China Traffic And Civil Devices Microwave Motion Detector Microwave Transmitter Receiver

China Traffic And Civil Devices Microwave Motion Detector Microwave Transmitter Receiver

Share on (1600340529696):


Price:$6.20 - $7.20

Quantity:


Product Overview

Description



Company Profile






Hunan Tecnk Electronic Co.,Ltd. specialize in exporting all kinds of sensors and their related products, and providing professional complete solutions and technical support.
We focused on this area over 10 years, in addition to producing and selling our own sensor brand "csppm", we cooperate with several manufactures specializing in sensor production. Our products are used in a wide range of industries and applications, including electricity, smelting, mining, petroleum, chemical,automobile, environmental protection, military industries and other fields.
Tecnk' team is comprised of highly talented and experienced individuals who strive to provide our customers with excellent technical information and customized products. We not only offer high quality products, but also industrial sensing solution to help customer to solve practical problem, different from others, TM Automation regards customer care as top priority.
Core competencies such as pressure sensor, high accuracy and innovative technologies have made Tecnk a reliable sensor supplier in selection and technical resources for many large OEMs. We sincerely wish to cooperate with friends all over the world. Tecnk is always to be your reliable business partner and friend.


Products Description

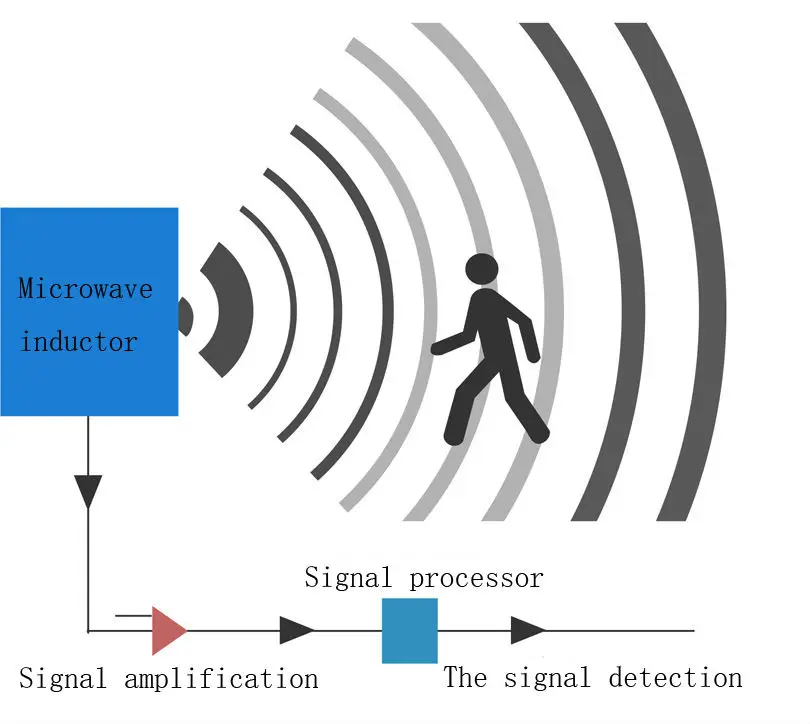

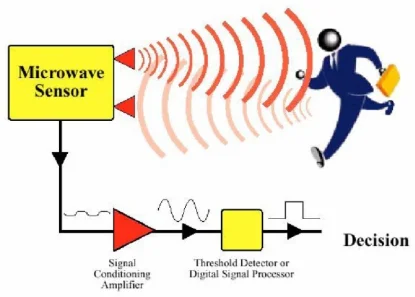

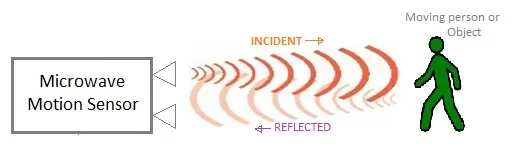

Microwave motion sensor is a microwave moving object detector designed by Doppler radar principle. Unlike ordinary infrared detectors, microwave sensors detect the motion of objects by detecting the reflected microwave, and the objects will not be limited to the human body, and there are many other things. The microwave sensor is not affected by the ambient temperature, the detection distance is long and the sensitivity is high.

Because of the universality of microwave sensor detection object, in practical life application, another sensor will be matched to do targeted detection. For example, microwave sensors + Infrared Pyroelectric Sensor can effectively determine whether someone is passing through, will not be disturbed by sunlight, clothing color, and will not react to other objects.


Features


l\tNon-contact detection;
l\tNot affected by temperature, humidity, noise, airflow, dust, light, etc., suitable for harsh environment;
l\tStrong anti-radio frequency interference ability;
l\tLow output power, no harm to human structure;
l\t(b) Long detection distances;
l\tSupport for the detection of non-life objects
l\tThe directionality of the microwave is good, and the speed is equal to the speed of light.


Product Paramenters


Working voltage
5 V ±0.25 V
Current (CW)
60 mA (Max),37 mA (Typical)
Type of interface
PH2.0mm horizontal patch socket 3 P SMT connector
Launch parameters
Detection distance
2-16 m continuously adjustable (small range 2 m, large range 16 m)
Frequency of launch
10.525 GHz
Frequency setting accuracy
3 MHz
Output power (small)
13 dBm EIRP
Harmonic emission
<-10 dBm
Average current (5% DC)
2 mA typ.
Pulse width (Min)
5uSec
Load cycle (Min)
1 %
Receiving parameters
Sensitivity(10 dB S/N ratio)
3Hz to 80Hz
bandwidth
-86 dBm
3Hz to 80Hz bandwidth clutter
10 uV
Antenna gain
8 dBi
3 vertical dB beam width
36 °C
Horizontal plane 3 dB Beam width
72 °C
Sensor Size
48.5x63mm
Weight
13.8g


Precautions


If there are UHF MOS devices inside the microwave motion sensor, if the test is tested with battery power supply, it can avoid the breakdown caused by the static pressure difference between the power supply and the test device, such as oscilloscope. Please choose battery power supply to ensure the best detection effect.


Application


Industrial, traffic and civil devices, such as vehicle speed measurement, automatic door, induction lamp, reversing radar, hunting and so on.










Certifications




FAQ


1. who are we?
We are based in Hunan, China, start from 2019,sell to Domestic Market(80.00%),Southern Europe(5.00%),Africa(3.00%),North America(2.60%),South America(2.40%),Northern Europe(2.00%),Southeast Asia(2.00%),Western Europe(2.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pressure sensor,Temperature sensor,Differential pressure transducer,Oil sensor/Oil analysis,Load cell

4. why should you buy from us not from other suppliers?
Factory Experience: Specialized in pressure sensor industry since 2007
Extremely wide variety of products (incl. custom-designed products)
Comprehensive technological competence: Central south university sensing technology research.
OEM & ODM Service

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
