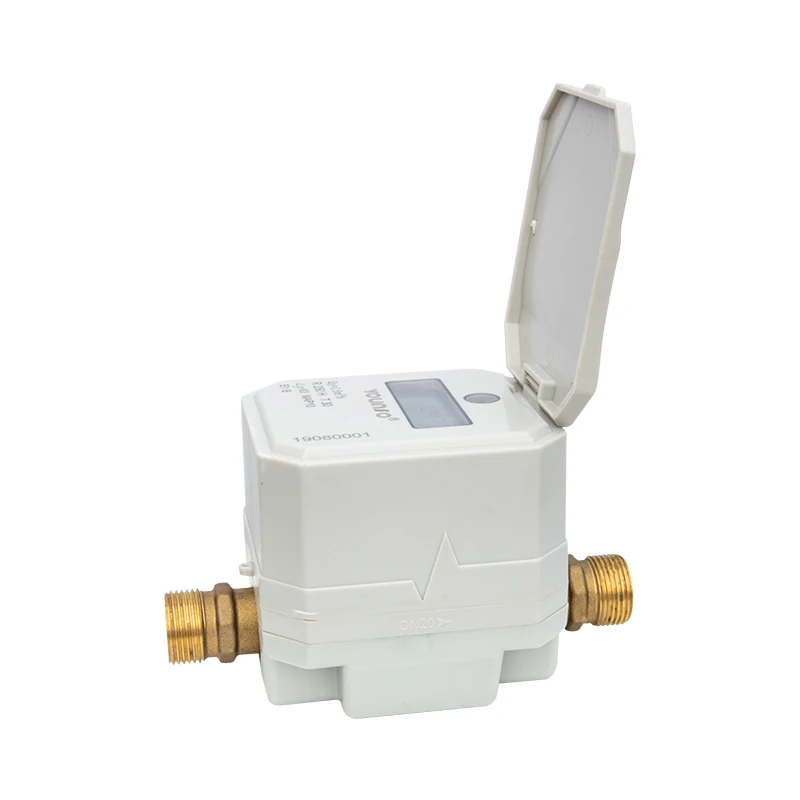

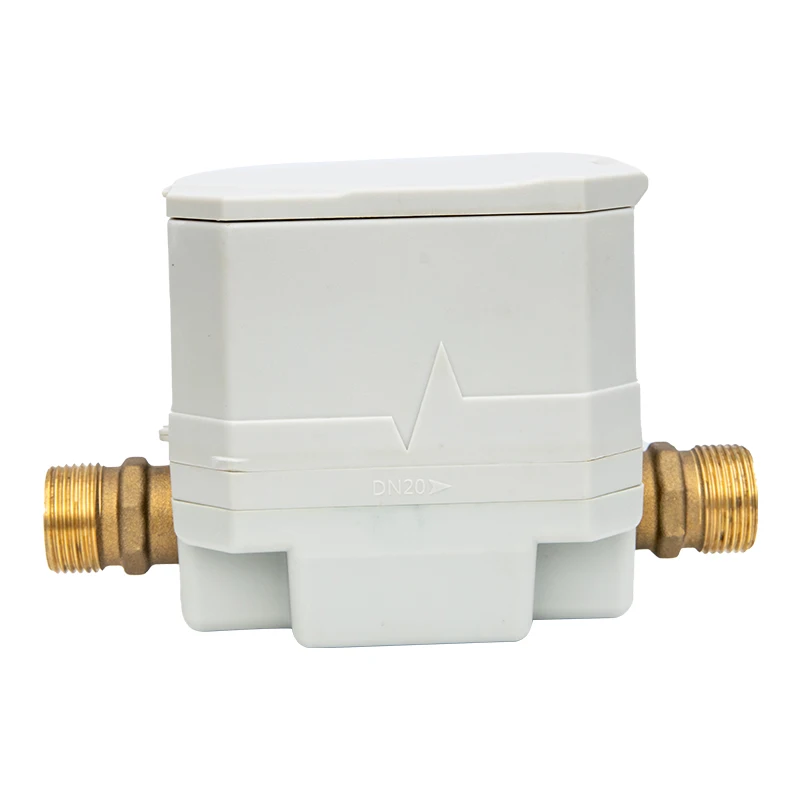

Intelligent Water Gauge medidor de agua Smart Ultrasonic Water Flow Meter With Pulse Output
- Category: >>>
- Supplier: Wenling Younio Water Meter Co. Ltd.
Share on (1600340538142):
Product Overview
Description
Water Meter with Pulse Output
Adopt high quality piezoelectric ceramics to collect signals, accurate measurement, low initial flow,high sensitivity.

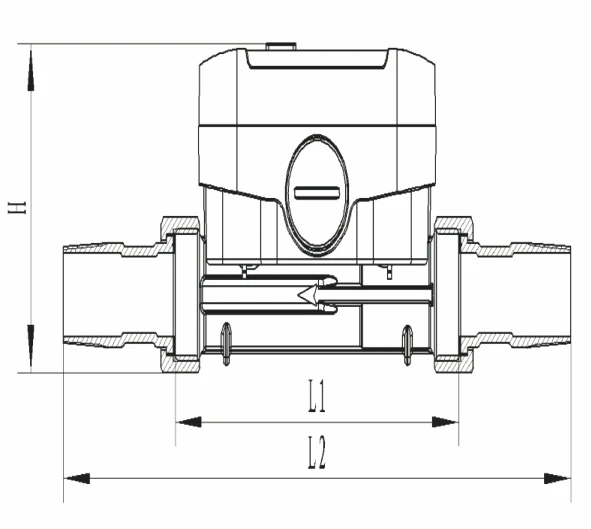

1. Dimension
Size (mm) | Length (mm) L | Length (mm) L2 | B | Heigh (mm) H | Connecting Screw | Thread |
15 | 130 | 220 | 70 | 75 | R1/2 | G3/4 |
20 | 130 | 230 | 70 | 85 | R3/4 | G1 |
25 | 150 | 266 | 70 | 85 | R1 | G11/4 |
40 | 200 | 324 | 70 | 110 | R1 1/2 | G2 |
2. Features
Ultrasonic technology, High accuracy, Accurate rate: R800
Without mechanical movement parts,no wear,long working life;
Data Storage：Recent 24 months data
Starting flow：12L/H
Meter body: strong corrosion resistance and high intensity stainless steel
Without mechanical movement parts,no wear,long working life;
Data Storage：Recent 24 months data
Starting flow：12L/H
Meter body: strong corrosion resistance and high intensity stainless steel
3. Working condition
Water Temperature 0.1℃~ 50 ℃
Water Pressure ≤ 1.0 MPa （PN: 1.6 MPa / 16bar)
Water Pressure ≤ 1.0 MPa （PN: 1.6 MPa / 16bar)
4. Accuracy
In high zone (Q2≤ Q≤Q4）,maximum permissible error is ±2%
In the low zone (Q1≤Q＜Q2），maximum permissible error is ±5%
In the low zone (Q1≤Q＜Q2），maximum permissible error is ±5%
5. Main technical data
(Q3)m3/h | (Q2) m3/h | (Q1) m3/h | |
2.5 | Q3/Q1=160、200、400 Q2/Q1=1.6 | ||
4 | |||
6.3 | |||
16 | |||
