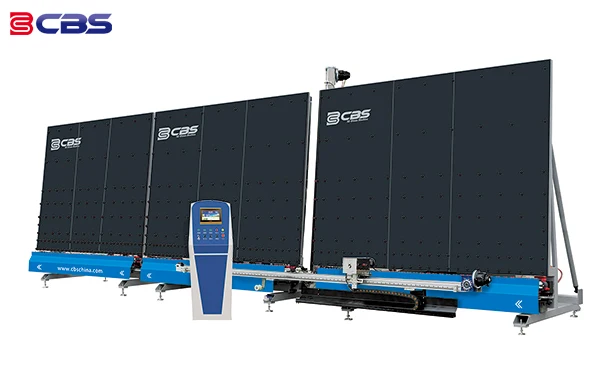

Sell well new type double group silicone sealant automatic insulating glass sealing robot machine
- Category: >>>
- Supplier: Jinan Cbs Industry Company Limited
Share on (1600340572979):
Product Overview
Description
Product Description
Max. glass size | 2500 x 3500mm |
Min. glass size | 180 x 300mm |
Glass thickness | 12~60mm |
Coating depth | 3~18mm |
Spacer width | 6~24mm |
Coating speed | 5~40m/min |
Transmission speed | 5~50m/min |
Hydraulic pressure | <100 kgf/cm3 |
Air pressure | 0.6~0.8 MPa |
Power | 3-Phase, 4 wires, 380V 50Hz, 13.00 kW |
Overall dimensions | 11010 x 3500 x 3400mm |
Features and functions:
1. Sealbot-2500D Insulated Glass Double Group Silicone Sealant Automatic Sealing Robot have compact frame design in order to minimize the size of equipment, saving installation space. It’s mainly for advanced insulating glass unit producing.
2. Automatic sealant discharging function to avoid the pipe blockage.
3. Special design for checking the depth of spacer in order to control the spreading volume automatically
4. Coating with glass edge neatly, no dislocation. After coating, the glass edge without seam, enrich the corner, quadrilateral smooth surface, no need to repair the glass corner.
5. V-block type synchronous belt, features smooth glass transmission and accurate positioning, reduce the phenomenon of belt sticking by sealant.
6. Equipped with two sets of independent sealant supply system, exchanging between two sets of sealant is very simple and fast.
7. Touch HMI, simplify thinking design, automatic intelligent control.
8. Adopt Japan YASKAWA servo control system, high standard pneumatic components to ensure high efficiency and stable quality.
1. Sealbot-2500D Insulated Glass Double Group Silicone Sealant Automatic Sealing Robot have compact frame design in order to minimize the size of equipment, saving installation space. It’s mainly for advanced insulating glass unit producing.
2. Automatic sealant discharging function to avoid the pipe blockage.
3. Special design for checking the depth of spacer in order to control the spreading volume automatically
4. Coating with glass edge neatly, no dislocation. After coating, the glass edge without seam, enrich the corner, quadrilateral smooth surface, no need to repair the glass corner.
5. V-block type synchronous belt, features smooth glass transmission and accurate positioning, reduce the phenomenon of belt sticking by sealant.
6. Equipped with two sets of independent sealant supply system, exchanging between two sets of sealant is very simple and fast.
7. Touch HMI, simplify thinking design, automatic intelligent control.
8. Adopt Japan YASKAWA servo control system, high standard pneumatic components to ensure high efficiency and stable quality.
