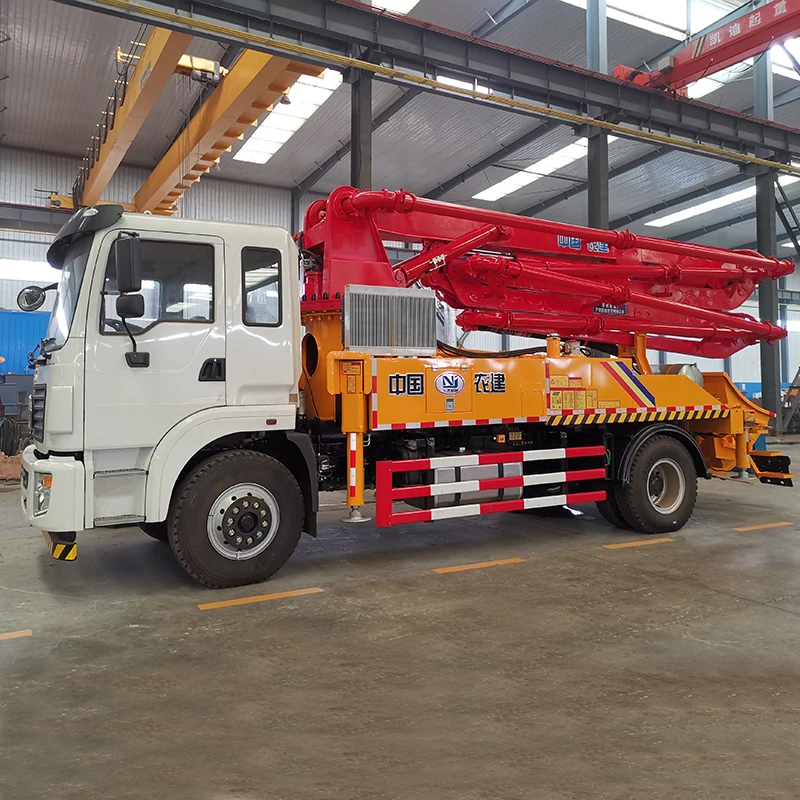

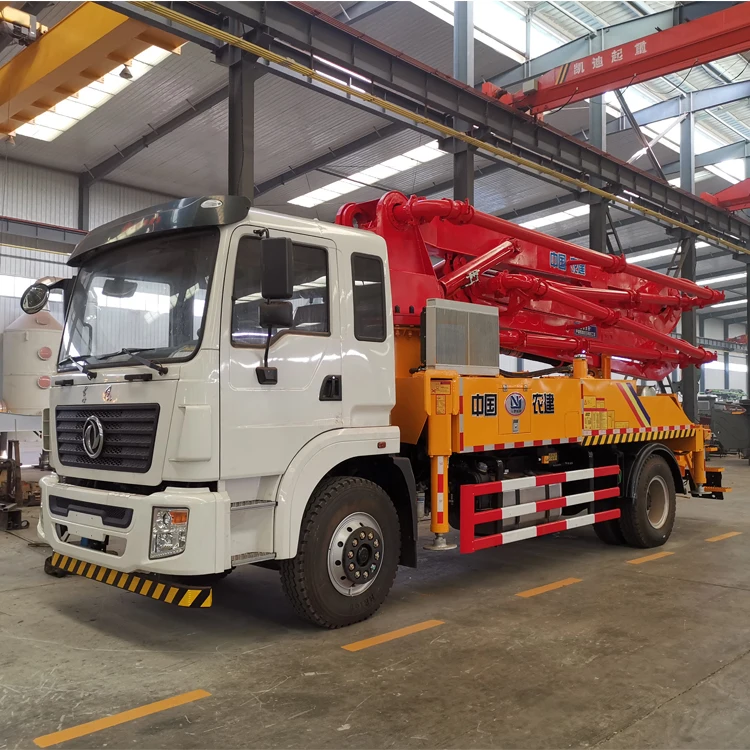

Cheap Price Dongfeng Chassis Model With Brand Small Concrete Pump Trunk Price With Pipe 25m
- Category: >>>
- Supplier: Changyuan County Nongjian Machinery Equipment Co. Ltd.
Share on (1600340609752):
Product Overview
Description
Our Advantages
Concrete pumping equipment
Advanced design, convenient operation, good reliability of the whole machine, high operating efficiency, low fuel consumption, low noise, deeply loved by customers.
1. More than ten years of industry experience, strong corporate strength
The agricultural construction company has 60 million fixed assets and has been focusing on the research and development, production and sales of concrete pump trucks for many years;
Have a technical team mastering the core technology of concrete pump trucks, and have a number of related technical patents;
Have a technical team mastering the core technology of concrete pump trucks, and have a number of related technical patents;
2. Factory direct sales, independent research and development, lifetime after-sales
The company has its own large-scale production plant, the factory direct supply does not increase the cost, the intermediate link is omitted, and the price is better;
Intimate service before, during and after sale, one-year warranty and lifetime after-sale service;
Intimate service before, during and after sale, one-year warranty and lifetime after-sale service;
3. Powerful pumping, no material picking, and a wide range of applications
The agricultural construction pump truck has strong pumping capacity, which can achieve 120 cubic meters per hour, with high performance and durability;
Adapt to the conditions of materials in different regions, and easily transport all kinds of self-mixing materials;
Adapt to the conditions of materials in different regions, and easily transport all kinds of self-mixing materials;

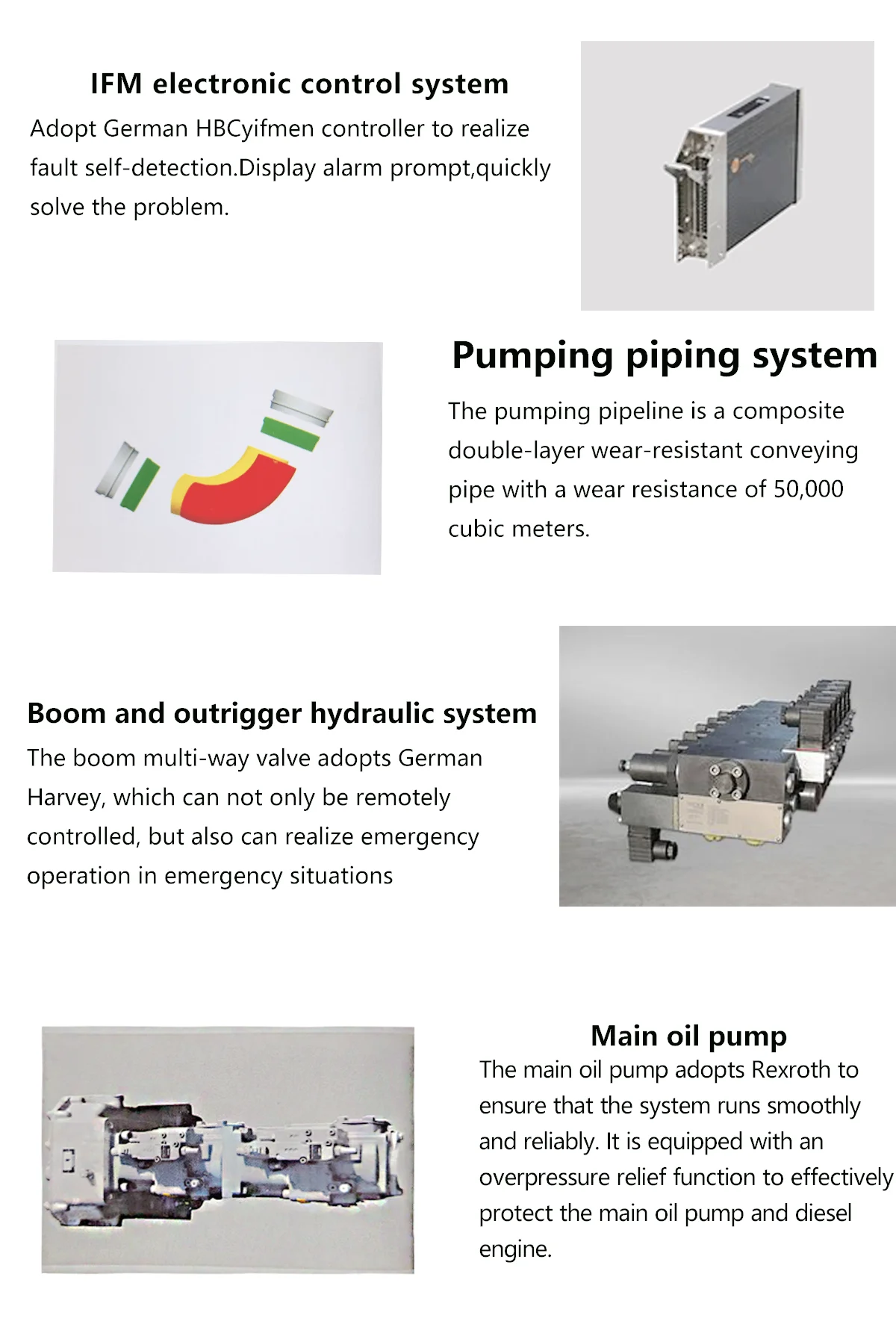

4. Brand core accessories, strict quality inspection
The core accessories are selected from famous brands Rexroth, Hawe, Sibao, Hawe, Eaton, etc.;
Professional production technology and quality inspection personnel implement strict inspection and testing standards to ensure product quality;
Professional production technology and quality inspection personnel implement strict inspection and testing standards to ensure product quality;
Products Description
Description | Unit | Parameter value |
Outline dimension | mm | 10955*2500*3800 |
Overall weight | kg | 26500 |
Model | ZZ5307N4647C | |
Manufacturer | Sinotruck Group Jinan truck | |
Max. Speed | km/h | 90 |
Max. Grade-ability | % | 40 |
Wheel base | mm | 4600+1350 |
Tire | 11.00R22.5 | |
Model | WD615.96 | |
Max. Power | kw | 279 |
Max. Torque | N*m/(r/min) | 1590/1100-1600 |
Displacement | L | 9.276 |
Emission standard | Eruo III | |
Theoretical output | m³/h | 23 |
Concrete pumping pressure | Mpa | 8 |
Theoretical pumping times | Time/min | 24-27 |
Delivery cylinder diameter * stroke | mm | φ230×2000 |
Max. diameter of pumping concrete | mm | 40 |
Filling height | mm | 1580 |
Concrete slump range | cm | 8-23 |
Reach height | m | 39.1 |
Reach depth | m | 26.8 |
Slewing radius | m | 35.1 |
Slewing angle | ° | ±270 |
Construction Site
House construction
Shopping mall construction
Bridge construction
High-speed rail construction
Company Profile
Company profile
Changyuan City Agricultural Construction Machinery Equipment Co., Ltd. is located in the Automobile Industrial Park of Changyuan City, Henan Province. It is a concrete pump truck manufacturer integrating R&D, production, sales and service of concrete pump trucks.
The company has fixed assets of 60 million yuan, covers an area of 240 acres, and has a construction area of 40,000 square meters. It has standardized workshops, 3 small and medium-sized concrete pump truck production lines, with a total investment of 200 million yuan, and an annual output of 500 small and medium-sized concrete pump trucks.
Changyuan Agricultural Construction specializes in the production of small and medium-sized concrete pump trucks with a complete range of products. The main products are 30-meter, 33-meter, 38-meter, 42-meter mixer pump trucks, and 30-meter, 33-meter, 38-meter, 42-meter, 47-meter, 50-meter, 58-meter, and 63-meter pump trucks. The medium and small concrete pump truck produced by the company has the characteristics of convenient operation, good reliability of the whole machine, high working efficiency, low fuel consumption and low noise.
The small and medium-sized pump truck developed and produced by the company has obtained a number of patented technologies. In 2017, our company's single-axle 37-meter concrete pump truck won the "BICES China International Engineering Machinery Innovation Product Award". In 2019, the company was rated as "Science and Technology SMEs in Henan Province" by the Henan Provincial Department of Science and Technology; in 2019, it was recognized as "Henan Province Enterprise Technology Center"; in 2020, the company successfully passed the ISO9001 quality management system, ISO14001 environmental management system, and OHSAS 18001 Occupational health and safety management system certification. A dazzling laurel crown won widespread praise from the society, and at the same time it is also a sign of the rapid development of Changyuan Agricultural Construction.
In recent years, the company insists on scientific research and reputation-based, actively introduces advanced technology at home and abroad, adopts new technology and scientific and strict testing methods to make the performance of the concrete pump truck and concrete mixing integrated pump truck more reliable, which is widely accepted by the construction industry. Favor of colleagues. The products are sold well in various provinces, cities and regions and have gone abroad, exported to the Philippines, Singapore, Indonesia, Kyrgyzstan and other countries, and have won unanimous praise from customers.
The company has fixed assets of 60 million yuan, covers an area of 240 acres, and has a construction area of 40,000 square meters. It has standardized workshops, 3 small and medium-sized concrete pump truck production lines, with a total investment of 200 million yuan, and an annual output of 500 small and medium-sized concrete pump trucks.
Changyuan Agricultural Construction specializes in the production of small and medium-sized concrete pump trucks with a complete range of products. The main products are 30-meter, 33-meter, 38-meter, 42-meter mixer pump trucks, and 30-meter, 33-meter, 38-meter, 42-meter, 47-meter, 50-meter, 58-meter, and 63-meter pump trucks. The medium and small concrete pump truck produced by the company has the characteristics of convenient operation, good reliability of the whole machine, high working efficiency, low fuel consumption and low noise.
The small and medium-sized pump truck developed and produced by the company has obtained a number of patented technologies. In 2017, our company's single-axle 37-meter concrete pump truck won the "BICES China International Engineering Machinery Innovation Product Award". In 2019, the company was rated as "Science and Technology SMEs in Henan Province" by the Henan Provincial Department of Science and Technology; in 2019, it was recognized as "Henan Province Enterprise Technology Center"; in 2020, the company successfully passed the ISO9001 quality management system, ISO14001 environmental management system, and OHSAS 18001 Occupational health and safety management system certification. A dazzling laurel crown won widespread praise from the society, and at the same time it is also a sign of the rapid development of Changyuan Agricultural Construction.
In recent years, the company insists on scientific research and reputation-based, actively introduces advanced technology at home and abroad, adopts new technology and scientific and strict testing methods to make the performance of the concrete pump truck and concrete mixing integrated pump truck more reliable, which is widely accepted by the construction industry. Favor of colleagues. The products are sold well in various provinces, cities and regions and have gone abroad, exported to the Philippines, Singapore, Indonesia, Kyrgyzstan and other countries, and have won unanimous praise from customers.
Health and safety management system certification
Environmental management system certification
Quality management system certification
Henan Science and Technology Enterprise
Provincial Enterprise Technology Center
Innovative development type advanced enterprise

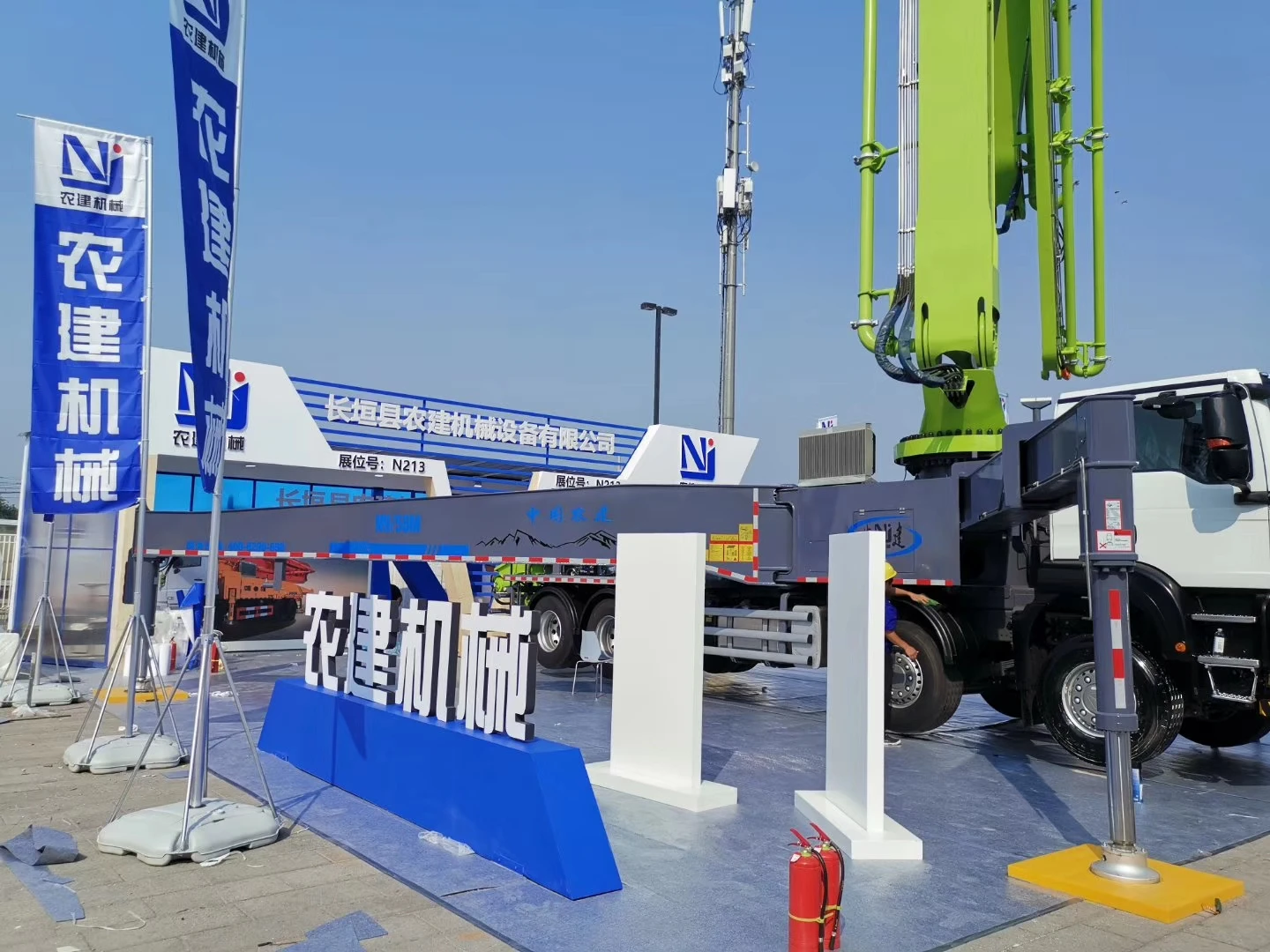

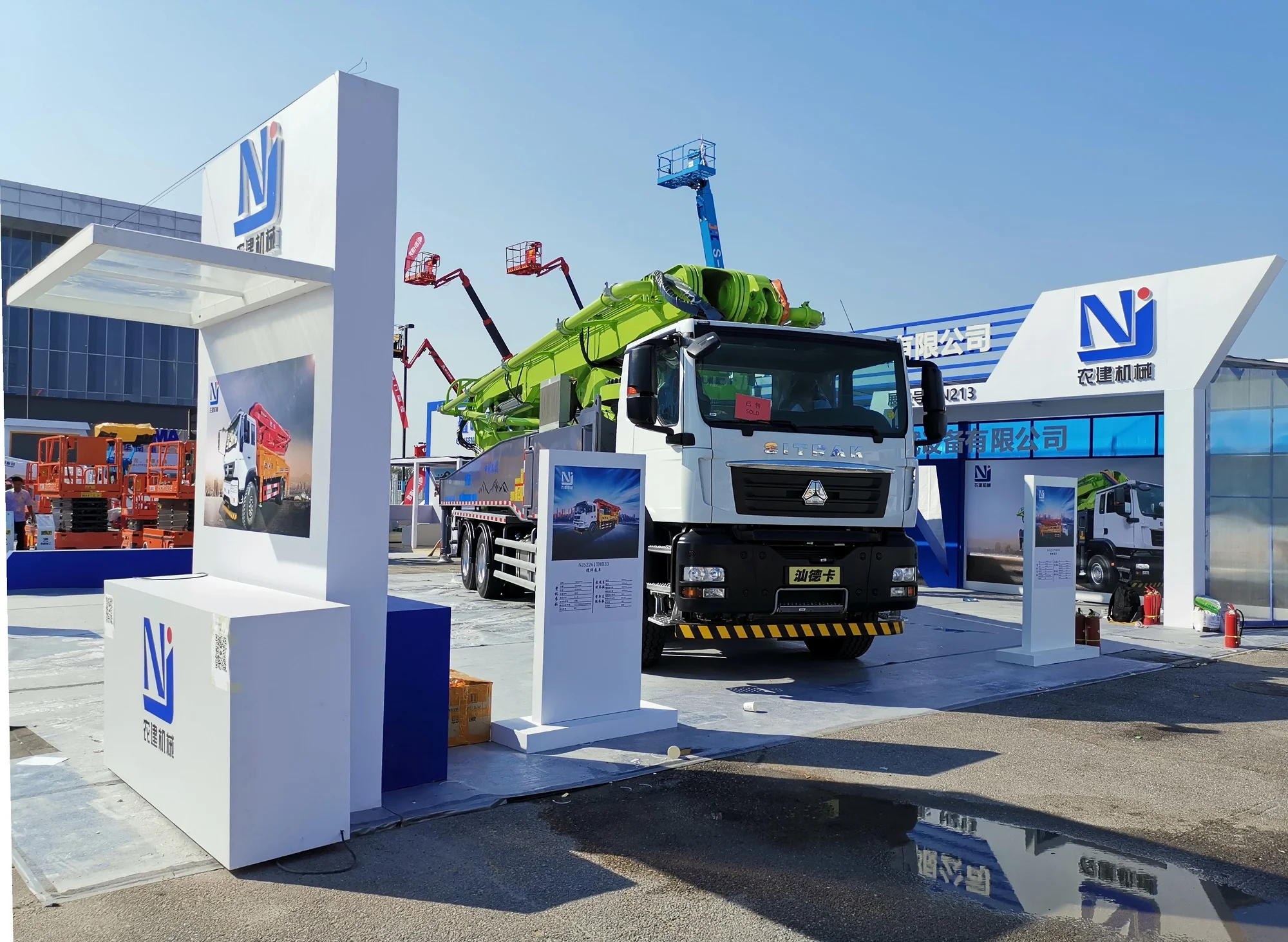

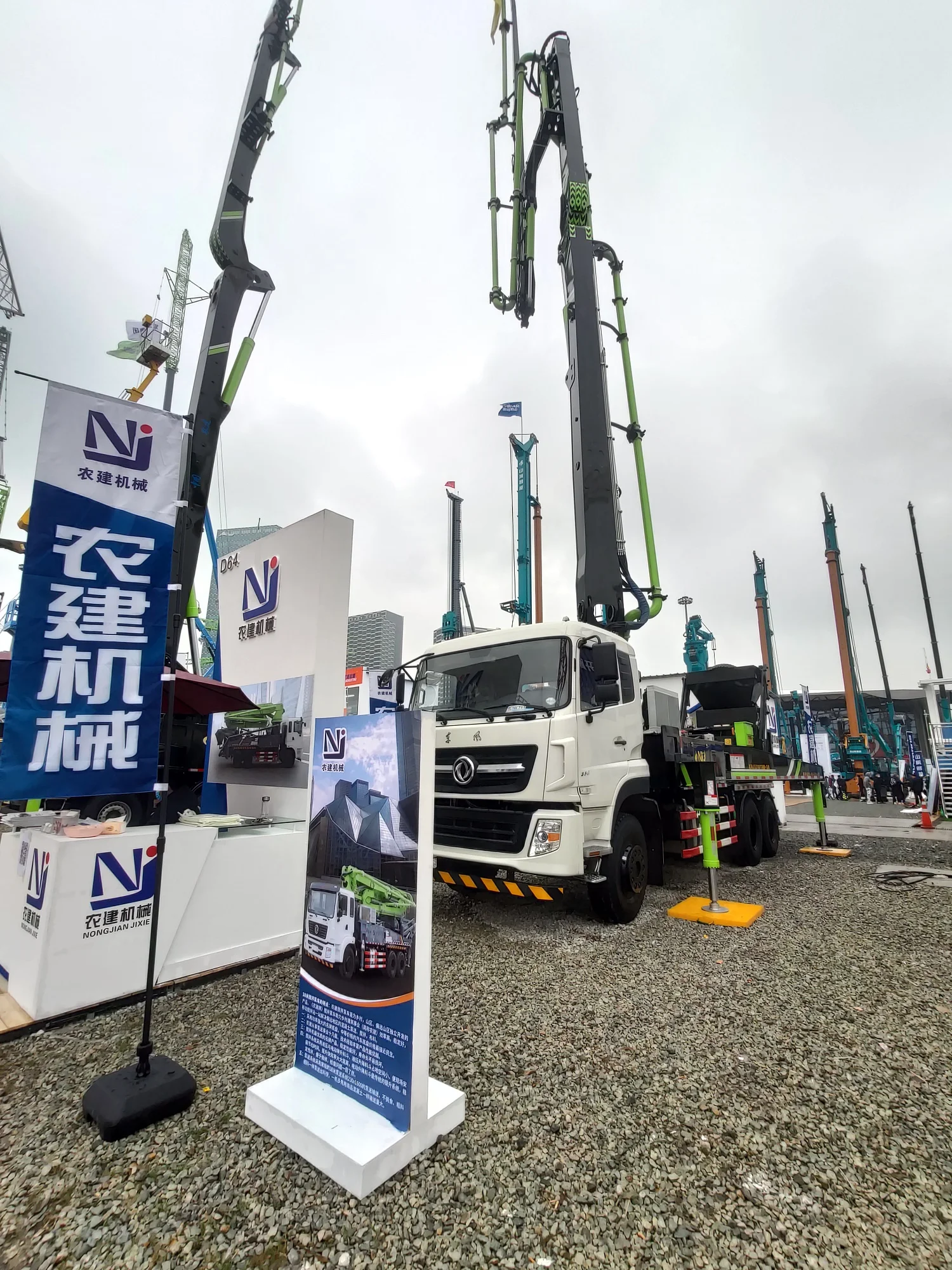

Exhibition
Bauma Shanghai
Beijing Construction Machinery Exhibition
FAQ
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the
cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the
cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
