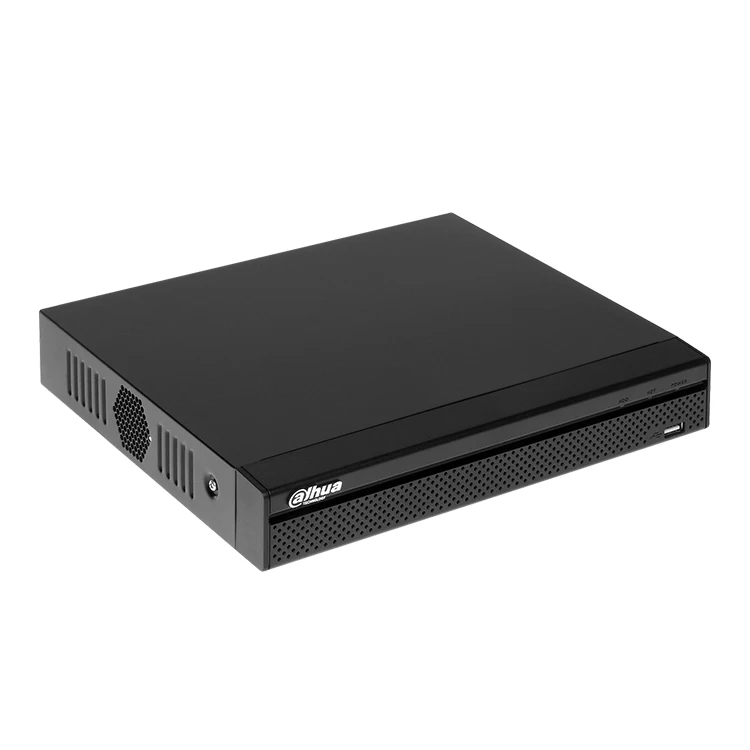

DAHU 4K 8MP HD H.265 1U 8 Channel NVR 8 Ports POE Plug and Play Smart Network Video Recorder
- Category: >>>
- Supplier: Shenzhen Hailan Shike Electronics Co. Ltd.
Share on (1600340659557):
Product Overview
Description
VR
OEM All Hikvsion, Dahua and Uniview products ! If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount. Thanks!
Main Functions
Specifications
System | ||
Main Processor | Dual-core embedded processor | |
Operating System | Embedded LINUX | |
Audio and Video | ||
IP Camera Input | 8 Channel | |
Two-way Talk | 1 Channel Input, 1 Channel Output, RCA | |
Display | ||
Interface | 1 HD MI, 1 VGA | |
HD MI: 3840×2160, 1920×1080, 1280×1024,1280×720 | ||
VGA: 1920×1080, 1280×1024, 1280×720 | ||
Decoding Capacity | 1ch@8MP 30fps, 4ch@1080P 30fps | |
Multi-screen Display | 1/4/8/9 | |
OSD | Camera title, Time, Camera lock, Motion detection,Recording | |
Recording | ||
Compression | Smart H.265+/H.265/Smart H.264+/H.264 | |
Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. | |
Record Rate | 80Mbps | |
Bit Rate | 16Kbps ~ 20Mbps Per Channel | |
Record Mode | Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS) | |
Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec,Post-record: 10~300 sec | |
Video Detection and Alarm | ||
Trigger Events | Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips | |
Video Detection | Motion Detection, MD Zones: 396 (22 × 18),and Tampering | |
Alarm input | N/A | |
Relay Output | N/A | |
Playback and Backup | ||
Sync Playback | 1/4 | |
Search Mode | Time /Date, MD and Exact Search(accurate to second) | |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera,Full Screen, Shuffle, Backup Selection, Digital Zoom | |
Backup Mode | USB Device/Network | |
Third-party Support | ||
Third-party Support | On vif, RTSP | |
Network | ||
Interface | 1 RJ-45 port (10/100/1000Mbps) | |
PoE | 8 ports (IEEE802.3at/af) | |
Network Function | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP,DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P | |
Optical Fiber Interface | N/A | |
Max. User Access | 128 users | |
Smart Phone | iPhone, iPad, Android | |
Interoperability | ON VIF 2.4, SDK, CGI | |
Storage | ||
Internal HDD | 1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment maximum HDD capacity varies with environment | |
HDD Mode | Single | |
eSATA | N/A | |
Auxiliary Interface | ||
USB | 2 ports (1 Rear USB2.0, 1 Front USB2.0) | |
RS232 | N/A | |
RS485 | N/A | |
Electrical | ||
Power Supply | Single, DC48V/2A | |
NVR: <5.8W (without HDD) | ||
PoE: Max 25.5w for single port, 80w in total | ||
Environmental | ||
Operating Conditions | -10°C to +55°C (+14°F to +131°F), 86–106kpa | |
Storage Conditions | 0°C to +40°C (+32°F to +104°F), 30–85% RH | |
Construction | ||
Dimensions(W×D×H) | Compact 1U, 260 mm × 224.9 mm × 47.6 mm(10.2" × 8.9" × 1.9") | |
Net Weight | 0.8 kg (1.76 lb) (without HDD) | |
Gross Weight | 1.6 kg (3.53 lb) (without HDD) | |
Certifications | ||
CE | EN55032, EN55024, EN50130-4, EN60950-1 | |
FCC | Part 15 Subpart B, ANSI C63.4-2014 | |
UL | UL60950-1 | |
Hot Products
Company Profile
Shenzhen HaiLan ShiKe Electronics Co.,Ltd, established in 2015, is a young, creative and energetic company . We have two own brands Hitosino and Valucam,with a strong focus on service, as well as a commitment to providing innovative, high quality and
competitively priced products .Product including Oem Hk / Da hua /Uniview CCTV Cameras, IP Video Solutions, and Digital Recording Surveillance Systems ,SSD hard disk and so on. We are pleasure that can provide high quality product for you,Looking forward to work with you.
competitively priced products .Product including Oem Hk / Da hua /Uniview CCTV Cameras, IP Video Solutions, and Digital Recording Surveillance Systems ,SSD hard disk and so on. We are pleasure that can provide high quality product for you,Looking forward to work with you.
Certifications
Product Showcase
FAQ
1.How can we confirm the products are genuine HV and DH English version?
HV and DH softwares can be downloaded from their official website, and only original products are fully compatible with the softwares.
2.Can you provide OEM service? Is there MOQ?
OEM is preferred, and in most cases, no MOQ is required.3、What payment method can your company provide ?
We accept Alibaba Trade Assurance Orders payment, via TT (Bank transfer), Western Union,Paypal and so on.
4.How is your after-sales service?
Most of our sales engineers and technicians have won HV HCSA certificate. And thanks to manufacturers' support, all issues can be solved timely and properly.5. Can I install the IP camera by myself?
Of course,the camera is flexible installated.And there is a user manual within box,you can contact us in need.
6.Do you provide drop shipping service?
We will provide as many shipping options as possible, including DHL, UPS, TNT, FedEx and EMS, Airfreight and by Sea, and we also have third-party warehouse in US and AU, timely shipment can be arranged.
Any more information, please contact us via monitech.en.alibaba.com we will provide more product information to you, Hope we will server to you. Thanks your support.
