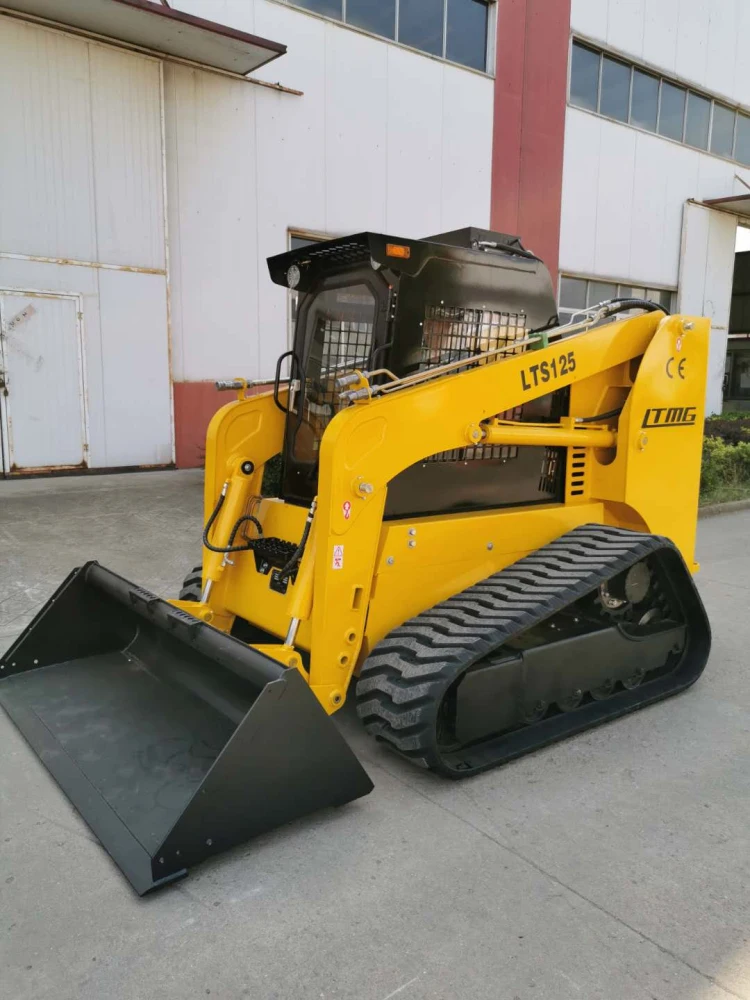

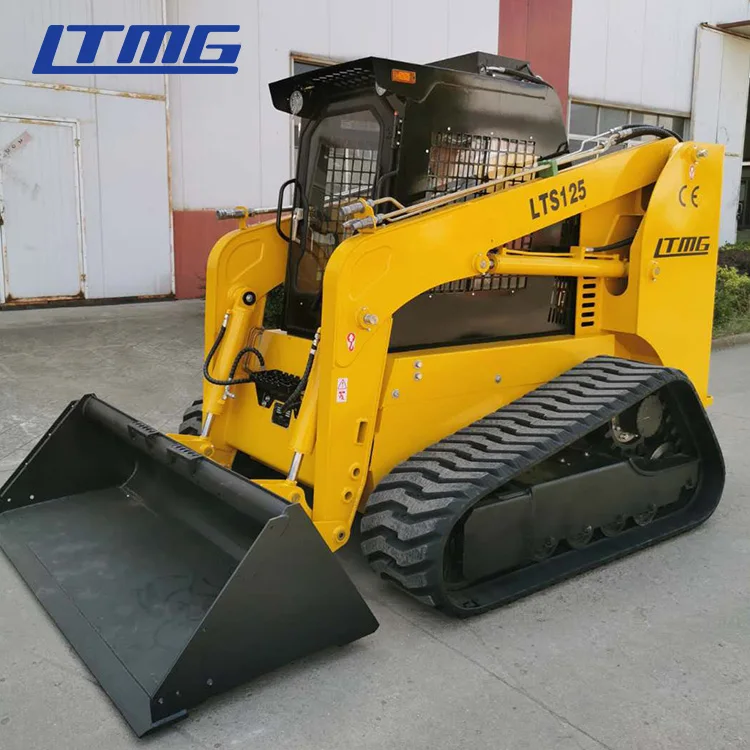

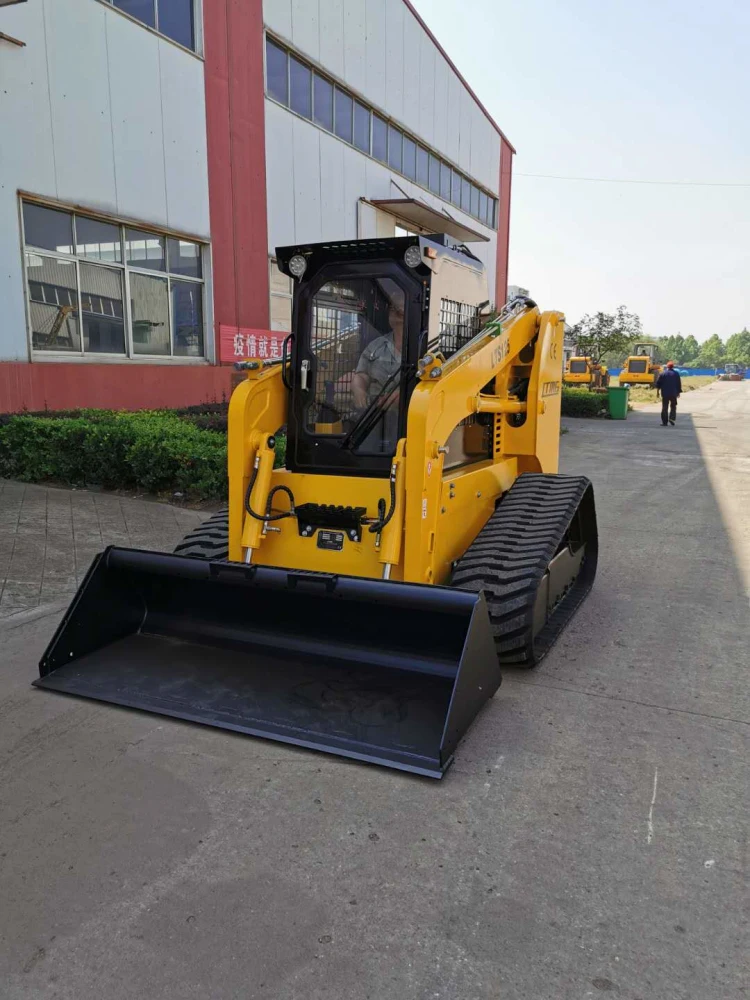

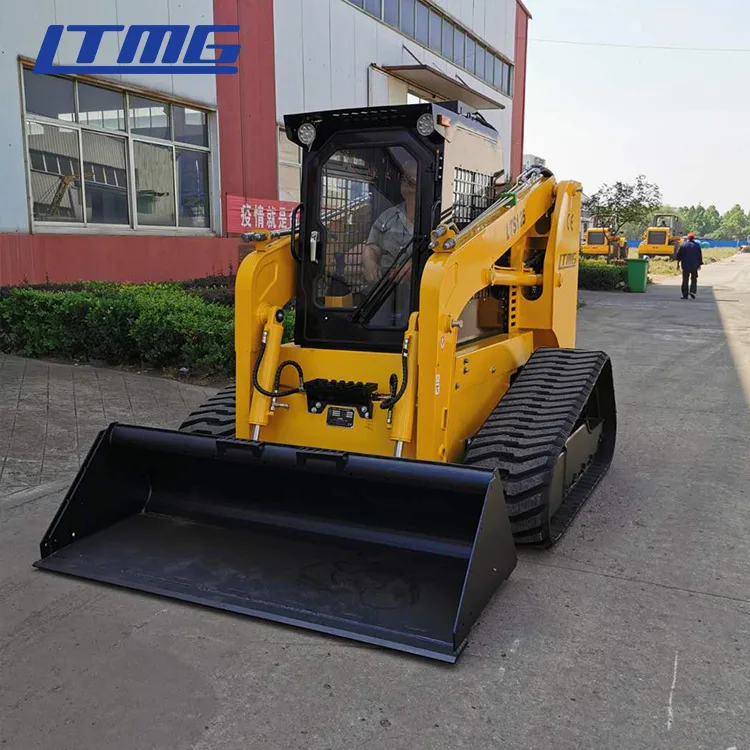

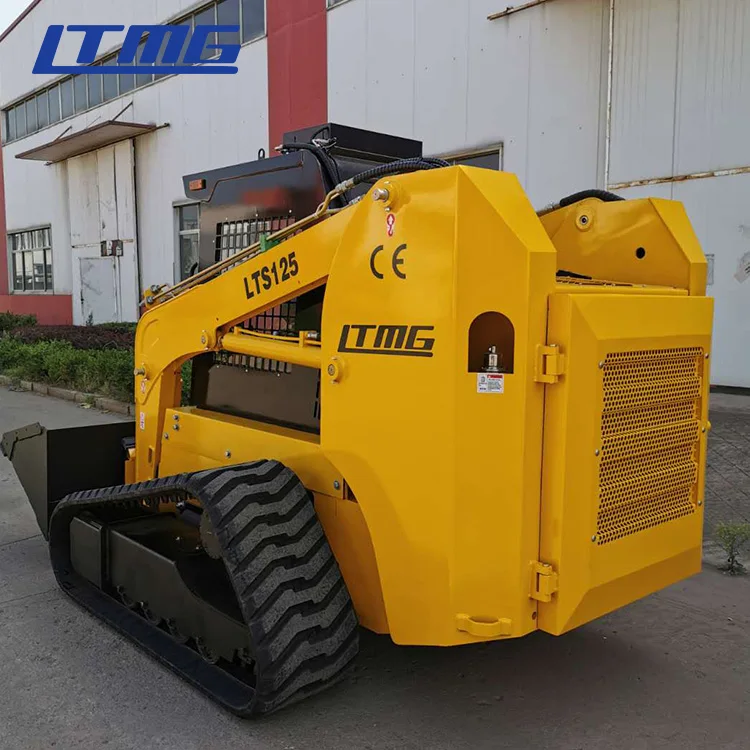

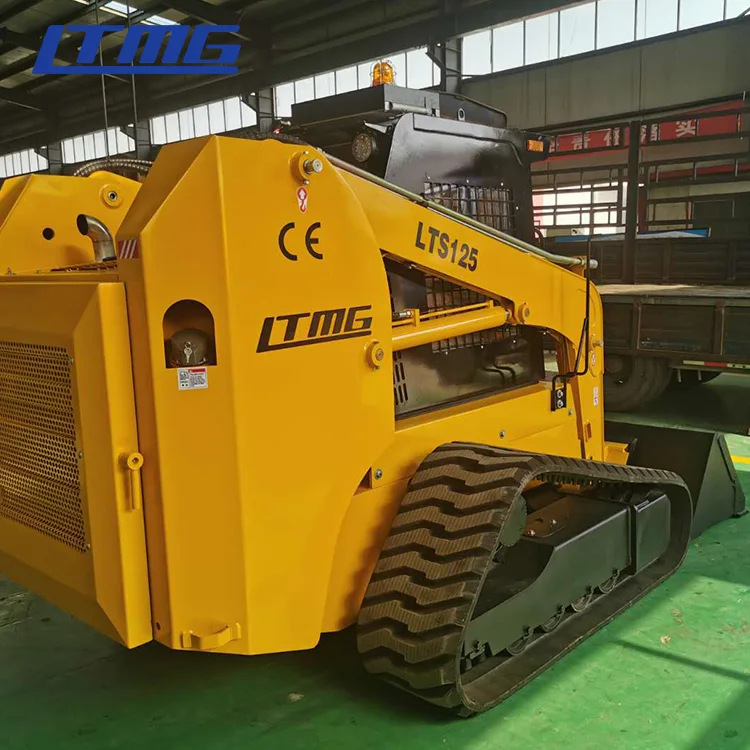

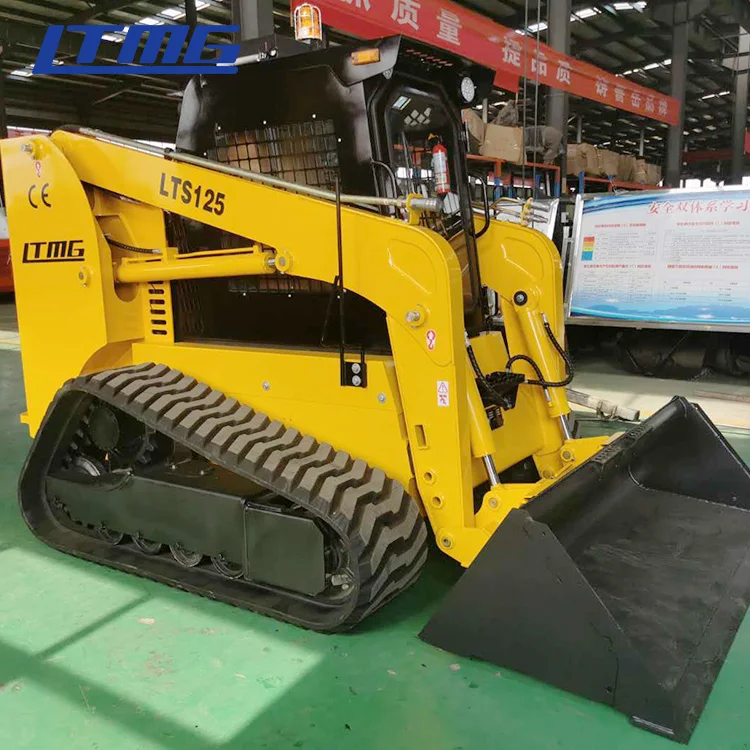

LTMG skid loader 500kg 700kgs 850kg 950kg 1050kg 1500kgs track skid steer loader for sale
- Category: >>>
- Supplier: Xiamen LTMG Machinery Co. Ltd.Xiamen Ltd.
Share on (1600340660805):
Product Overview
Description
1. Weichai Deutz engine
2. Hydraulic Control Type: main pump is ITALY BONDIOLI brand, Motor is ITALY SAI, Multiway valve and Pilot handle use ITALY HYDQD.
3. Dual Accelerator Control Model: manual operated + foot operated, easy to operate .
4. Open-type cabin: with shock absorption chair, safety guard bar, removable rear window.
5. Hydraulic quick-change coupler is the same as BOB-CAT, and is suitable to our skid steer loader attachments as well as foreign attachments
6. Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing
7. The capacity of oil tank for high power steer loader is up to 90L, which can realize long time working, meanwhile, reducing the oil temperature.
8. Compact structure, maneuverable movement suitable for narrow space operation.
9. Double accelerograph control
2. Hydraulic Control Type: main pump is ITALY BONDIOLI brand, Motor is ITALY SAI, Multiway valve and Pilot handle use ITALY HYDQD.
3. Dual Accelerator Control Model: manual operated + foot operated, easy to operate .
4. Open-type cabin: with shock absorption chair, safety guard bar, removable rear window.
5. Hydraulic quick-change coupler is the same as BOB-CAT, and is suitable to our skid steer loader attachments as well as foreign attachments
6. Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing
7. The capacity of oil tank for high power steer loader is up to 90L, which can realize long time working, meanwhile, reducing the oil temperature.
8. Compact structure, maneuverable movement suitable for narrow space operation.
9. Double accelerograph control
The specification of track type skid steer loader | ||||||
Model | LTS50 | LTS65 | LTS100 | |||
Operating load (kg) | 700 | 1000 | 1200 | |||
Max Speed（km/h） | 10 | 12 | 12\\18 | |||
Rated flux (L/min) | 60 | 80 | 88 | |||
High Flow Flux (L/min) | 120 | 140 | ||||
Tire（track） model | 300X52.5 | 320X84 | 320X84 | |||
Rated power (Kw) | 36 | 55 | 74 | |||
Fuel tank capacity (L) | 50 | 90 | 90 | |||
self weight bucket (kg) | 2800 | 3800 | 4500 | |||
Bucket capacity (m³) | 0.3 | 0.5 | 0.55 | |||
Overall operating height (mm) | 3350 | 3480 | 4070 | |||
Height to bucket hinge pin (mm) | 2770 | 2900 | 3150 | |||
Hheight to top of cab (mm) | 2050 | 2150 | 2160 | |||
Height to bottom of level bucket(mm) | 2603 | 2730 | 2983 | |||
Without bucket length（mm） | 2300 | 2750 | 3000 | |||
Overall length with bucket(mm) | 2950 | 3500 | 3700 | |||
Dumping angle at maximum height(° ) | 40 | 40 | 40 | |||
Dumping height(mm) | 2100 | 2230 | 2450 | |||
Dumping reach(mm) | 790 | 715 | 700 | |||
Rollback o bucket on ground(° ) | 30 | 30 | 30 | |||
Rollback of bucket at full height(° ) | 104 | 104 | 104 | |||
Wheelbase(mm) | 1240 | 1500 | 1500 | |||
Ground clearance(mm) | 140 | 200 | 200 | |||
Angle of departure(° ) | 20 | 20 | 20 | |||
Front turning radius without bucket(mm) | 1064 | 1298 | 1365 | |||
Front tuning radius(mm) | 1825 | 2010 | 2200 | |||
Rear tuning radius(mm) | 1264 | 1714 | 1742 | |||
Rear axle to bumper (mm) | 594 | 890 | 938 | |||
Tread width (mm) | 1102 | 1462 | 1654 | |||
Width (mm) | 1402 | 1782 | 1994 | |||
Bucket width (mm) | 1500 | 1830 | 2030 | |||
FAQ
Q: Are you a manufacturer of the new skid steer loader?
A: Yes, we are. The company has passed ISO and CE certification, products are exported to more than 20 countries and regions.
Q: How is your after-sales service of the loader machine?
A: We have A number of after-sales services that provide 24-hour technical support via phone and mail.
Q: What is your lead time of Chinese skid steer loader?
A: It takes 7-10 days for normal goods and 15-25 days for customization.
Q: What is your payment term of the loader machine wheel loader?
A: T/T, L/C, O/A
Q: Is it convenient to visit your factory and skid steer loader? How do I get there?
A: Welcome you to visit our factory. We'll pick you up when you arrive.
A: Yes, we are. The company has passed ISO and CE certification, products are exported to more than 20 countries and regions.
Q: How is your after-sales service of the loader machine?
A: We have A number of after-sales services that provide 24-hour technical support via phone and mail.
Q: What is your lead time of Chinese skid steer loader?
A: It takes 7-10 days for normal goods and 15-25 days for customization.
Q: What is your payment term of the loader machine wheel loader?
A: T/T, L/C, O/A
Q: Is it convenient to visit your factory and skid steer loader? How do I get there?
A: Welcome you to visit our factory. We'll pick you up when you arrive.
