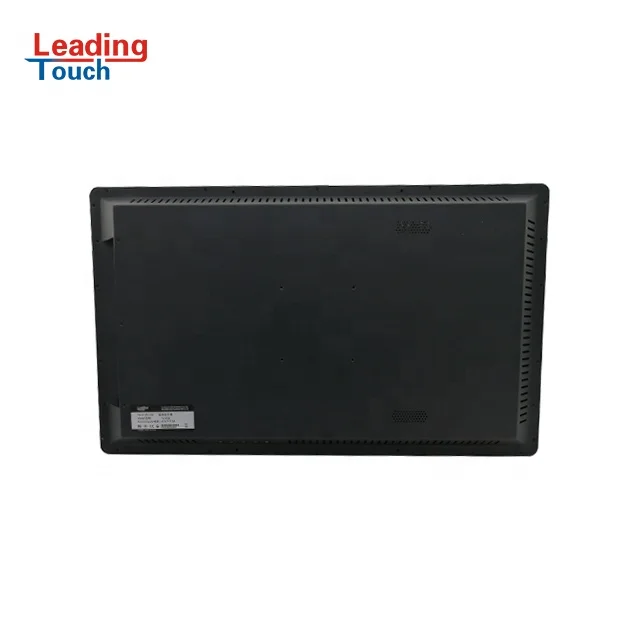

0.5mm air gap cover glass touch PCAP touch screen monitor with EETI Air Gapped Touch
0.5mm air gap cover glass touch PCAP touch screen monitor with EETI Air-Gapped Touch
0.5mm air gap cover glass touch PCAP touch screen monitor with EETI Air-Gapped Touch
0.5mm air gap cover glass touch PCAP touch screen monitor with EETI Air-Gapped Touch
0.5mm air gap cover glass touch PCAP touch screen monitor with EETI Air-Gapped Touch
0.5mm air gap cover glass touch PCAP touch screen monitor with EETI Air-Gapped Touch
0.5mm air gap cover glass touch PCAP touch screen monitor with EETI Air-Gapped Touch

0.5mm air gap cover glass touch PCAP touch screen monitor with EETI Air Gapped Touch

Share on (1600340671876):


Price:

Quantity:


Product Overview

Description



Newest design with air gap PCAP touch screen monitor.
There is glass protect on front. Once the cover glass is damaged, this design makes cover glass replacement an easy job, and no further cost for buying a new the touch sensor.




Product Description

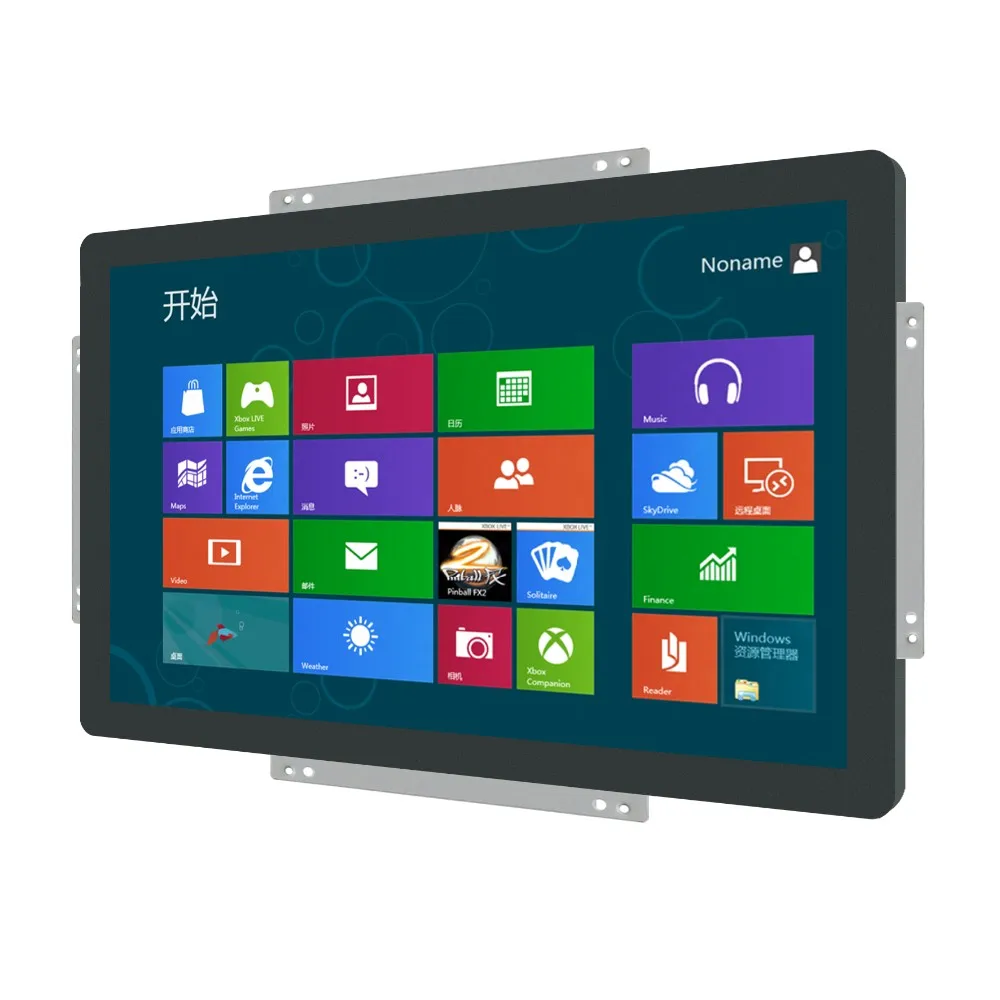

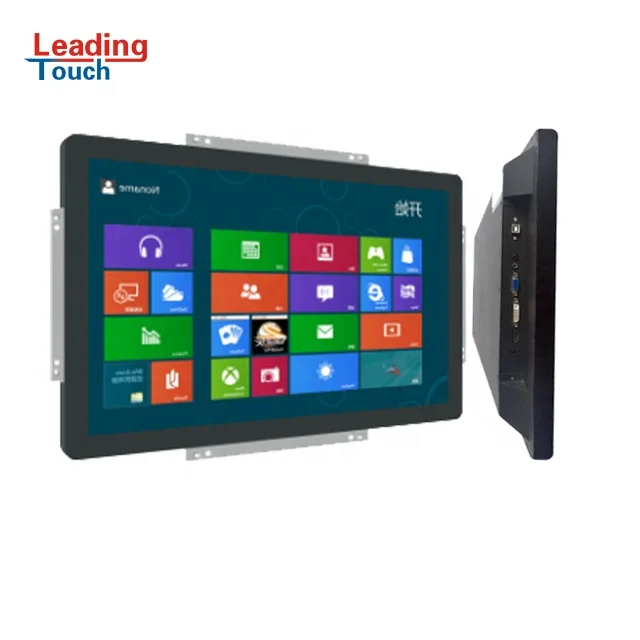

LeadingTouch TM-2762 is 27inch multitouch project capacitive open frame touch monitor;  Aluminum alloy front bezel, inside PCAP touch meet IP65 waterproof, High light display with anti-vandal tempered cover glass meet UL60950, anti-glare cover film, suitable for outdoor application, cost-effective touch solution which is designed for kiosk, ATM, Gaming, Casino, Interactive digital, Industrial, Education, Transportation etc., is easily connected and integrated by user.





Features:

Economy choice, Reliable quality, Easy operation, widely application
Zero-bezel Flat touch monitor, slim housing
High brightness LED panel, horizontal or vertical
Multitouch 10point project capacitive touch technology
3mm anti-vandal tempered cover glass meet UL60950
Anti-glare film inside, suitable for outdoor application
Standard VESA hole as mounting option
Multi-interface apply to various mounting or connection



27" Project Capacitive Multitouch Open Frame Touch Monitor
Products Model
TM-2762-New EETI
Description
27" IP65 Open Frame PCAP Multitouch Touch Monitor
Case/Bezel Color
Black
Display Size
27" 16:9 Active Matrix TFT LCD
Useful Screen Area
597.6mm x 336.2mm
Optimal Resolution
1920 x 1080@60Hz
Color Depth
8bit,16.7 Million colors
Brightness
300cd/m2
Pixel Pitch
276.75(per one triad) x 276.75
Response Time
7ms/5ms (Typically)
Contrast Ratio
3000:1 (Typical)
Viewing Angle(CR≥10)
Horizontal: ±89°or 178°total   Vertical: ±89°or 178°total
Video Input Format
VGA,DVI,HDMI Option

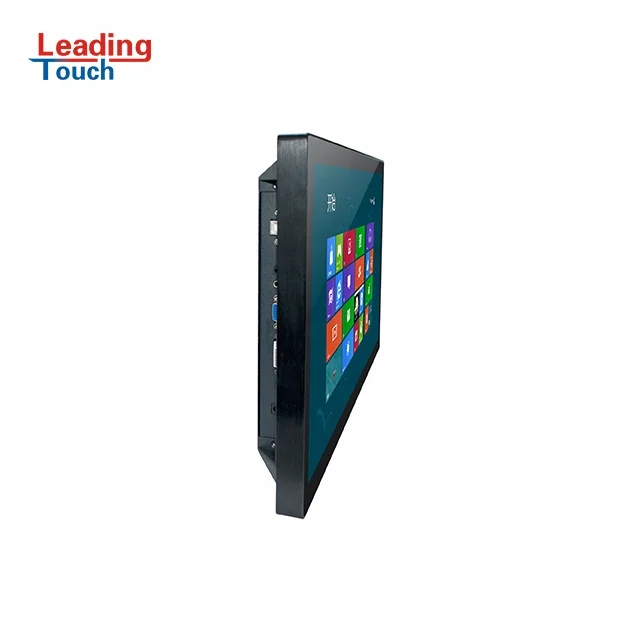

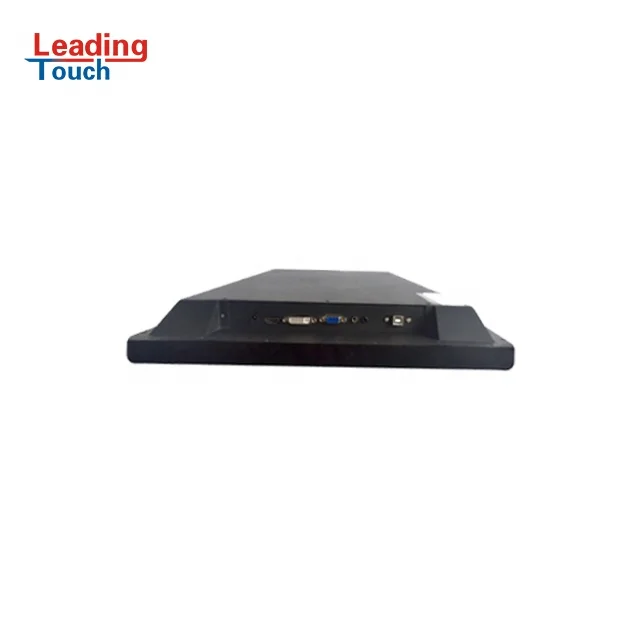

Input Video Signal Connector
VGA,DVI,HDMI Option
On Screen Display(OSD)
Controls(back):On/Off,  Menu, Left, Right, Auto
Backlight Lamp Life
50000hrs
Touch Technology
PCAP (Project Capacitive) Multitouch Touch Technology
Touch Point
Ture 10point multitouch
Touch Port Interface
USB
Protected Level
IP65(Front bezel) and Anti-vandal 3mm glass meet UL60950
Anti-glare film inside, Suitable for outdoor applications(Options)
Support OS
HID-Mode: Windows7/8/10, Linux, Android, Mac etc.
Mounting Options

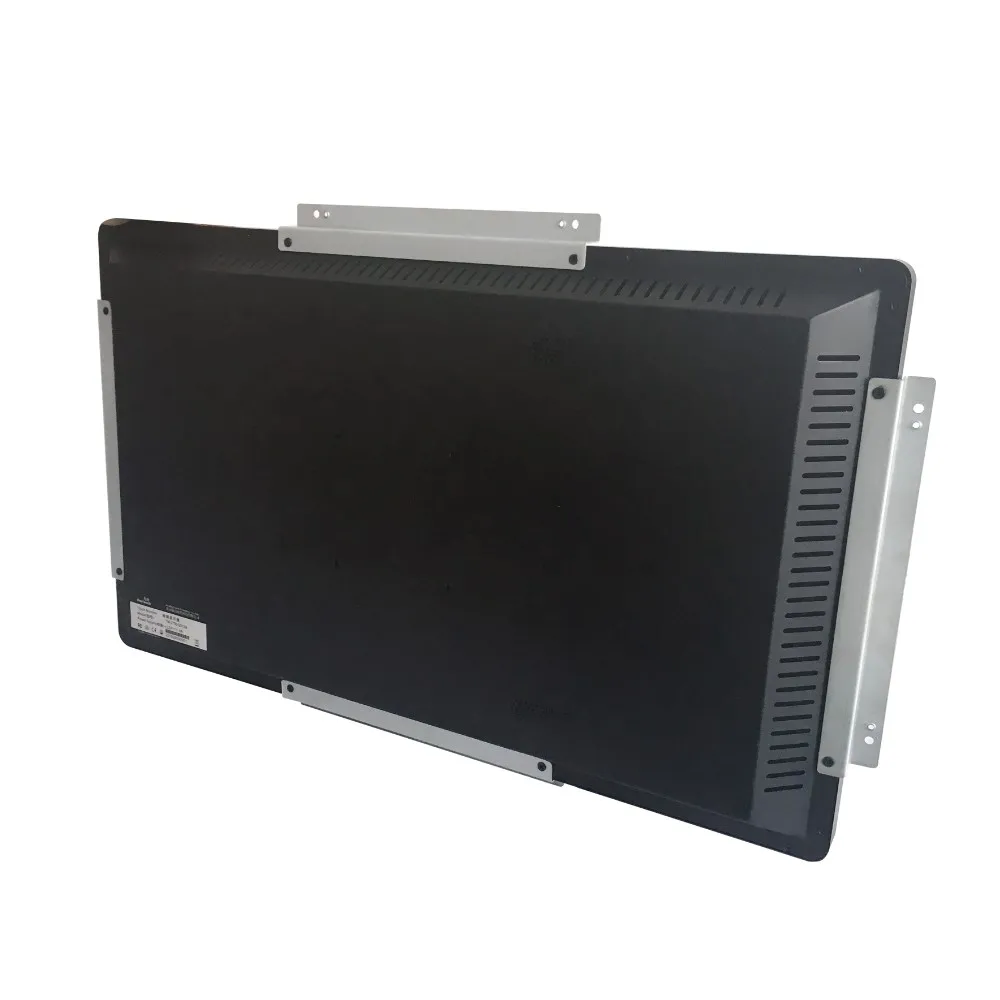

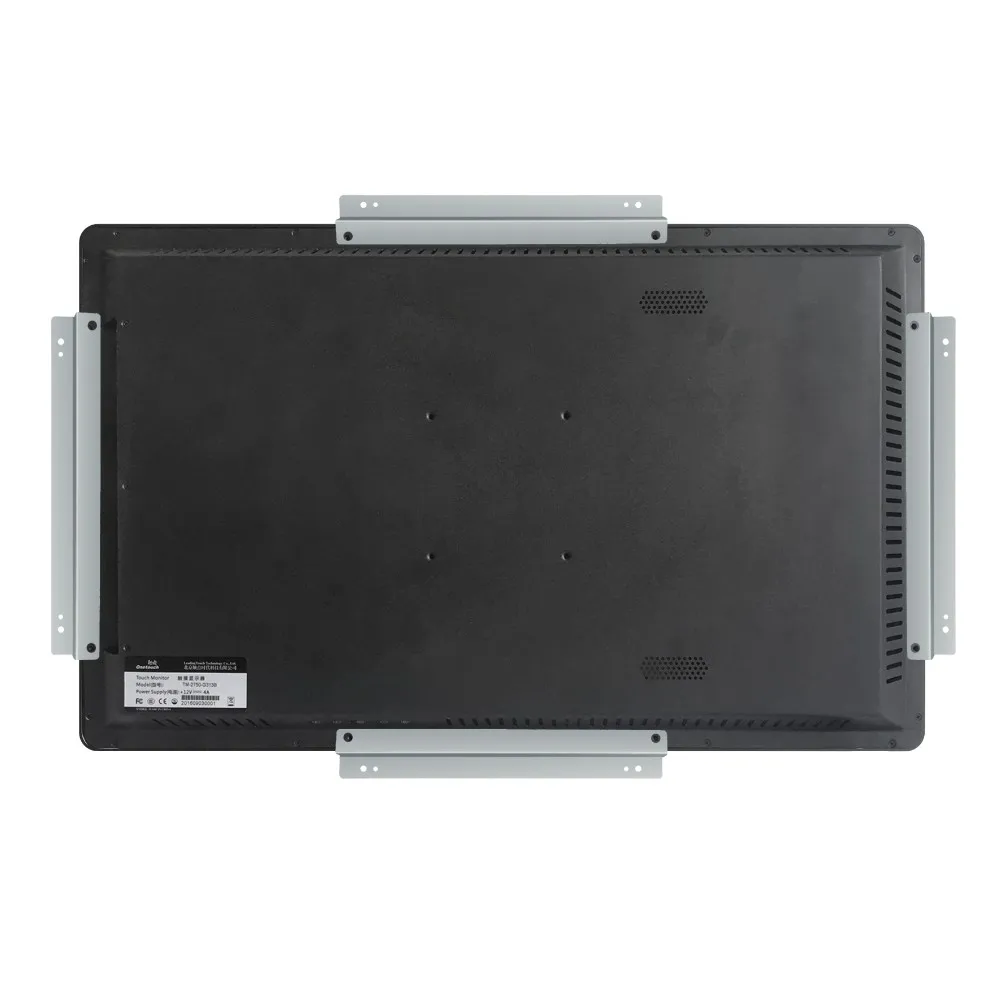

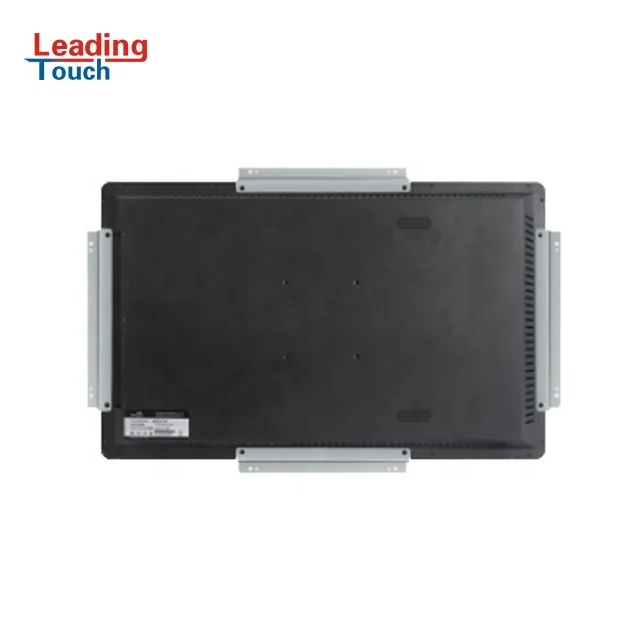

VESA Mount 75x75 and 100x100, Four side bracket option
Power Supply
External Adapter: 100-240VAC, 50-60Hz
Temperature Range
Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range(no condensing)
Operating: 20%-80%; Storage: 10%-90%
Dimension
656 x 393 x 53.3mm
Warranty
1 year
Agency Approvals
CCC, FCC, CE, RoHS


Packing & Delivery




Related Products




Certifications




Our Company


Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.











FAQ


Q1: Which size do you have for the PCAP Projected Capacitive Touch Screen monitor?

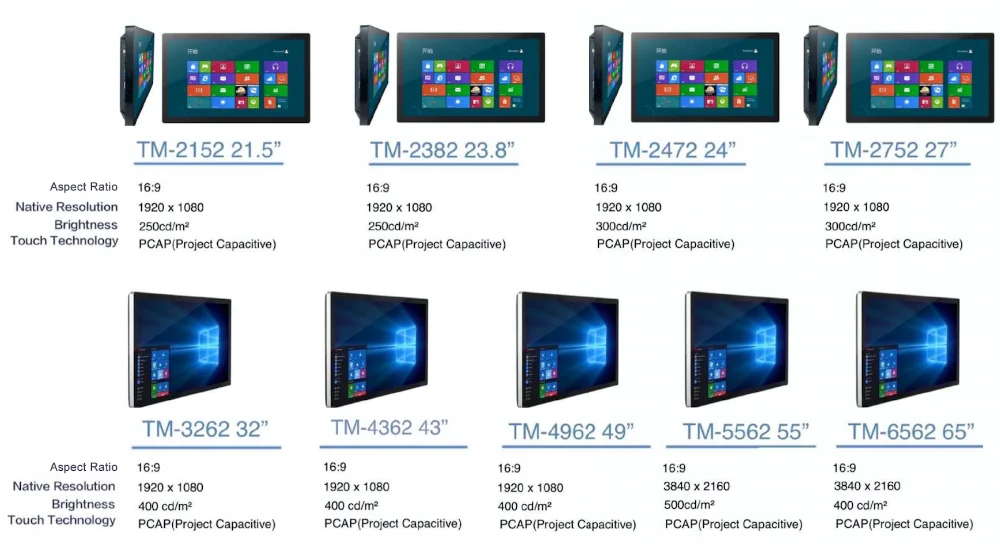

A1: 7” 10.1” 10.4” 12.1” 13.3” 14” 15” 15.6” 17” 17.3” 18.5” 19” 19”W 19.5” 21.5” 22” 23” 23.8” 24” 27”
And large size 32” 43” 55” 65” Capacitive Touch Screen Display.
Q2: Are you manufacturer(factory)? Can you provide customized service?
A2: Yes, we are. OEM/ODM service available here. We can make it according to your drawing too, and logo, etc...
Q3: Is it Driver-free? What OS can the PCAP Capacitive touch screen panel support?
A3: Yes, it is driver-free. Support Windows, Android, Ubantu, Linux, Mac…
Q4: Is it water proof, anti-vandal, anti-glare, true flat with 10 point multi touch?
A4: All are available, pls confirm when you order to us.
Q5: What is your MOQ? Sample in stock?
A5: No limited on MOQ, sample testing is ok. Standard size in stock. It can be dispatched to you very quickly.
Q6: What is your payment term?
A6: Alibaba Trade Assurance, T/T, Paypal , etc.
Q7: What is the PCAP Project Capactive Multi Touch Screen Monitor application?
A7: Widely used open frame touch monitor in Automatic Machine, Factory, Self-service Terminal, Smart City, Intelligent Entrance Gate, Medical, POS, ATM, KIOSK, Medical, Media player, etc.
Q8: What is your warranty?
A8: One year warranty. 12 months warranty lifetime free maintainance except the human damage and force majeure factor, can be 24-monthes or 36-monthes with extra cost.
