Product Overview

Description





SBRS-(4X)GBK Features

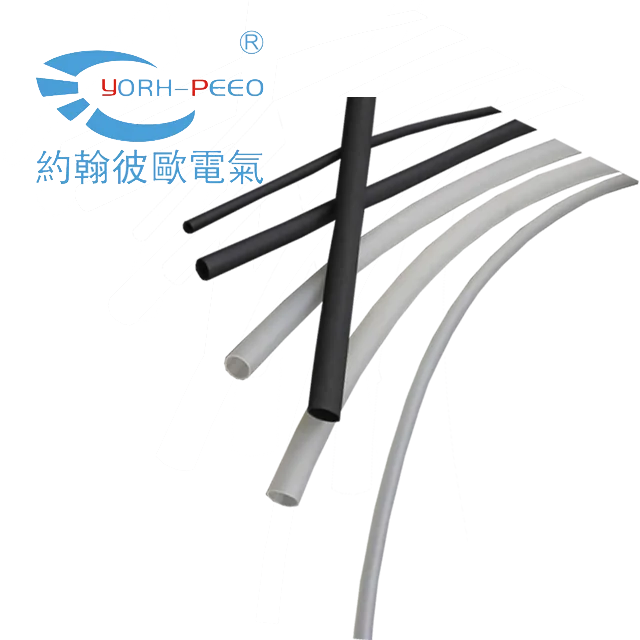

* Manufactured of polyolefin and hot melt adhesive
* Diameter from 4.0mm (5/32”) to 18mm (3/4”)
* Color: black & clear
* Shrink ratio 4:1, allows for fewer sizes to cover numerous splice configurations and diameters
* Continuous Operation temperature:-45℃ to 125℃
* Initial shrinkage temperature: 70℃
* Fully Shrink temperature: ≥110℃
* RoHS compliant

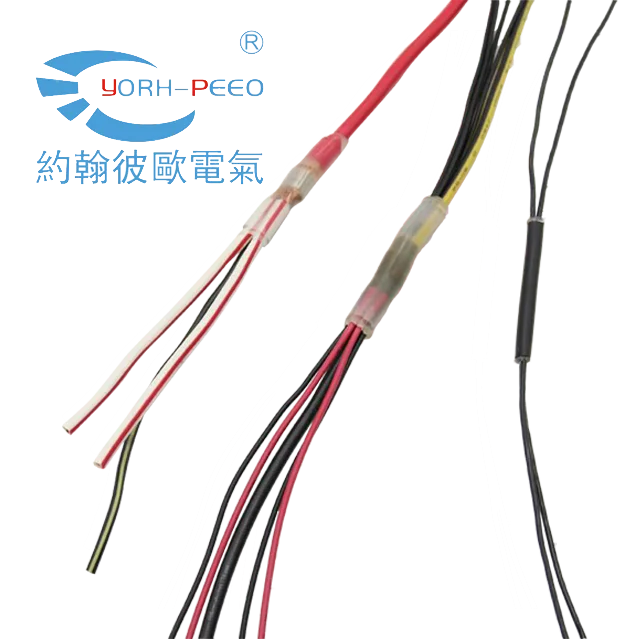

* Adhesive lined heat shrink tubing is specifically designed to insulate, seal and protect in-line splices in automotive wire
harnesses and electronic assemblies
* seals and protects against water, moisture and chemicals
* Adhesive bonds readily to PVC, XLPE and PP-EPDM cable jackets
* Shrinks rapidly for quick installation






Item No
Size
Expanded
After Recovery
Standard Package
Inch
mm
Internal Diameter
Internal Diameter
Wall Thickness
Adhesive Thickness
Spool Length
(mm)
(mm)
(mm)
(mm)
M/Spool
SBRS-(4X)GBK-4.0
5/32
4.0
4.0
0.95
1.40±0.30
0.60±0.20
1.22 OR 25M/Roll
SBRS-(4X)GBK-6.0
1/4
6.0
6.0
1.27
1.70±0.30
0.80±0.20
1.22 OR 25M/Roll
SBRS-(4X)GBK-8.0
5/16
8.0
8.0
1.65
2.00±0.30
0.95±0.20
1.22 OR 25M/Roll
SBRS-(4X)GBK-10.0

10.0
10.0
2.00
2.20±0.40
1.10±0.20
1.22 OR 25M/Roll
SBRS-(4X)GBK-12.0
1/2
12.0
12.0
2.41
2.45±0.40
1.20±0.20
1.22 OR 25M/Roll
SBRS-(4X)GBK-18.0
3/4
18.0
18.0
4.45
2.60±0.40
1.34±0.30
1.22 OR 25M/Roll


Technical Data
Property
Test Method
Standard
Typical Performance
Tensile Strength (MPa)
ASTM D 2671
≥10.4
11.5
Elongation (%)
ASTM D 2671
≥300
450
Tensile strength after aging (MPa)
UL224 158℃X168hr
≥7.3
8.5
Elongation after aging (%)
UL224 158℃X168hr
≥200
350
Dielectric strength (kV/mm)
IEC 60243
≥15
17.5
Volume resistivity (Ω•cm)
IEC 60093
≥1X1014
2.5x1014
Flammability
ASTM D 2671B
Self-extinguish within 30s


Hot Melt Adhesive Property
Property
Test Method
Standard
Water Absorption
ASTM D570
≤0.2%
Softening Point (℃)
ASTM E28
90±5
Strength of pearing (PE)
ASTM D 1000
120N/25mm
Strength of pearing (AL)
ASTM D 1000
80N/25mm
