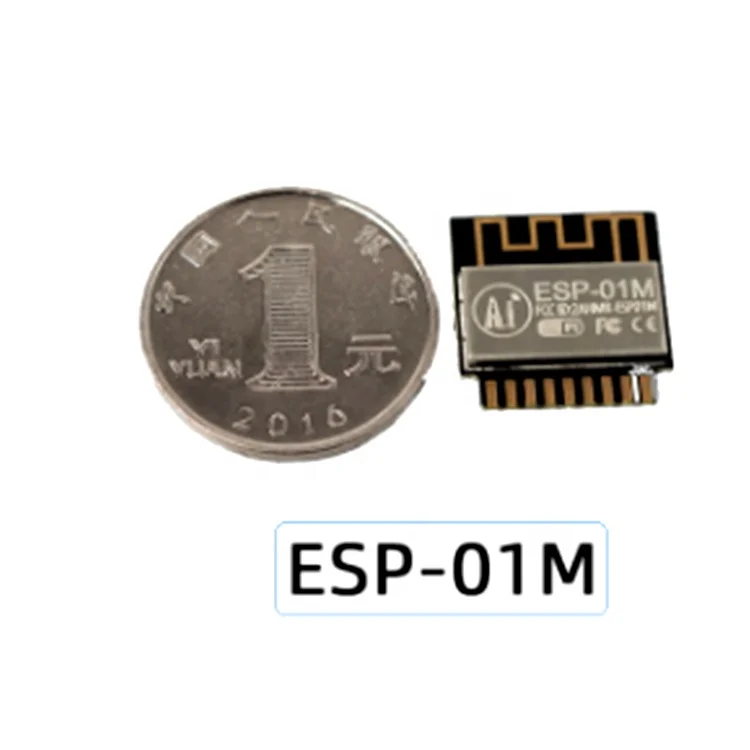

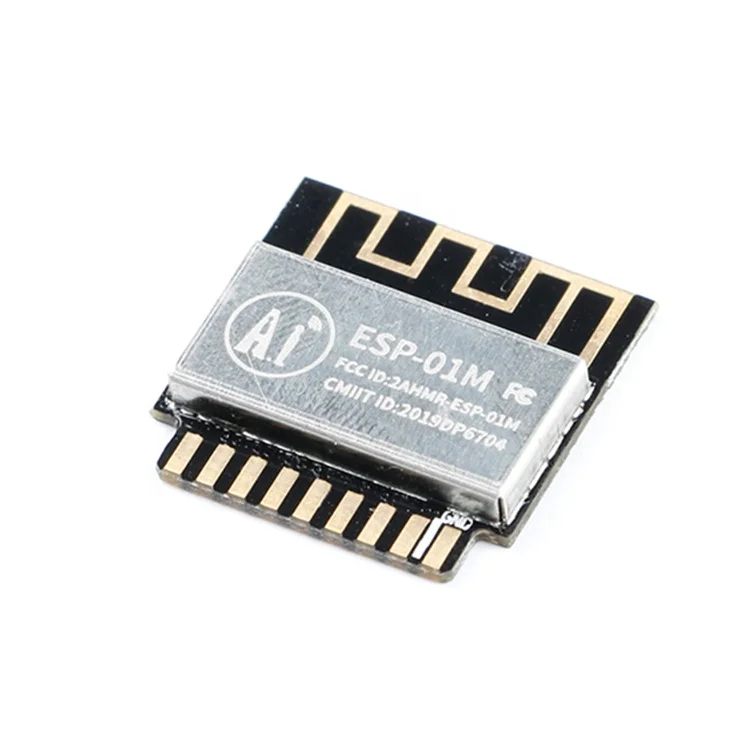

New ESP8285 IIC IOT 1MByte Flash Serial To WiFI Wireless Transceiver Module ESP 01M
- Category: WiFi Modules >>>
- Supplier: Shenzhen Gui Yi Technology Co. Ltd.
Share on (1600340774056):
Product Overview
Description
Product Description
Specification
Type | WiFi Module |
Country of Origin | China |
Brand | Yourcee |
Chipset | ESP-01M |
Application | IOT |
Supply voltage | 3.0V ~ 3.6V, supply current>300mA |
SPI Flash | built-in 2MB |
interface | UART/GPIO/ADC/PWM |
The serial port rate | 300 ~ 4608000 bps |
Spectrum range | 2412 ~ 2484MHz |
Operating temperature | -20°C~ 85 °C |
Storage environment | -40°C~90°C, <90%RH |
safety | WEP/WPA-PSK/WPA2-PSK |
Package | DIP-18 |
Product name | ESP-01M |
Description

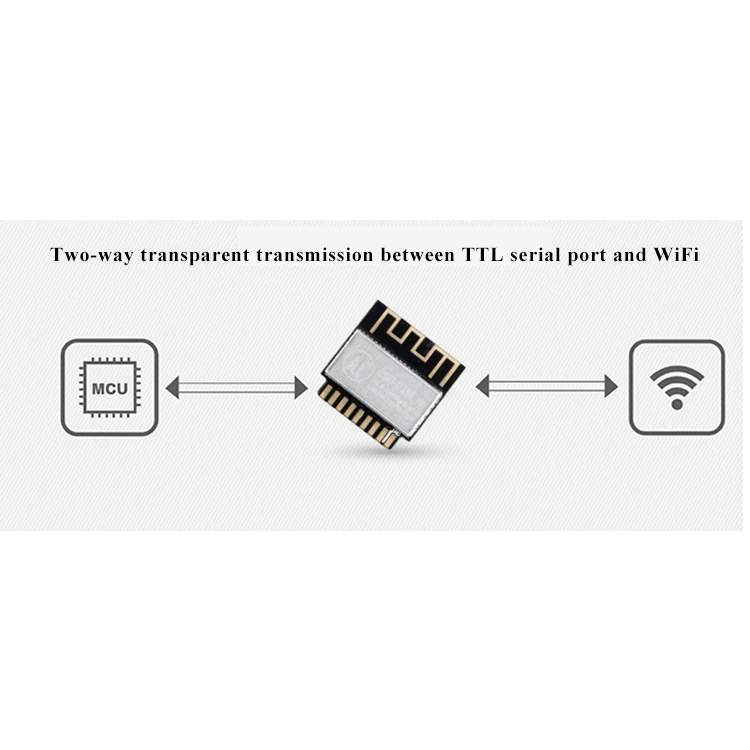

Tiny WiFi module uses ESP8285 chip, which has complete and self-contained WiFi network functionality. So it can be regarded as a standalone application, also be run as slave from other host MCU. This chip integrated enhanced 32-bit core processors of Tensilica’s L106, and it has on-chip SRAM. The advantage of ESP8285 is both hardware and software are mature enough, and it has 1MByte Flash inside. The main frequency can above 160 MHz, and the series rate can be as high as 4Mbps. It has GPIO, IIC, UART, PWM,ADC and some more interfaces. Completely compatible with ESP8266, so we can use original code.This module can be used on smart home, such as domestic appliance, intelligent socket/lamp, baby monitors. In addition, it also can be applied on electronic industrial, such as sensor network, industrial wireless control product parameter module structure diagram and so on
Features:
Frequency up to 160MHz
Built-in 10 bit high precision ADC
Support UART / GPIO / IIC / PWM / ADC and other interfaces
Integrated Wi-Fi MAC / BB / RF / PA / LNA
Supports multiple hibernation modes with standby power as low as 1.0 mW
Embedded Lwip protocol stack
Support STA / AP / STA + AP working mode
Support Smart Config / AirKiss a key distribution network
Serial port speed up to 4Mbps
Universal AT command can get started quickly, you can brush Web configuration firmware
Support serial local upgrade and remote firmware upgrade (FOTA)
Built-in 10 bit high precision ADC
Support UART / GPIO / IIC / PWM / ADC and other interfaces
Integrated Wi-Fi MAC / BB / RF / PA / LNA
Supports multiple hibernation modes with standby power as low as 1.0 mW
Embedded Lwip protocol stack
Support STA / AP / STA + AP working mode
Support Smart Config / AirKiss a key distribution network
Serial port speed up to 4Mbps
Universal AT command can get started quickly, you can brush Web configuration firmware
Support serial local upgrade and remote firmware upgrade (FOTA)
Details

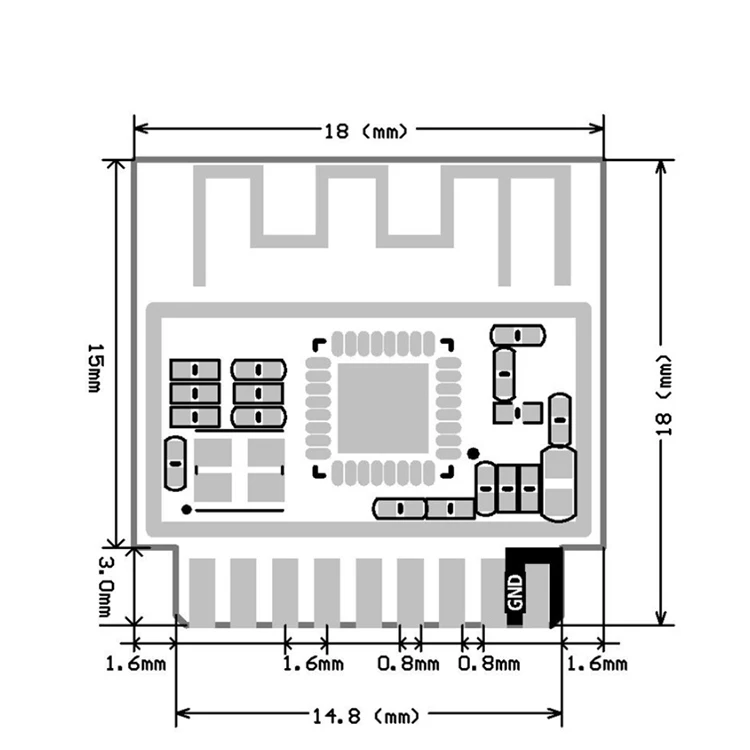

Size: 18*18*2.8 (±0.2)mm
SPI Flash: 1MB
The type of interface: UART/GPIO/ADC/PWM
The quantity of IO put: 11
Series rate: 300-4608000 bps, the default is 115200bps
RF range: 2412-2484MHz
The type of antenna: onboard PCB wire
Transmission power: 802.11b: 16±2 dB (@11Mbps) 802.11g: 14±2 dB (@54Mbps) 802.11n: 13±2 dB (@HT20, MCS7)
Receiving sensitivity: CCK, 1Mbps: -90dB CCK, 11Mbps: -85dB 6 Mbps (1/2 BPSK): -88dBm 54 Mbps (3/4 64-QAM): -70dBm HT20, MCS7 (65
Mbps, 72.2 Mbps): -67dBm
Power consumption: Continuous transmission→average value:71 mA, maximum value: 300 mA. Modem sleep: 20mA Light sleep: 2mA Deep
sleep: 0.02mA
Security: WEP/WPA-PSK/WPA2-PSK
Supply voltage: 3.0V-3.6V
Supply current: >300mA
Working temperature: -20℃-85℃
Storage environment: -40℃-90℃，<90%RH
SPI Flash: 1MB
The type of interface: UART/GPIO/ADC/PWM
The quantity of IO put: 11
Series rate: 300-4608000 bps, the default is 115200bps
RF range: 2412-2484MHz
The type of antenna: onboard PCB wire
Transmission power: 802.11b: 16±2 dB (@11Mbps) 802.11g: 14±2 dB (@54Mbps) 802.11n: 13±2 dB (@HT20, MCS7)
Receiving sensitivity: CCK, 1Mbps: -90dB CCK, 11Mbps: -85dB 6 Mbps (1/2 BPSK): -88dBm 54 Mbps (3/4 64-QAM): -70dBm HT20, MCS7 (65
Mbps, 72.2 Mbps): -67dBm
Power consumption: Continuous transmission→average value:71 mA, maximum value: 300 mA. Modem sleep: 20mA Light sleep: 2mA Deep
sleep: 0.02mA
Security: WEP/WPA-PSK/WPA2-PSK
Supply voltage: 3.0V-3.6V
Supply current: >300mA
Working temperature: -20℃-85℃
Storage environment: -40℃-90℃，<90%RH
