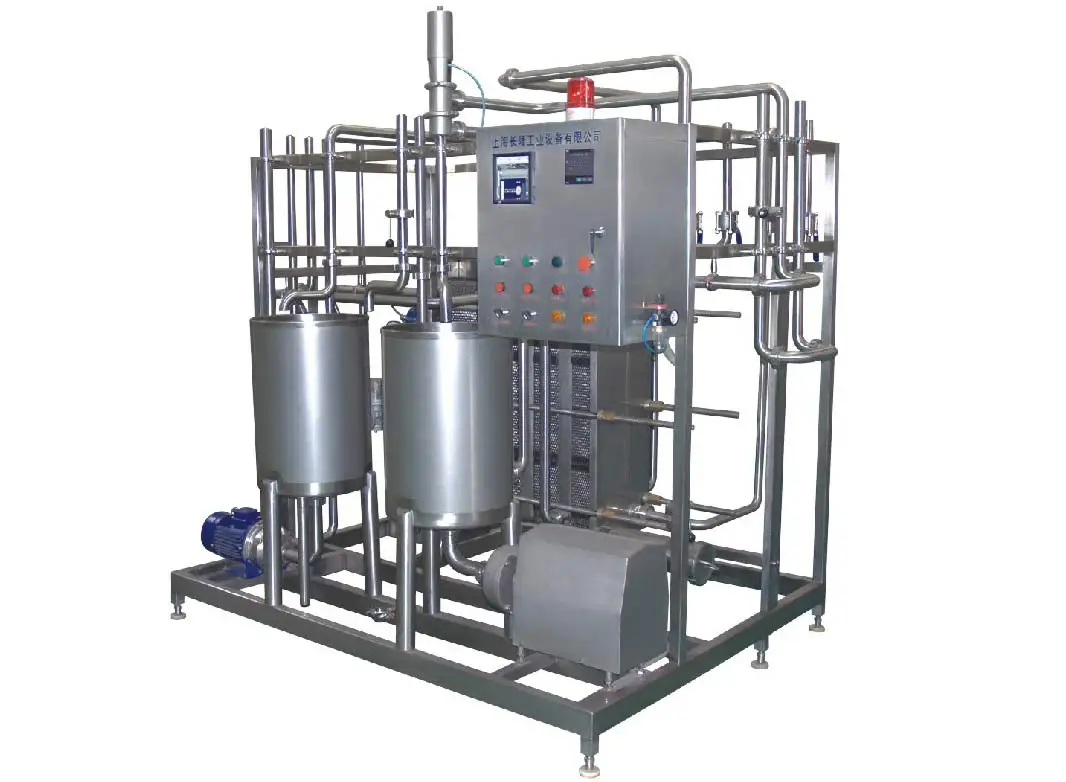

Yogurt Pasteurization Equipment Milk Pasteurization Equipment Milk Processing Equipment
- Category: >>>
- Supplier: Shanghai Unibang International Trading Co. Ltd.
Share on (1600340800199):
Product Overview
Description
Product Overview

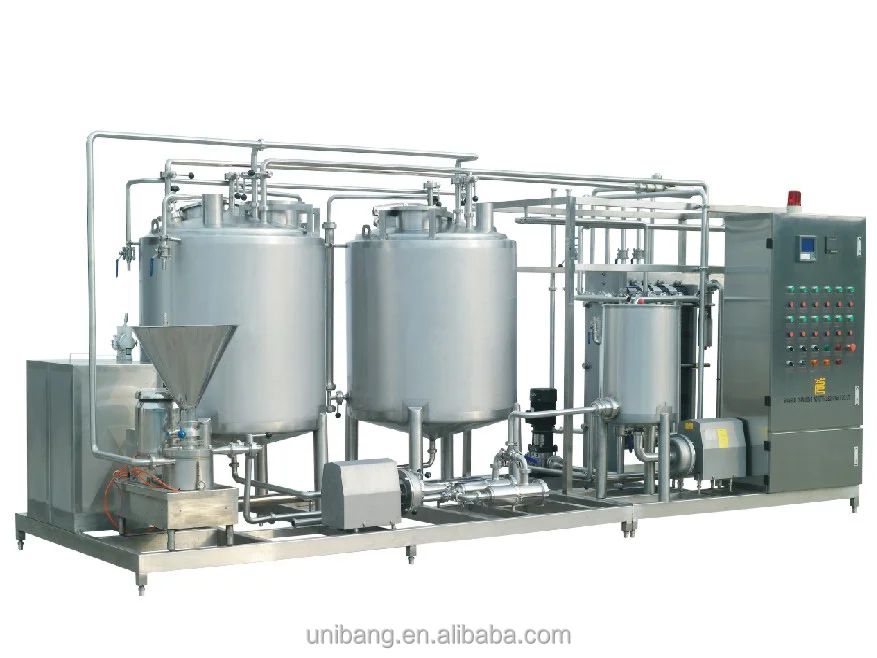

YOGURT PROCESSING LINE
YOGURT PLATE PASTEURIZING
YOGURT HOMOGENIZER

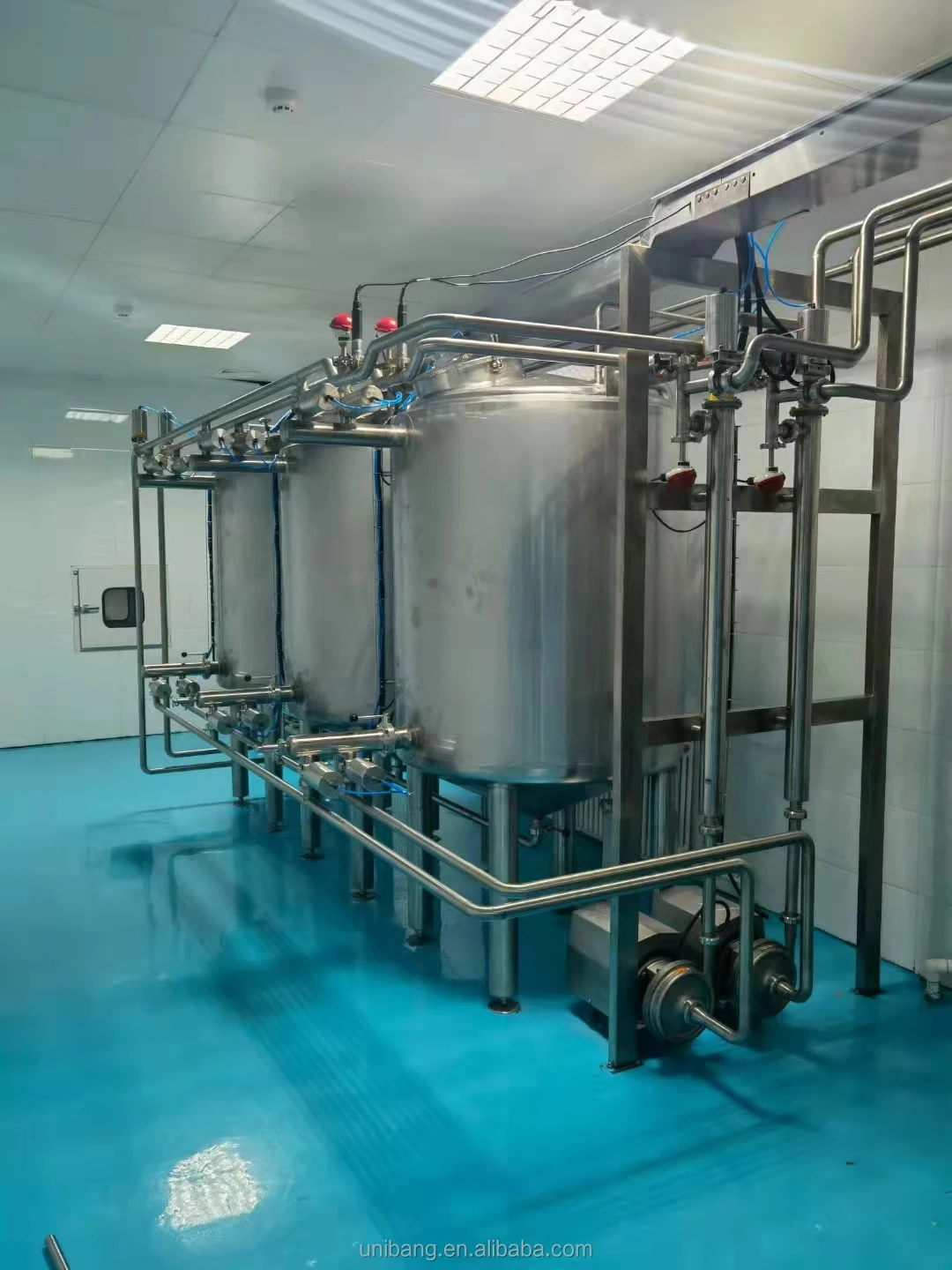

YOGURT FERMENTATION SYSTEM

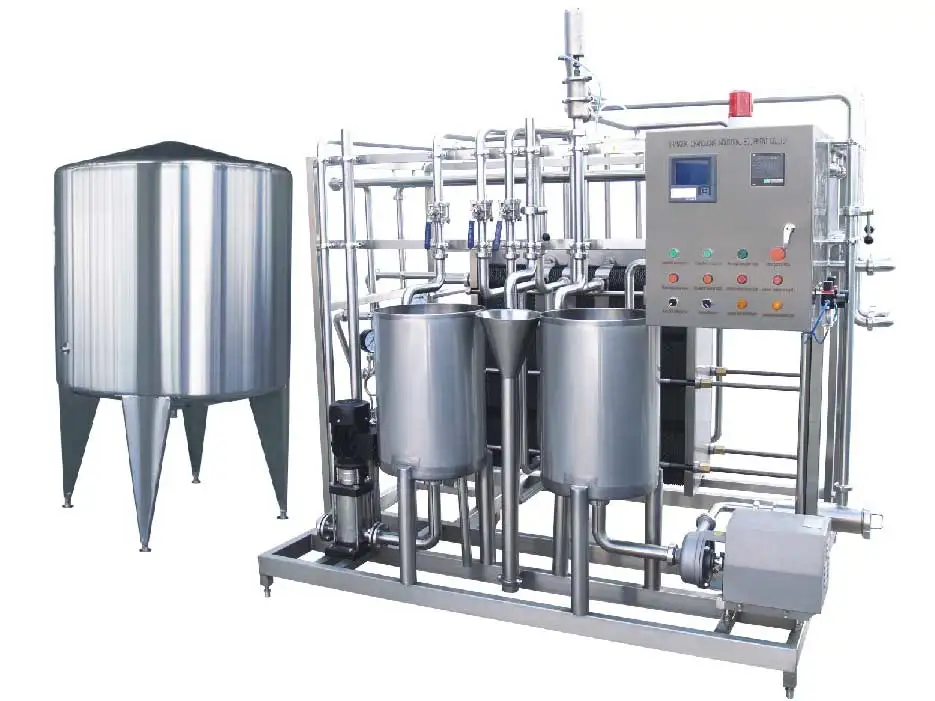

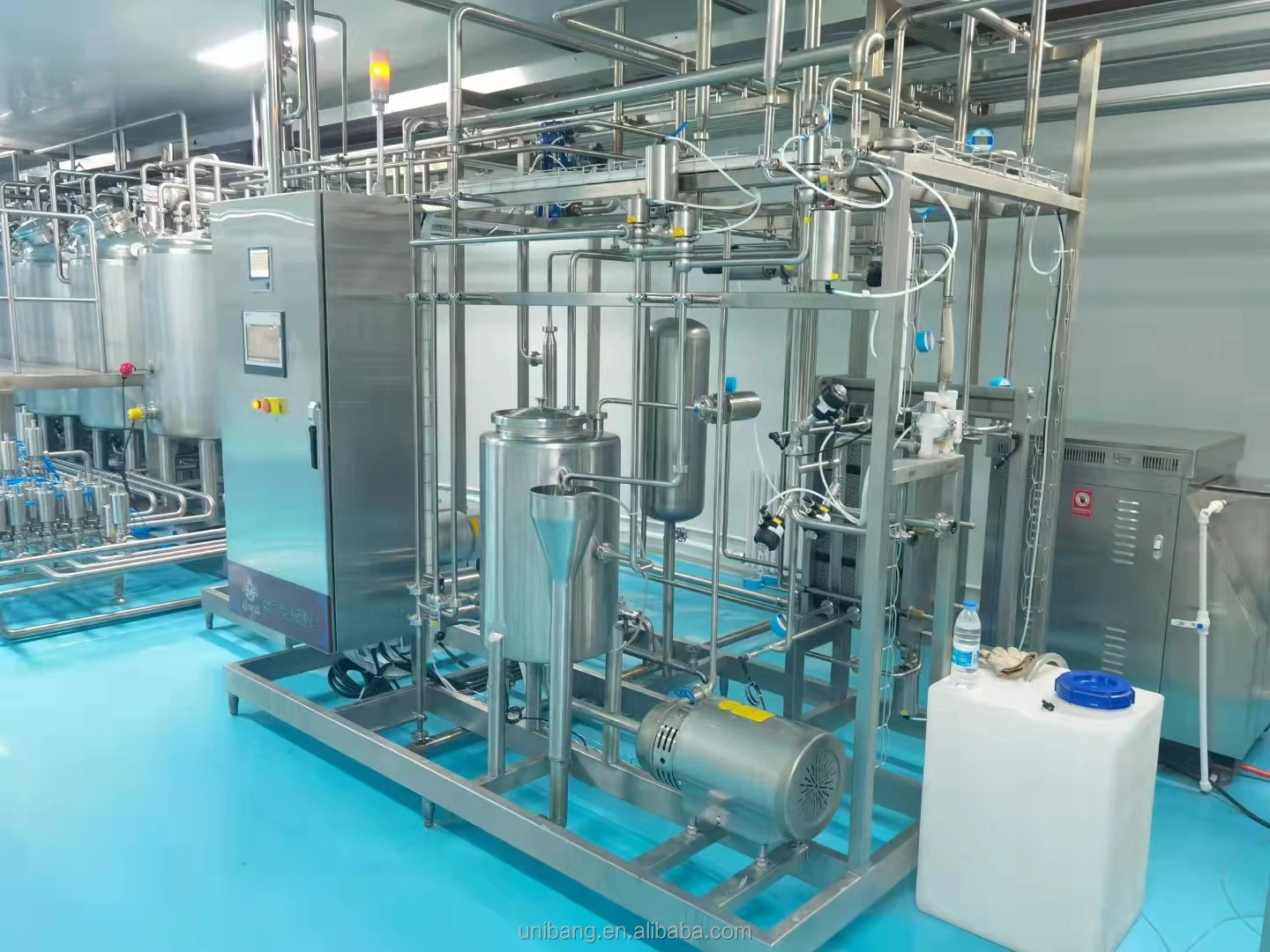

Plate sterilizer introduction
It is suitable for heating, sterilization, heat preservation and cooling of liquid beverage food such as fresh milk, fruit juice
and wine.
Using high precision products/water temperature control, product by the balance tank into the heat exchanger, the heat thermal material part and kill bacteria so cold material after heat transfer temperature reaches the preset value, and then through indirect heating by steam heating to the sterilization temperature, the material in the temperature in the tube to maintain the required temperature for a period of time for ultra high temperature sterilization,After coming out of the temperature holding tube, heat exchange is carried out with the cold material entering the machine, and finally it is cooled to the predetermined outlet temperature in the cooling section. The whole process is carried out in a closed state to ensure the biological stability of the material.And according to the user of the material heating, heat preservation, sterilization cooling of different technological requirements for specific combination system design, to meet all kinds of technological requirements.
It is suitable for heating, sterilization, heat preservation and cooling of liquid beverage food such as fresh milk, fruit juice
and wine.
Using high precision products/water temperature control, product by the balance tank into the heat exchanger, the heat thermal material part and kill bacteria so cold material after heat transfer temperature reaches the preset value, and then through indirect heating by steam heating to the sterilization temperature, the material in the temperature in the tube to maintain the required temperature for a period of time for ultra high temperature sterilization,After coming out of the temperature holding tube, heat exchange is carried out with the cold material entering the machine, and finally it is cooled to the predetermined outlet temperature in the cooling section. The whole process is carried out in a closed state to ensure the biological stability of the material.And according to the user of the material heating, heat preservation, sterilization cooling of different technological requirements for specific combination system design, to meet all kinds of technological requirements.
FEATURES AT A GLANCE
* Control mode: semi-automatic control, full automatic control (PLC control, touch screen display).
* Equipment main configuration: Material pump, balance tank, steam controlling system, hot water system, temperature control and
recorder, electrical control system, etc.
* Production capacity: 0.5-40T /h
* Sterilization machine process description:
5℃ inlet -65℃ homogenization - 85/137℃ sterilization, heat preservation 5-30 seconds --5-90℃ discharge -- buffer tank/filling
machine (sterilization machine process according to user needs design)
* Steam pressure: ≥ 0.7mpa Steam consumption: 120 ~ 150kg/h
* Compressed air: ≥ 0.7mpa Cooling water pressure: 0.3mpa
* Cooling water inlet temperature: ≤30℃.
* Chilled water inlet temperature: ≤10℃
* Equipment main configuration: Material pump, balance tank, steam controlling system, hot water system, temperature control and
recorder, electrical control system, etc.
* Production capacity: 0.5-40T /h
* Sterilization machine process description:
5℃ inlet -65℃ homogenization - 85/137℃ sterilization, heat preservation 5-30 seconds --5-90℃ discharge -- buffer tank/filling
machine (sterilization machine process according to user needs design)
* Steam pressure: ≥ 0.7mpa Steam consumption: 120 ~ 150kg/h
* Compressed air: ≥ 0.7mpa Cooling water pressure: 0.3mpa
* Cooling water inlet temperature: ≤30℃.
* Chilled water inlet temperature: ≤10℃

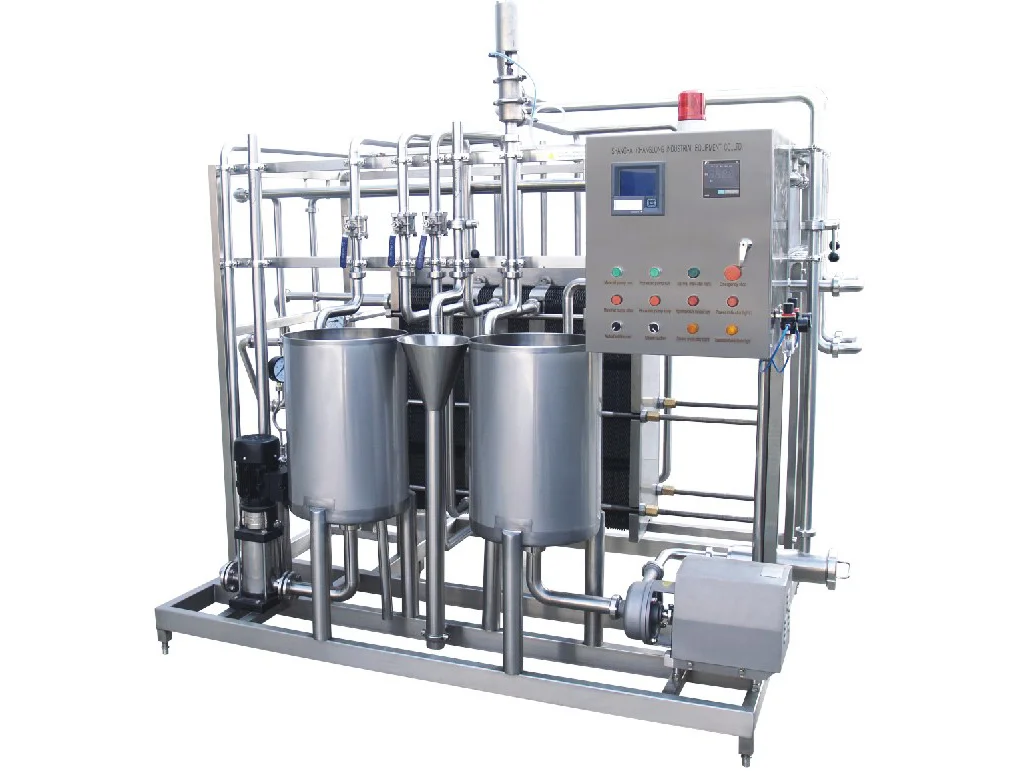

PASTEURIZER

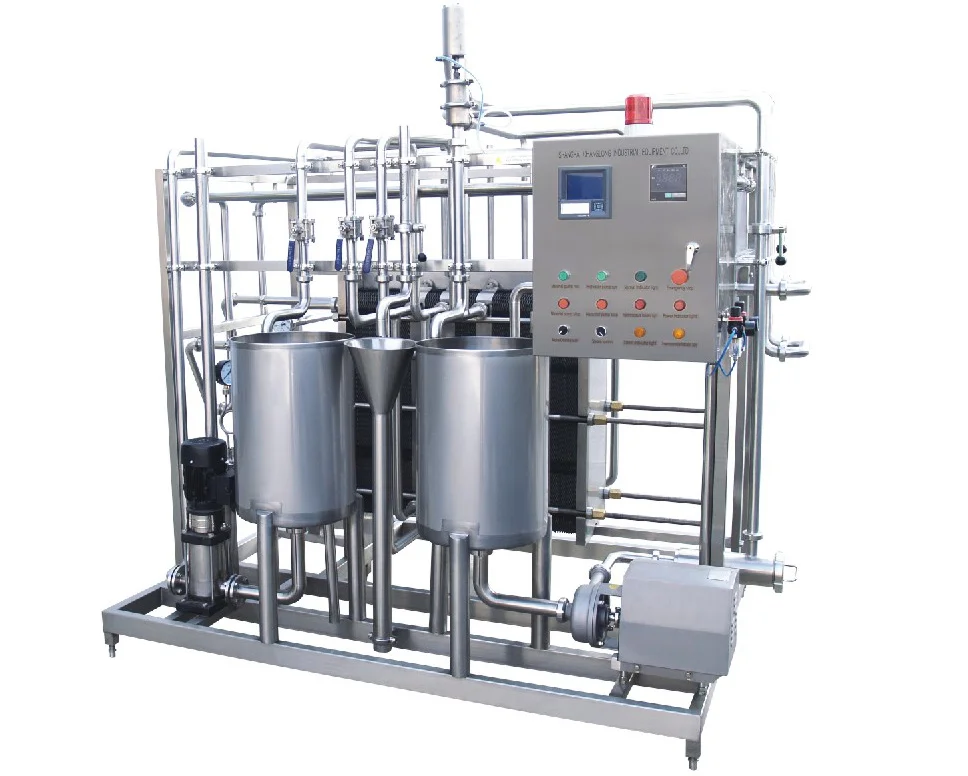

YOGURT PASTEURIZER

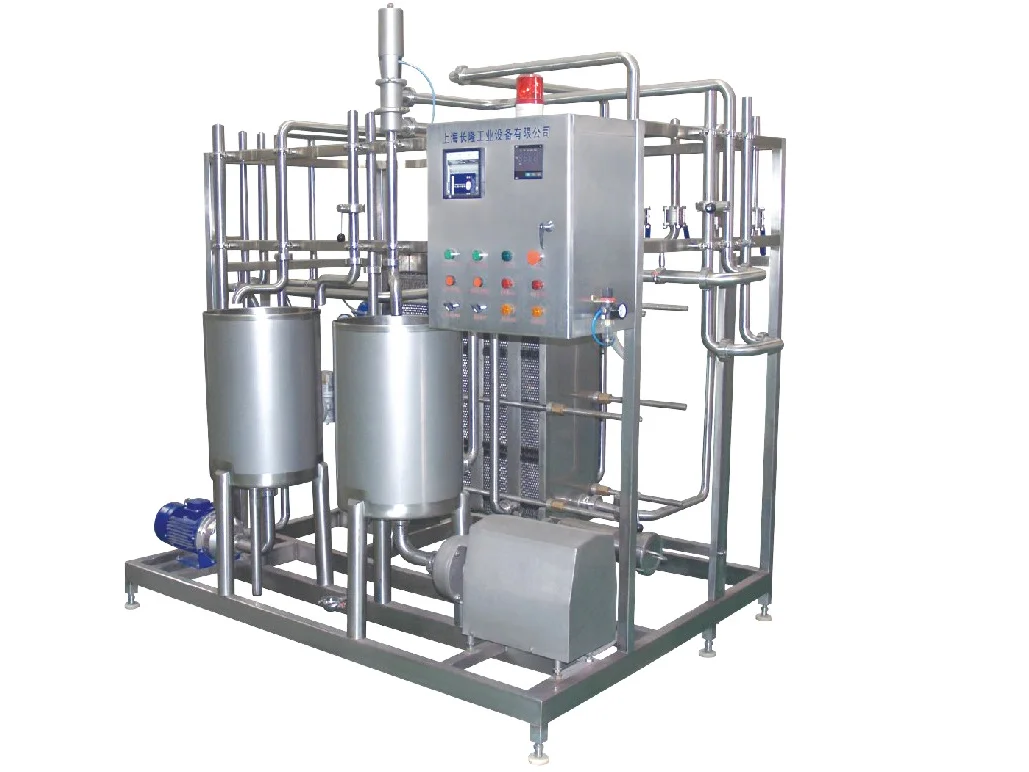

JUICE PASTEURIZER
PRODUCT SPECIFICATIONS
Yogurt Pasteurization Working Technology : Fresh Milk : 5℃ inlet→45℃ Cream Separator →65℃ homogenizer →95℃ Sterilizing, holding : 30S →5℃ Storage Tank / Filling Machine Stirred Yogurt : 25℃ inlet→65℃ homogenizer →95℃ Sterilizing, holding : 300S →43℃ fermentation tank Set Yogurt : 25℃ inlet→65℃ homogenizer →95℃ Sterilizing, holding : 300S →5℃ fermentation tank | Item | Data | ||||||
Model | Capacity: L/H | Power :KW | Steam Consumption :KG/H | Dimension :mm | ||||
BR16-PUT-1J | 1000 | 6 | 50 | 1600-1500-1800 | ||||
BR16-PUT-2J | 2000 | 10 | 100 | 1800-1500-1800 | ||||
BR26-PUT-3J | 3000 | 12 | 150 | 1800-1600-1800 | ||||
BR26-PUT-5J | 5000 | 15 | 250 | 2000-1600-2000 | ||||
BR26-PUT-6J | 6000 | 18 | 300 | 2000-1600-2000 | ||||
BR26-PUT-8J | 8000 | 22 | 400 | 2200-1600-2200 | ||||
PRODUCT CONFIGURATION
PLATE&GASKET
FLOW RATE GAUGE
FREQUENCY CONVERTER
SALES AND SERVICE NETWORK

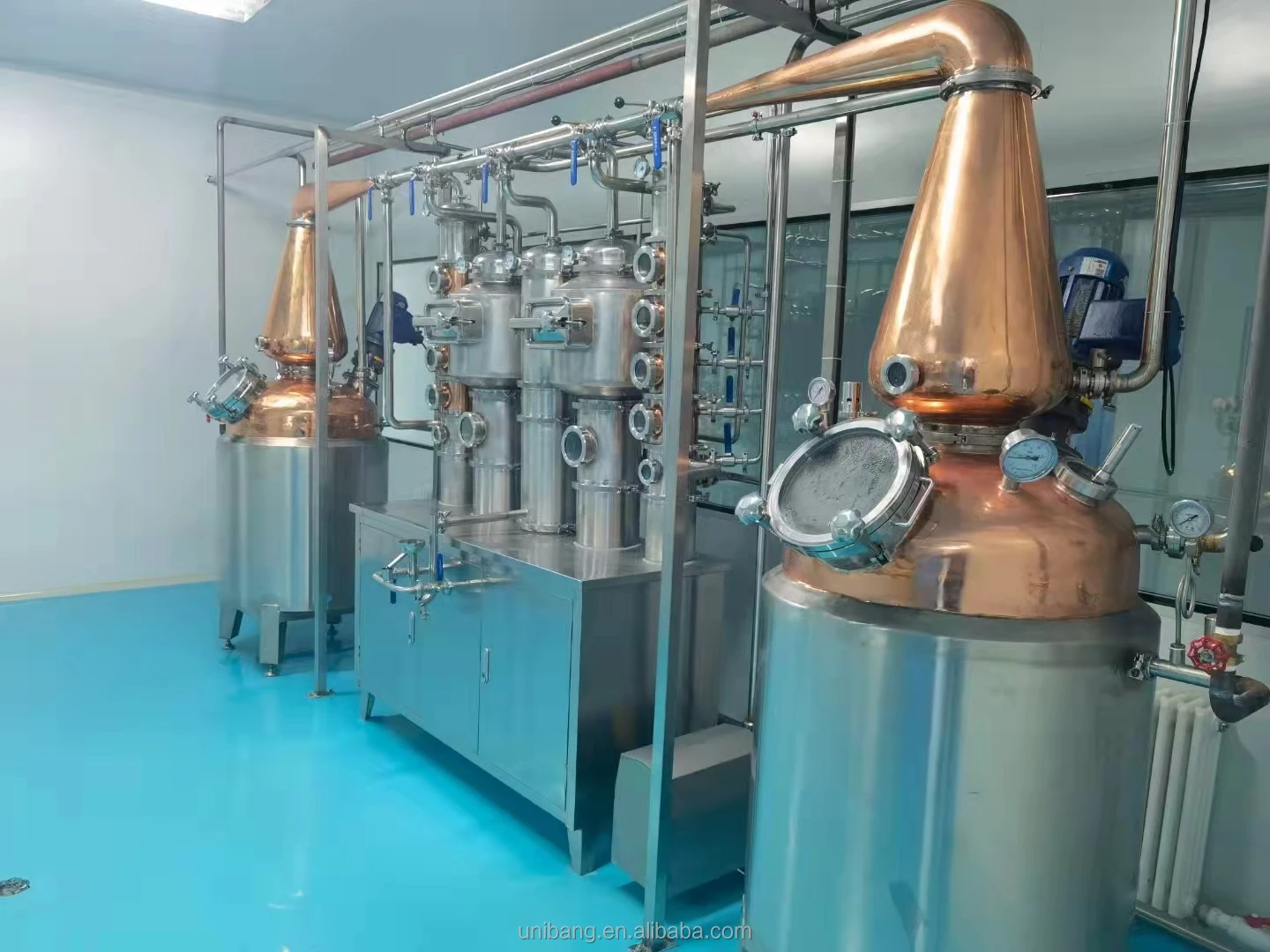

Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
