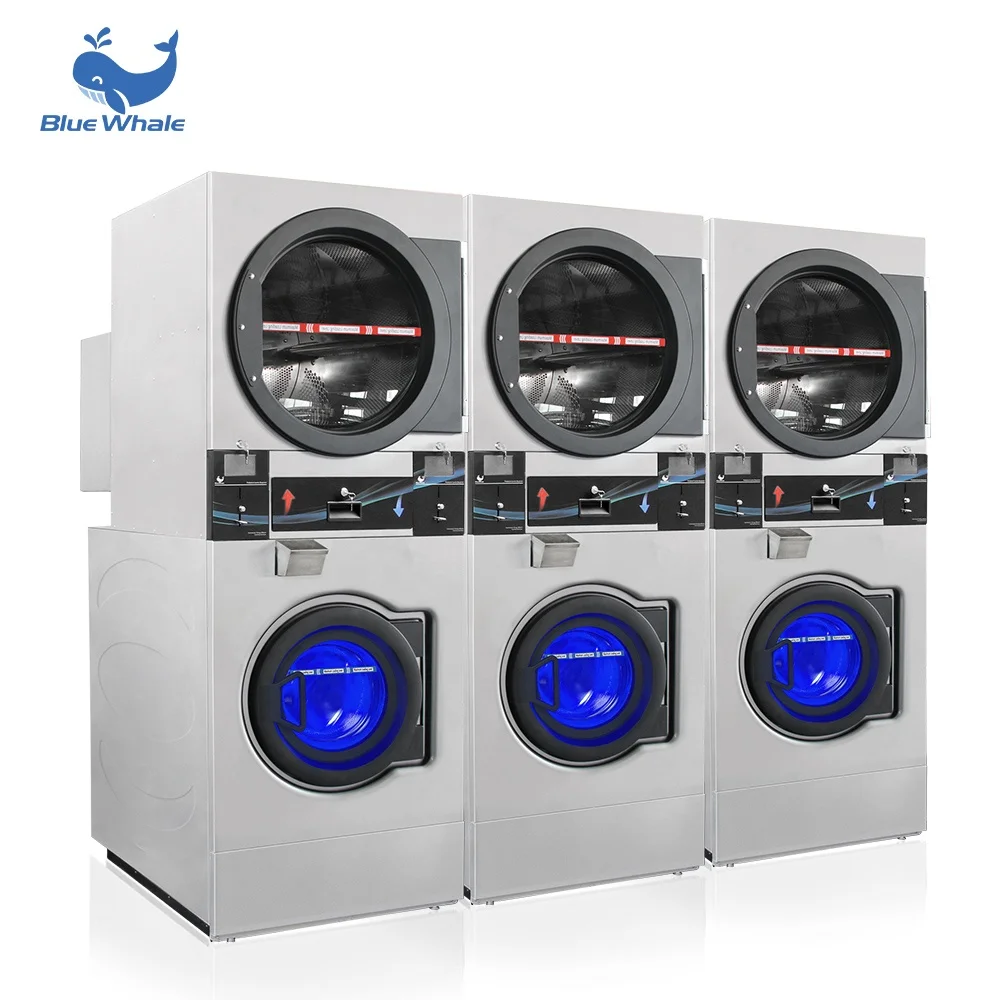

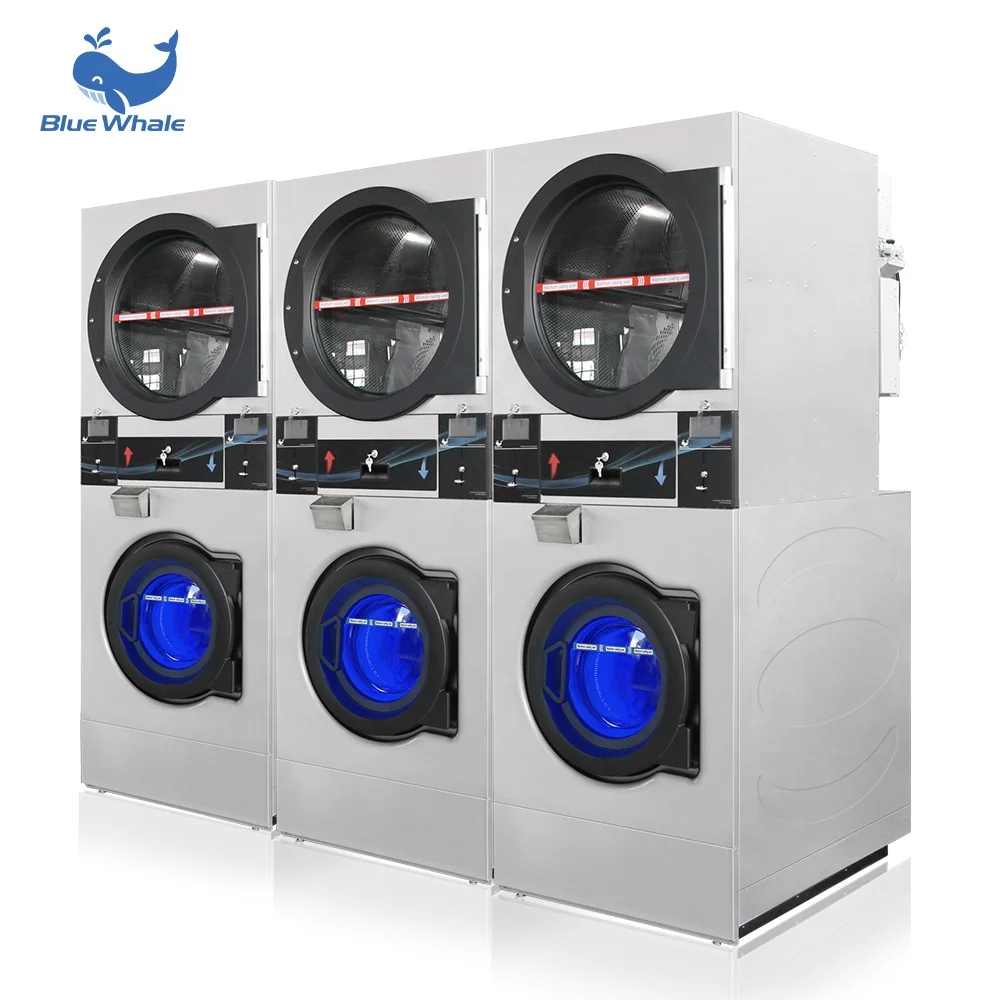

Blue Whale Free Washing Machine Parts Automatic Stack Washer And Dryer For Laundry
- Category: >>>
- Supplier: Zhejiang Blue Whale Intelligent Equipment Manufacturing Co. Ltd.
Share on (1600340865655):
Product Overview
Description
name | STP-13x2 | STP-16x2 | ||||
Dry Weight/Laundry Capacity(kg) | 16 | 12 | 16 | 15 | ||
Cylinder Volume(L) | 322 | 120 | 322 | 150 | ||
Cylinder Speed(r/min) | 40 | 45 | 40 | 45 | ||
High-extraction Speed(r/min) | / | 650 | / | 650 | ||
Dehydrating factor(G) | / | 173 | / | 173 | ||
Motor Size(KW) | 0.25 | 1.5 | 0.2 | 1.5 | ||
Inverter Power (KW) | / | 1.5 | / | 1.5 | ||
Fan Motor Size | 0.55 | / | 0.55 | / | ||
Cylinder Diameter(mm) | 760 | 670 | 760 | 670 | ||
Clinder Depth(mm) | 710 | 340 | 710 | 425 | ||
Door Diameter（mm） | 600 | 506 | 600 | 506 | ||
Distance of from central of door to ground（mm） | 1670 | 650 | 1720 | 650 | ||
Cabinet Height（mm） | 2075 | 2075 | ||||
Cabinet Width（mm） | 800 | 800 | ||||
Cabinet Depth（mm) | 1200 | 1200 | ||||
Air Exhaust Size（mm） | 180 | / | 180 | / | ||
Cold Waster Pipe Size/Qty(DN/N) | / | 20/2 | / | 20/2 | ||
Hot Waster Pipe Size(DN) | / | 20 | / | 20 | ||
Drain Pipe Size(mm) | / | 76 | / | 76 | ||
(Water Working Pressure(MPa) | / | 0.2～0.4 | / | 0.2～0.4 | ||
Net Weight（kg） | 438 | 478 | ||||
