Product Overview

Description

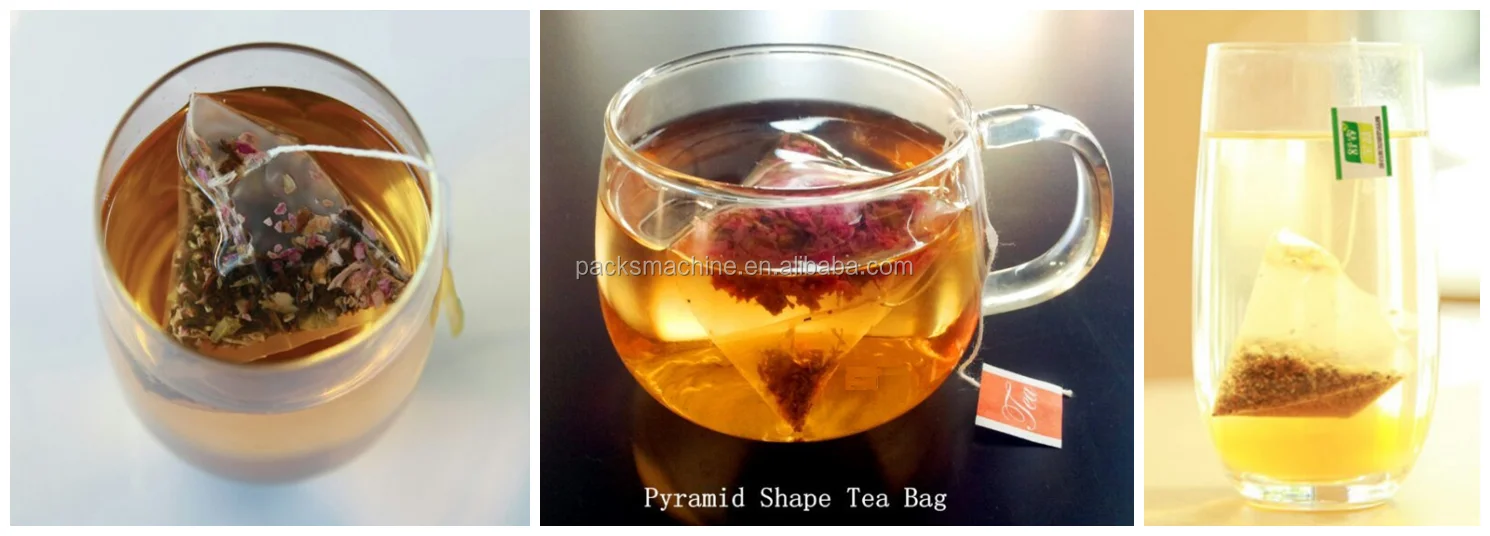

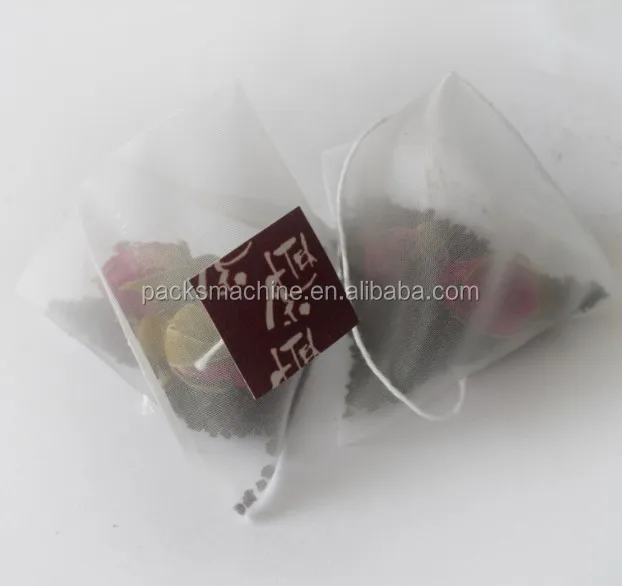

New product pyramid tea bag packing machine making eco friendly biodegradable triangle shape tea bags automatically





Product Description:

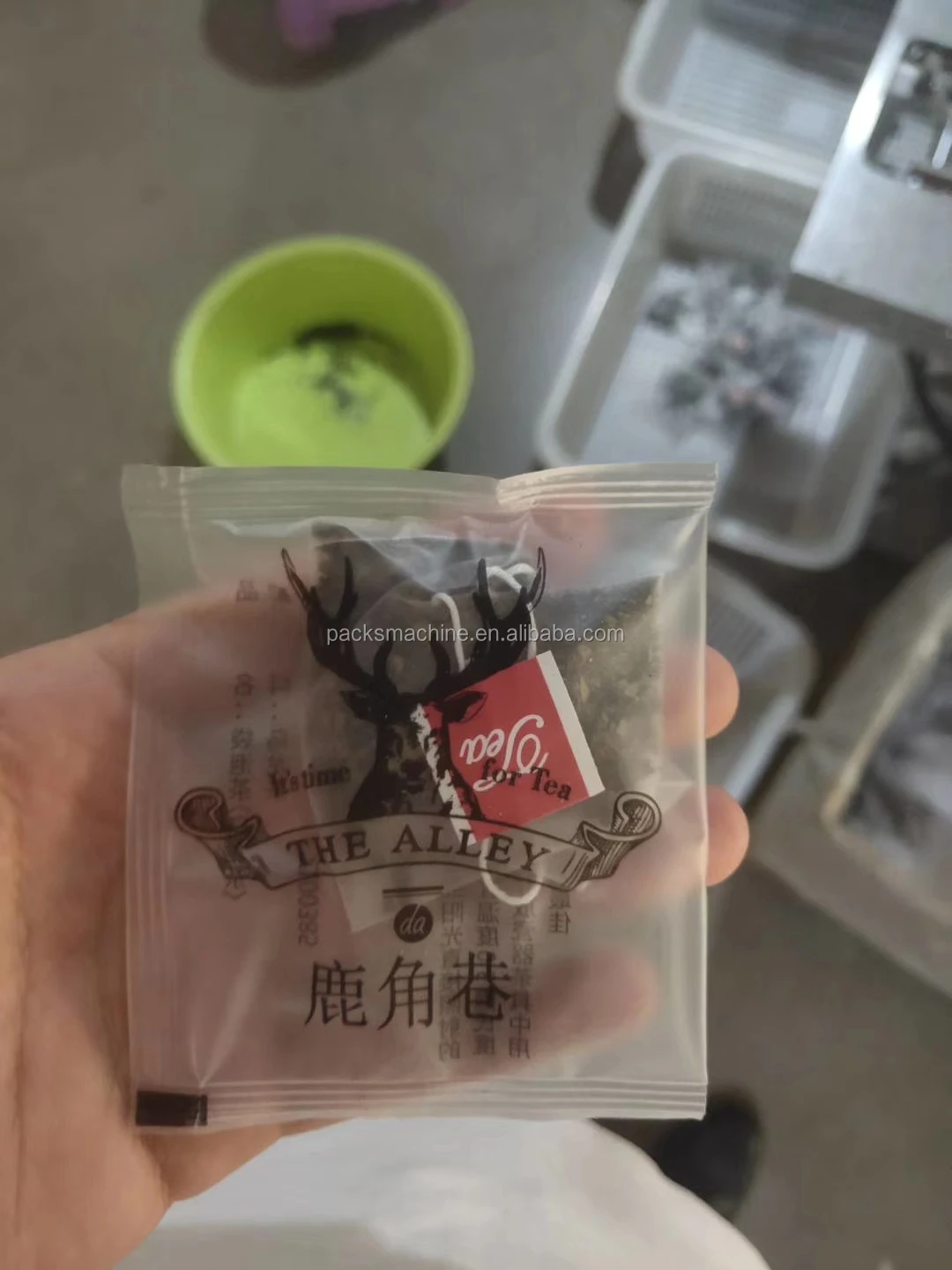

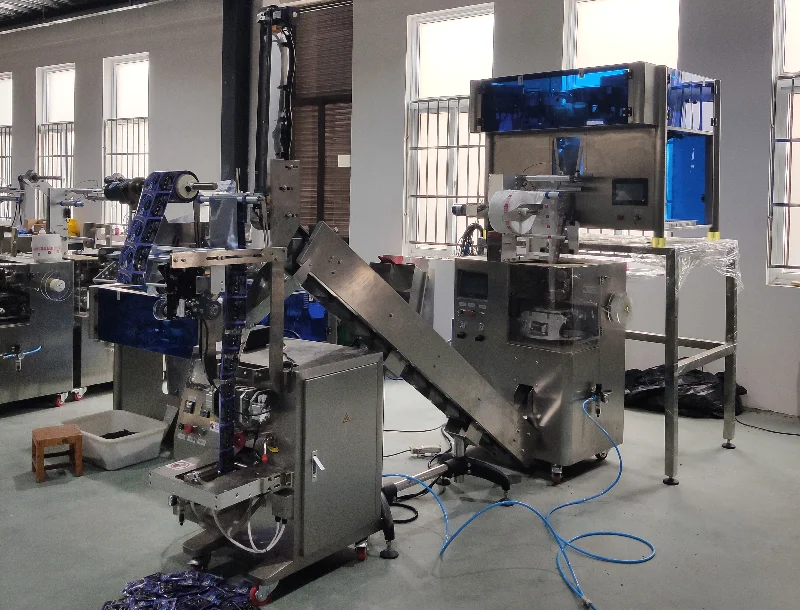

This is our new product pyramid tea bag packaging machine, it is a new type of ultrasonic sealing and packaging machine, which has multi-function can automatically packing tea and herbs into pyramid triangle shape biodegradable tea bags, the packing material can be nylon mesh, PLA corn fabric mesh, non woven mesh etc, while PLA is widely used because it is eco friendly, and you can add outer packing machine to make outer envelop.

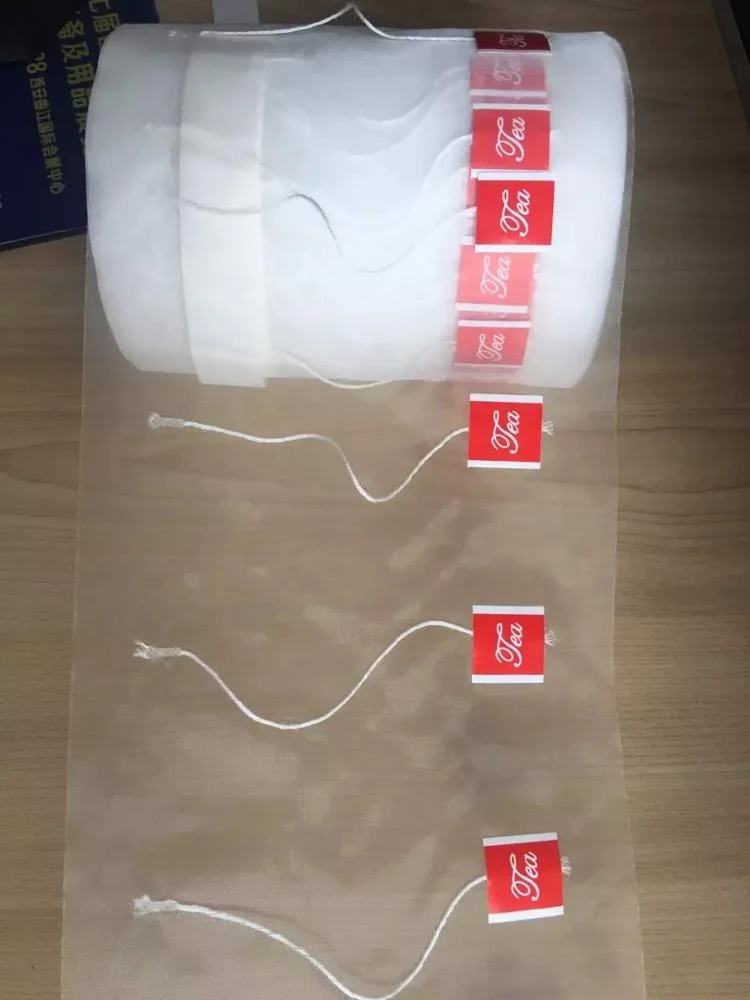

We can also supply packing material together, with good price and quality, the material can be tagged nylon mesh, biodegradeable PLA corn fabric mesh, non woven fabric, PET mesh and etc, with or without thread & tag, if you want outer envelop, usually use plastic film or aluminium foil.

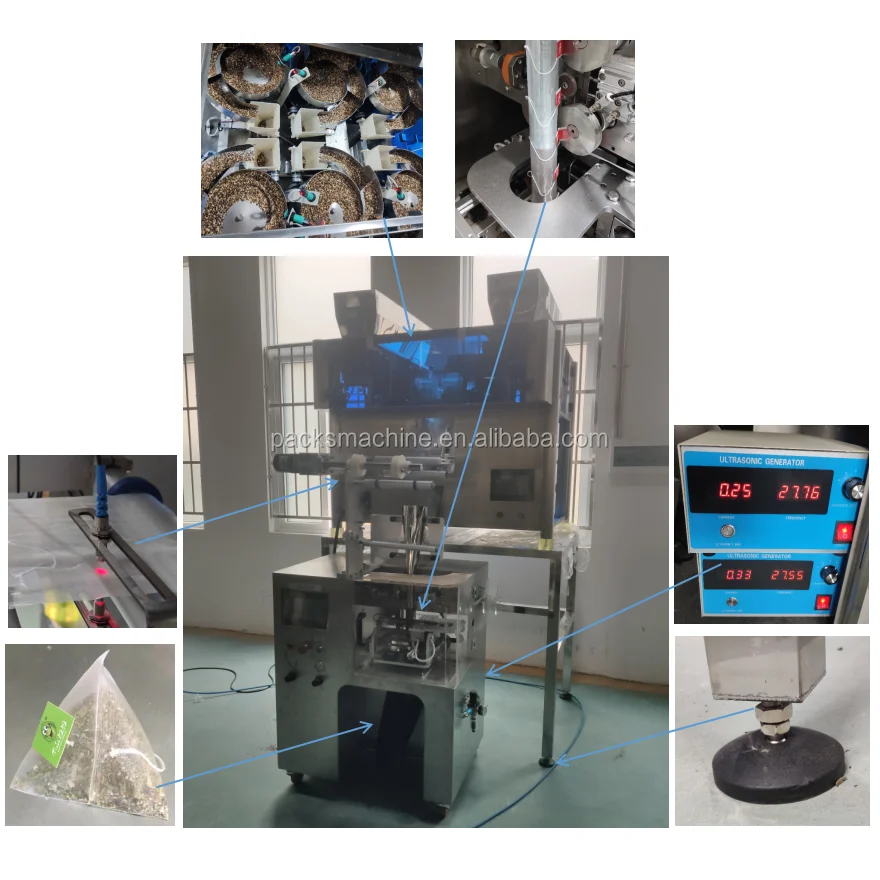

Detailed Image:





Parameter List:

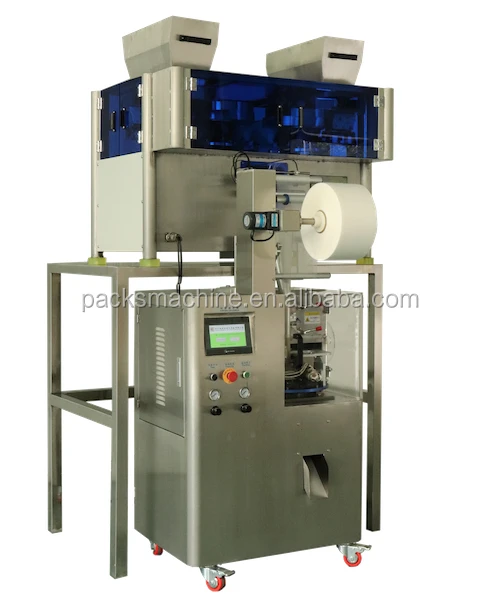

Model	T60II pyramid teabag packing machine
Filling accuracy	±2% (affected by product features also)
Sealing method	Ultrasonic sealing for inner tea bag, heat sealing for outer envelop bag
Inner tea bag size	60-80mm(W) * 40*80mm(L)
Outer bag length	Adjustable
Inner packing film width	120mm, 140mm, 160mm optional

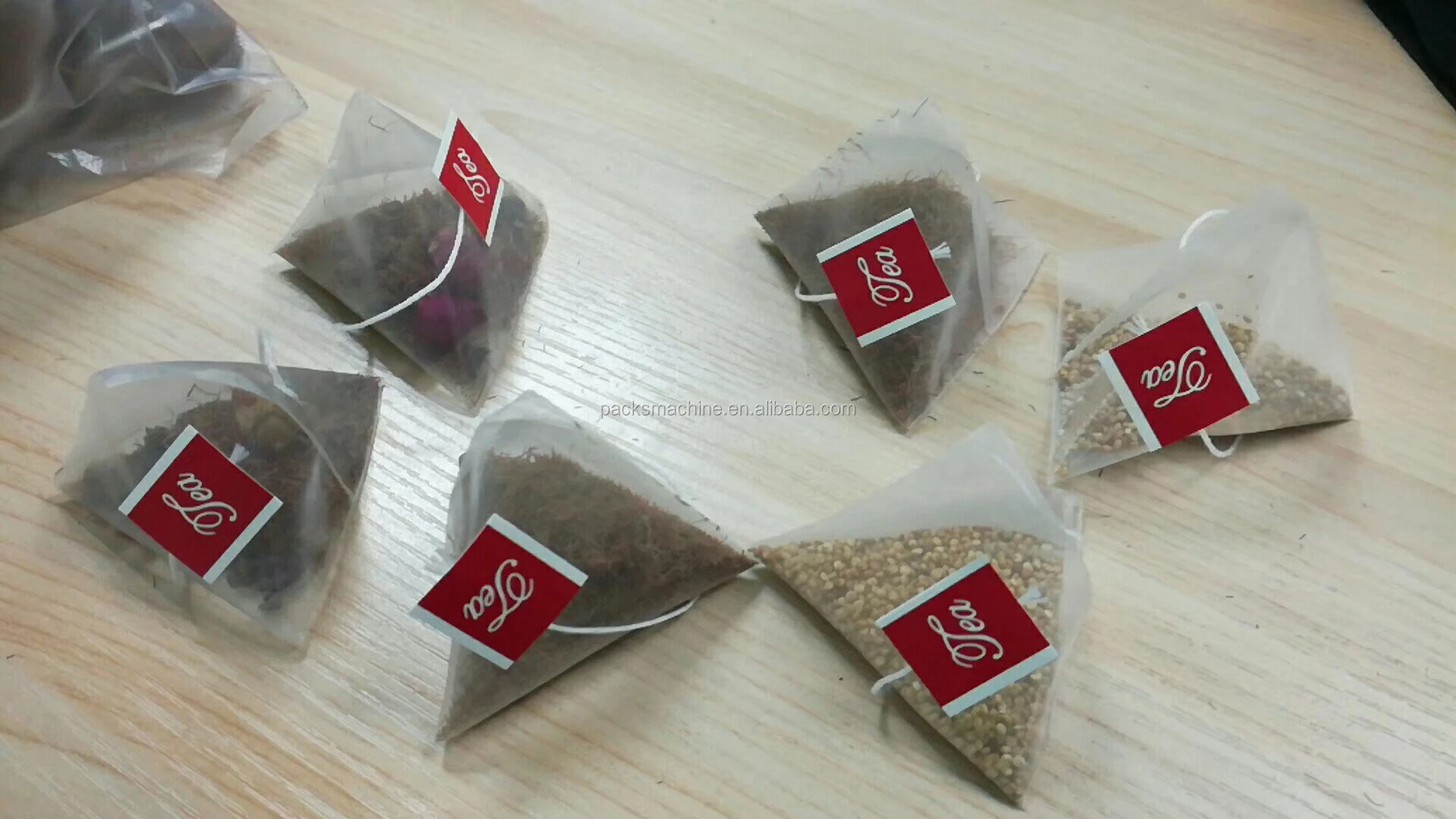

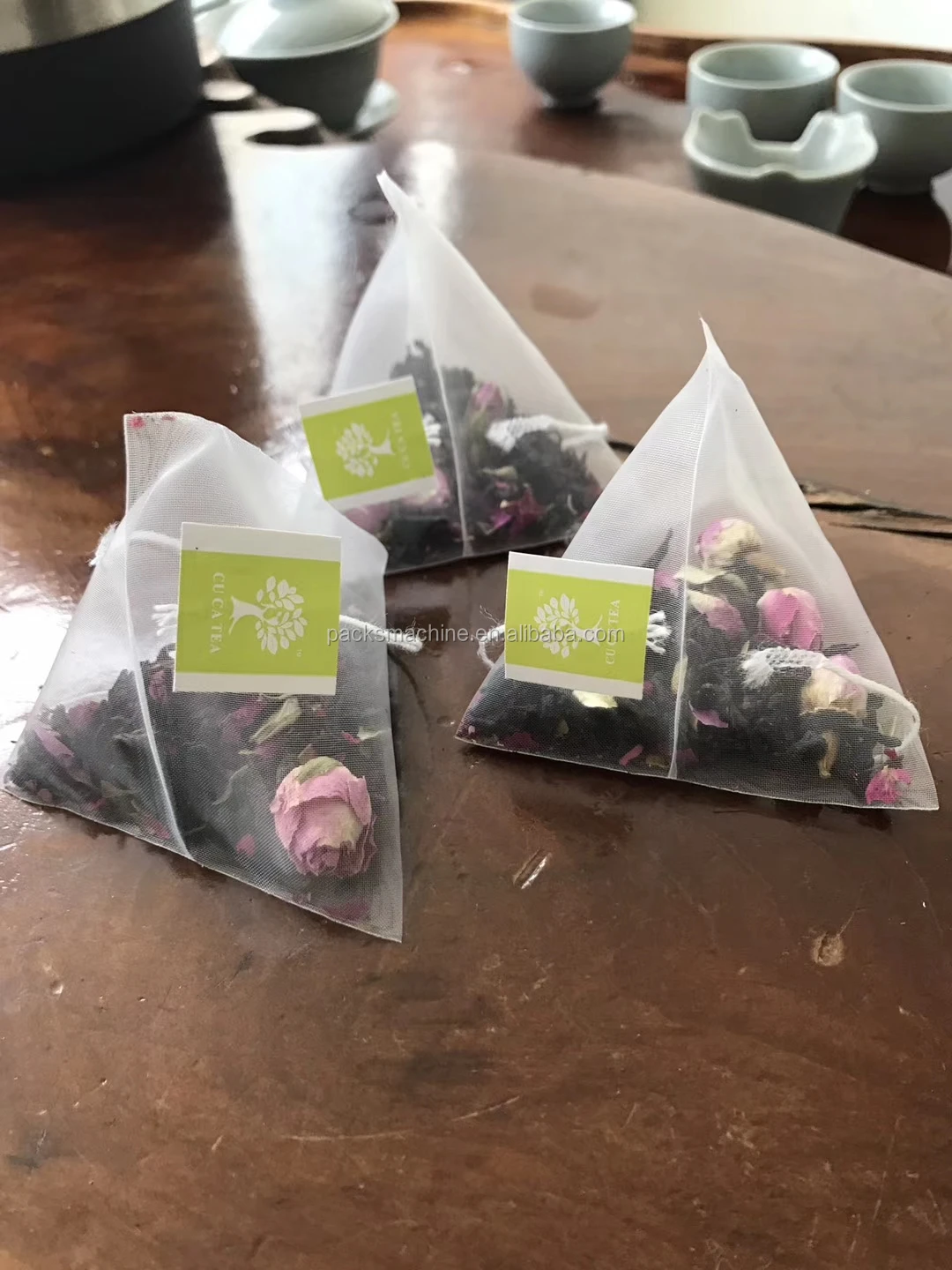

Inner tea bag shape	Triangle pyramid shape tea bag, flat rectangular tea bag optional
Inner bag filling range	2-10ml
Capacity	40-80bags/min
Packing material	Inner bag: Nylon, non woven fabric, PLA mesh, or PET mesh etc; Outer bag: heat sealable composition material.
Air consumption	0.6Mpa, 0.4M3/min
Power	220V, 50/60Hz, 2.5Kw
Machine dimension	1100*900*1900mm for nylon tea bag filling machine
Machine weight:	650kg

Features:

- High efficiency, speed stable at 40-80bags/min, with best performance and stability;

- Electric scale weighing, accurate, and widely suitable for different products, both big and small size products.

- Ultrasound sealing for inner tea bag, envelop heat sealing, with good sealing effect.

- Pyramid / triangle shape tea bag and rectangular shape tea bag optional, and can be changed from touch screen, and the envelop can be 3 side sealing bag or pillow sealing bag.

- PLC control, servo motor driving, parameter change from color touch screen, inner and outer packaging connect by conveyor.

- High automation level and save labor cost, the machine able to finish all the work of tea bag making, tea electric scale weighing, tea filling, or outer envelop adding automatically.

- Auto counting function, able to know batch number.

- Machine construction according to CE regulation, it is quite safe.

- All the product contact part made from high quality stainless steel SUS304, this follow GMP standard, with

good sanitation, easy for cleaning;



Packaging and Shipping:





After Sales Service:

We provide promise 12 month warranty for this pyramid triangle shape bio-degradeable tea bag packing machine, if the machine get problem for machine bad quality, we provide free spare parts for replacement, and we will provide life long online guiding. We have our oversea service team able to provide on site service abroad.



FAQ:

1. What product do you mainly supply?

We manufacture packing and filling machines, the packaging machine widely used in tea packing business, food packing industry, medicine factory etc.

We deal with other related products also, like hydraulic cutting press, packing material etc, we have set up our purchase dept and able to find the most cost effective products in China.

We are keen to supply good quality Chinese products to our customers.



2. What is the delivery time?

Most of our packing machine products with production time 7-15 working days, and sometimes we have stock also, please contact our sales person to confirm the exact delivery time.



3. What country did you export before?

We have exported our products to over 30 different countries and region, include USA, Canada, Mexico, Australia, South Korea, India, Malaysia, Vietnam, Turkey, Egypt, UK, Netherlands and etc.



4. What is your payment term for business?

We usually handle with TT, this is most widely used term, quick and convenient. For certain area of the world, who have to handle LC for government currency reason, we also handle TT+LC term also, while we recommend the TT payment term.



5. What shall we do if we meet problem with your machines? do you have service center in my region?

Our packing machines on sale are mature after long time testing and debugging, so the machine very reliable with rare problem. Some adjusting problem if you meet, that can be solved online, our experienced engineer will give video guiding, this is most convenient and economic way.

We also have oversea service team able to service abroad.

Right now, we did not set service center abroad yet, for our products sold worldwide, it is not easy to satisfy every needs. While we are connecting with some retailers, and believe they can do the service work soon, this will help them to enlarge their sales.
