Product Overview
Description
4 axis cnc wood lathe turning machine

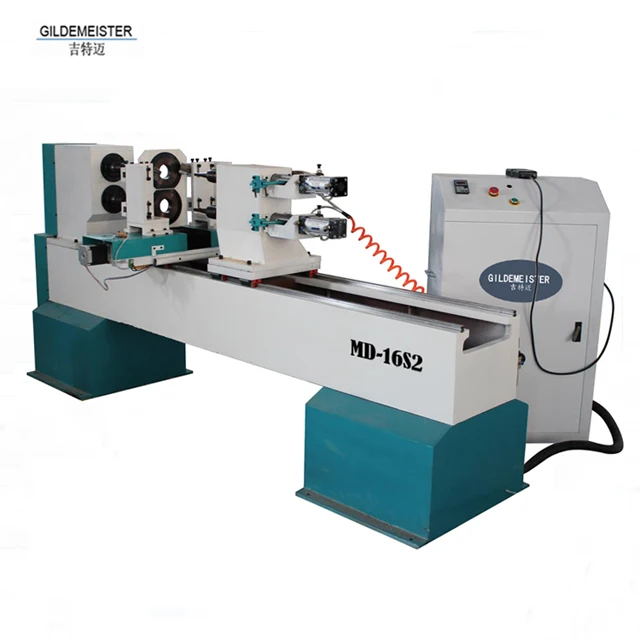

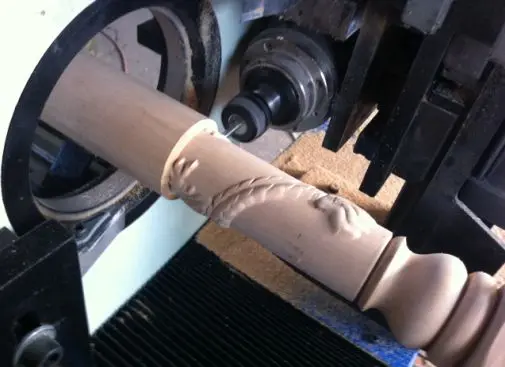

Gildemeister CNC Automatic wooden cnc lathe machine is one type of CNC Lathe Machine which is mainly used to do 3D carving and engraving or wooden log. This model MD-16S2 is equipped with double head with 4 pcs cutters symmetrically to ensure machine stability during high speed turning. The Superhard Cutter could remove the wood quickly into different shape according to work request.Meanwhile, Automatic wooden cnc lathe machine also equipped with carving spindle at side for 3D engraving job. Machine could be built with 3 axis or 4 axis controller.The advantage of Automatic wooden cnc lathe machinecompare to normal CNC Router machine is that the cutter used has more shape and wide cutting edges to make the cutting work more fast and efficient.
Specification:
Product name | 4 axis cnc wood lathe turning machine |
Working size | φ300X1500mm |
Structure | Cast steel |
Max milling diameter | 300mm |
Max milling length | 1500mm |
Holding mode | Pneumatic |
Controller | DSP |
Major motor | 5.5Kw |
Carving spindle | 3.5Kw |
Motor speed | 3000RPM |
Spindle speed | 24000RPM |
Ball screw | Taiwan |
Guide rails | Taiwan |
Inverter | Chinese Best |
Voltage | AC 380V/50HZ |
Weight | 1500Kg |
Dimension | 3200X1550X1250mm |
Configuration:
Features:
1.0 Cast steel structure ensure machine's stability during high speed peeling and carving work.

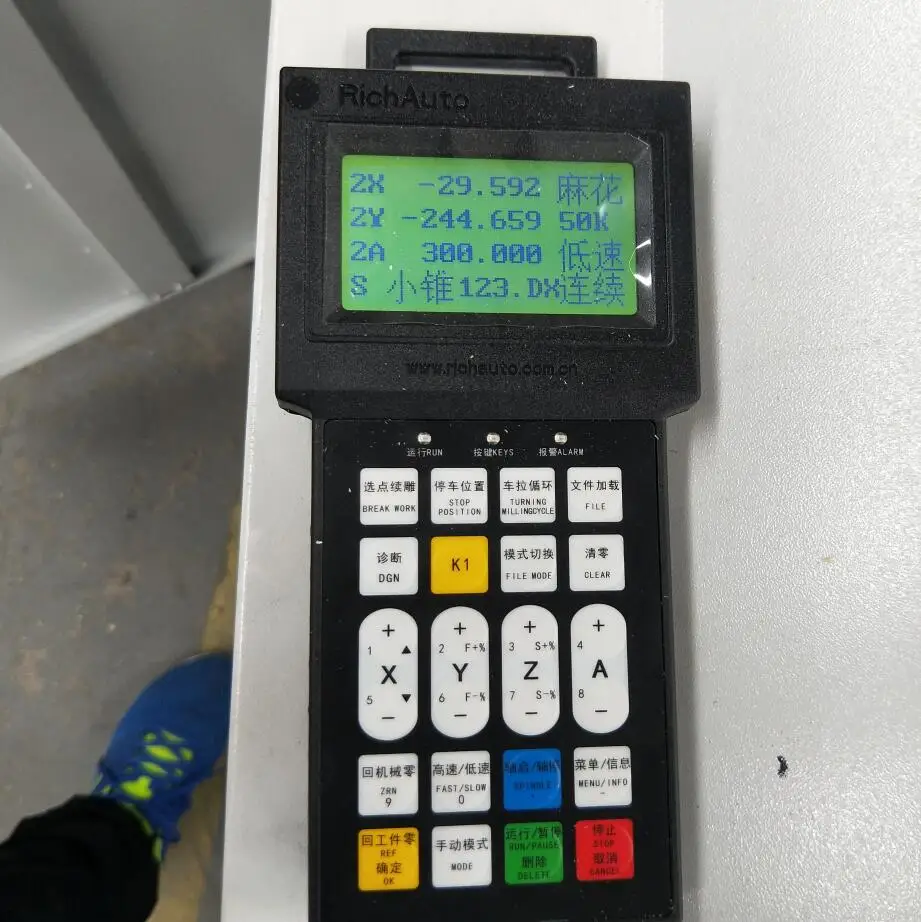

2.0 DSP or PC based control system ,CAD design for programming ,easy to learn and operate.
3.0 Taiwan Hiwin Square orbits ,high accurate ball screws ensure precisely feeding.
4.0 High speed stepper motors and pneumatic holding device ,fast speed and easy for loading.
5.0 Log protection encircle device ,protect operator from harming.
6.0 4-5.5Kw 3 phase asynchronous motor give log turning enough power.
Applications:

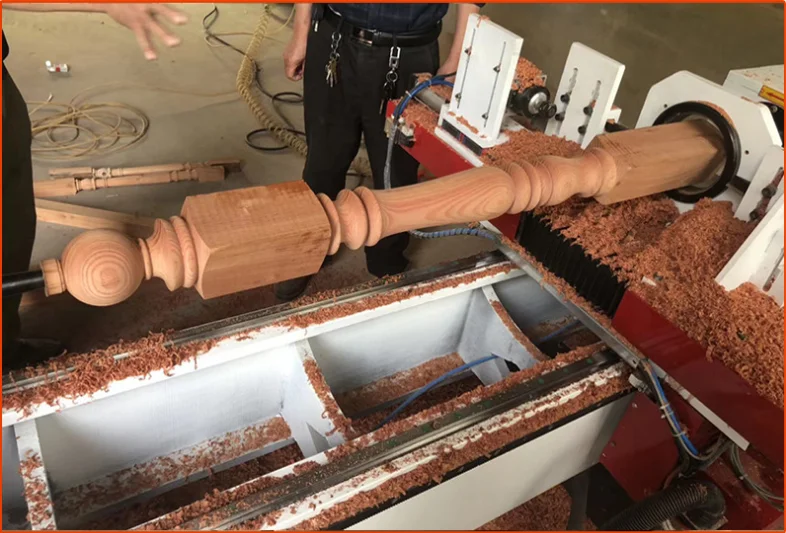

Gildemeister 4 axis CNC Wood Lathe Machine MD-30S1 is mainly used for the stairs posts, chair legs, roman columns ,wooden barrel,wooden hanger, Cylinder, conical, curved revolve bodes.
1.0 Cast steel structure ensure machine's stability during high speed peeling and carving work.
2.0 DSP or PC based control system ,CAD design for programming ,easy to learn and operate.
3.0 Taiwan Hiwin Square orbits ,high accurate ball screws ensure precisely feeding.
4.0 High speed stepper motors and pneumatic holding device ,fast speed and easy for loading.
5.0 Log protection encircle device ,protect operator from harming.
6.0 4-5.5Kw 3 phase asynchronous motor give log turning enough power.
Applications:
Gildemeister 4 axis CNC Wood Lathe Machine MD-30S1 is mainly used for the stairs posts, chair legs, roman columns ,wooden barrel,wooden hanger, Cylinder, conical, curved revolve bodes.
