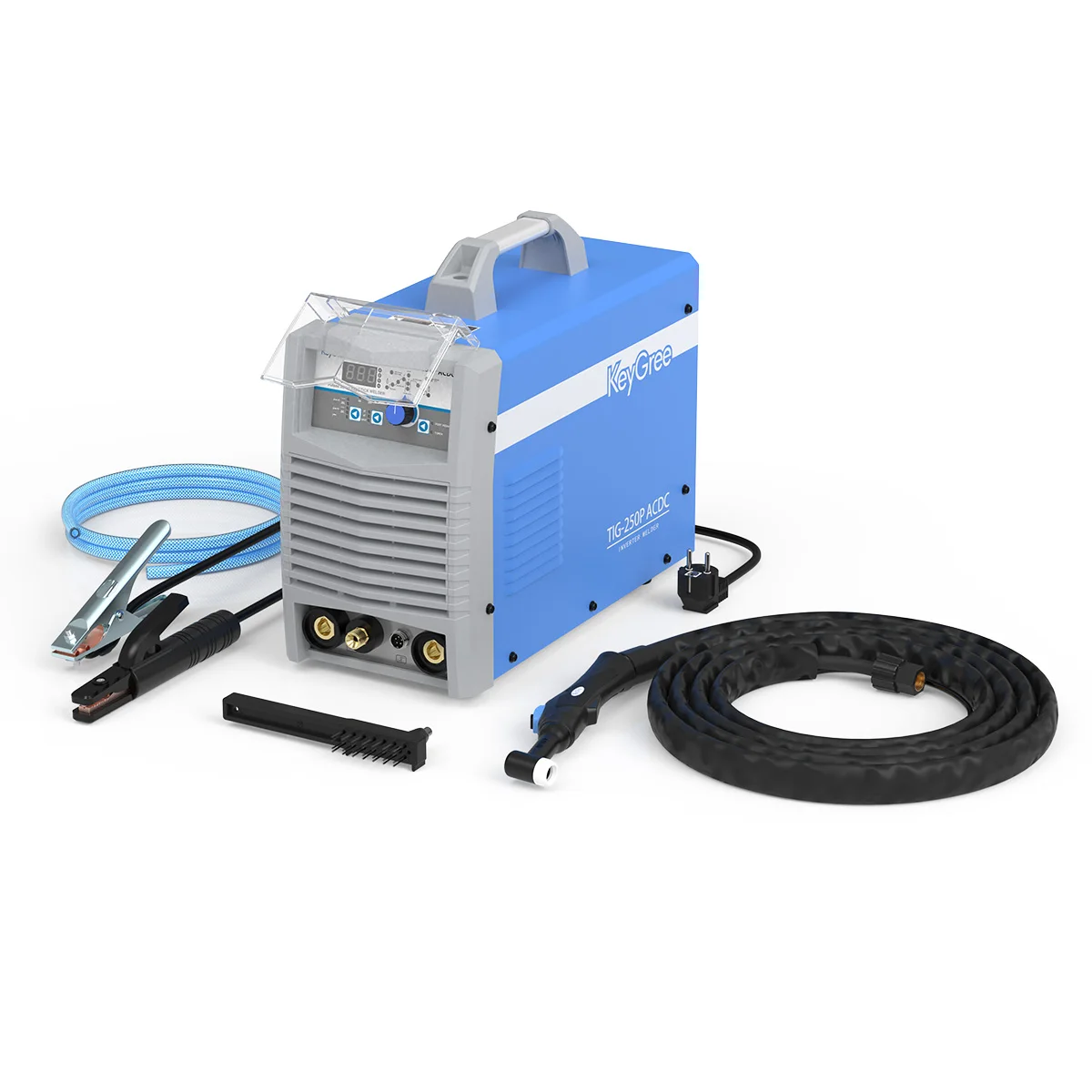

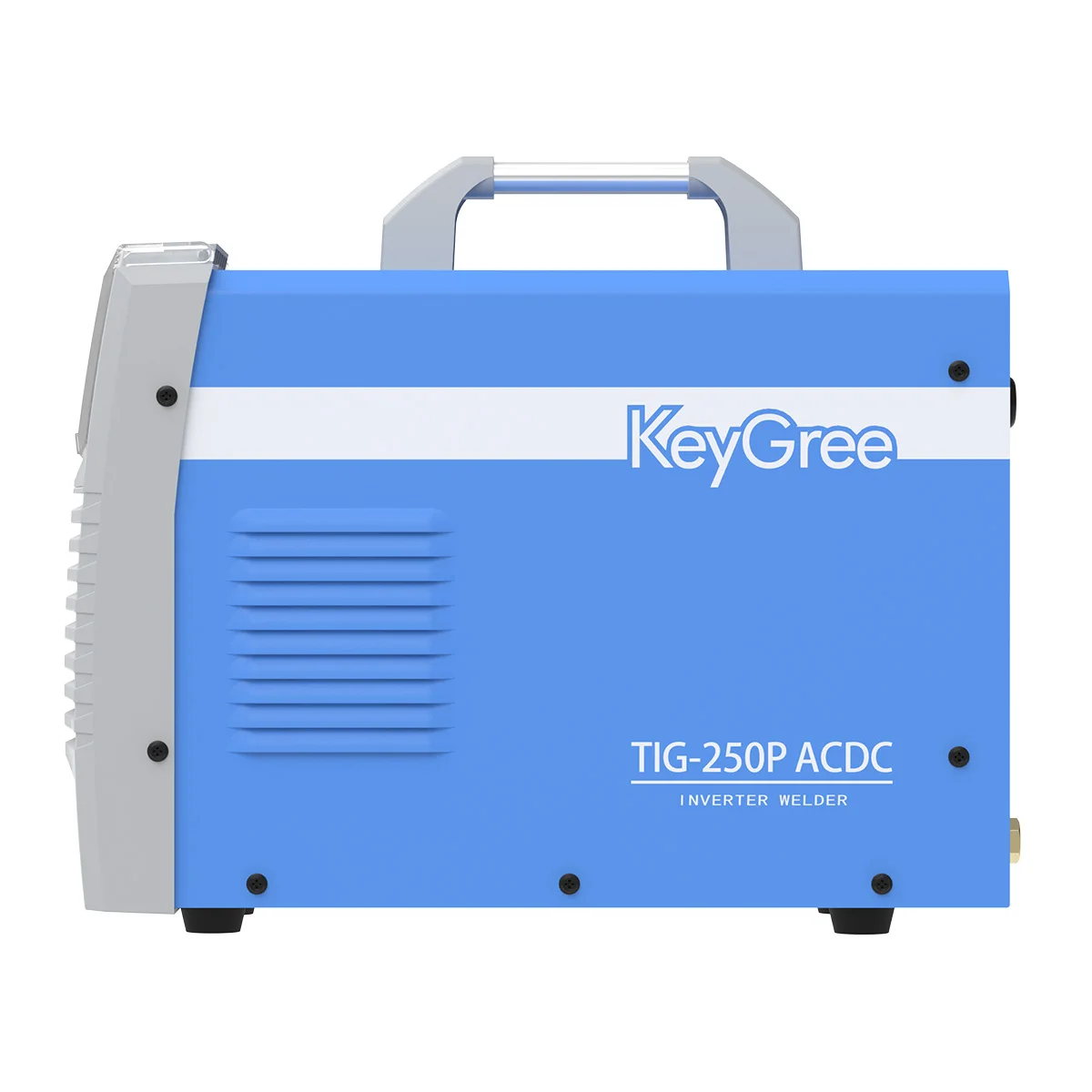

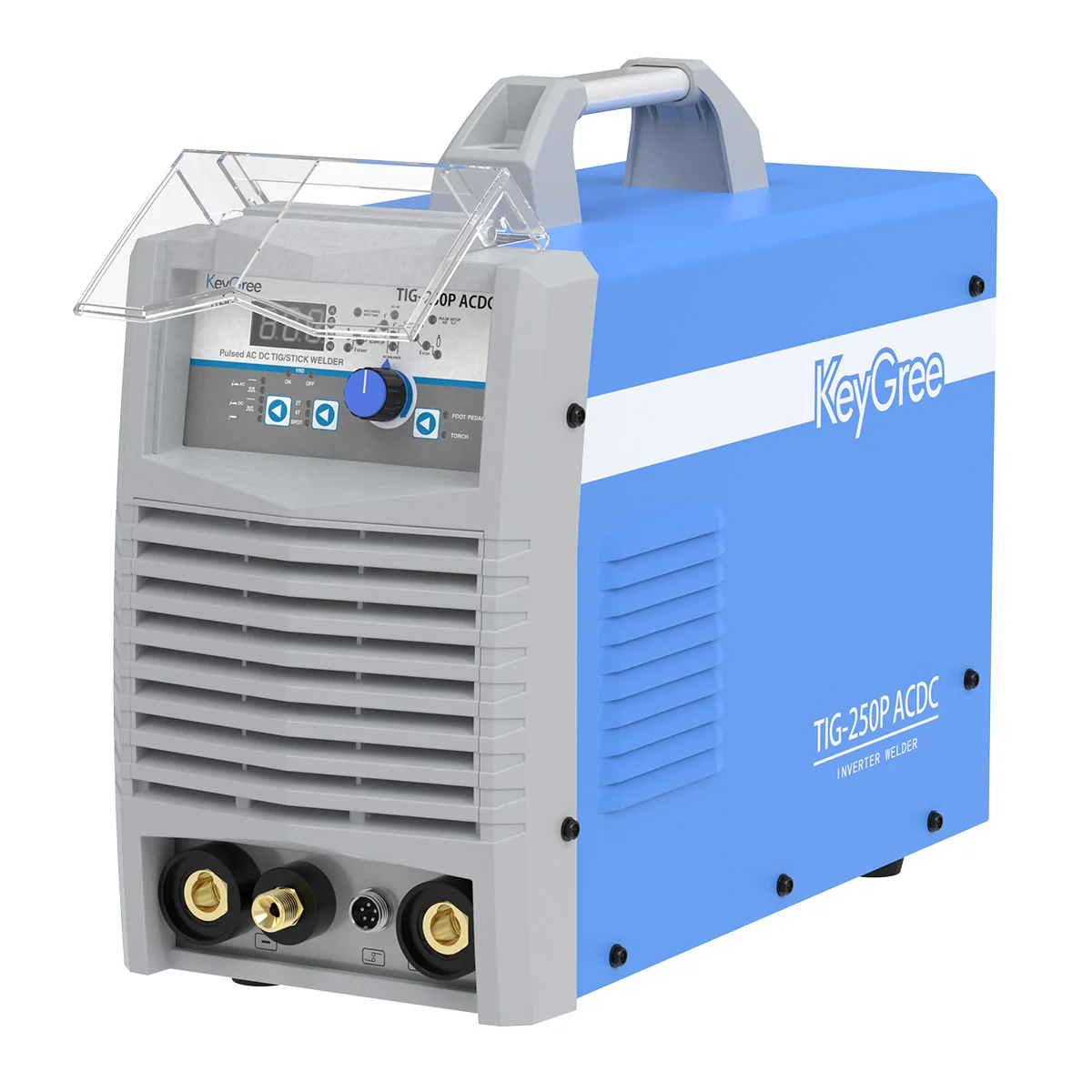

KEYGREE TIG 250PACDC weld aluminum pulse welding machine
- Category: >>>
- Supplier: Chengdu Keygree Technology Co. Ltd.
Share on (1600340949966):
Product Overview
Description
Products Description
TIG-250P ACDC
●Software Controlled Square Wave AC/DC TIG inverter welder
●Digital set of Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas
●Time with the choice of 2T or 4T trigger function allows control of the welding process at a professional level from start to finish.
●Unique air channel design increases the heat dissipation of the power device, control circuits, minimizes dust absorption, thereby greatly improving longevity and reliability.
●Digital set of Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas
●Time with the choice of 2T or 4T trigger function allows control of the welding process at a professional level from start to finish.
●Unique air channel design increases the heat dissipation of the power device, control circuits, minimizes dust absorption, thereby greatly improving longevity and reliability.

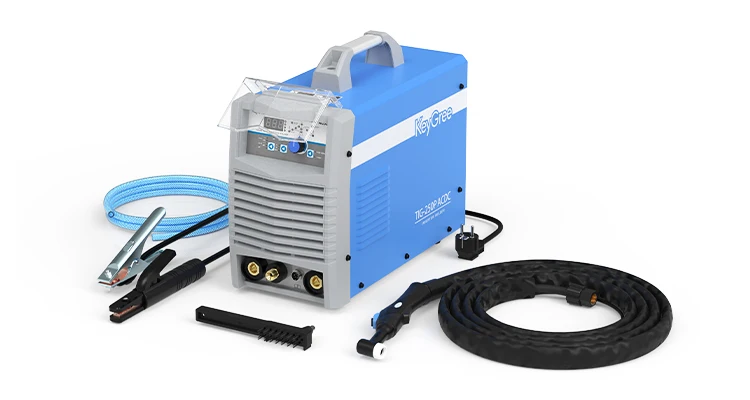

Accessories:
(2) Earth cable with 1.2m
(3) Welding cable with 1.8m
(4) WP-26 Torch with 4m
Instruction

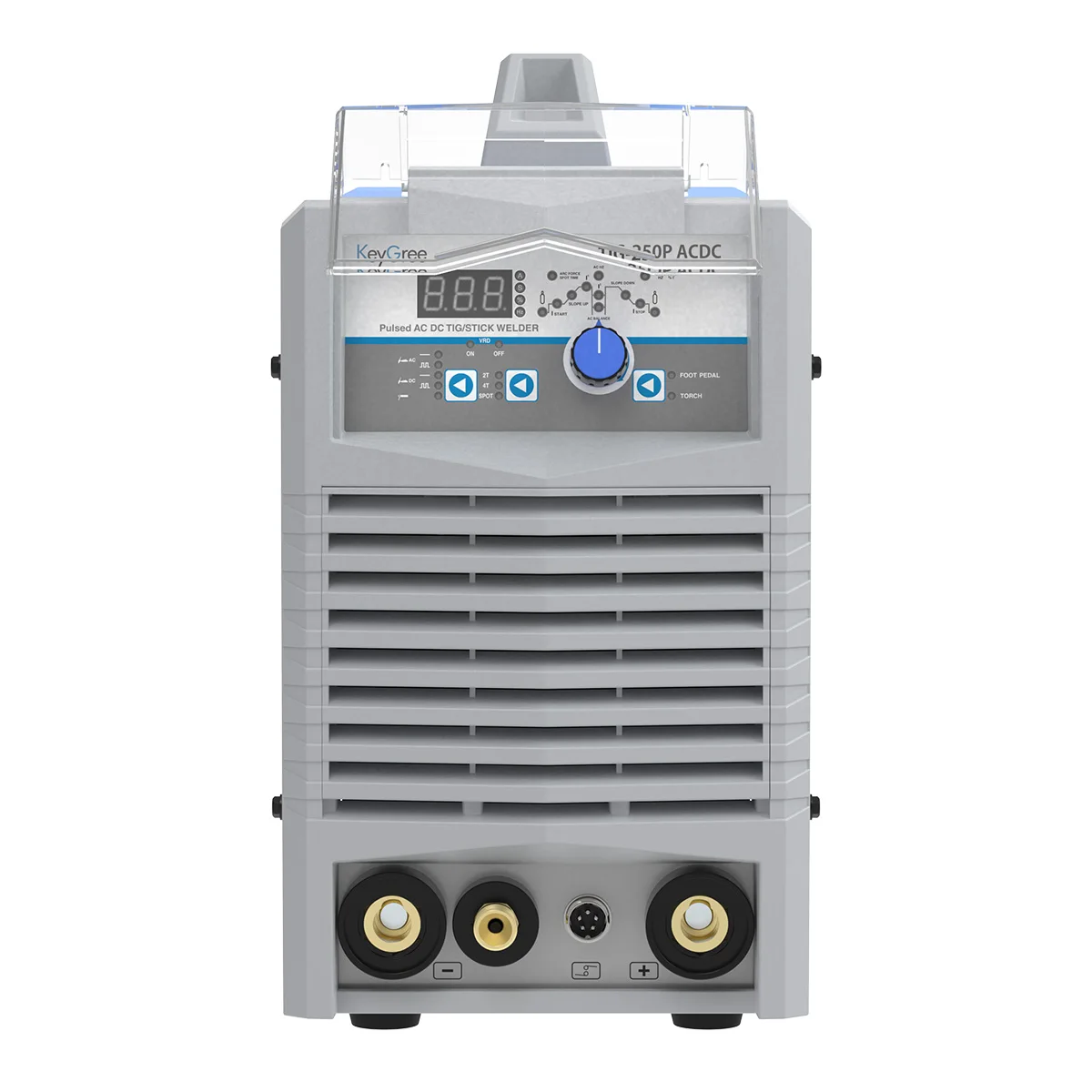

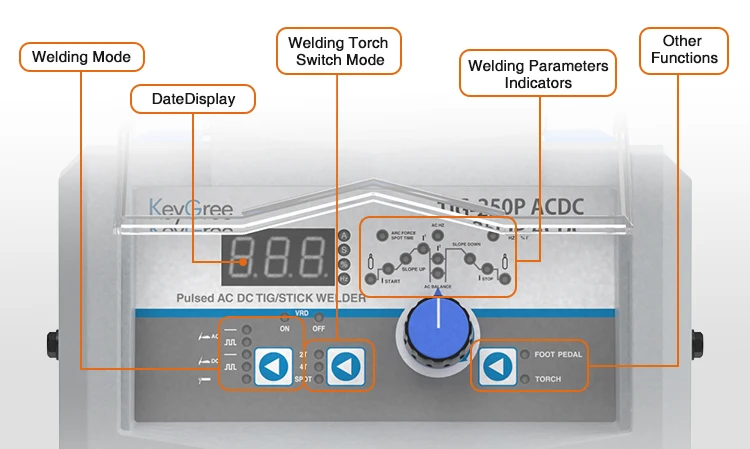

Detail Introduction

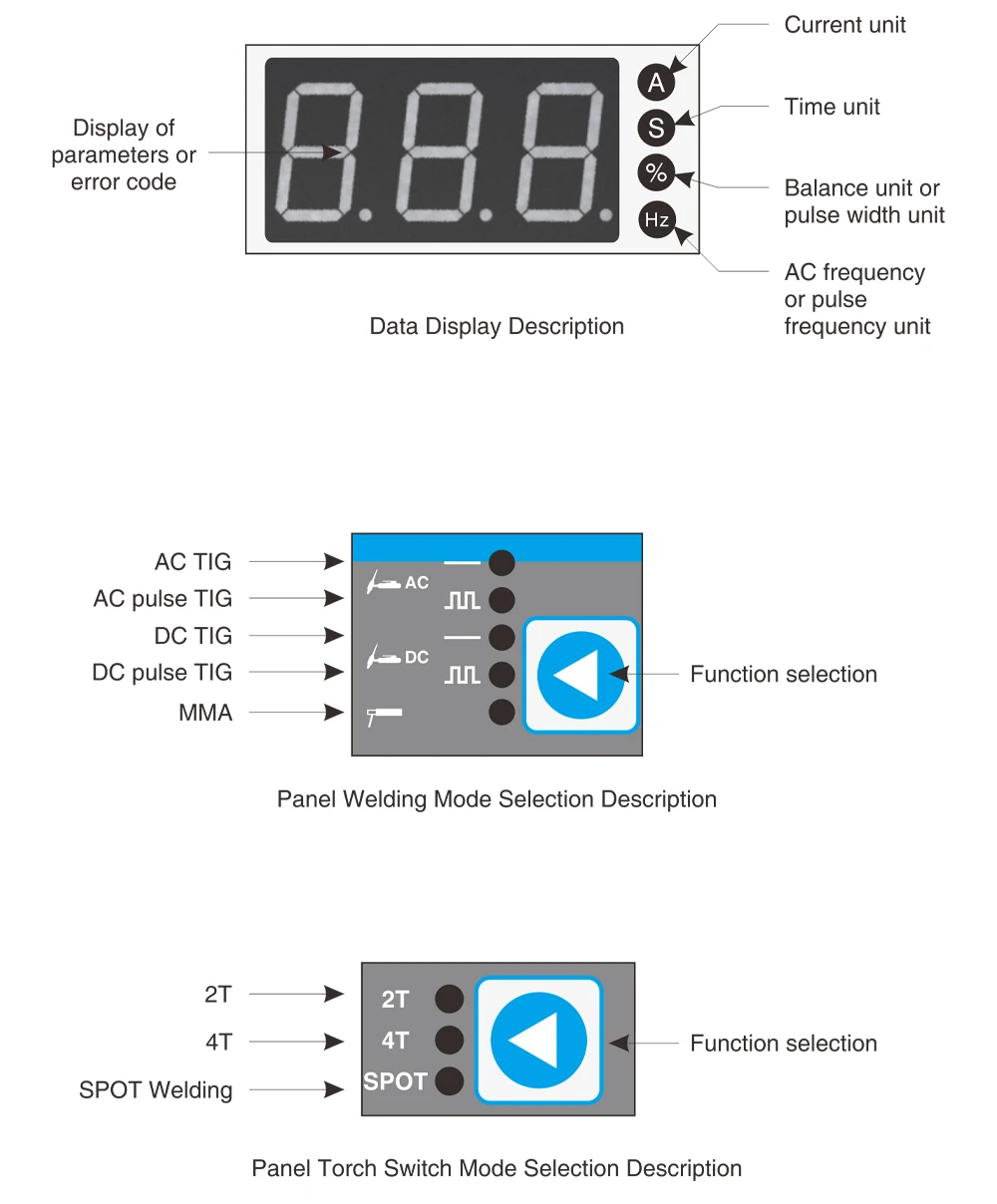

●Date Display：Display of parameters or error code
(Current unit, Time unit, Balance unit or pulse width unit, AC frequency or pulse frequency unit)
●Welding Mode：Push to select welding function
(AC TIG, AC pulse TIG, DC TIG, DC pulse TIG, MMA)

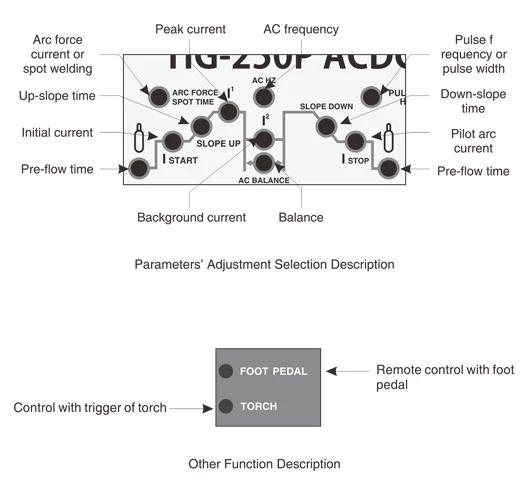

●Welding Torch Switch Mode: This mode is on the premise that entering remote control mode through torch switch control
(Pre-flow time,initial current,up-slope time,Arc force current or spot weld, peak current,AC frequency,
balance,Background current, Pulse frequency or pulse width,down-slope time,pilot arc current,pre-flow time)
●Other Functions: Remote control or local, Electrodes selection, Unmatched Tungsten electrodes
Main Technical Parameter
Model | TIG-250P ACDC | ||||
Supply voltage(VAC) | Single phase AC220V±10% | ||||
Input frequency(Hz) | 50/60Hz | ||||
Rared input peak current(A) | 30A | ||||
Power capacity(KVA) | 6KVA | ||||
Rated output current(A) | MMA | 200A | |||
TIG | 250A | ||||
Output current range | MMA | 10~200A | |||
TIG | 5~250A | ||||
Arc force current range | 0~50 | ||||
Spot welding time(S) | 0.5~10 | ||||
No load voltage | With VRD | 9V | |||
Without VRD | 56V | ||||
Pre-flow time(S） | 0.1~10 | ||||
Up-slope time(S) | 0~10 | ||||
Initial current(A) | 5~200 | ||||
AC output frequency(Hz) | 20~250 | ||||
Balance(%) | 15~85 | ||||
Down-slope time(S) | 0~15 | ||||
Post-flow time(S) | 0.5~15 | ||||
Background current(A） | 5~250 | ||||
pulse frequency(Hz) | 0.2~200 | ||||
Pulse width(%) | 0.2Hz~9.9Hz | 1~99 | |||
10Hz~200Hz | 10~90 | ||||
Remote control | YES | ||||
Arc start | HF Start | ||||
Efficiency(%) | 85 | ||||
Duty cycle(%) | 60% | ||||
Power factor | 0.7 | ||||
Insulation grade | F | ||||
Enclosure protection class | IP21S | ||||
