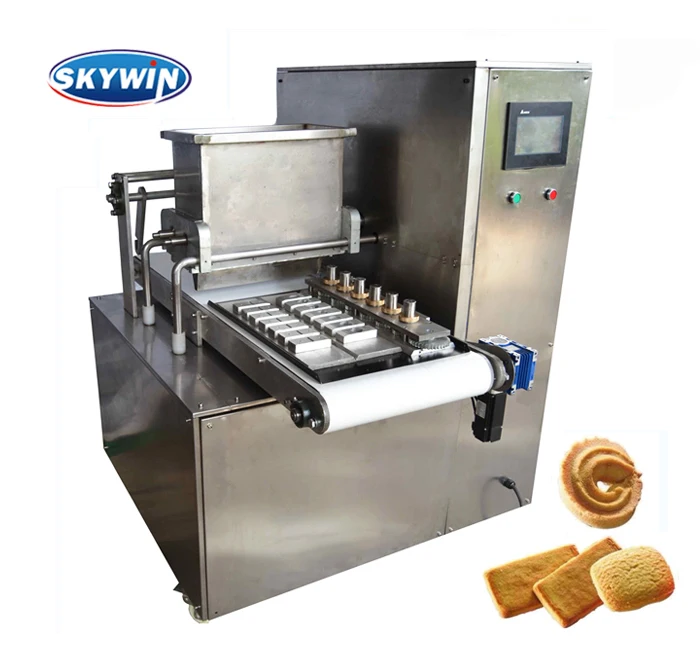

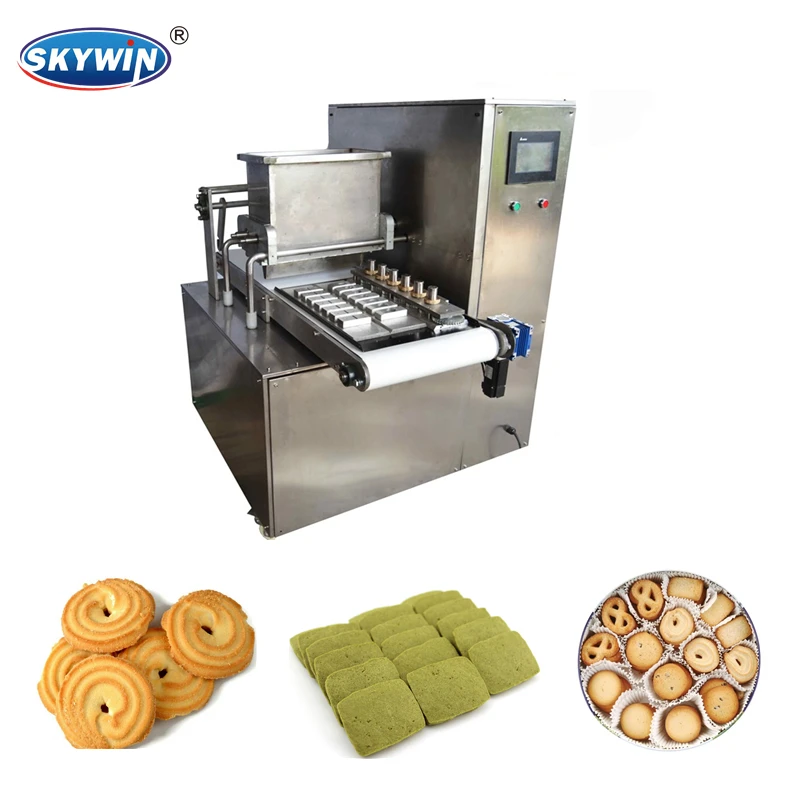

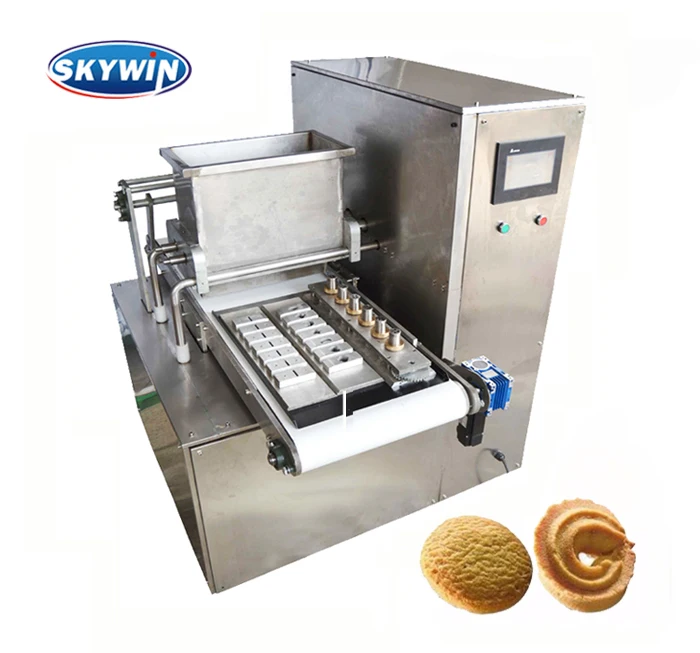

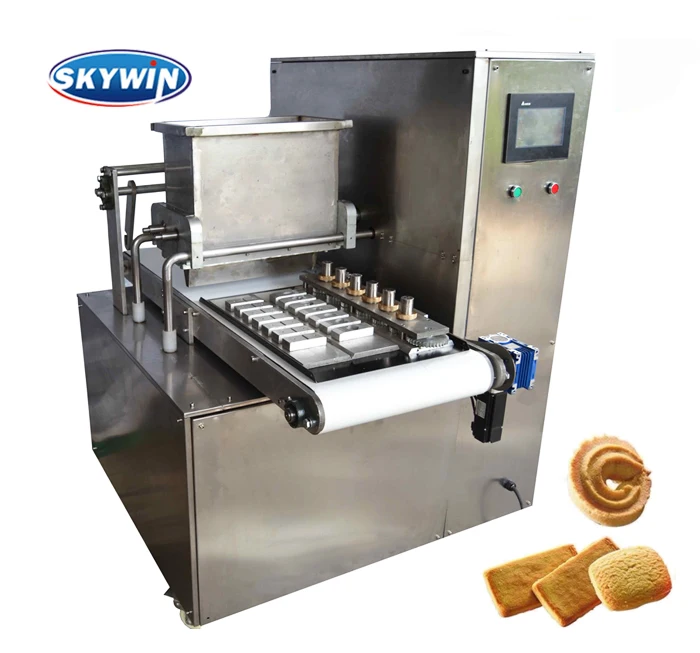

SKYWIN New small table type french cookie machine PLC system control macaron cookie making maker machine for sale

Small mini Cookie machine can produce wire cut cookie ,deposit cookie ,double color cookie ,different shape just need to change the mould ,we also can design depend on your require
It is made by stainless steel , save place,save labor ,easy to operation ,high quality ,reasonable price to win customer reply and reputation ,we sale oversea
For tray type , baked by rotary oven or tunnel oven , tray size :400*600mm
The PLC control cookie machine can produce one color or double color cookie

400MM Tray Type Cookies Forming machine
To fixed tray size 400mm wide x 600mm long
430 Stainless steel Cover, thickness 1.5mm
Rubber roll diameter 122mm(endless cotton belt driver)
PVC conveyor belt, thickness 2mm
Feeding roll diameter 106mm, with groove,Aluminum casting roller
Speed about 60 times/min, frequency conversion controlled
Both wire cut and deposit
Normally the nozzle is 7pcs (400MM)
Extrusion/depositor about 30 stroke one minute
Cutter about 40 stroke one minute
Provided two sets of cookies moulds,
one set wire cut and one set of deposit
Chinese brand electric parts Chinese brand motor & gearbox
Voltage: 380V/220V/50Hz Power 1.5kw
Machine dimension: 1330*900*1340mm Weight: 450kgs

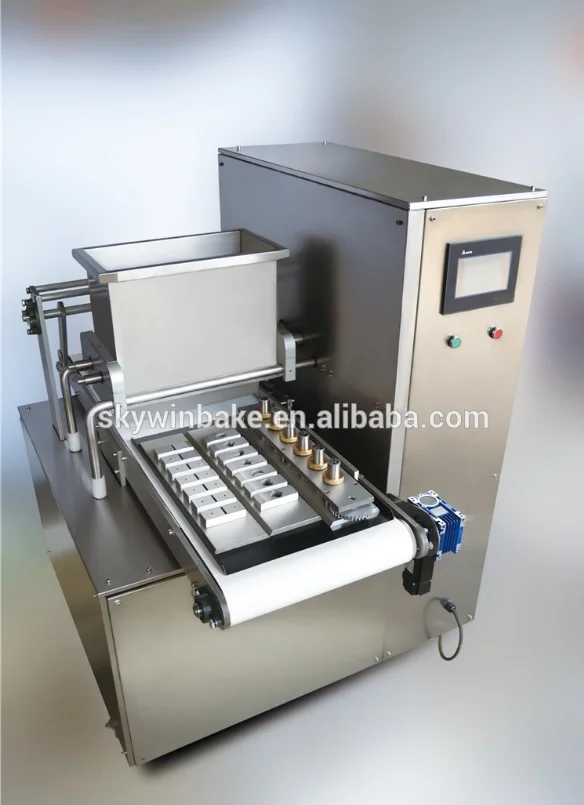

PLC control 400 small mini cookie machine

Adopt oversea technology ,PLC control system ,liquid crystal display , have 20 groups memory function .machine structure and accessories material accord with foodstuff machine standard .This machine is suit for filling many oil cookie ,sponge cake .save much labor ,ensure food quality safe ,suit for mass production .

Have deposit and wire cut function
PU conveyor belt thicknees:1.4mm, RV reducer
high transmission efficiency ,low noise ,work stable
Servo motor is by Chinese famouse brand ,low noise
high efficiency ,long service life
Conveyor drive roll is Nilon rubber ,
PU belt material is non-poisonous oil resistance
Conveyer belt support plate is 201 stainless steel
Touch screen control ,electric component is Schneider or Chint
Capacity ;80-100kg/h
Two sets mould are free, one set for wire cutting
and one set for deposit
Machine working width :400mm ,tray size:600*400mm
Produce speed:0-45 times/min Dimension :1450*1350*1050mm weight:390kg Power:2.3kw Voltage :as per customer country
