Производитель, высокое качество, многоцелевое полотно пилы для резки древесины, пила для резки твердой древесины
- Category: Wood Saw Machines >>>
- Supplier: Qingdao Hongshenghong Machinery Co. Ltd.
Share on (1600340997684):
Product Overview
Description

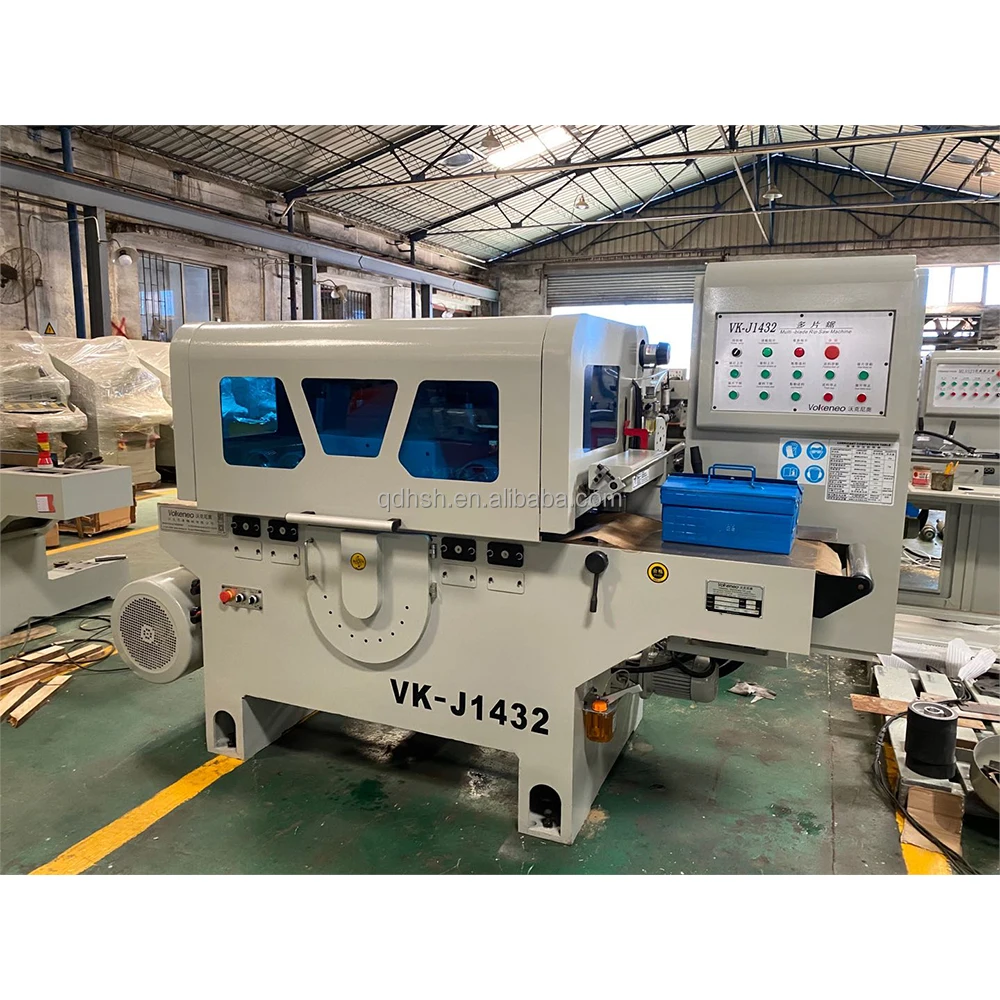

Multi-blade Rip Saw Machine
Product Paramenters
Specification | VK-J1432 |
Name | Multi-blade Rip Saw Machine |
Cutting thickness | 10~100mm |
Max. Cutting Width | 320mm |
Min. Working length | 360/250mm |
Spindle Dia | Φ70mm |
Spindle saw Dia. | Φ305~Φ355*Φ70mm |
Spindle speed | 3600r/min |
Feeding speed | 3~18m/min |
Total motor power | 34.5kW |
Spindle motor power | 30kW |
Feeding motor power | 4kW |
Pressure roller lifting motor power | 0.75kW*4 |
Saw shaft lifting motor power | 0.75kW*4 |
Voltage | 380V 50Hz 3 PHASES |
Dust outlet diameter | Φ150mm*2 |
Weight | 1800kg |
Dimension | 2700*1200*1700mm |

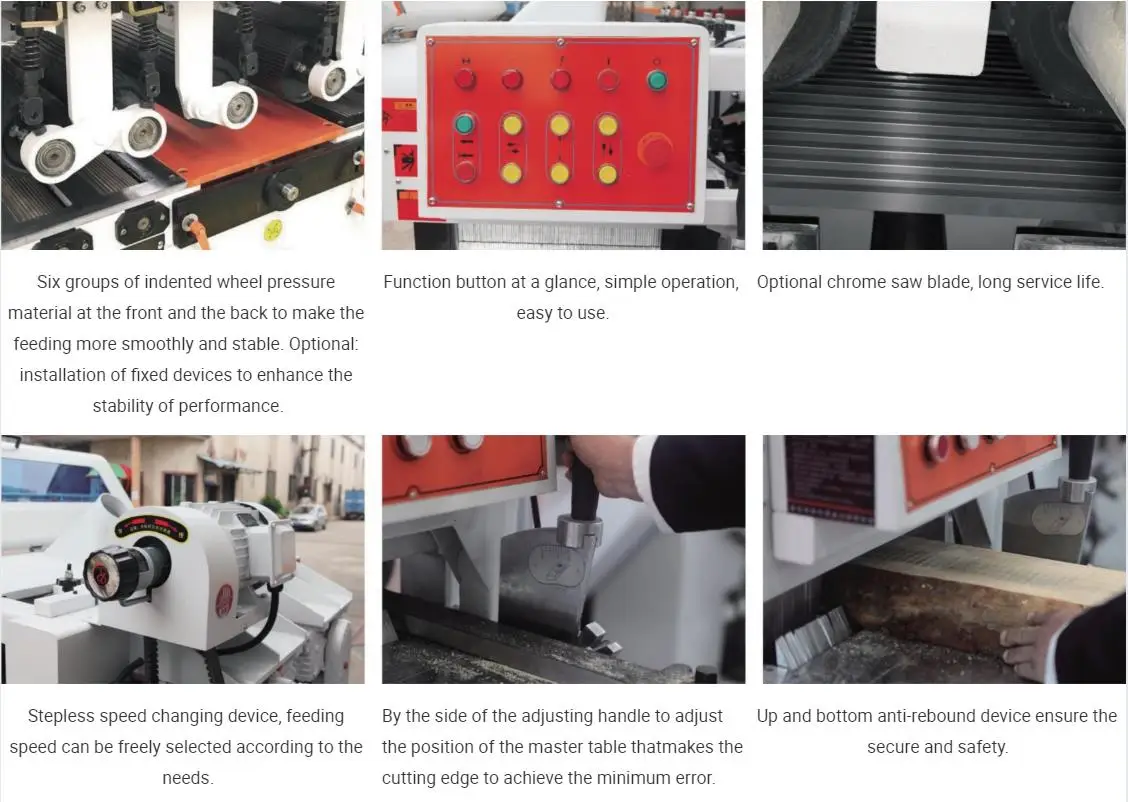

Product Configuration
Application
F= Fixed Saw blade M=Activity Saw blade. The legend shows only in many waysSeveral, the best combination of blades.
Similar Products

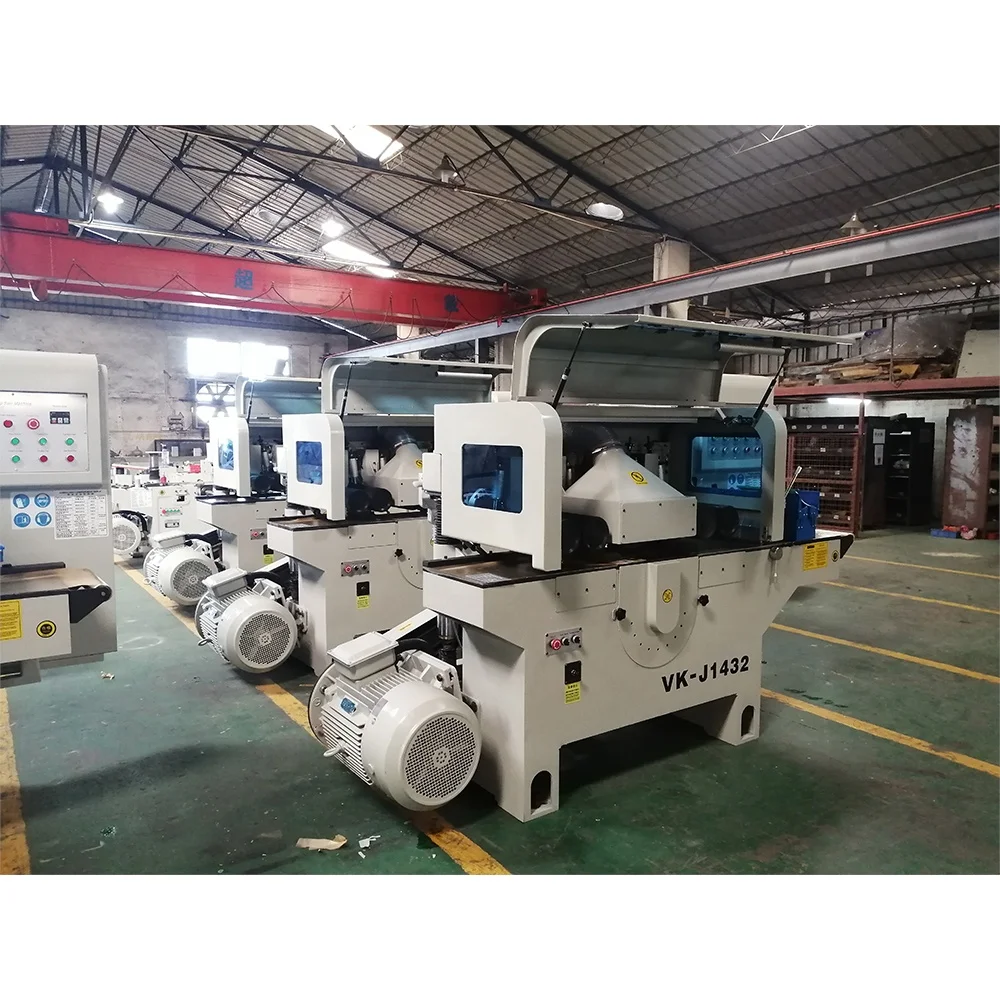

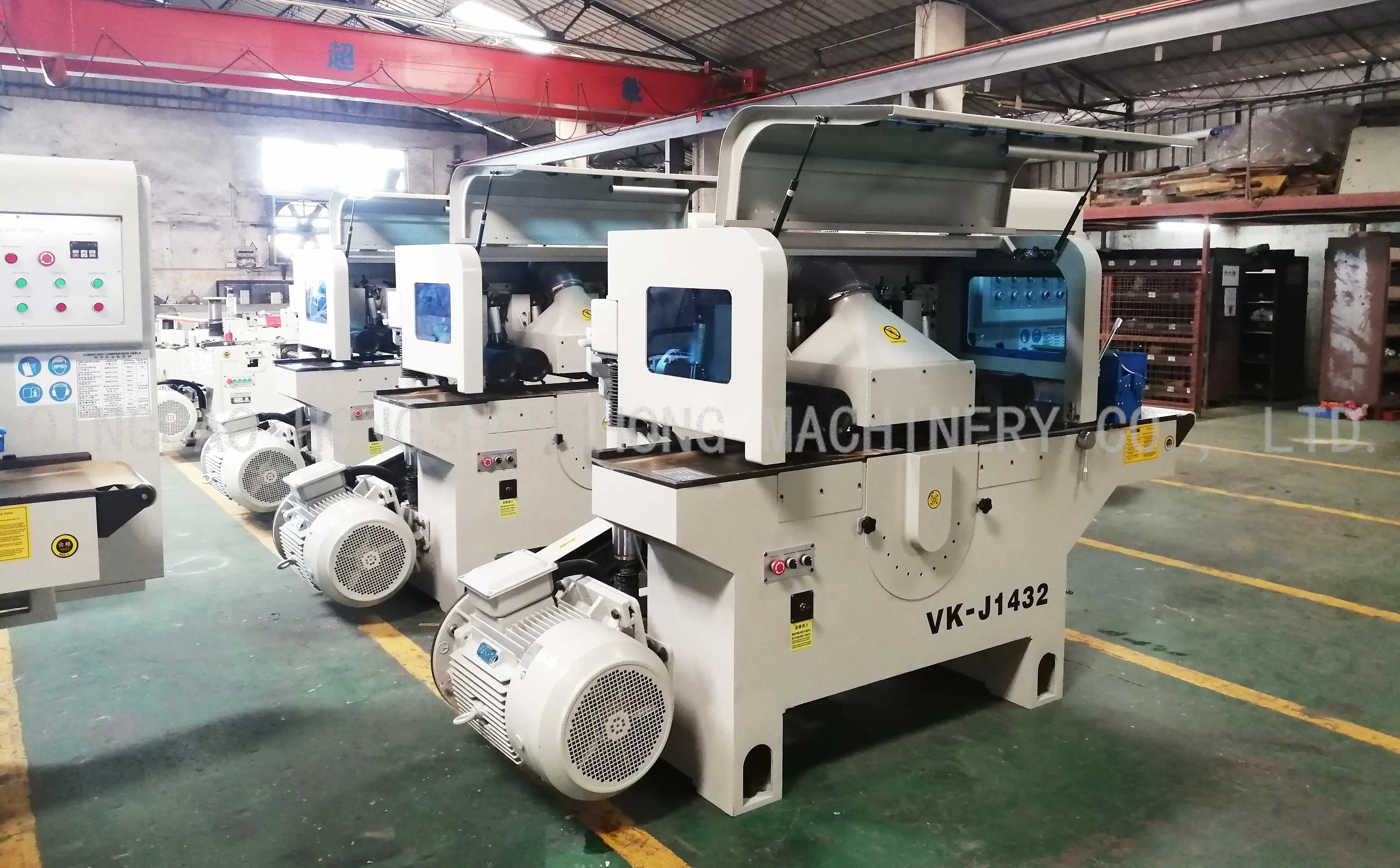

Workshop showing
After sale service
Pre-sale service.
(1) Provide the free consultation of equipment.
(2) Provide the standard device and the flow chart.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
Service during the sales.
(1) Inspect the machine before leaving the factory.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
After sale service.
(1) 24 hours online service.
(2) Provide the VIDEO with install and debug the equipment.
(2) Provide the VIDEO with install and debug the equipment.
(3) Provide technical exchanging.
