19‘’1u 220v AC 27.3A Single-phase 6-30kva 500map sts static transfer switch STS price
The single-phase STS static transfer switch with two-way input switch solution. Generally speaking one way input disconnected ,Another input connected and power to the load. When the power supply fails, the STS automatically disconnects the initial Input, and turns on the another her one , and the load is continuously to the power supply.
Product name | 19‘’1u 220v AC 27.3A Single-phase 6-30kva 500map sts static transfer switch STS price | ||||||
K1 | sts static transfer switch | ||||||
K2 | static transfer switch STS price | ||||||
K3 | static transfer switch STS | ||||||
Product Parameter
Customize Range：
Regard as the rack-mounted inverter, we can customize below range
220vac output design：
24vdc to 220vac, 1-5KVA
48vdc to 220vac, 1-6KVA, 8KVA. 10KVA
110vdc to 220vac, 1-6KVA. 8KVA. 10KVA
220vdc to 220vac, 1-6KVA, 8KVA, 10KVA
120vac output design：
24vdc to 120vac, 1-5KVA
48vdc to 120vac. 1-6KVA
110vdc to 120vac, 1-6KVA
All design 19 Inch 2U/4U rack mount, LCD+LED display, RS2328485 communication port, power factor 0.8
Regard as the rack-mounted inverter, we can customize below range
220vac output design：
24vdc to 220vac, 1-5KVA
48vdc to 220vac, 1-6KVA, 8KVA. 10KVA
110vdc to 220vac, 1-6KVA. 8KVA. 10KVA
220vdc to 220vac, 1-6KVA, 8KVA, 10KVA
120vac output design：
24vdc to 120vac, 1-5KVA
48vdc to 120vac. 1-6KVA
110vdc to 120vac, 1-6KVA
All design 19 Inch 2U/4U rack mount, LCD+LED display, RS2328485 communication port, power factor 0.8
Product Size | Rated Capacity | 6KVA | 10KVA | 15KVA | 20KVA | 30KVA | |||||
Size （W×H×D）(mm) | 19"1U | 19"3U | |||||||||
490*44*343 | 490*132*404 | ||||||||||
Switch Time | ≤4mS | ||||||||||
AC Input | Rated Voltage | 220VAC | |||||||||
Rated Voltage Range | 190~250VAC | ||||||||||
Rated frequency | 50HZ | ||||||||||
Valid working Voltage | 220Vac±12.5%,backlash±5V | ||||||||||
frequency | 50Hz±10%,backlash±0.2Hz | ||||||||||
Power off Voltage | ≤120Vac Or ≥260Vac,backlash±5V | ||||||||||
Power off frequency | ≤42.5Hz or ≥57.5Hz,Power off Voltage=±0.2Hz | ||||||||||
Overload capacity | Load current ＜105％, continue running Load current: ＞105％, 60mS power off | ||||||||||
Communication Interface | RS485 | ||||||||||
Environment | Insulation strength | 2KVac,1min | |||||||||
Noise (1m) | ＜45dB | ＜50dB | |||||||||
Working environment temperature | －10～50℃ | ||||||||||
Transportation and storage temperature | －40～70℃ | ||||||||||
Humidity | 0～90%, non condensing | ||||||||||
altitude（M） | ≤3000m,1500～3000m, Rise every 100m, 1% derated. | ||||||||||

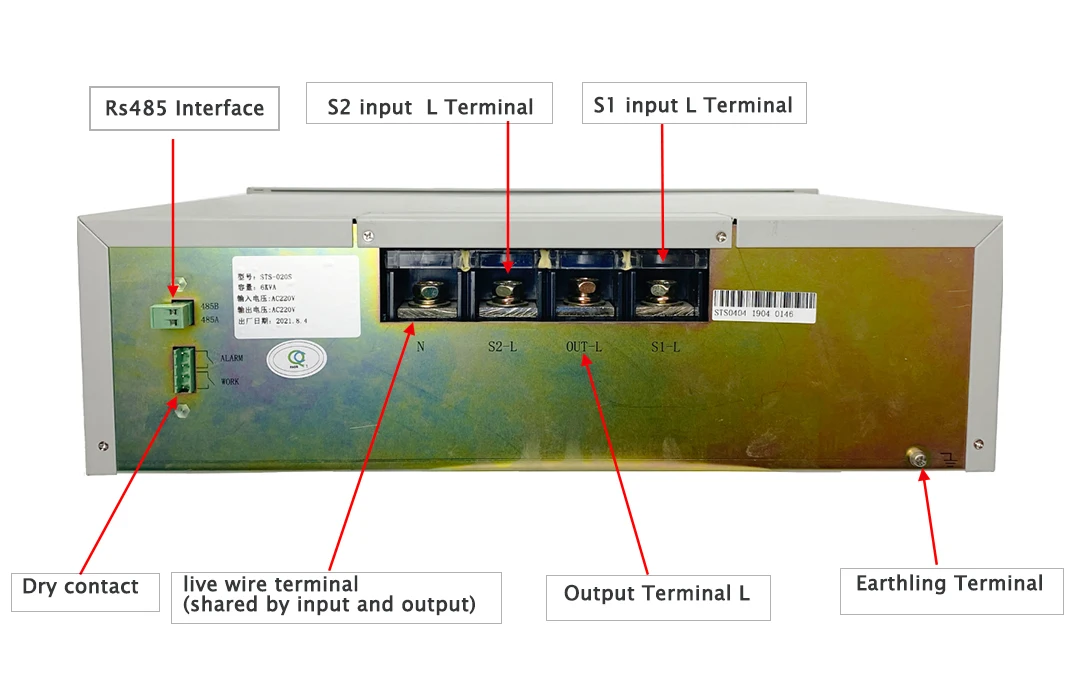

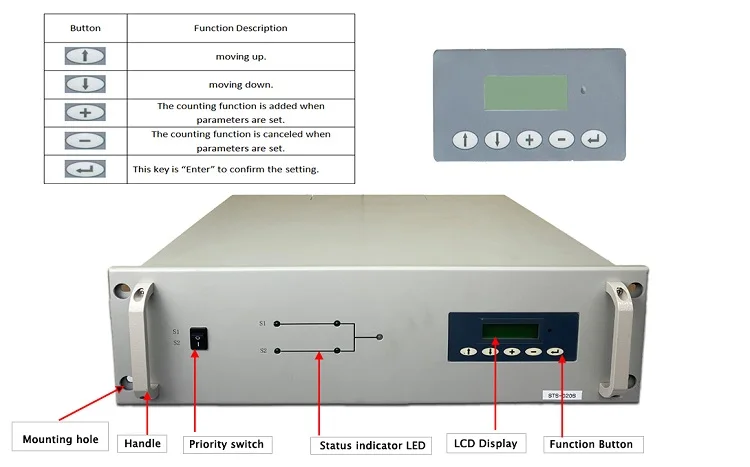

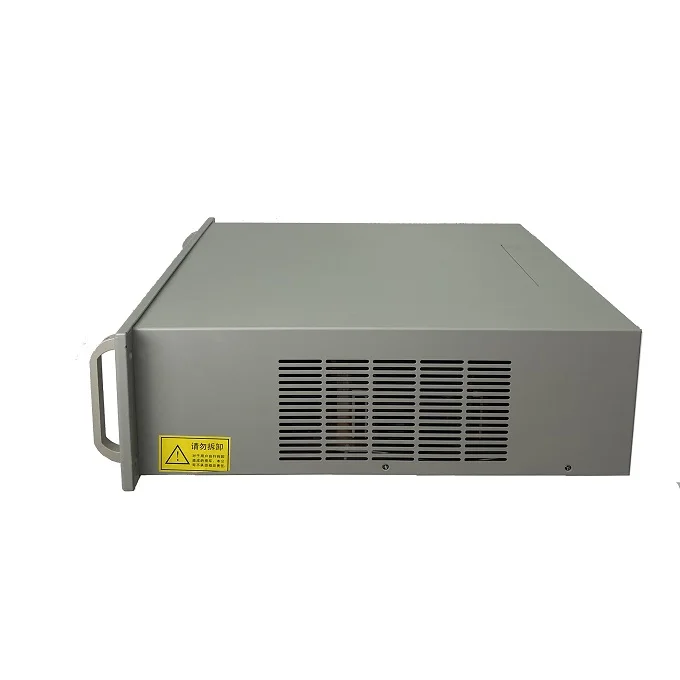

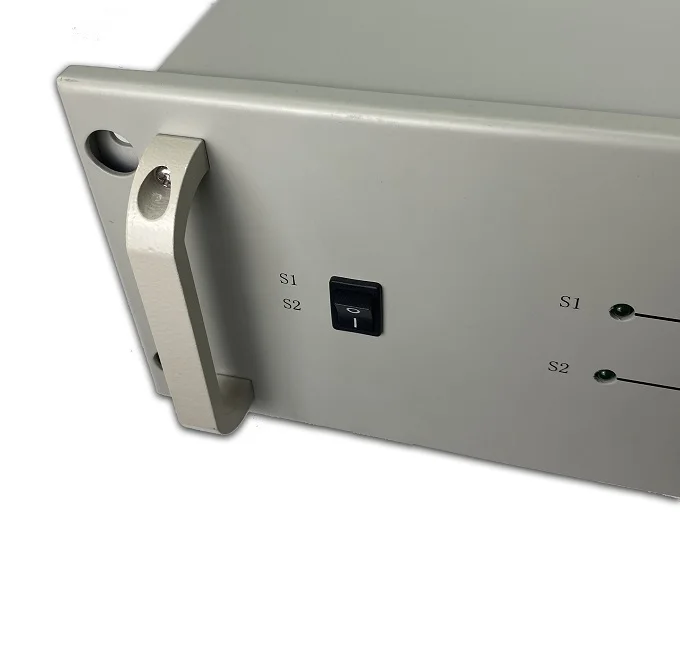

Details Images
