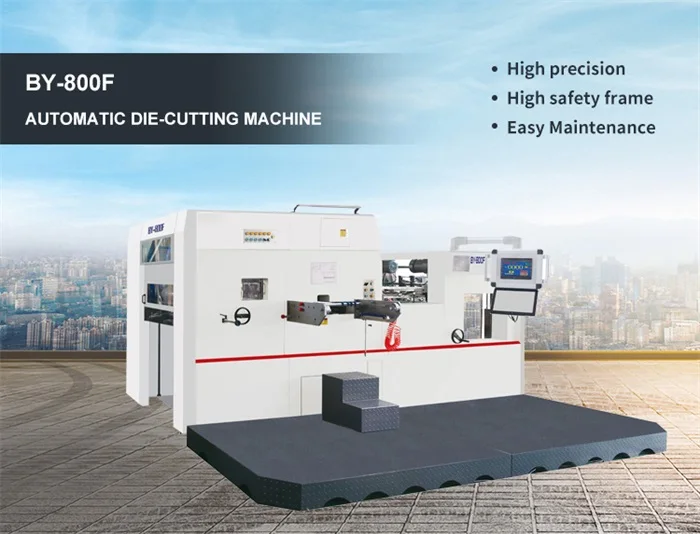

Lead edge Bottom Feeder new technology BY800F Automatic Hot foil stamping and Die cutting machine for cardboard flat
- Category: Paper Production Machinery >>>
- Supplier: Tangshan,Runying,International,Trade,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Max. sheet size | 800×620mm |
Min. sheet size | 340×250mm |
Max. die-cutting size | 790×610mm |
Max. stamping size(horizontal) | 790×600mm |
Heat setting rang | 0- 199 °C |
Max.foil roll Dimension | 120mm 1" core |
Power of heating plate | 5.4kw |
Max. Die-cutting speed | 8000 s/h |
Max. stamping speed | 6000s/h |
Thickness of sheet board | 0.1-1.5mm,E shape corrugated |
Die-cutting precision | ±0.1mm |
Number of heating zones | 3 |
Number of foil web drive shafts(horizontal) | 2 |
Main motor power | 7.5kw |
Total connected load | 30kw |
Weight | 9000kg |
Overall dimensions | 4300 x2200 x2250mm |
