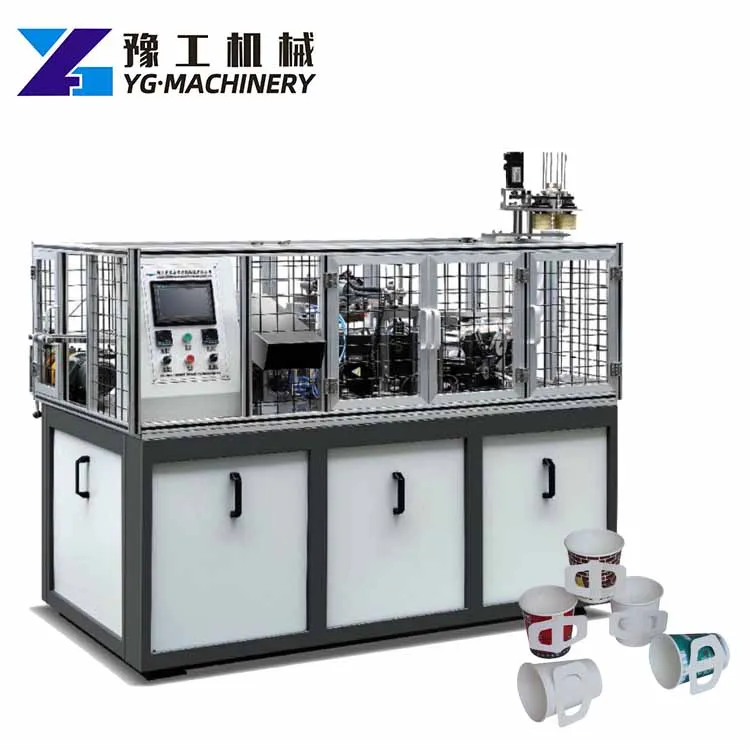

pepar cup making machine paper cup forming plastic making machine cup

Share on:

Price:$3,000.00 - $6,000.00
Price in USD:Details


Product Overview


Product Description


100-120 pcs/min
Cup size
Top Diameter: 60mm(min)-125mm(max)
Bottom Diameter: 45mm(min)-100mm(max)
Height: 60mm(min)-170mm(max)
Raw material
135-450 GRAM
Air compressor
0.4 M³/Min 0.5MPA
Net weight
3.4 TONS
Dimension of machine
2500×1800 ×1700 MM
Dimension of cup collector
900 ×900 ×1760 MM

Detailed Images

Highlights of paper cup making machine

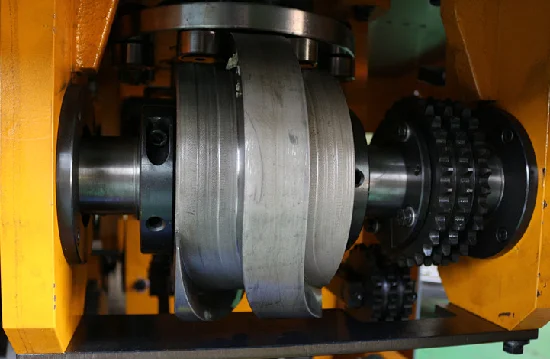

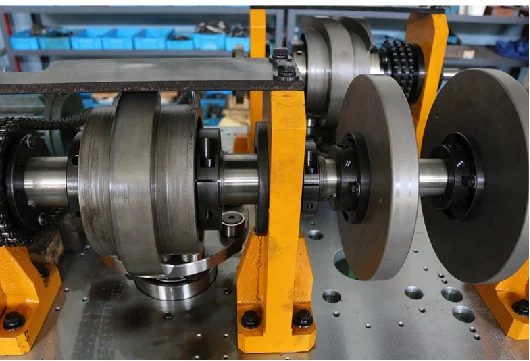

Open cylindrical cam
Two cam systems, this design more costly,
but can let the top curling and bottom knurling more accuracy, stable and low noise.
Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear.

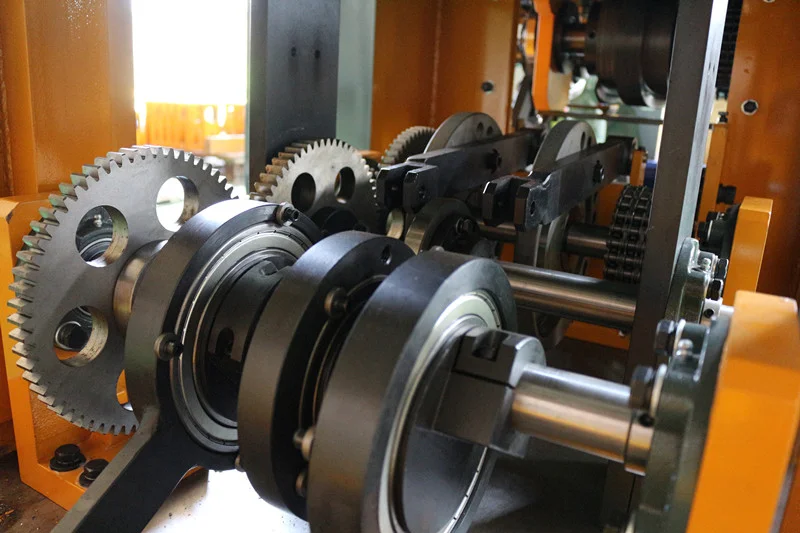

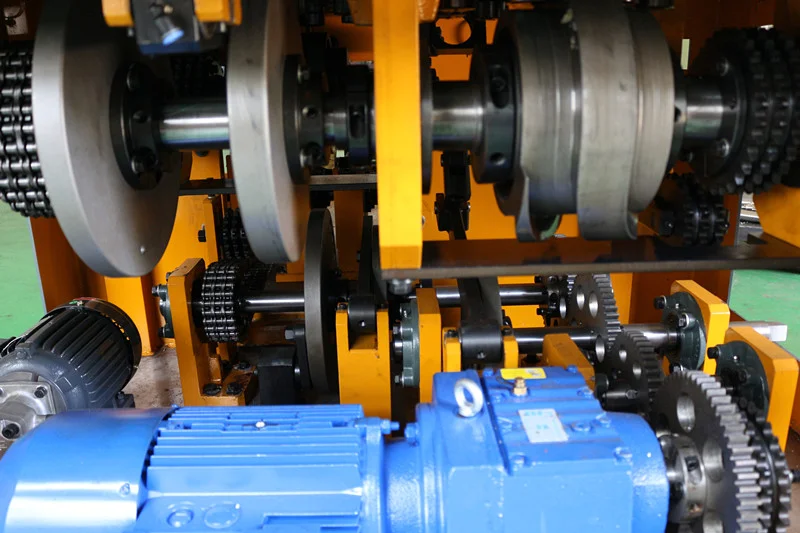

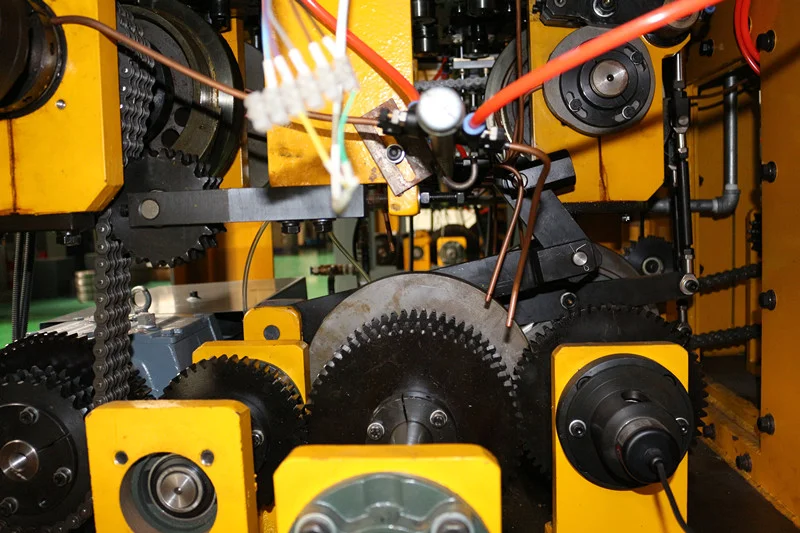

Gear drive
This system ensure the machine runs with high speed with low noise, smoothly running
and high precision. Instead of chain drive.

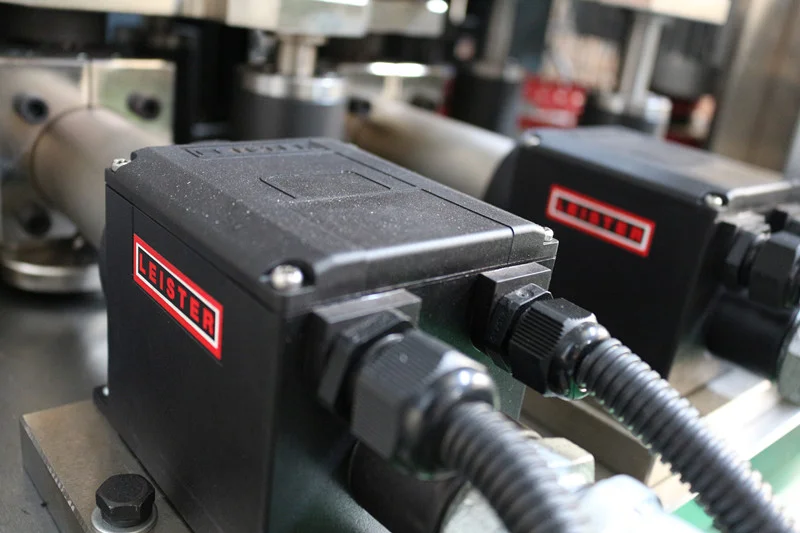

Hot air system and protect system
2 set of hot air systems can decrease the rate of leakage. Our
factory using the whole set of Leister(Banko) hot air system with protection system. And our system
sets up on the fixed plate, do not moving during production. Almost impossible to damage.
Also the only one have the protect system that hot parts will go down, keep the distance with paper
cup and cup mould when the machine stop.

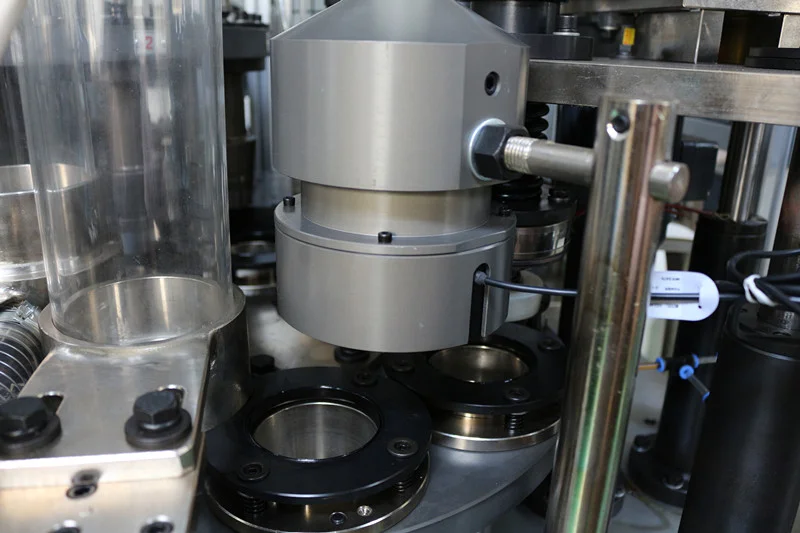

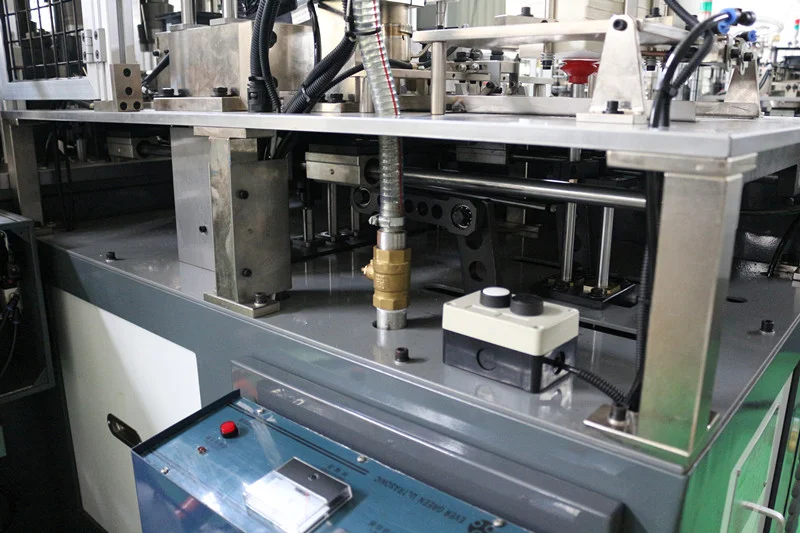

Inspection system
Unique design. Our factory set up on final turn station,more stable than
set up on flying tube. Do not need to buy extra inspection machine, less factory space needed.
Inspection accuracy can be set up by self.

Oil lubrication system
Adoptes forced lubrication system to ensure main driving oil supply regularly
and reduce friction and prolong the machine life. The oil circuit adds a clear the oil and filtering system
to clean the oil automaticly. Our factory is the first one to using double layer plate to avoid the scraps
of paper into the machine's inside.

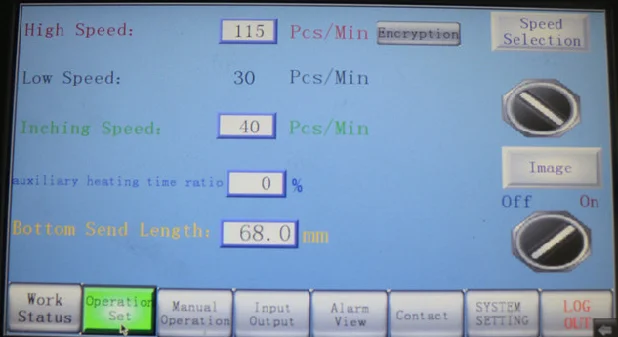

PLC control system
controlled by simple and efficient PLC system
