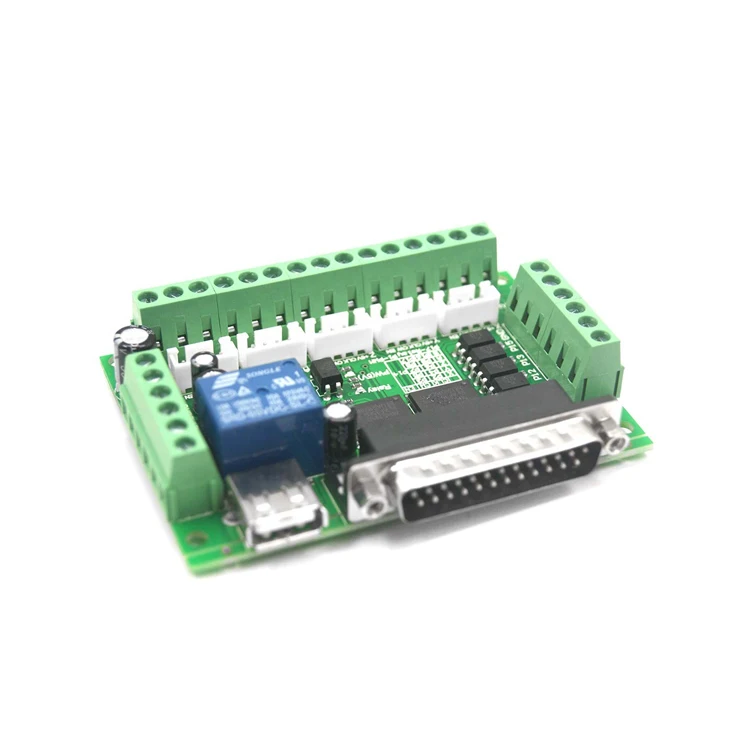

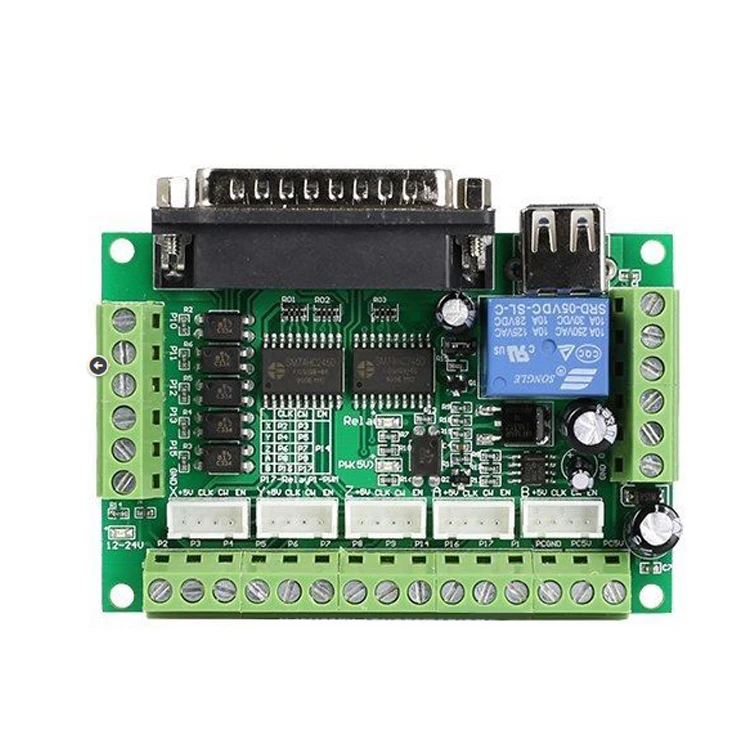

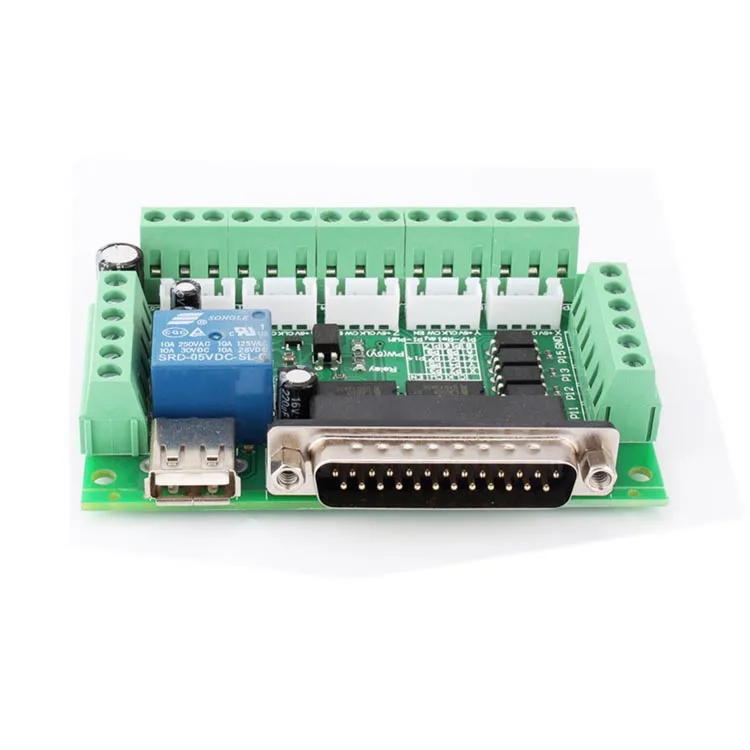

Cnc Controller With Ethernet And Wifi Interface Mach 3 Stepper Controller For Cnc

Product Overview

Description

Features:

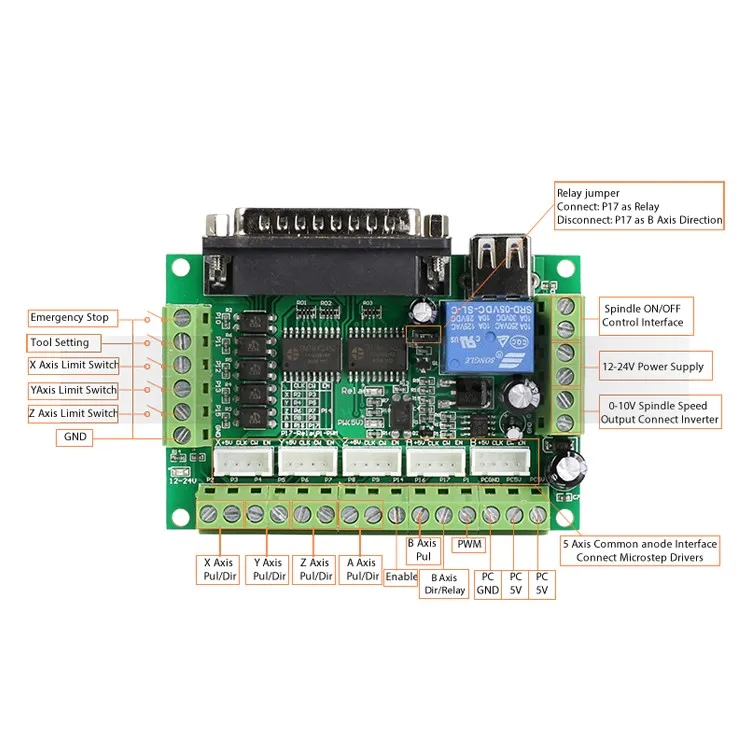

1. Fully support of MACH 3 and other computer software support for parallel port control.
2. USB power supply and peripherals powered phase separation to protect computer security.
3. Peripheral wide voltage input,12-24V, and anti-reverse function.
4.All of the input signal, all the light lotus isolated, which can be accessed emergency stop

on the knife,the limit to protect computer security.
5.All the way to the relay output port, control spindle switch. Output port P17 mouth.
6. All the way through the optocoupler isolated 0-10V analog voltage output can be controlled

with the corresponding analog interface converter to control the spindle speed.

Output port P1 port.

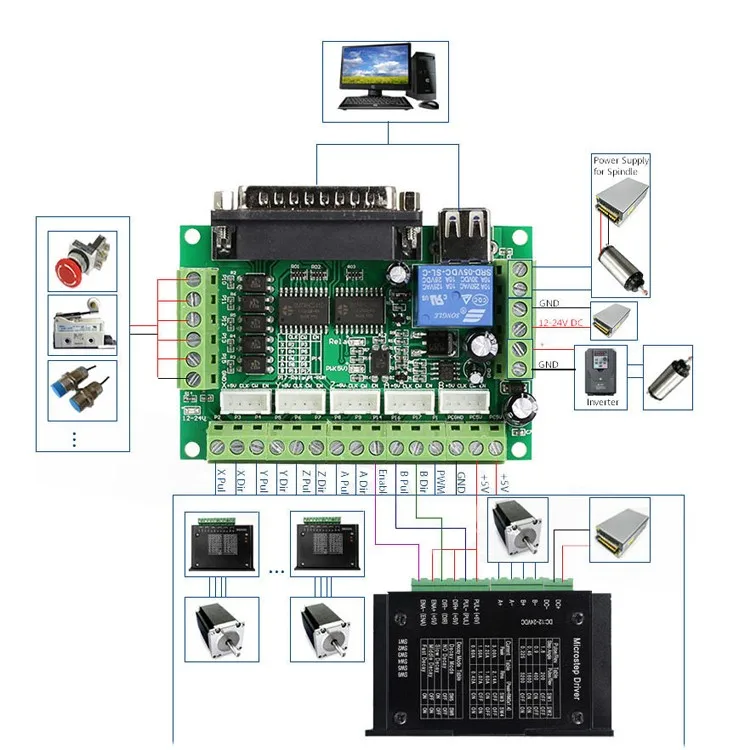

7.Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor

can be controlled.
8.P1 as PWM outputs can be controlled with optocoupler input spindle governor.
9. Can be accessed by a common cathode or common anode input level to 5V drive.







How do we keep our prices low?

We have relationships with a large number of board manufacturers and can find the best source of PCBs to consistently save your cost, meet your development schedule, fulfill your prototyping or mass production needs.

What is Test NRE?

The Test NRE is a one-time "non recurring expense" for electrical test. This charge is optional but when paid, all circuit boards will be tested each and every time that part number and revision is ordered without additional charge.

When do you pay a tooling NRE fee for my printed circuit board?

 You will only pay a Tooling charge if you go directly to Production (Custom Spec) without having ordered a Proto (Standard Spec) as a first step. We do not charge Tooling for Protos (Standard Spec) and neither do we charge Tooling if the proto (Standard Spec) is reordered for Production (Standard Spec).

If you only have a minor change in my design, do we charge Tooling NRE?

When you make any change to your printed circuit board, we assign it completely new tooling. This helps prevent old artwork or cnc programming from being used. Even a minor change will require the same process as new files, so a tooling charge may apply. Please contact your salesperson for details.

Are your "Prototype" PCBs processed differently from your Custom Spec PCBs?

No. Our Standard Spec ("prototype") use the same premier manufacturing processes as our production(Custom Spec) circuit boards.

To what acceptability standards do we build?

IPC A600 Class 2 through IPC 6012 Class 3A

Where should you send your files to get a printed circuit board quote or place an order?

You can simply send us an inquiry via Alibaba site. Very soon our sales person will contact you for your inquiry/files. Or you can send your inquiry/files to “Marketing at jinseo.com.cn”

How fast can you get a quote after submitting an inquiry?

We will on receipt of your file evaluate in 6 hours for standard spec PCB. But if PCB special, evaluation will be longer. Please note that the following detail will speed up evaluation:

Material:

Board thickness:

Copper thickness:

Surface finish:

Solder mask color:

Silkscreen color:



What is our Warranty on PCBs?



90 DAY LIMITED WARRANTY

We warrant our bare boards against defects in materials and workmanship under normal use for a period of 90 days from date of shipment ("Warranty Period").  If a defect arises and a valid claim is received within the warranty period, We will, at our option, for any bare boards that are returned and confirmed by us to be non-conforming to the order specifications and/or the applicable quality and acceptability standards, either (I) replace the bare board at no charge or (II) issue a credit equal to the original purchase price of the bare board.
