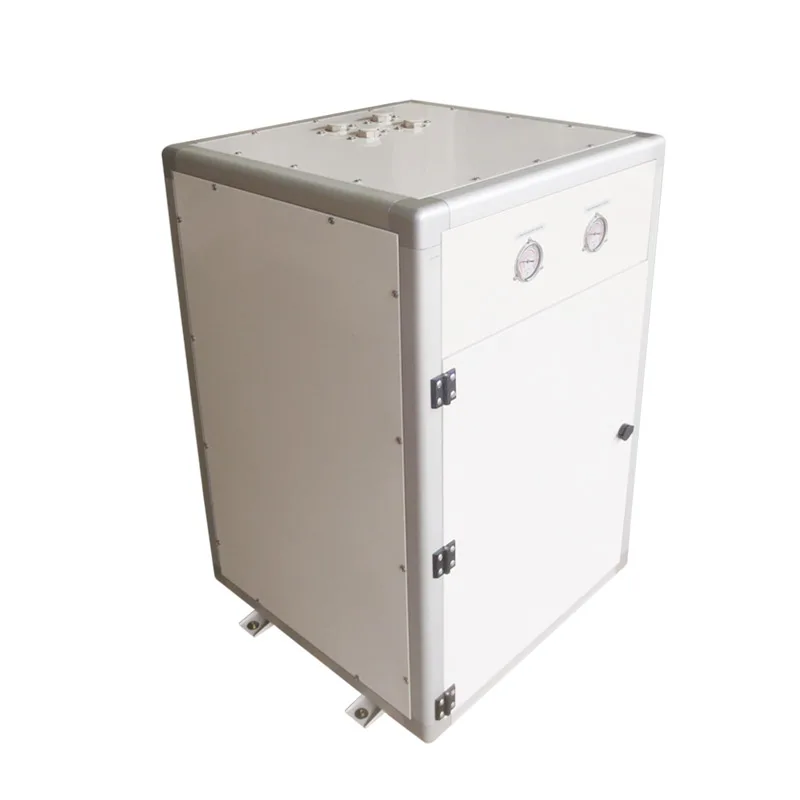

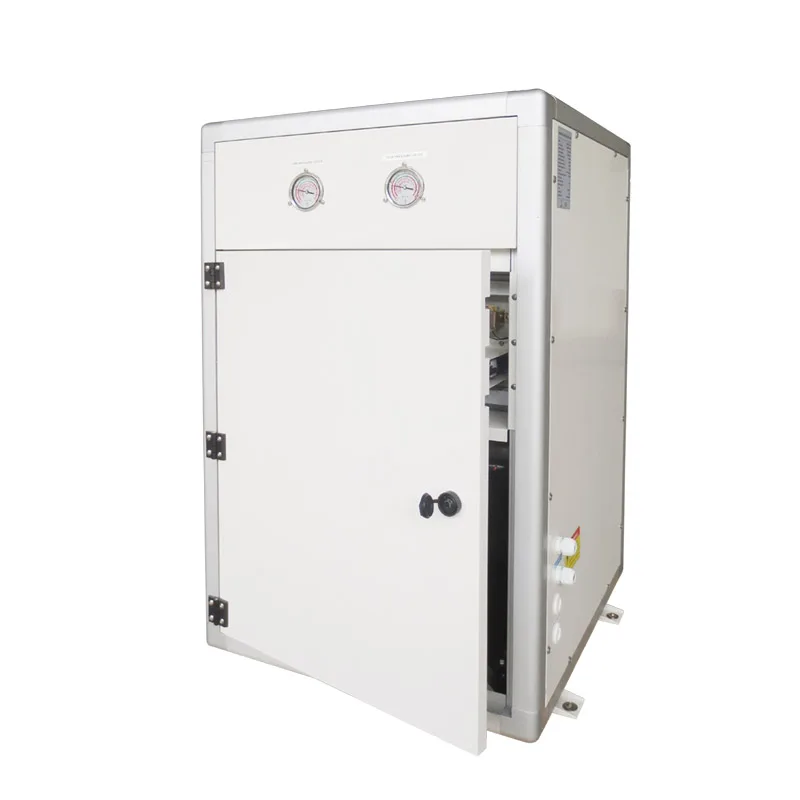

High effciency Geothermal heat pump inverter, super heating water source heating system

Product Overview

Description







Product description:

1.Energy saving: Comparing to the normal air to water heat pump ,this holds higher cooling capacity, and the design was optimized,high COP,more economical and energy-saving.
2.Outstanding performance:This Ground Source series adopt the advanced flexible compressor, low noise ,high COP,good reliability; evaporator and condenser adopt the newly high-performance plate heat exchanger, compact and great heat exchanging,and self-cleaning functions.

3.Intelligent control :With microcomputer intelligent control mode, function set can be realized ,power off and memory settings,and other functions; additional remote centralized control for options, can be combined with the self-controlling Rs485 pocket.

4.Fully-equipped: Equipped with various control and protection functions, to ensure smooth running under severe working conditions,very reliable and stable .

5.Reliable:Has the largest water-cooled unit testing laboratories, research and development and factory, units tested very strictly to ensure the quality and stability.



Model		BGB15-090/P	BGB15-105/P	BGB35-120/P	BGB35-135/P
Rated heating capacity	KW	10.5	12.5	14.5	16.5
	BTU	35000	42000	49000	56000
Rated cooling capacity	KW	9.5	11	13	14.5
	BTU	32000	37000	44000	49000
COP /EER		4.9/4	4.9/3.9	4.9/3.9	4.9/3.9
Heating power input	KW	2.15	2.55	2.97	3.34
Cooling power input	KW	2.4	2.8	3.3	3.7
Power supply	V/Ph/Hz	220~240/1/50~60		380/3/50~60
Max outlet water temp	° C	50	50	50	50
Applicable ambient temp	° C	-15~43	-15~43	-15~43	-15~43
Water flow volume	M3/H	1.7	2.1	2.4	2.7
Water connections	Inch	1''	1''	1''	1''
water pressure drop	Kpa	11	18	21	25
Compressor qty	Pc	1	1	1	1
Container loading qty	20/40/40HQ	21/48/96	21/48/96	21/48/96	21/48/96
