Good Quality Best selling Dc Battery monitoring Tester For Current Resistance Test
- Category: >>>
- Supplier: Hangzhou Zhechang Power Equipment Co. Ltd.
Share on (1600342000377):
Product Overview
Description
Product Description
1.Single battery management system is a comprehensive result of battery measurement, loop communication and computer information processing.
2.Single battery module can choose the loop communication mode, easy to use, safe and reliable.
3.Real-time monitoring the voltage of battery to avoid the measurement error for the long line.
4.High accuracy, low power, small size.
5.Based on the discreteness of battery pack's daily operation data, the capacity and health status of each battery were estimated by neural network algorithm.
6.USB/RS485/RJ45 communication interface which can communicate with the computer real-time data or control other intelligent devices.
7.Perfect software can real-time display each measurement data and curve, provide data query, report generation and other functions.
8.it have automatic wizard function, without too much manual intervention,it is simple to use .
9.Single battery acquisition module Parameter
Model | ZC-BMS02D/ZC-BMS12D |
Applicable battery grade | 2V/12V |
Voltage monitoring accuracy | ≤±0.2% |
Voltage monitoring range | 2V(1.8V~3V)/12V(10.8V~16V) |
Power Supply | powered from the monitored battery |
Static power | ≤300mW |
Temp Accuracy | ±1℃ |
Temp Range | -25℃～85℃ |
Support battery number | lead acid battery x1（Ni-cr battery x 2） |
Communication mode | 2 channel RS485 |
Communication baud rate | 9600bps |
Operating temperature | -25℃～65℃ |
Operating Humidity | < 85 % 5%-95%，without condensation |
Storage temperature | -40℃~+85℃ |
Installation | Paste on battery or rail mounting |
Size | 78mm×53mm×24mm(L*W*H) |
Why Need?

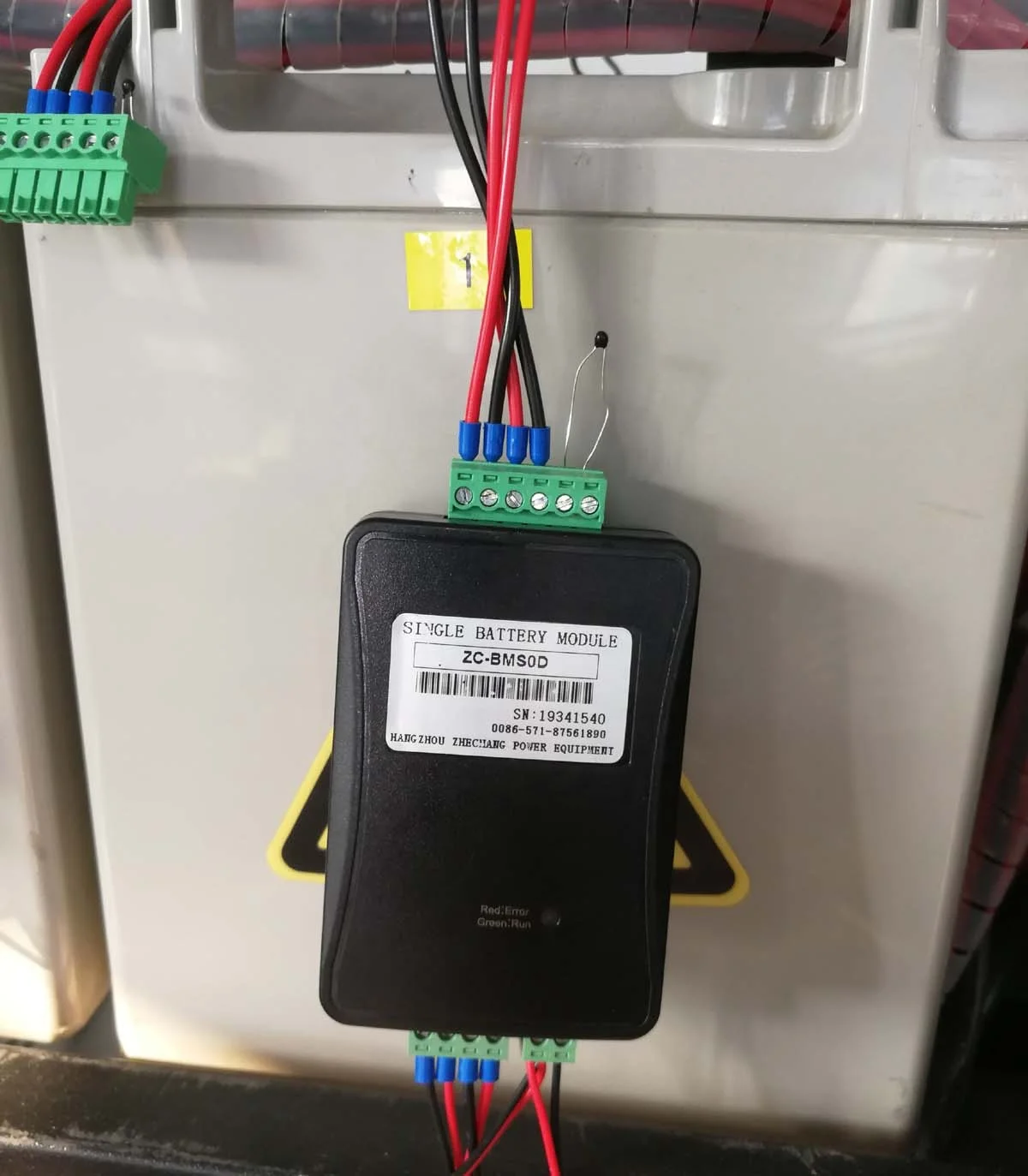

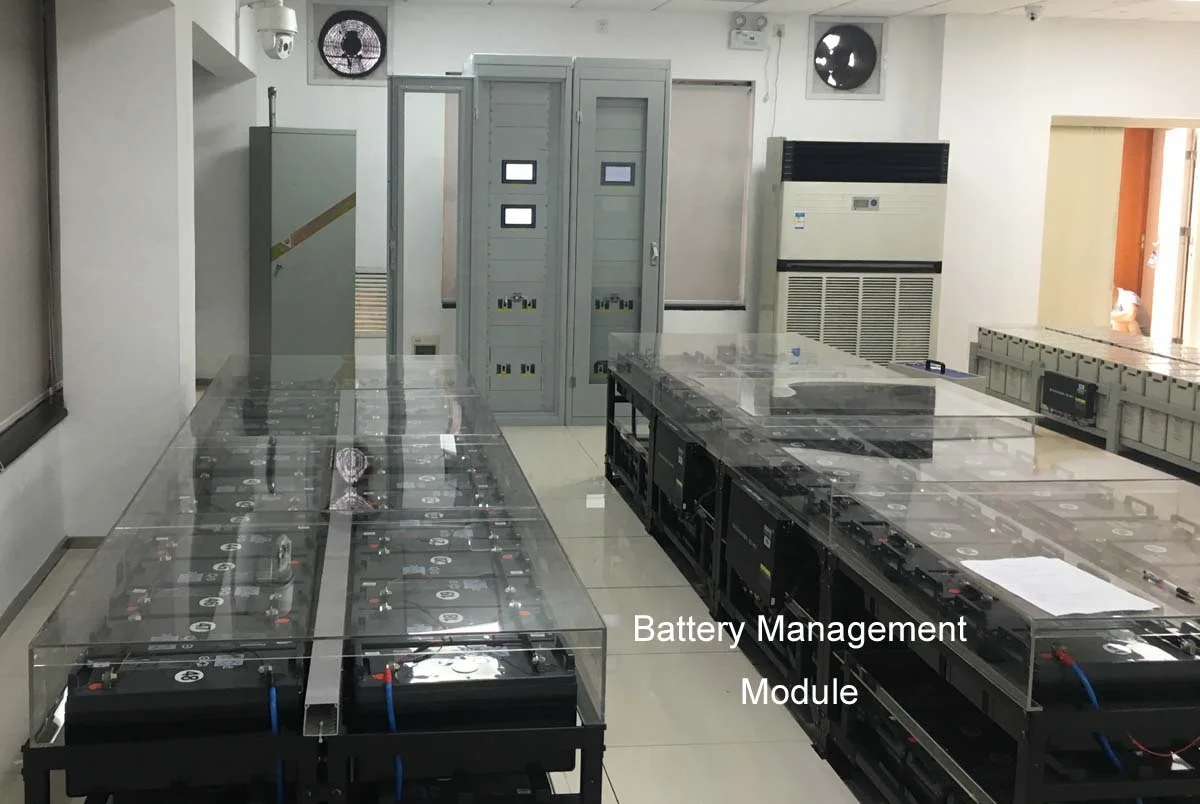

Customer installation photo
Certifications
Our Advantages
Company Introduction
Hangzhou Zhechang Power Equipment CO.,LTD Is a research & development, production and sales of high-tech enterprises. We are professional manufacture for Battery Tester , focus on battery capacity test, repair and maintenance solution .Our Main products are Battery Monitoring System, Intelligent battery discharger ,Intelligent Battery Maintenance Instruments and so on .
Packing&Shipping
FAQ
Q1.Why need battery Monitoring System?
A: Prevent the occurrence of accidents, through online monitoring battery can be early warning, controllable management.Online 24-hour monitoring, more accurate measurement data, at any time to grasp the battery status, reduce manual maintenance.
It can achieve network automation management, remote monitoring.
Q2. What about the lead time?
A:Sample needs 5-10 days, mass production or custom product need 2-4 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-8 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products.
A: Prevent the occurrence of accidents, through online monitoring battery can be early warning, controllable management.Online 24-hour monitoring, more accurate measurement data, at any time to grasp the battery status, reduce manual maintenance.
It can achieve network automation management, remote monitoring.
Q2. What about the lead time?
A:Sample needs 5-10 days, mass production or custom product need 2-4 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-8 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products.
