14*17 дюймов медицинский цифровой портативный рентгеновский аппарат беспроводной плоский панельный детектор
- Category: Other Radiology Equipment & Accessories >>>
- Supplier: Yiwu,Medco,Health,Care,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

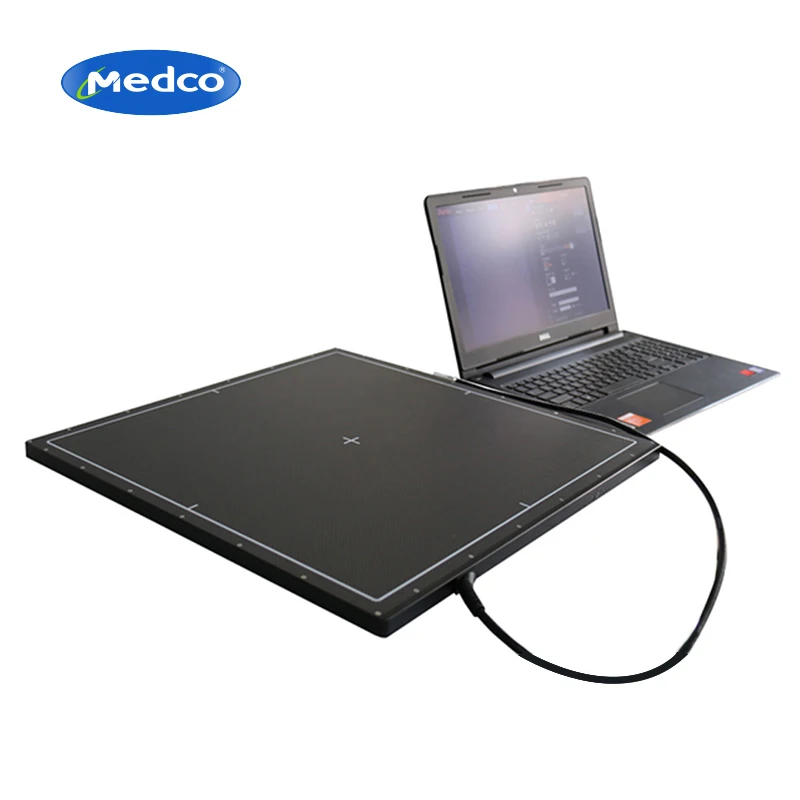

Cheap Digital Wireless flat panel x ray detector MSL1500C Production Feature
Friendly Operation Experience
14"x17" cassette-sized wireless detector; easily fits into standard bucky tray cabinets for upgrading a
film or CR system to a flat-panel DR system.
No wiring to generator with patented Full-Field Automatic Exposure Detection (F AED ) Technology.
Wireless acquisition and transfer of a full resolution radiography image in~4 sec with 802.11n interface
and dual-bands (2.4/5GHz) at 300Mbps data transmission rate.
Superior Image Quality
The best performance CsI direct-deposition technology on new generation of TFT/PIN PD panel and
low noise electronics.
"Care about you" Design Philosophy
Extra long battery life with 1400 shots/charge (10 sec interval between shots) and 7 hours stand-by time.
Light weight and slim design with built-in foldable handle; rubber insulated frame and high strength
aluminum-alloy case ensure safe and convenient operations.
14"x17" cassette-sized wireless detector; easily fits into standard bucky tray cabinets for upgrading a
film or CR system to a flat-panel DR system.
No wiring to generator with patented Full-Field Automatic Exposure Detection (F AED ) Technology.
Wireless acquisition and transfer of a full resolution radiography image in~4 sec with 802.11n interface
and dual-bands (2.4/5GHz) at 300Mbps data transmission rate.
Superior Image Quality
The best performance CsI direct-deposition technology on new generation of TFT/PIN PD panel and
low noise electronics.
"Care about you" Design Philosophy
Extra long battery life with 1400 shots/charge (10 sec interval between shots) and 7 hours stand-by time.
Light weight and slim design with built-in foldable handle; rubber insulated frame and high strength
aluminum-alloy case ensure safe and convenient operations.
Specification
Detector Technology | Amorphous Silicon |
Scintillator | CsI |
Active Area (inch) | 14 × 17 |
Pixel Matrix | 2304 × 2800 |
Pixel Pitch (μm) | 150 |
Spatial Resolution (lp/mm) | 3.3 |
AD Conversion (bit) | 16 |
Battery Autonomy (h) | 8 |
WIFI | 2.4G and 5G, IEEE802.11 a/b/g/n/ac |
Trigger Mode | AED (Optional) / Software |
Internal Image Storage | 200 full size images |
Full Image Time (s) | 5 |
Dimensions (mm3 ) | 384 × 460 × 15 |
Weight (kg) | 3.3 |
Static Loading | 150kg Uniformly |
Ingress Protection | IPX1 |
Operating Temperature (℃) | 5 ~ 35 |
Storage & Transport Temperature with Package (℃) | -20 ~ 55 |
Operating Humidity (% RH) | 10 ~ 90 (Non-Condensing) |
Storage & Transport Humidity with Package (% RH) | 5 ~ 95 (Non-Condensing) |
More Products
Company Profile
Packaging & Shipping
FAQ
Q1:Can your company provide the OEM ? | ||||||||
Yes,of course . We provide you guaranteed BP monitor in your brand. | ||||||||
Q2: What’s the minimum quantity you can accept? | ||||||||
The minimum quantity depend on the product which you buy, we also welcome to place an trial order. | ||||||||
Q3: Packing | ||||||||
We pack the goods in standard export carton or according to your requirement. | ||||||||
Q4.Shipment | ||||||||
We can delivery by sea ,by air . 5)Before delivery ,every one will be inspected by our factory Q.C, and do best to ensure that every one will be good condition before shipment. | ||||||||
