Ortur Laser Master S2 laser engraving machine 390 x 410 mm large engraving area CNC DIY Logo engraver machine
- Category: >>>
- Supplier: Shenzhen Salon Technologies Co. Ltd.
Share on (1600342017067):
Product Overview
Description

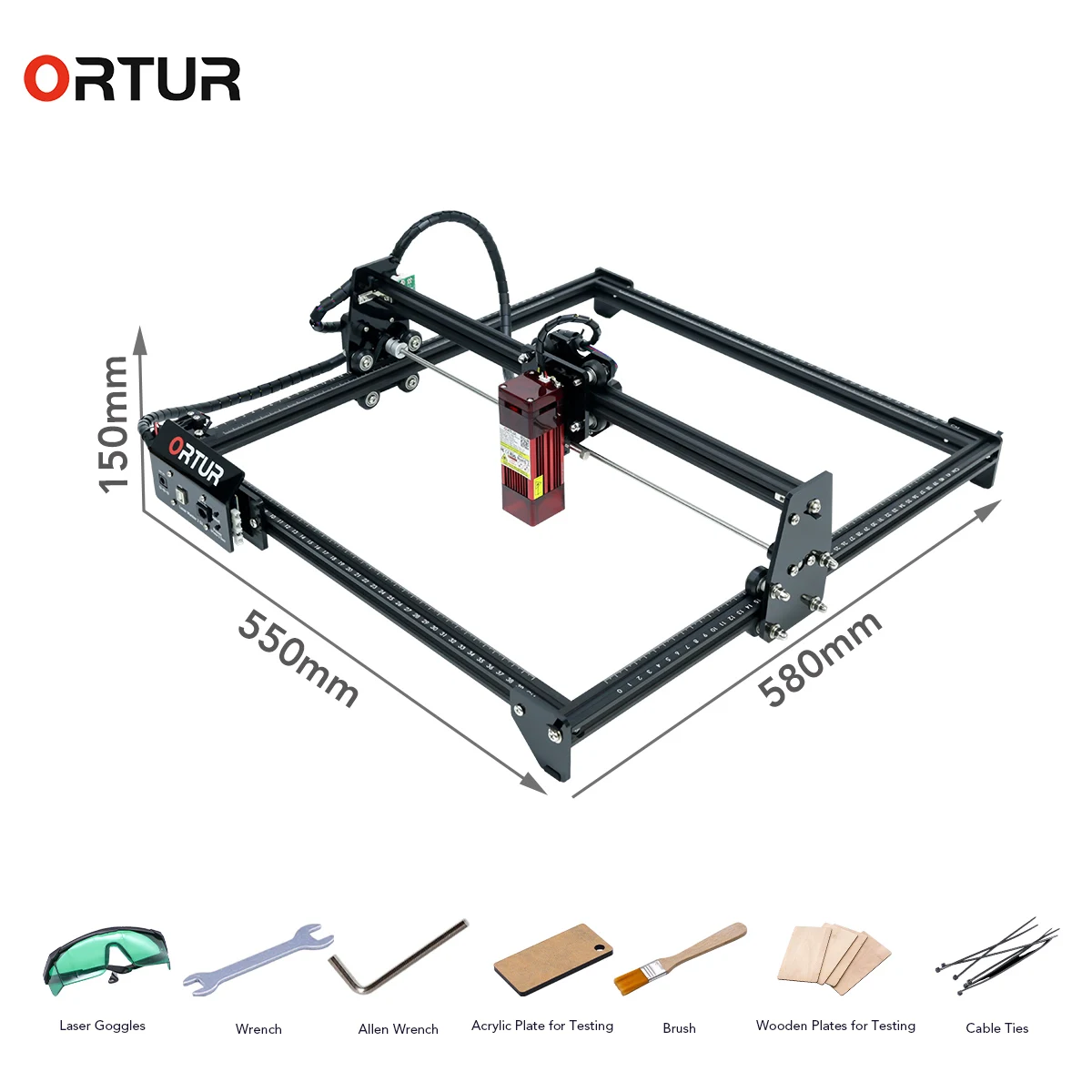

Ortur Laser Master 2 S2
1、OS of Upper Computer: Windows ( Working with LaserGRBL ), MAC OS and Linux ( Working with LightBurn ) 2、This laser engraver
supports PWM mode. 3、Pre-assembled parts, just need 10 - 20 minutes to install the machine. 4、390 x 410 mm large engraving area.
5、Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance 6、Synchronizing shaft
mechanical structure, avoid out-sync on two Y rails, during full speed engraving. 7、Image size: No Limit ( The pixel accuracy
could be adjusted freely, and the default is 300 pixels per inch, it's about 0.81um pixel precision )
supports PWM mode. 3、Pre-assembled parts, just need 10 - 20 minutes to install the machine. 4、390 x 410 mm large engraving area.
5、Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance 6、Synchronizing shaft
mechanical structure, avoid out-sync on two Y rails, during full speed engraving. 7、Image size: No Limit ( The pixel accuracy
could be adjusted freely, and the default is 300 pixels per inch, it's about 0.81um pixel precision )
1. Based on OLF1.7 firmware, the 1.8 firmware has optimized the grayscale engraving algorithm to bring more realistic picture effect.
2. It could support any baud rate, save some delays due to command transmission, increase the engraving speed.
1. Driver Free use on most modern operating systems. (for Windows XP and Windows 7 driver required)
2. Higher MCU frequency at 240Mhz and about 10% faster calculation speed than 8th motherboard.
3. Support next generation Digital Laser Module.
The latest and most advanced motherboard of Ortur.
The latest and most advanced motherboard of Ortur.
It has a smaller Luminous Cavity, so it has a smaller Focal Spot and good at engraving high-precision pattern.
It's high power and has a Compressed Laser Spot, so it's good at cutting and better at engraving harder materials.
It's high power and has a longer Depth of Field, so it's good at engraving and better at cutting.
Air Source (compressor) is not included in package Aufero recomends Air source with a flow of >40ml/min
Available Laser Modules | ||||||
Product Name | LU2-4-SF | LU2-4-LF | LU2-2 | |||
Optical Power | 4500- 5500 mW | 4500- 5500 mW | 1000-1600 mW | |||
Focal Spot | About 0.12x0.15 MM | About 0.12x0.15 MM | About 0.07×0.06 MM | |||
Light Path | Focused Beam | Focused Beam | Focused Beam | |||
Focal Length | 30 MM | 50 MM | 50 MM | |||
Electric Current | 3.4-3.6 A | 3.4-3.6 A | 1.1-1.35 A | |||
Wavelength | 445+10 NM | 445+10 NM | 445±10 NM | |||
Voltage | 4.2-5.0 V | 4.2-5.0 V | 5-6 V | |||
Product Size | 40x41x122 MM | 40x41.5x1 10 MM | 40×41.5×96 MM | |||

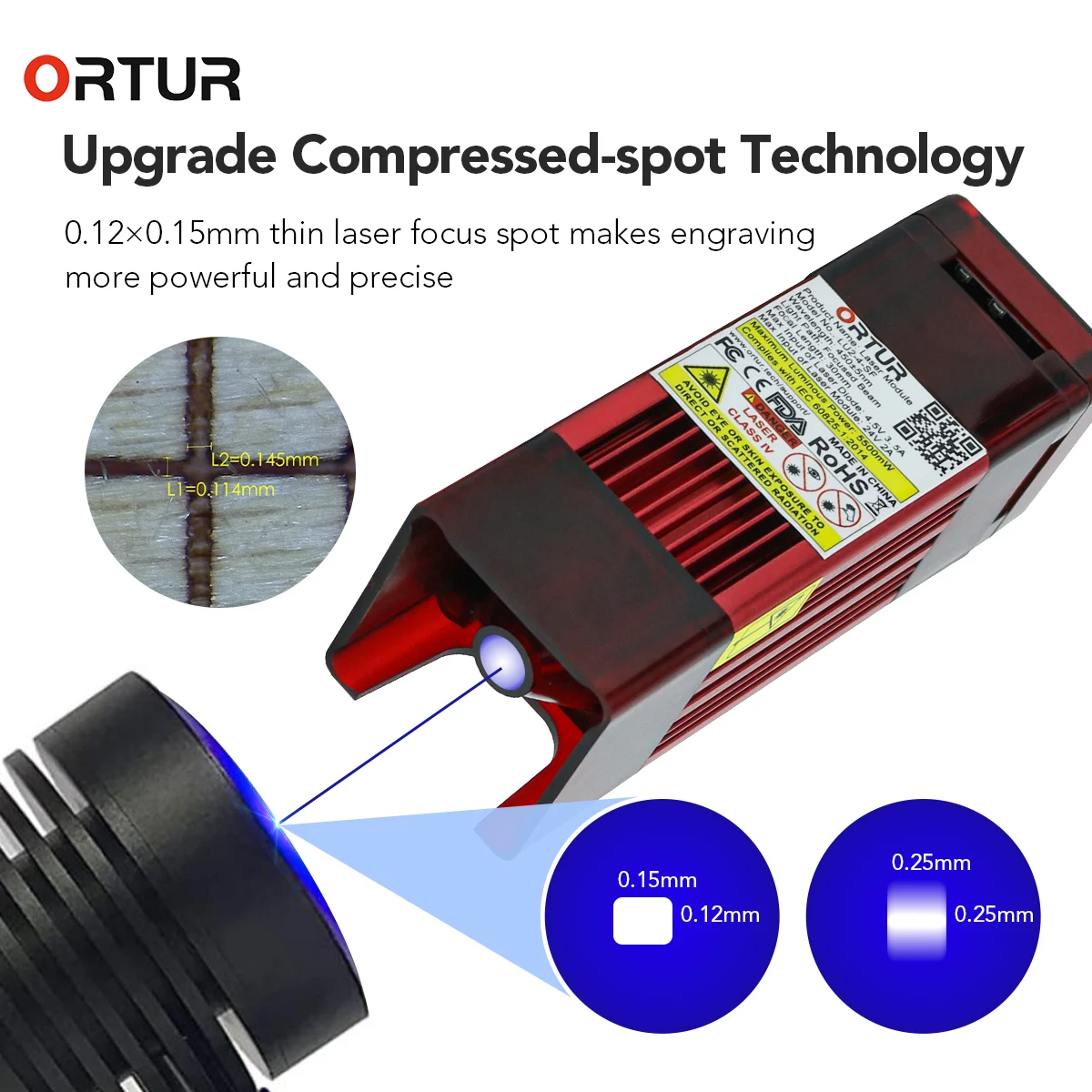

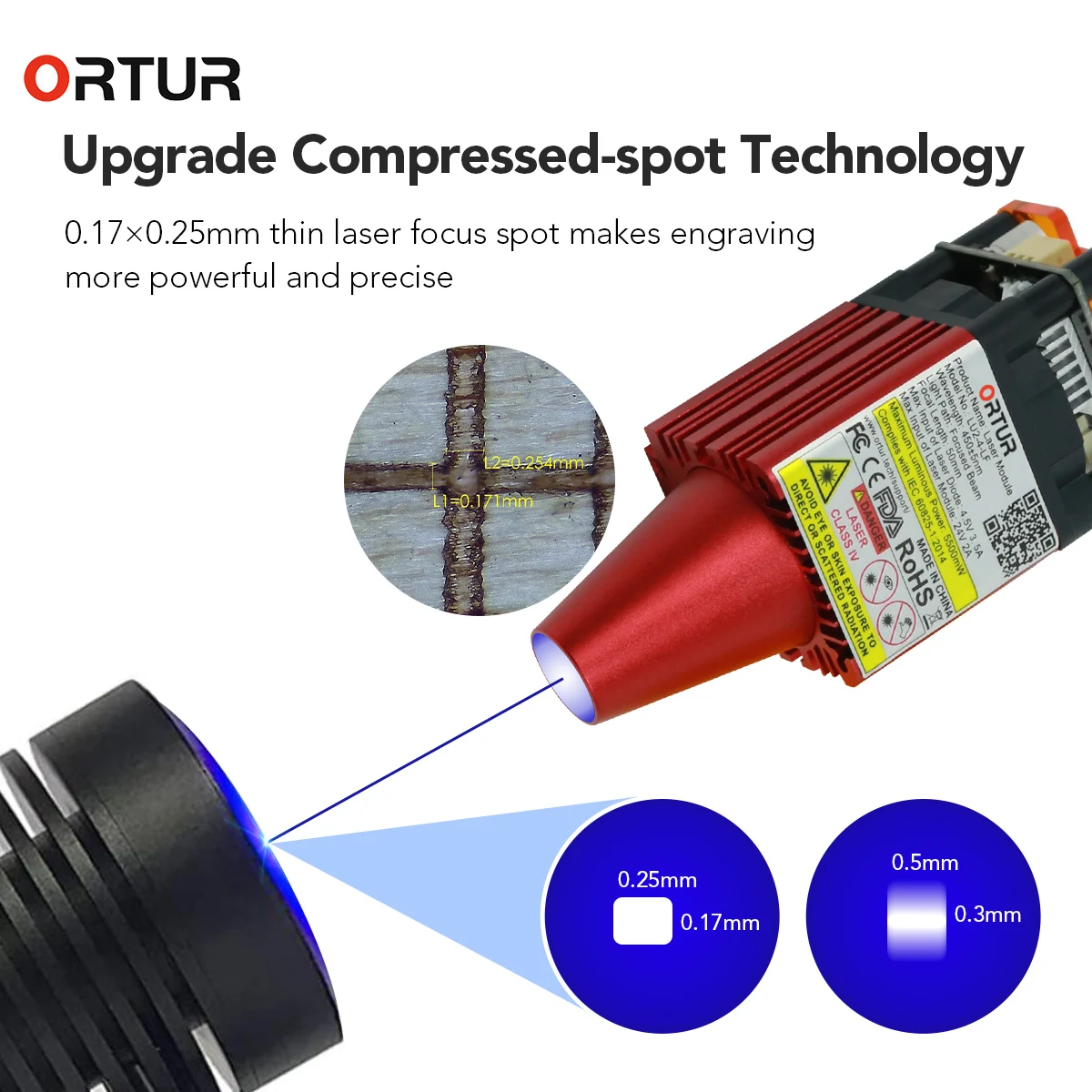

LU2-4-SF Short Focus Laser Module : It has a smaller Luminous Cavity, so it has a smaller Focal Spot and good at engraving high-precision pattern.
LU2-4-LF Long Focus Laser Module :It's high power and has a Compressed Laser Spot, so it's good at cutting and better at engraving harder materials.
LU2-2 Laser Module:It's high power and has a longer Depth of Field, so it's good at engraving and better at cutting.
LU2-2 Laser Module:It's high power and has a longer Depth of Field, so it's good at engraving and better at cutting.
Professional after-sales team
One year overseas after-sales
We are the manufacturer of ORTUR. We only provide you with the best quality and comprehensive pre-sales and after-sales
services.Service website : https://ortur.tech/support.
One year overseas after-sales
We are the manufacturer of ORTUR. We only provide you with the best quality and comprehensive pre-sales and after-sales
services.Service website : https://ortur.tech/support.
YRR
ORTUR Y-axis Roller Engraving Module Descriptions
Y-axis Roller Engraving Module is used to engrave cylindrical objects such as engraving text and patterns on cans
Specifications:
Motor: 42 Stepper Motor
Material: Aluminum + Acrylic + Plastic
Control Cable: 500mm 4Pin Wiring Harness, with PH-06 Female Connector + PH-06 Male Connector
Width Adjustment: 7 Gear Positions
Available Laser Engravers: Most kind of Desktop Laser Engravers
Y-roller, can realize 7 gear adjustments to support cylinders of different sizes
Y-axis Roller Engraving Module is used to engrave cylindrical objects such as engraving text and patterns on cans
Specifications:
Motor: 42 Stepper Motor
Material: Aluminum + Acrylic + Plastic
Control Cable: 500mm 4Pin Wiring Harness, with PH-06 Female Connector + PH-06 Male Connector
Width Adjustment: 7 Gear Positions
Available Laser Engravers: Most kind of Desktop Laser Engravers
Y-roller, can realize 7 gear adjustments to support cylinders of different sizes
Type: | Laser engraving machine rotation shaft |
Material: | Aluminum + Acrylic + Plastic |
Laser Power: | NO |
Laser Reaching Range: | NO |
Power By: | NO |
Package weight: | 1.3500 kg |
Package size (L x W x H): | 12.90 x 18.40 x 8.10 cm / 5.08 x 7.24 x 3.19 inches |
Package Contents: | 1 x ORTUR Y-axis Engraving Module |
About Ortur
Ortur's Mission
Ortur is a high-tech manufacturer focus on developing diode laser engravers founded by a group of passionate engineers. We love to discover the unknown and try to develop our products to the next level with vitality and creativity.
Ortur is committed to expanding the use boundary of diode laser engravers and exploring more application scenarios of diode laser.In the next two years, Ortur's mission is to create safer, more efficient,and more user-friendly multipurpose diode laser engravers, to provide more chances for small businesses,workshops, artists, engineers, and self-employed workers to improve their efficiency.
In future, Ortur will develop a small CNC machine to meet more demands from our users, to bring them more business opportunities and more possibilities.
Always on the way to try the best. Startup with creative imagination, find out the most adaptive design, always provide the outstanding product!
Ortur is committed to expanding the use boundary of diode laser engravers and exploring more application scenarios of diode laser.In the next two years, Ortur's mission is to create safer, more efficient,and more user-friendly multipurpose diode laser engravers, to provide more chances for small businesses,workshops, artists, engineers, and self-employed workers to improve their efficiency.
In future, Ortur will develop a small CNC machine to meet more demands from our users, to bring them more business opportunities and more possibilities.
Always on the way to try the best. Startup with creative imagination, find out the most adaptive design, always provide the outstanding product!
Packing&shipping
Our Certificate
FAQ
1、What's is your advantage ?
1)、More than 20 engineers R&D team, 5000 square meters factory, specializing in the manufacture of laser engraving machines, 3D printers, CNC machines.
2)、Five warehouses in the United States, Czech Republic, Spain, Russia, and China to achieve fast delivery.
3)、 Portuguese overseas engineers, 24-hour professional after-sales team. After-sales website:https://ortur.tech/support.
4)、 Instructions in ten languages, convenient for global users.Spanish, Arabic. Portuguese, English,Polish, French, Italian,
Russian, German, Chinese.
5)、Accepted Payment Type: T/T、PayPal、Payoneer、Western Union;
2、How long does it take to assemble?
10-15 minutes (Depends on your preparation).
3、What materials can be engraved?
Wood Board, Paperboard, Black Acrylic, Leather, Food, Stainless Steel, Power Coated Metal, etc.
4、Can I engrave metal and stainless steel?
You can mark the metal after plating or spraying (acting on the coating or oxide layer), stainless steel (the effect is better
after the stainless steel is painted black. Note: It is not engraving, but discoloration).
5、How long is the warranty period?
One year warranty (We will send you the corresponding non-artificially damaged parts for free).
2)、Five warehouses in the United States, Czech Republic, Spain, Russia, and China to achieve fast delivery.
3)、 Portuguese overseas engineers, 24-hour professional after-sales team. After-sales website:https://ortur.tech/support.
4)、 Instructions in ten languages, convenient for global users.Spanish, Arabic. Portuguese, English,Polish, French, Italian,
Russian, German, Chinese.
5)、Accepted Payment Type: T/T、PayPal、Payoneer、Western Union;
2、How long does it take to assemble?
10-15 minutes (Depends on your preparation).
3、What materials can be engraved?
Wood Board, Paperboard, Black Acrylic, Leather, Food, Stainless Steel, Power Coated Metal, etc.
4、Can I engrave metal and stainless steel?
You can mark the metal after plating or spraying (acting on the coating or oxide layer), stainless steel (the effect is better
after the stainless steel is painted black. Note: It is not engraving, but discoloration).
5、How long is the warranty period?
One year warranty (We will send you the corresponding non-artificially damaged parts for free).
6、Is it possible to engrave cylindrical surfaces?
Need to purchase Ortur YRR series Rotary Roller as an accessory to sculpt the cylindrical surface.Purchase link
Need to purchase Ortur YRR series Rotary Roller as an accessory to sculpt the cylindrical surface.Purchase link
