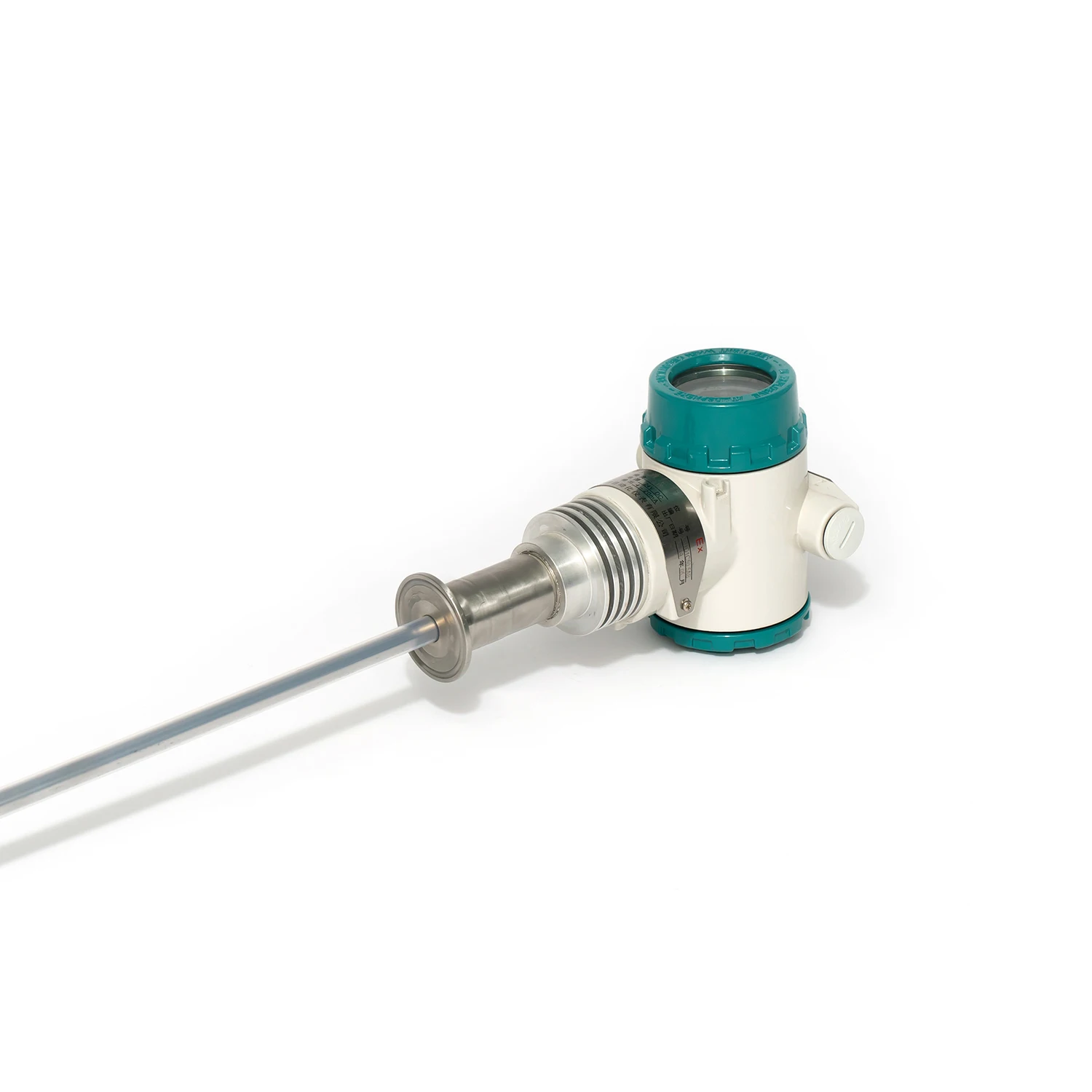

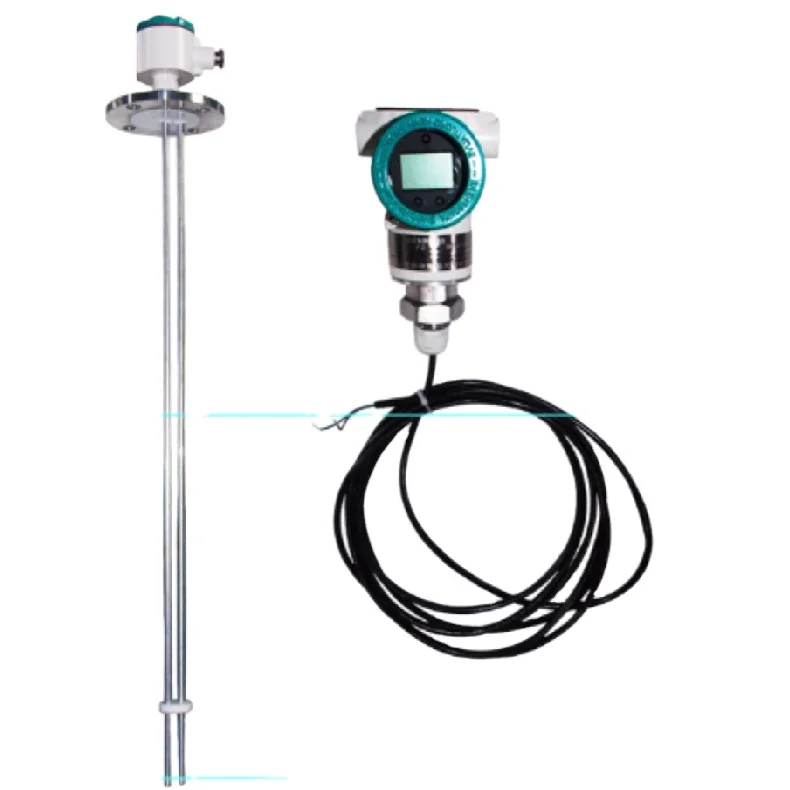

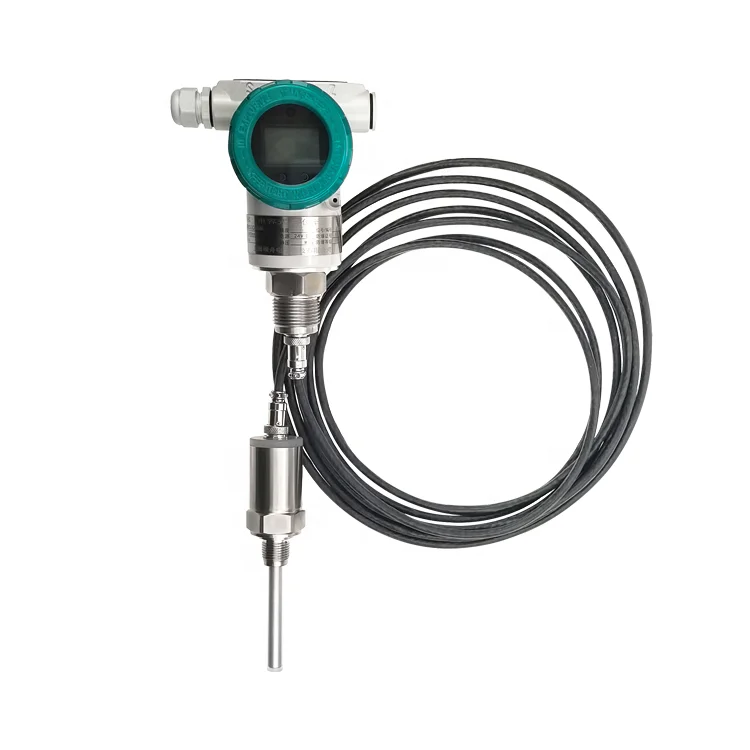

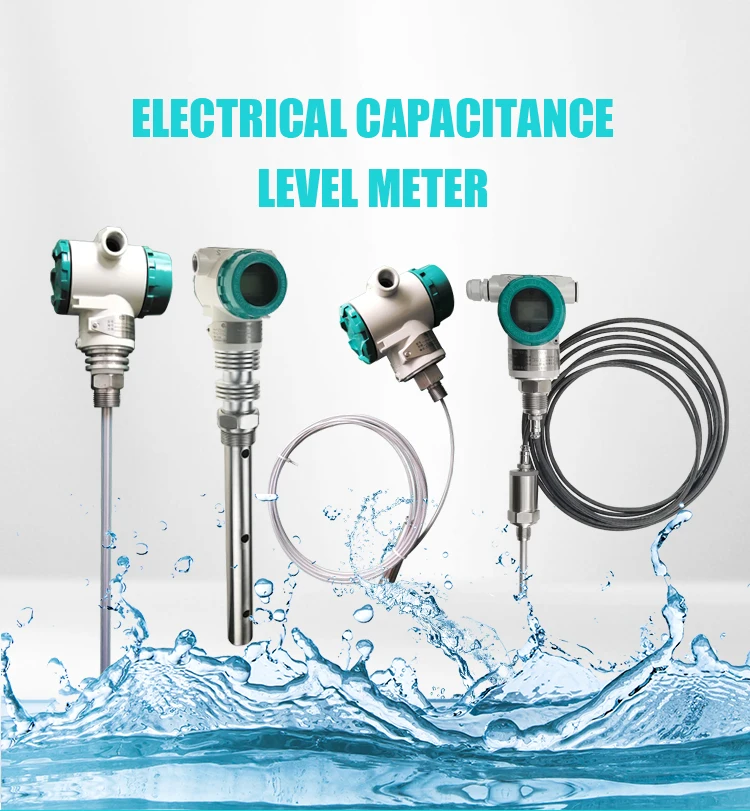

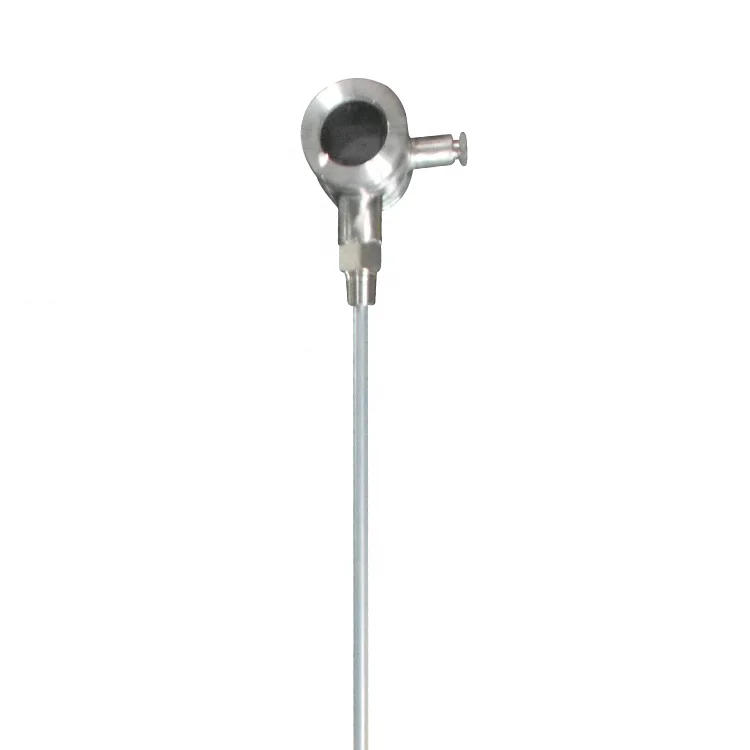

China ISO9001 Silo PE Particle Capacitance Level Meter Water Tank Level Transmitter Capacitive Liquid Level Sensor

Product Overview

Description

China ISO9001 Silo PE Particle Capacitance Level Meter Water Tank Level Transmitter Capacitive Liquid Level Sensor

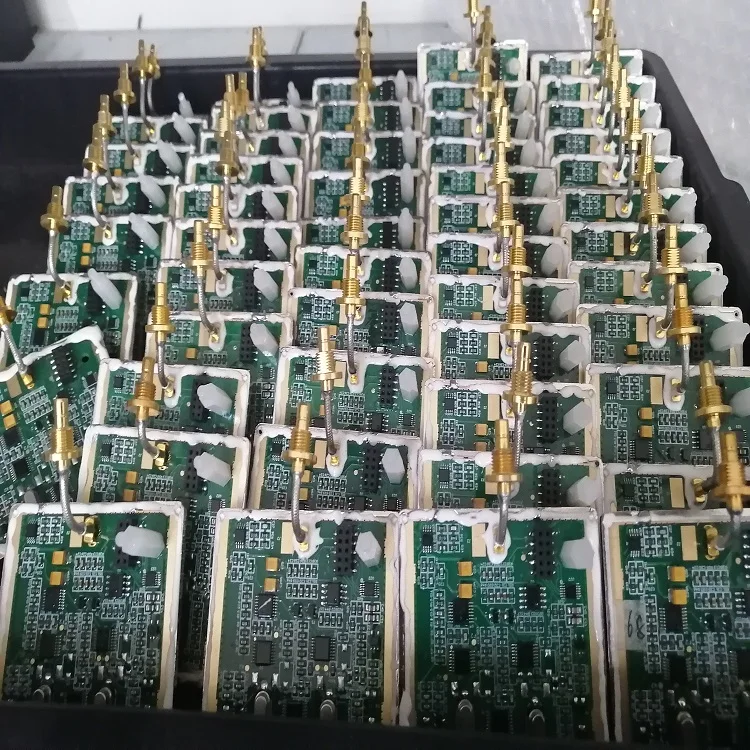

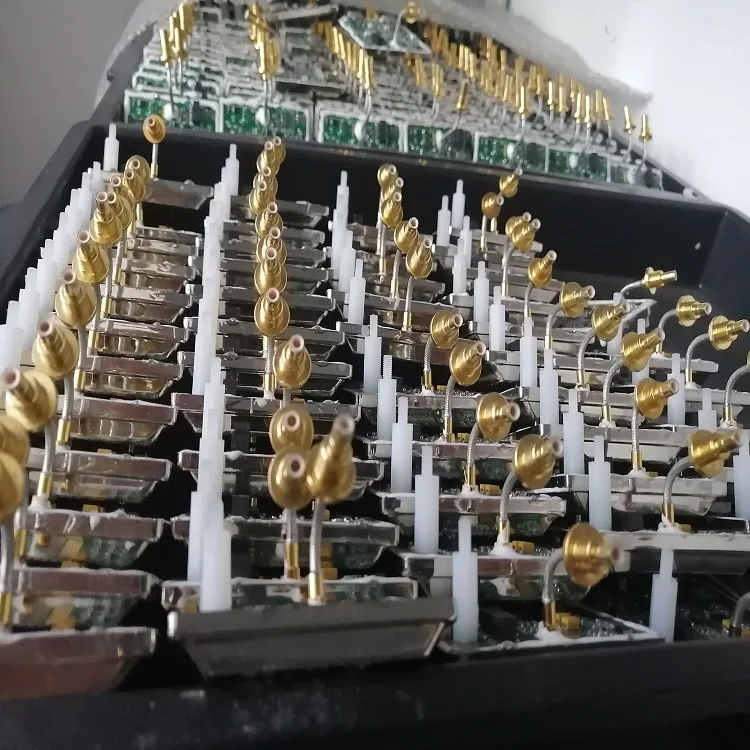

The electronic circuit of the radio frequency admittance level gauge adopts an anti-adhesion circuit, which can eliminate the influence of adhesion and false level signals hanging around the probe while detecting the real object.

Material temperature:	-184℃~260℃
Circuit temperature resistance:	-40℃~80℃
Sensitivity:	0.5pf
Power failure protection:	high and low mode, adjustable on site
Power supply:	24VDC
Output:	4~20mA

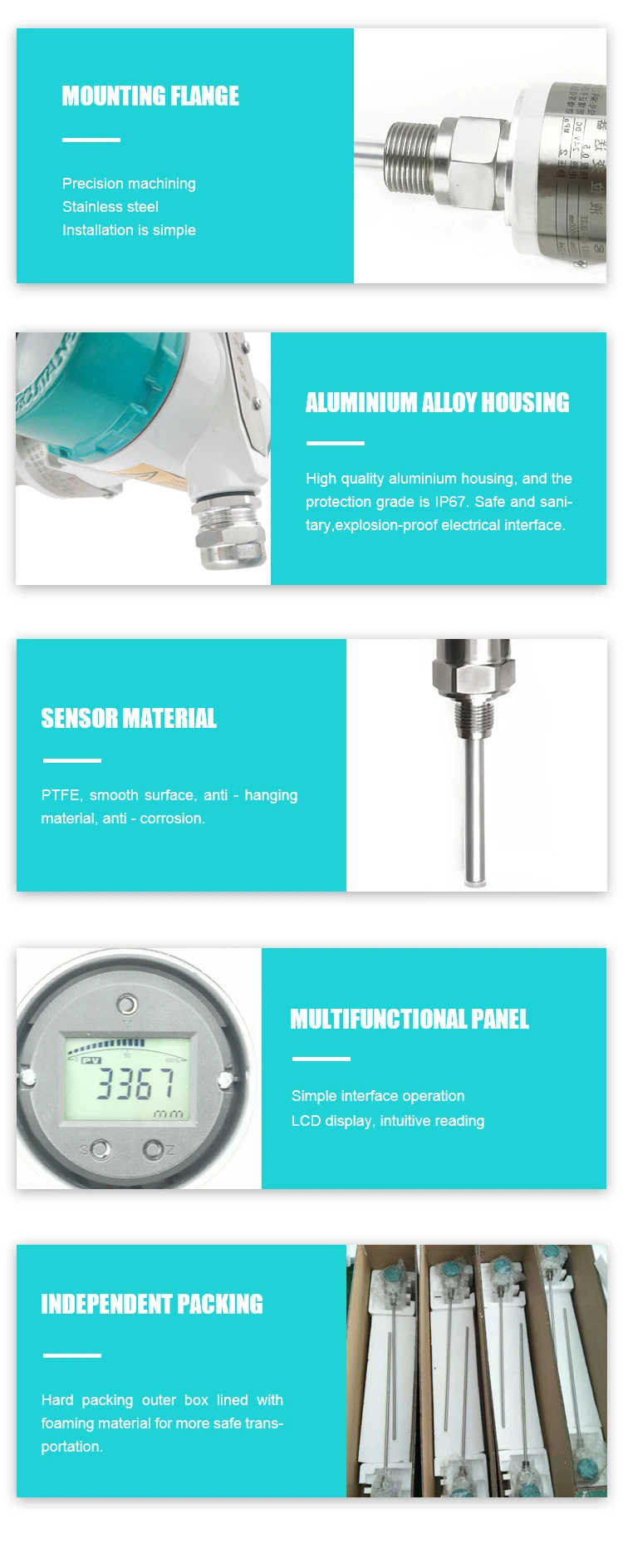

Housing:	IP65, cast aluminum housing

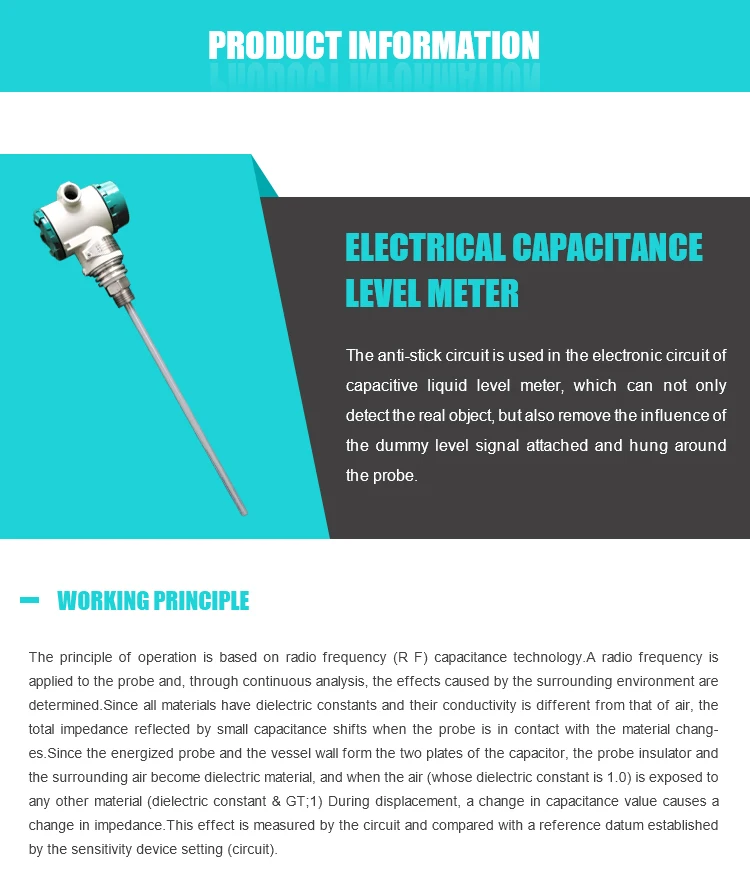

The working principle is based on radio frequency (RF) capacitor technology. A radio frequency is applied to the probe, and through continuous analysis, the influence caused by the surrounding environment is determined. Because all materials have a dielectric constant and their conductivity is different from air, the total impedance reflected by the slight capacitance shift when the probe is in contact with the material changes. Because the energized probe and the container wall constitute the two plates of the capacitor, the insulator of the probe and the surrounding air become dielectric materials. When the air (its dielectric constant is 1.0) is replaced by any other material (the dielectric constant> 1) When the capacitance value changes, the impedance changes. After this effect is measured by the circuit, it is compared with a reference established by the sensitivity device setting (circuit). The radio frequency admittance oil-water interface instrument can detect any process materials, such as refined oil, gasoline, conductive mud, etc.
